Front Runner SSDS602 Manuale utente
SSDS602_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
SSDS602
ENG
1
45 min
IMPORTANT WARNING!
Thank you for purchasing a Front Runner Deck Completion Set.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
Mitsubishi Triton (L200)
Deck Completion Set
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
SSDS602_REV_A00
2
© COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS

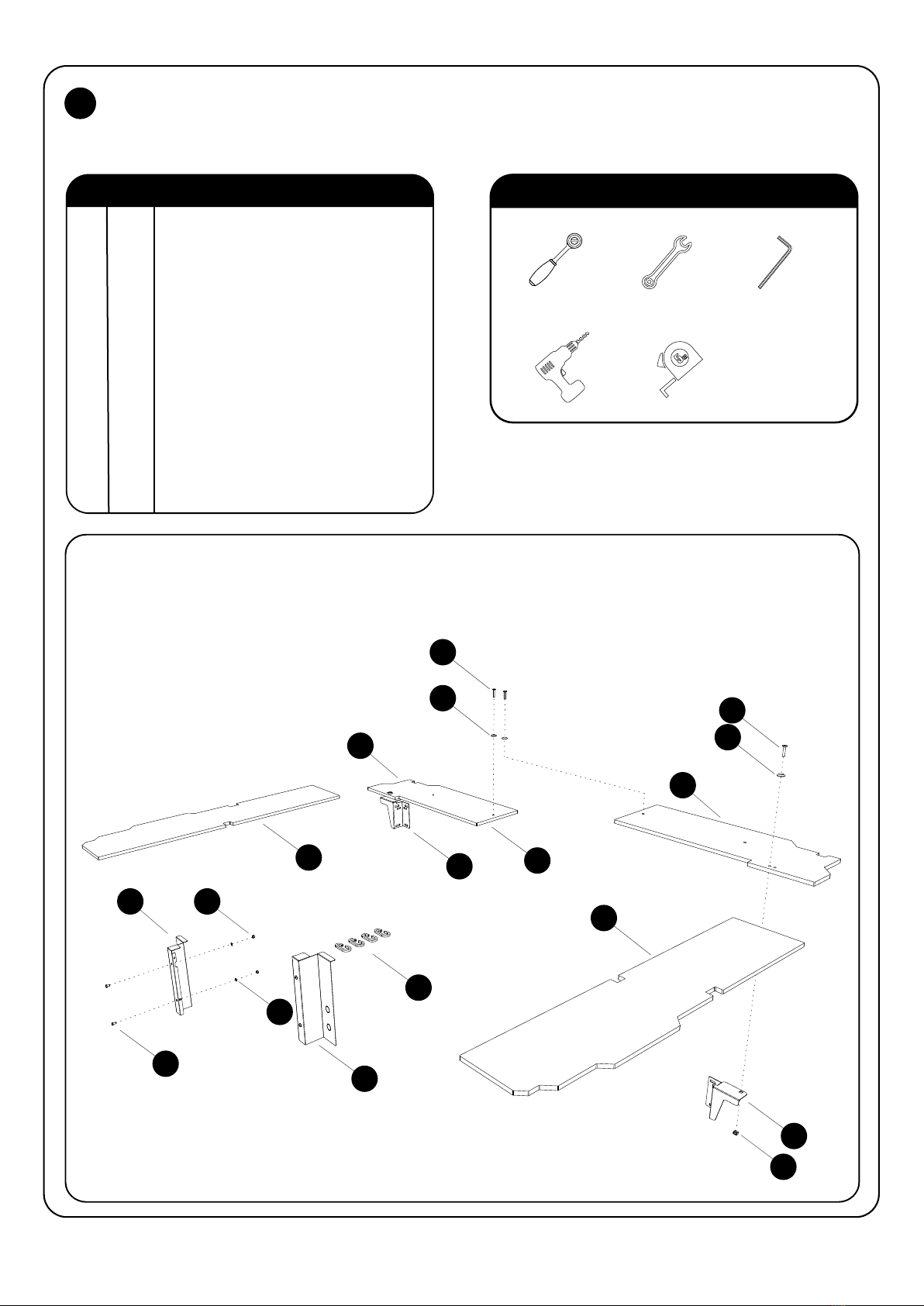

TOOLS NEEDED
13MM
10MM
13MM
10MM
1 1 X Side Deck LH
2 1 X Rear Deck LH
3 1 X Rear Deck RH
4 1 X Side Deck RH
5 1 X Front Face RH
6 1 X Front Face LH
7 4 X M6 x 12 Button Head
8 4 X M6 x 12 x 1SS Flat Washer
9 4 X M6 Nyloc Nut
10 4 X 60mm Carabiner
11 2 X M6 Cage Nut
12 1 X Rear Corner Wing Bracket RH
13 1 X Rear Corner Wing Bracket LH
14 4 X Finishing Washer
15 4 X M6 x 30 Countersink Screw
IN THE BOX
FIGURE 1.1
4mm
6.5MM
GET ORGANIZED
1
15
14
15
14
4
12
13
7
5
10
15
6
2
3
9
8
11
SSDS602_REV_A00
3
12
11

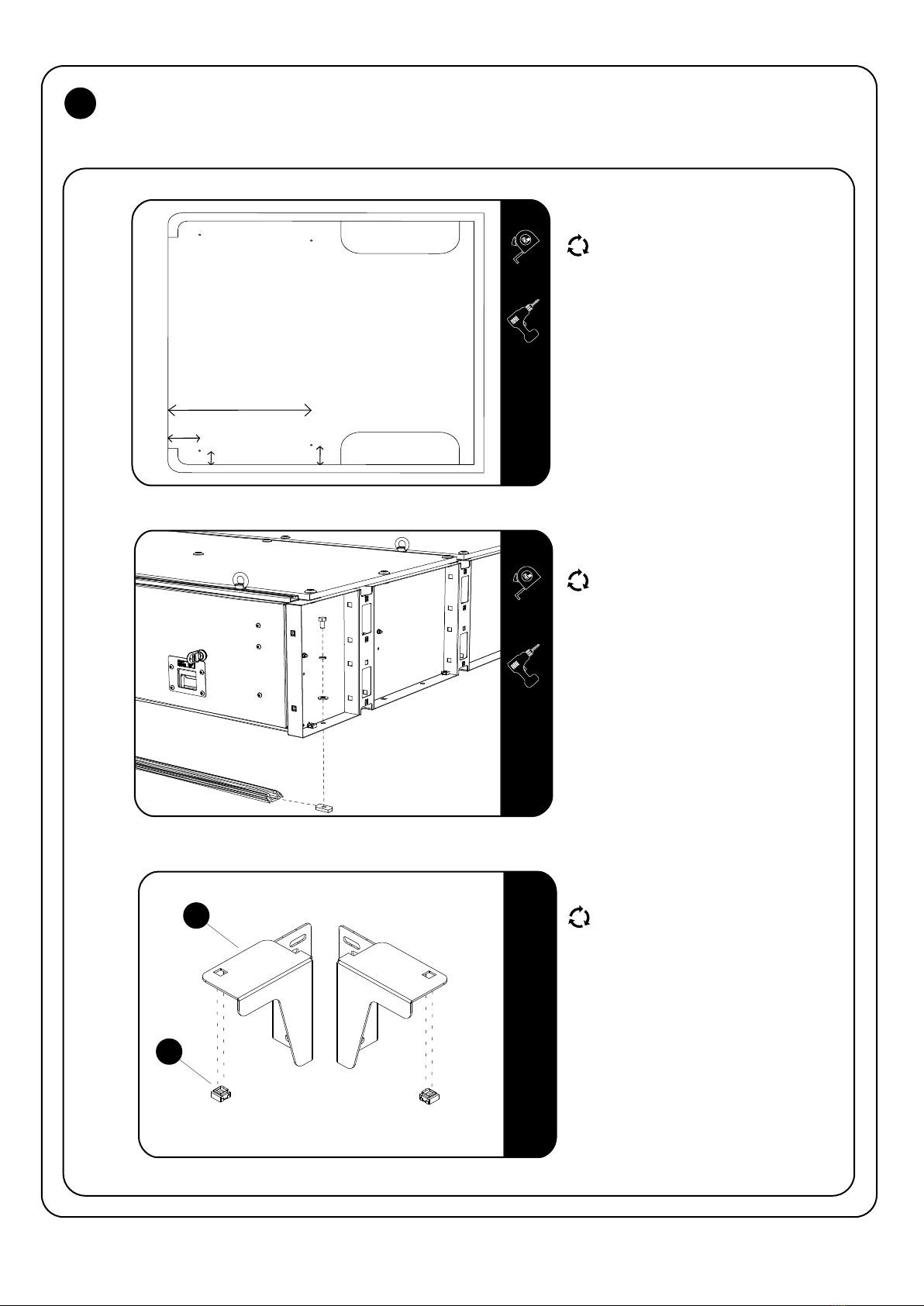

FIT AND SECURE
2
Before you start to fit the wing brackets to
the Drawer, clip the M6 Cage Nuts (Item 11)
into the Rear Corner Wings (Item 12 & 13)
supplied with SSDS602.
2.1
2.2
2.3
Using the measurements shown, measure
and mark the positions of the holes you
need to drill. Do this on both left and right
side of the loadbed.
Drill 6.5mm holes on the markings you just
made.
Slide 2 channel nuts into the track.
Center the track under the drawer
and secure with the fasteners as shown.
Refer to SSDR010 / SSWO008 fitting
instruction.
Place the Drawer System in the load-bed.
Center the Drawer System left to right and
space it 65mm from the rear of the loadbed.
6.5MM
6.5MM
775mm
160mm
80mm 130mm
Tail Gate
SSDS602_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
4
FIT AND SECURE
2
The rear support bracket is also part of
SSWS001. Fit and secure with the fasteners
supplied with SSWS001 as shown.
10MM
2.4
2.5
2.6
When fitting the Rear Corner Wing Brackets
(Item 12 & 13) take note of the position.
Item 12 & 13 needs to be placed on the
Drawer first, followed by the corner wing
supplied with SSWS001.
Use the fasteners supplied with SSWS001
to secure the wing brackets to the
Drawer System as shown.
Repeat this on the other rear corner of the
Drawer System.
Refer to the SSWS001 fitting instruction
to assemble the Wing Brackets before you
start to fit them to the Drawer.
After you have assembled the Wing
Brackets, fit them to the Drawer System
as shown.
Use the fasteners supplied with SSWS001.
Do the same on both sides of the Drawer
System.
10MM
4MM
10MM
Position First
Position Second
SSDS602_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
5
FIT AND SECURE
2
Secure the Front Faces (Item 5 & 6) to the
Wolf Box System (SSWO008) using
M6 x 12 button Heads, M6 x 12 x 1SS Flat
Washers and M6 Nyloc Nuts (Item 7, 8 & 9)
as shown.
Repeat this on the other side of the drawer.
2.7
2.8
2.9
Secure the Front Faces (Item 5 & 6) to the
Cage Nuts in the Drawer System (SSDR010)
using M6 x 12 Button Heads (Item 7)
as shown.
Repeat this on the other side of the drawer.
Secure the D-Rings supplied with
SSDR010/SSWO008 using the holes you
drilled in Step 2.1.
Use the Turnbuckles and 60mm Carabiners
supplied with SSDR010/SSWO008 to
secure the System to the loadbed as shown.
Tighten the Wing Nuts to prevent the
Turnbuckles from coming loose.
4MM
10
10
Securing Front Faces To SSDR010
Securing Front Faces To SSWS008
6
7
7
6
9
8
SSDS602_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
6
FIT AND SECURE
2
4MM
2.10
2.11
2.12
Fit the Side Decks (Items 1 & 4) to the
Drawer by sliding it into the C-Clips.
Position of all four Decks.
Fit the LH & RH Rear Decks (Items 2 & 3)
with M6 x 30 Countersink Screws and M6
Finishing Washers (Items 14 & 15) as shown.
15
14
3
1
4
3
2
SSDS602_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
7
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
5
4
Now's the time to visit your favorite Front Runner Dealer in person or Online.
COMPLETION
3
9
3.1
Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
10mm
Congratulations! You did it. Take a step back and admire your work!
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
