Front Runner LALD006 Manuale utente

front runner

LALD006

ENG

Thank you for purchasing a Front Runner Land Rover Defender 90 / 110 Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

LAND ROVER DEFENDER 90 / 110

LADDER

TOOLS NEEDED

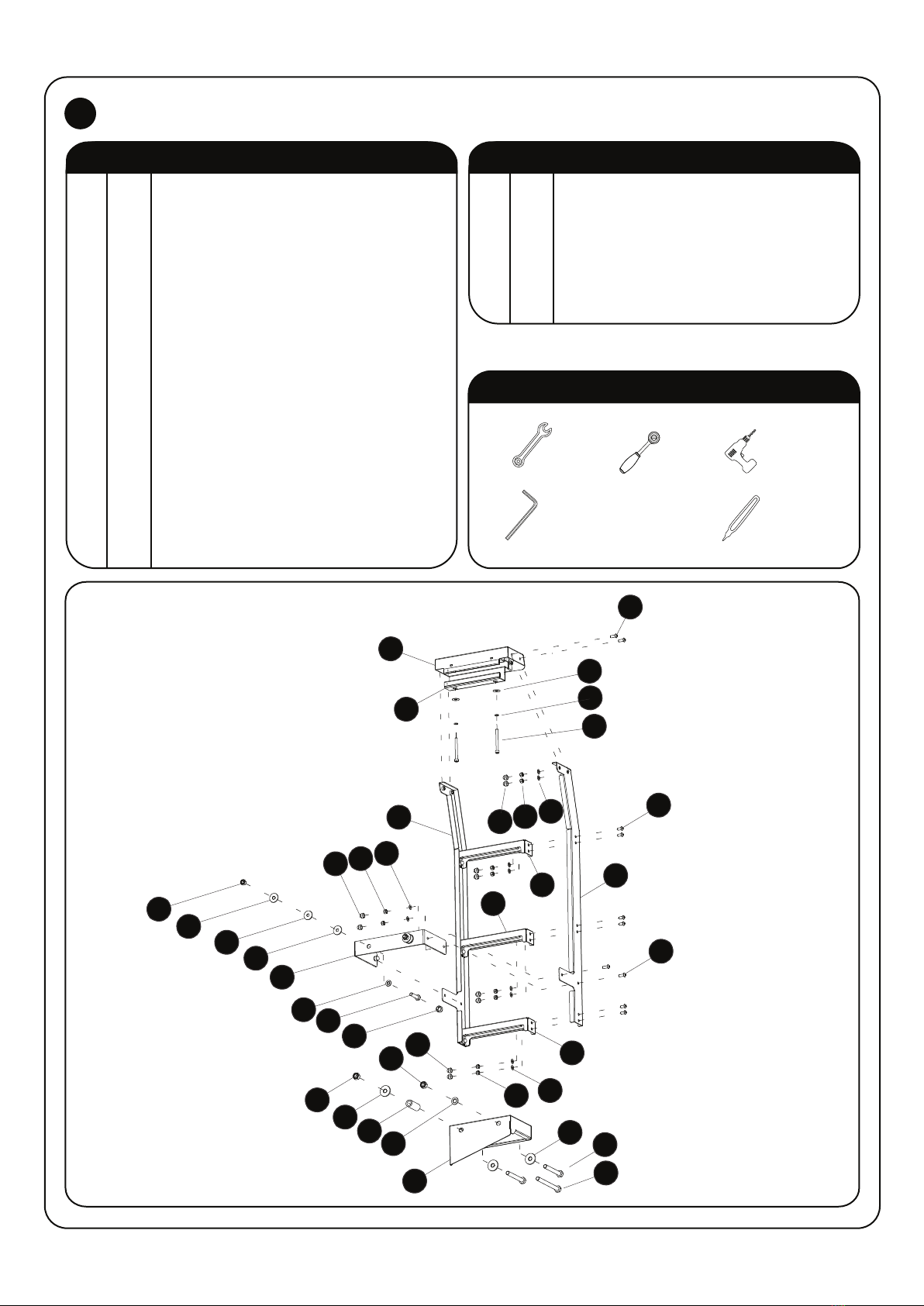

FIGURE 1.1

GET ORGANIZED

IN THE BOX

1 1 X Ladder Side - LH

2 1 X Ladder Side - RH

3 1 X Ladder Top

4 1 X Clamp

5 3 X Ladder Rung

6 1 X Bottom Step

7 1 X Support Bracket

8 12 X M6 x 12 Button Head Screw

9 24 X M6 x 12 x 1SS Flat Washer

10 24 X M6 Nyloc Nut

11 3 X M10 x 30 x 3 SS Flat Washer

12 2 X M10 x 80 Hex Head Bolt

13 2 X M6 x 19 x 1 SS Flat Washer

14 1 X M10 Flat Washer

15 1 X Spacer

16 2 X M10 Nyloc Nut

17 24 X M6 Nut Cap

18 2 X M8 Nut Cap

19 2 X M8 x 35 Hex Head Bolt

20 2 X M8 x 16 x 1.6SS Flat Washer

13mm

17mm 6mm

8.5mm

13mm

17mm

4mm

5mm

MARKER

17 10 9

IN THE BOX

21 2 X M6 x 60 Cap Screw

22 4 X PVC Washer

23 2 X M8 x 25 x 2 SS Flat Washer

24 2 X M8 Nyloc Nut

25 2 X M6 Spring Washer

26 8 X M6 x 16 Button Head Screw

27 1 X M10 x 100 Hex Head Bolt

17 10 9

2794

4685

0.5m

FIT AND SECURE2

2.1

2.2

2.3

Ensure that the Pinch Weld are assembled

onto the edges of the Ladder Top and the

Clamp as shown.

Assemble the three Ladder Rungs (Item

5) to the Ladder Sides (Items 1 & 2) using

M6 x 12 Button Head Bolts, M6 x 12 x 1SS

Flat Washers and M6 Nyloc Nuts (Items 8, 9

& 10) as shown.

Place M6 Nut Caps (Item 17) on all the Nyloc

Nuts.

4mm

10mm

17 10

Assemble the Support Bracket (Item 7) to

the Ladder Sides using M6 x 16 Button Head

Bolts, M6 x 12 x 1SS Flat Washers and M6

Nyloc Nuts (Items 9, 10 & 26) as shown.

Place M6 Nut Caps (Item 17) on all the Nyloc

Nuts.

4mm

10mm

2021

1790

1992

2794

4685

1.0m

0.5m

5cm

Scale: 1:25 All measurements in millimeters.

FIT AND SECURE2

2.4

2.5

2.6

Assemble the Ladder Top Assembly from 2.1

to the Ladder Sides using M6 x 16 Button

Head Bolts, M6 x 12 x 1SS Flat Washers and

M6 Nyloc Nuts (Items 9, 10 & 26) as shown.

Place M6 Nut Caps (Item 17) on all the Nyloc

Nuts.

Loosely insert two M6 x 60 Cap Screws with

M6 SS Spring Washers and M6 x 19 x 1SS

Flat Washers (Items 13, 21 & 25) through the

Clamp (Item 4) into the Ladder Top (Item 3)

as shown.

4mm

Swing open the Clamp. Fit the top asembly

into vehicle's gutter.

Align the Ladder with the edge of the door.

Inside the vehicle, remove the rear left

window cover and speaker box.

Check door clearance and make sure the

ladder is aligned straight with the door.

Mark the bottom two holes of the Ladder on

the vehicle's body and remove the Ladder.

Using a drill machine and a 6mm drill bit,

drill two pilot holes on your markings.

Change to a 8.5mm drill bit and drill the

holes to 8.5mm.

6mm

8.5mm

10mm

2021

1790

1992

2794

4685

1.0m

0.5m

5cm

Scale: 1:25 All measurements in millimeters.

FIT AND SECURE2

2.7

2.8

2.9

Place the ladder back onto the vehicle and

line up the holes in the bottom of the Ladder

with the holes drilled in 2.6.

Insert two M8 x 35 Hex Bolts and two M8

Flat washers (Item 19 & 20) through the

holes in the Ladder. Place two M8 PVC Flat

Washers (Item 22) over each bolt between

the vehicle and the Ladder. Secure on the

inside of the vehicle using two M8 Flat

Washers and two M8 Nyloc Nuts (Item 23 &

24).

Fully tighten the two M6 x 60 Cap Screw

clamping the Ladder to the gutter.

Reﬁt the rear window and speaker box cover

removed in 2.6.

Place M8 Nut Caps (Item 18) on the bolt

heads.

5mm

13mm

19 20

22 22

23 24

Remove the two orginal bolts from

the bumper and place the Bottom step

(Item 6) against the body, and align with

the two holes in the bumper as shown.

Refer to 2.9 and insert the M10 x 80 Hex

Bolt with a M10 x 30 x 3 Flat Washer (Item

11 & 12) into the right hole marked "A".

Behind the bumper insert the Spacer (Item

15) between the bumper and the "Tab"

attached to the body/bumper. Guide the Hex

Bolt through the Spacer and loosely fasten

using a M10 x 30 x 3 Flat Washer and M10

Nyloc Nut (Item 11 & 24).

For the left side marked "B", insert the M10

x 80 Hex Bolt and M10 x 30 x 3 Flat Washer

(Item 11 & 12) and loosely fasten using a

M10 Flat Washer and M10 Nyloc Nut (Item

14 & 24). If the original bolt went through

the chassis and the seat belt support bar,

use the M10 x 100 Hex Bolt (Item 27).

17mm

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

2021

1790

1992

FIT AND SECURE3

2.10

Align the Bottom step and Fully tighten all

bolts.

17mm
