Thank you for purchasing a Front Runner Toyota Rav4 Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

TOYOTA RAV4 (2019 -CURRENT)LADDER

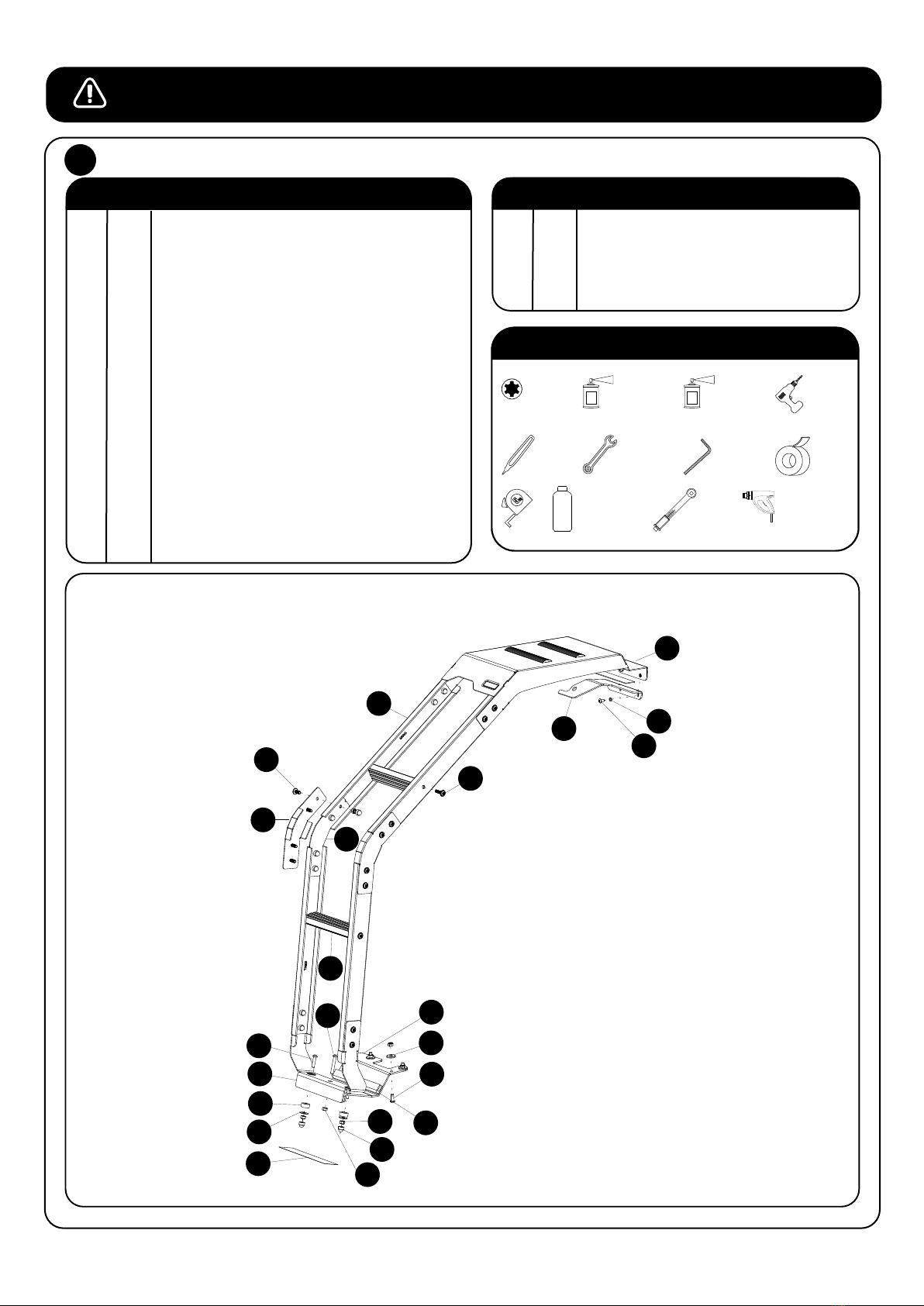

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

IN THE BOX

1 1 X Ladder Top Step Bracket

2 4 X Ladder Side Proﬁle

3 2 X Side Joiner Outer Plate

4 2 X Side Joiner Inner Plate

5 1 X Bottom Step

6 2 X Ladder Rung

7 1 X Hinge Bracket

8 1 X M6 x 40 Button Head Bolt

9 2 X M6 x 25 Button Head Bolt

10 2 X Aluminium Spacer

11 1 X Bottom Mount Bracket

12 4 X M6 x 19 x 1 Flat Washer

13 22 X M6 Nyloc Nut

14 18 X M6 Nut Cap

15 1 X M6 Hex Nut

16 4 X M6 x 16 Button Head Bolt

17 4 X M6 x 20 x 2 Flat Washer

18 4 X M6 x 25 Thread Forming Screw

IN THE BOX

19 16 X M6 x 16 Flange Button Head Bolt

20 2 X M5 Spring Washer

21 2 X M5 x 10 Button Head Bolt

22 1 X U-Channel Rubber (170mm Long)

23 1 X Clear Vinyl Strip

Torx

T30 Anti-

Rust

Anti-

Seize

3mm

4mm

7mm

Marker

10mm

19mm

Masking

Tape

Denatured

Alcohol

Torque Wrench

Heat Gun

(Cold Climate)

FIT AND SECURE

2.1

2.2

2.3

Loosely assemble two Ladder Side Proﬁles

(Item 2) to the Ladder Top Step Bracket

(Item 1) using the M6 x 16 Flange Button

Head Bolts and M6 Nyloc Nuts (Items 19 &

13).

Secure the Ladder Rungs (Item 6) to the

Ladder Side Proﬁles (Item 2) using M6 x 25

Thread Forming Screws (Item 18). Join Side

Proﬁles with Side Joiner Outer Plate and

Side Joiner Inner Plate (Items 3 & 4) using

M6 x 16 Flange Button Head Bolts and M6

Nyloc Nuts (Items 19 & 13). Fully Tighten all

Fasteners.

Place M6 Nut Caps (Item 14) over all Nyloc

Nuts.

Secure the Bottom Mount Bracket to the

Ladder Side Proﬁles (Items 11 and 2) using

M6 x 16 Flange Button Head Bolts and M6

Nyloc Nuts (Items 19 & 13). Fully Tighten all

Fasteners.

Place M6 Nut Caps (Item14) over all Nyloc

Nuts.

Apply a little Anti Seize / oil on Thread

Forming Screws before inserting. Note

these are thread forming screws.

Tightening Torque 8-10Nm /

5.9 ft lb - 7.38 ft lb. Take care when

using a cordless driver.

10mm

4mm

10mm

4mm

Torx

T30

2 6

Anti-

Seize

10mm

4mm

2 13

Note Side proﬁle orientation. The ladder

rungs are closer to the middle of the

ladder.

Top Side Proﬁles: Distance from Rung to

Top of Side Proﬁle is longer.

Bottom Side Proﬁles: Distance from

Rung to Bottom of Side Proﬁle is longer.

FIT AND SECURE

2.4

2.5

2.6

Loosen and remove the Right Hand OEM Bolt

on the Left Hand side Hinge on the inside of

the tailgate. Attach the Hinge Bracket (Item

7) to act as a guide for the placement of the

ladder.

Align the Ladder with the Hinge Bracket and

mark the top position with Masking Tape

and a marking pen.

Making sure it is level, mark the Bottom

position of the ladder with masking tape.

Remove the Ladder assembly.

Open the Tail Gate and remove the plastic

Liner to reveal the metalwork.

Place the U-Channel Rubber (Item 22) over

the door edge where the Bottom Mount

Bracket (Item 11) will be secured.

Align the Bottom Mount Bracket (Item 11)

with the markings made in Step 2.5. Lay

down some Masking Tape.

Mark the hole centers (C) as shown. Drill a

4mm Pilot hole and open up to 7mm.

Apply Anti-Rust on drilled holes.

Denatured

Alcohol

4mm

7mm

Anti-

Rust

FIT AND SECURE

2.7

2.8

2.9

Secure the Bottom Mount Bracket (Item 11)

to the Tail Gate with M6 x 16 Button Head

Bolts, M6 x x20 x 2 Flat Washers and M6

Nyloc Nuts (Items 16, 17 & 13)

Clean area thoroughly with alcohol.

Remove the backing tape of the self-adhe-

sive tape on the Ladder Top Bracket (Item1)

and hook the Ladder Assembly over the

Tail Gate top edge. Align the ladder on the

mark made earlier, take care not to let the

adhesive tape touch the roof. Once aligned,

angle the ladder down and ﬁrmly press the

top down onto the tailgate top.

Secure the Ladder assembly to the Bottom

Mount Bracket (Item 11) as shown.

Use the M6 x 40 Button Head Bolt and

Standard Nut (Items 8 & 15) in the middle

hole and start the clamping process, then

use the M6 x 25 Button Head Bolts, M6 x

19 x1 Flat Washers, M6 Nyloc Nuts and

Aluminium Spacers (Items 9, 12, 13 & 10)

in the other two holes. Remove the M6 x 40

Button Head Bolt and standard Nut.

Place M6 Nut Caps (Item 14) over M6 Nyloc

Nuts (Item 13).

4mm

Note: With the backing removed, heat

up the self-adhesive tape with a heat

gun before ﬁxing it in place. This is

especially important in colder climates.

10mm

4mm

10mm

Denatured

Alcohol

Heat Gun

(Cold Climate)

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

FIT AND SECURE

2.10

Secure the Top Step Bracket (Item 1) to the

Hinge Bracket (Item 7) using M5 x 10 Button

Head Bolts and M5 Spring Washers (Items 20

& 21)

Tighten all Fasteners.

19mm

3mm
