Front Runner SSDR002 Manuale utente

SUV Asymmetric

Drawers /Large

SSDR002

ENG

Thank you for purchasing a Front Runner Universal Drawer.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

TOOLS NEEDED

10MM

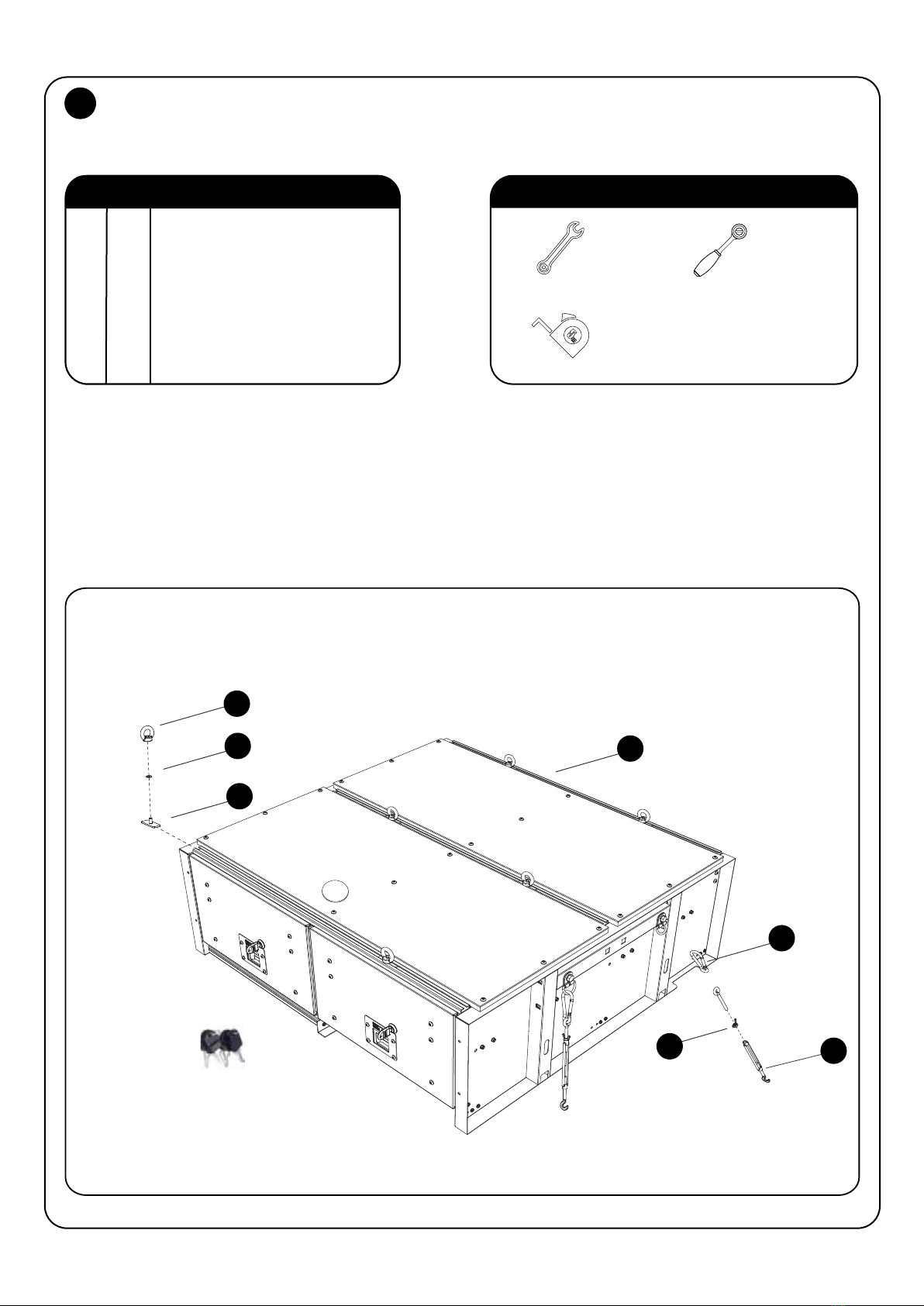

1 1 X Universal Drawer Large Pick-up

2 X Set Of Keys

2 6 X Eye Nut

3 6 X M8 Nylon Washer

4 6 X Stud Plate

5 4 X Carabiner

6 4 X M6 Wing Nut

7 4 X Turnbuckle

FIGURE 1.1

13MM

GET ORGANIZED

IN THE BOX

D-Ring

FIT AND SECURE

2.1

2.2

2.3

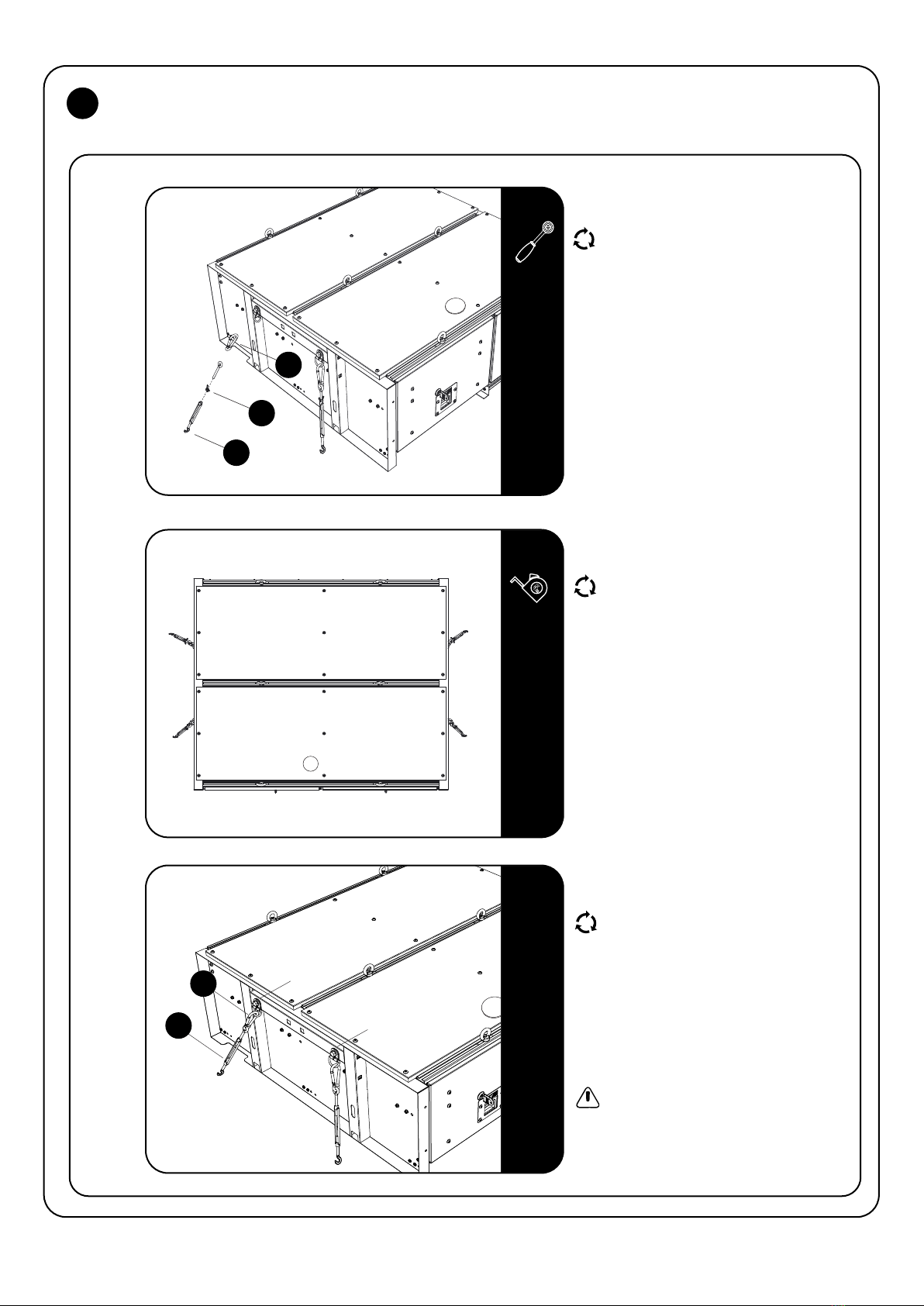

Assemble each of the 4

turnbuckles (item 12) with a wing nut

(item 10) as shown. The wing nut will be

used to lock the turnbuckles after they

have been set.

Place the drawer in the vehicle

and position as desired. Making

sure the turnbuckles are pulling

outward to prevent the drawer

from moving after it has been secured.

Connect the C-hooks (item 6) onto the

D-rings on the drawers upright.

Connect the turnbuckles (item 7) on the

other side of the C-hooks and hook it into

the tie-down that are ﬁtted to the

vehicle.

Secure the drawer by tensioning the

turnbuckles until there is no more

movement on the drawer. Make sure the

drawer stays in position when doing this.

Lock the turnbuckles with the wing nuts.

Do this by tightening the wing nuts up to

the turnbuckles.

Refer to diagram 2.1

10MM

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

FIT AND SECURE

2.4

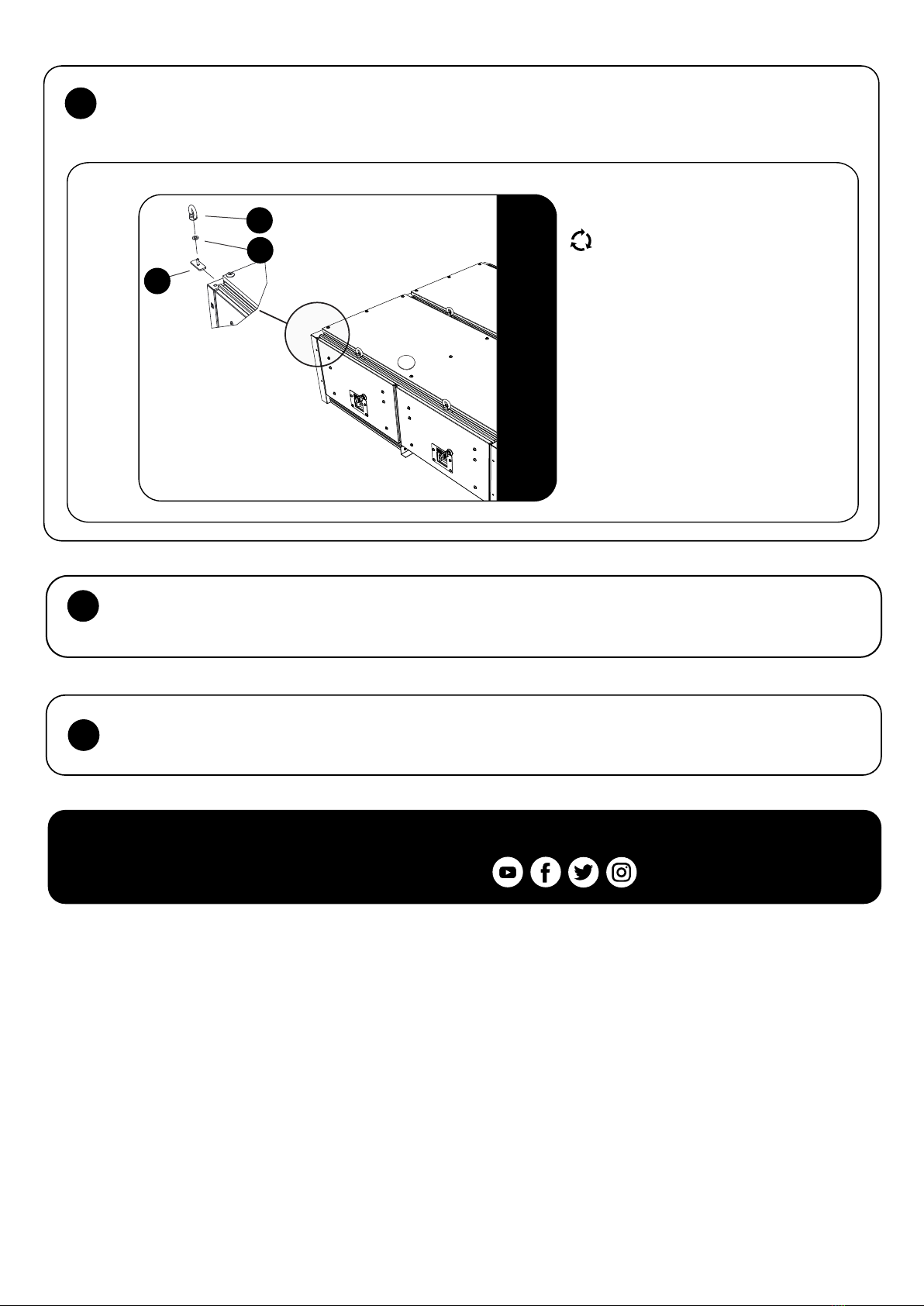

Assemble the eye-nuts (item 2) with a

M8 nylon washer (item 3) and a stud plate

(item 4) and slide them into place.
