Front Runner TRAC003 Manuale utente

ENG

120 min

IMPORTANT WARNING!

Don’t be a hero and muscle through this without ﬁrst reading these ﬁtting instructions! Improper installation of this gear may void certain aspects of

your warranty.

Before you begin, take a moment and open all your Front Runner rack kit boxes and gather the assembly instructions for the various components.

A complete kit will contain:

1. A Front Runner Mounting System speciﬁc to your vehicle

2. A Front Runner Rack Tray or Load Bar Slats

This document will guide you through the assembly of the mounting system and assist you in ﬁtting the roof rack tray or load bars to your speciﬁc

vehicle.

Please refer to the next page for a list of all the components, quantities and tools required.

TRAC003

READ ME FIRST

START HERE!

1800mm - 70.8 inch

Universal Track

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

IN THE BOX

FIGURE 1.1

IN THE BOX IN THE BOX

1GET ORGANIZED

Here is what you are looking at for TRAC003

IN THE BOX

1 10 X

2 2 X

3 2 X

4 10 X

5 10 X

M6 x 30 Counter Sunk Bolt

1800mm Roof Track

1800mm Protective Trim

M6x30x1 Flat Washer M6

Nyloc Hex Nut

IN THE BOX TOOLS NEEDED

10 mm

4mm

Allen Key

Measuring

Tape

IN THE BOX

Sealant

Hacksaw

Marker 4mm

7mm

Utility

Knife

TRAC003_REV_A00_MV

2.1

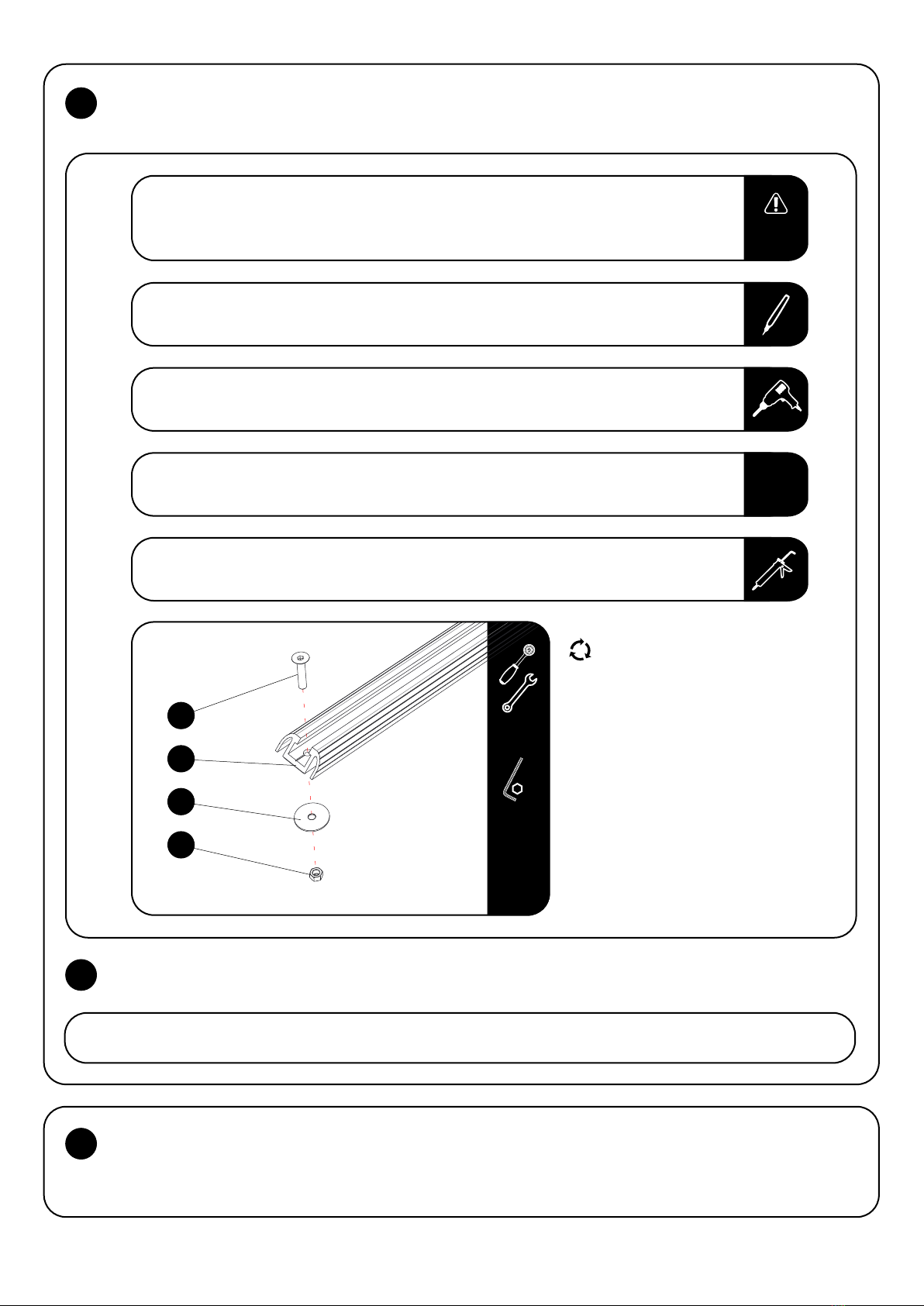

Remove the vehicles' interior head lining and factory ﬁtted roof rails if ﬁtted. Determine best possible

position for mounting the tracks. Positioning over the ditch molding is preferred and take care not to

drill into or through any reinforcements. Mesure and trim the tracks to the desired length.

FIT AND SECURE

10mm

2.6

Fit and secure the tracks with the

supplied fasteners. (Items 1, 4 and 5)

Reinstall vehicles interior head lining

removed in step 2.1

10mm

2.2

Once you are happy with the placement of the track, mark all the holes using a suitable marking pen.

2.3

Drill a 4mm pilot hole and then open up the pilot hole with a 7mm drill bit. Take care when drilling.

2.4

Peel off the double sided tape backing from the tracks (Item 2) and apply the protective rubber trim

(Item 3). Remove the excess with a craft knife.

2.5

Apply a bead of suitable sealant to each hole drilled in step 2.3

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or Online.

COMPLETION

Congratulations. You did it. Take a step back and admire your work!
