Front Runner LAVT003 Manuale utente

front runner

LAVT003

ENG

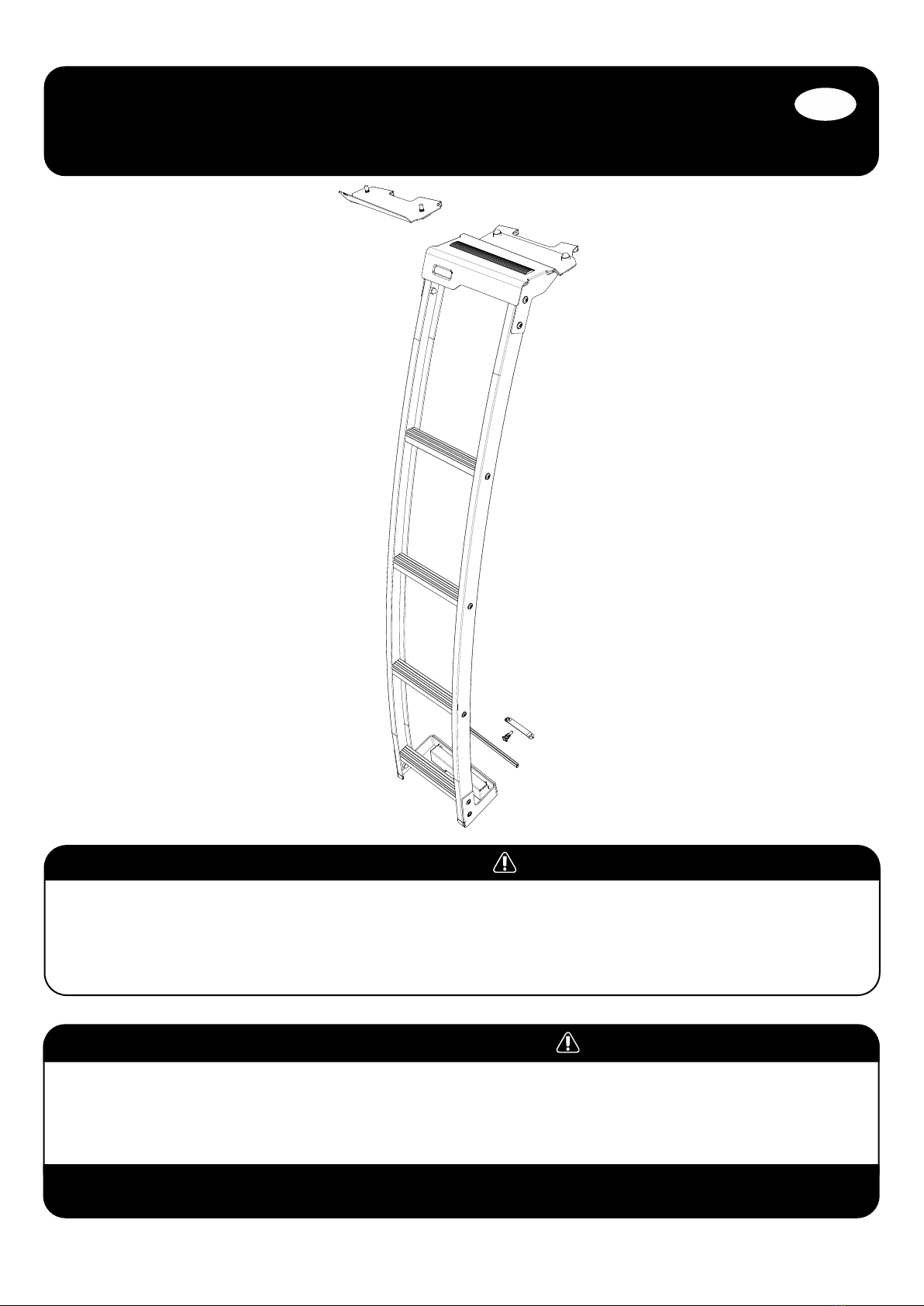

Thank you for purchasing a Front Runner Volkswagen T5/T6 Transporter Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

VOLKSWAGEN T5/T6 TRANSPORTER LADDER

6mm

12mm

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

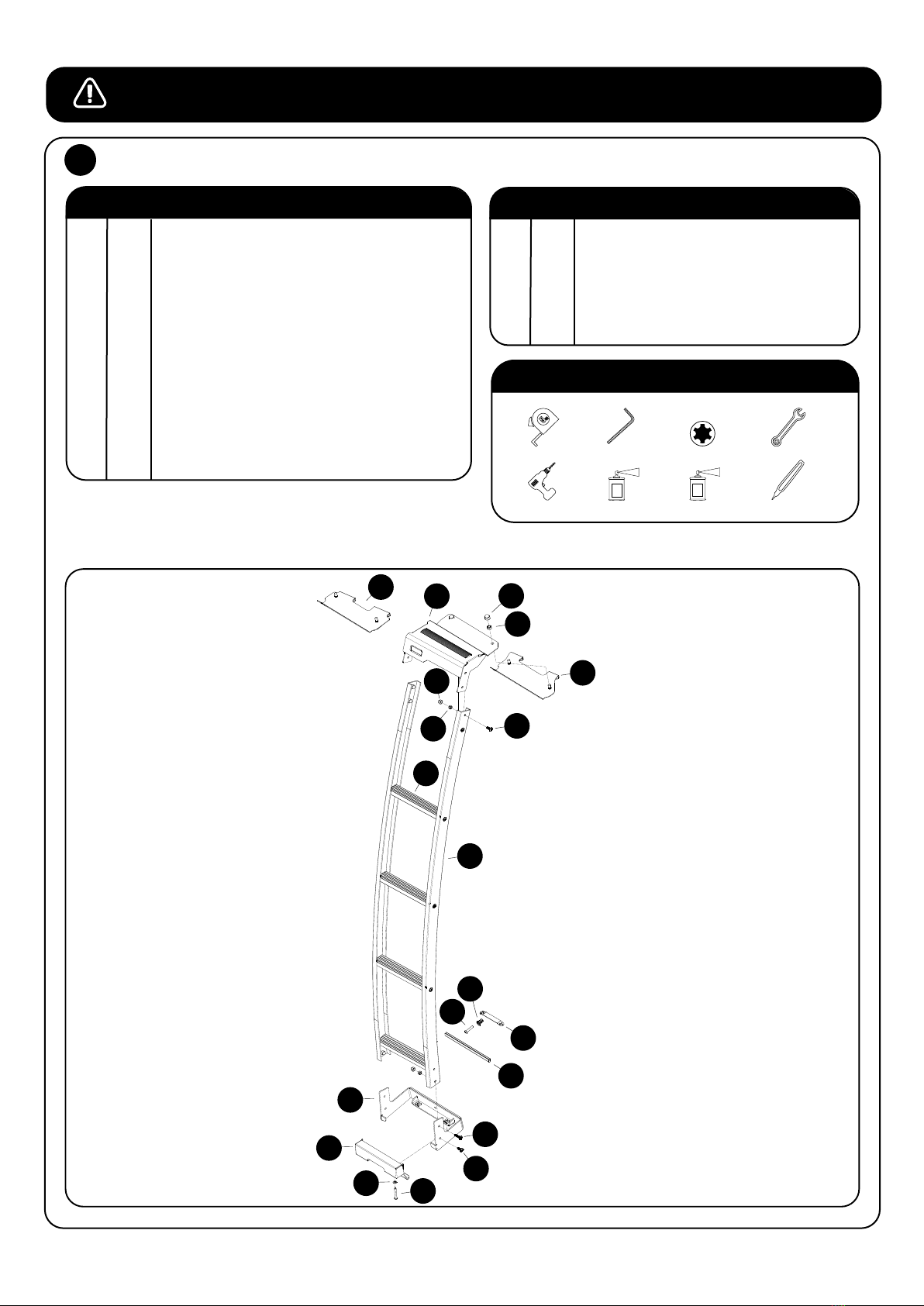

GET ORGANIZED

IN THE BOX

1 1 X T5 Stud Plate Tape Assembly

2 1 X Top Step

3 2 X Ladder Side

4 4 X Ladder Rung (228mm Long)

5 1 X Bottom Bracket Assembly

6 8 X M6 x 25 Thread Forming Screw

7 1 X Leg Clamp Bracket

8 2 X M6 x 12 x 1 Flat Washer

9 2 X M6 x 40 Button Head Bolt

10 1 X T6 Stud Plate Tape Assembly

11 6 X M6 x 16 Flange Button Head

12 6 X M6 Nyloc Nut

13 6 X M6 Nut Cap

5mm

1 X YES LAVT003_006 -

2 X YES LAVT003_004 -

3 X - LAVT003_012 -

4 X - LAVT003_013 -

5 X YES LAVT003_008 -

6 X - TSM6X25 -

7 X - LAVT003_020 -

8 X - FWM6X12X1 -

9 X - BHM6X40 -

10 X YES LAVT003_007 -

11 X - BHFM6X16 -

12 X - NNM6 -

13 X - NNC6 -

14 X - NNM8 -

15 X - NNC8 -

16 X - FC091 -

17 X - JNM6 -

18 1 X - BHM6X25 -

19 1 X - JNTM6 -

IN THE BOX

14 2 X M8 Nyloc Nut

15 2 X M8 Nut Cap

16 1 X Pinch Weld (200mm Long)

17 1 X M6 Jack Nut

18 1 X M6 x 25 Button Head

19 1 X Jack Nut Tool

Torx

T30/50

10mm

13mm

Anti-

Rust

Anti-

Seize Marker

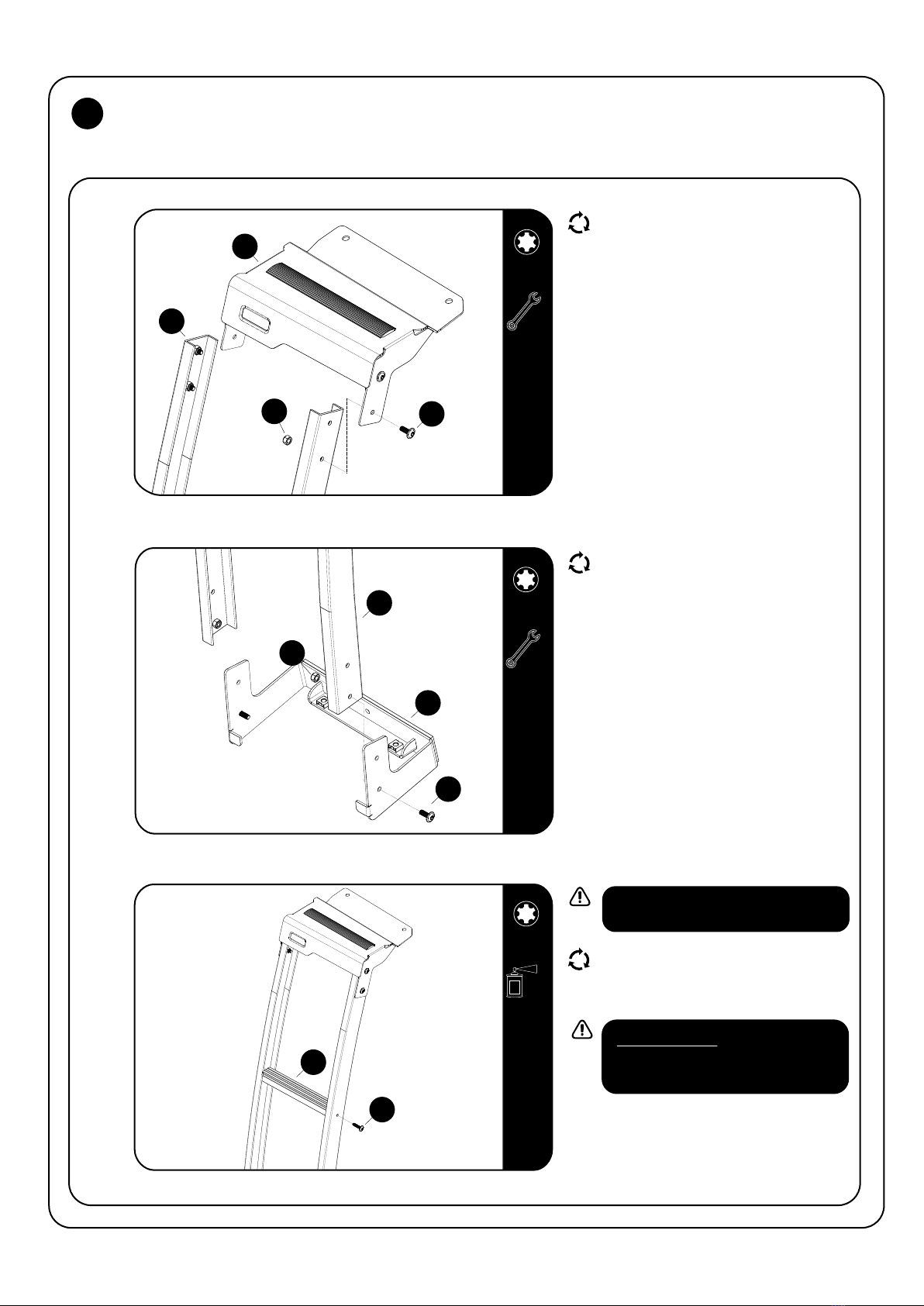

FIT AND SECURE

2.1

2.2

2.3

Loosly assemble the Top Step (Item 2) to the

Ladder Sides (Item 3) using M6 x 16 Flange

Button Head Bols and M6 Nyloc Nuts (Items

11 & 12).

Loosly assemble the Bottom Bracket

(Item 5) to the Ladder Sides (Item 3) using

M6 x 16 Flange Button Head Bols and M6

Nyloc Nuts (Items 11 & 12).

Secure the Ladder Rungs (Item 4) to the

Ladder Sides (Item 3) using M6 x 25 Thread

Forming Screws (Item 6).

Fully tighten all fasteners.

Place M6 Nut Caps (Item 13) over all Nyloc

Nuts (Item 12).

Apply a little Anti seize/oil on screw

threads before inserting.

Tightening Torque:

M6 : 8-10Nm / 5.9 ft lb - 7.38 ft lb

Torx

T30

10mm

Torx

T30

10mm

Torx

T30

Anti-

Seize

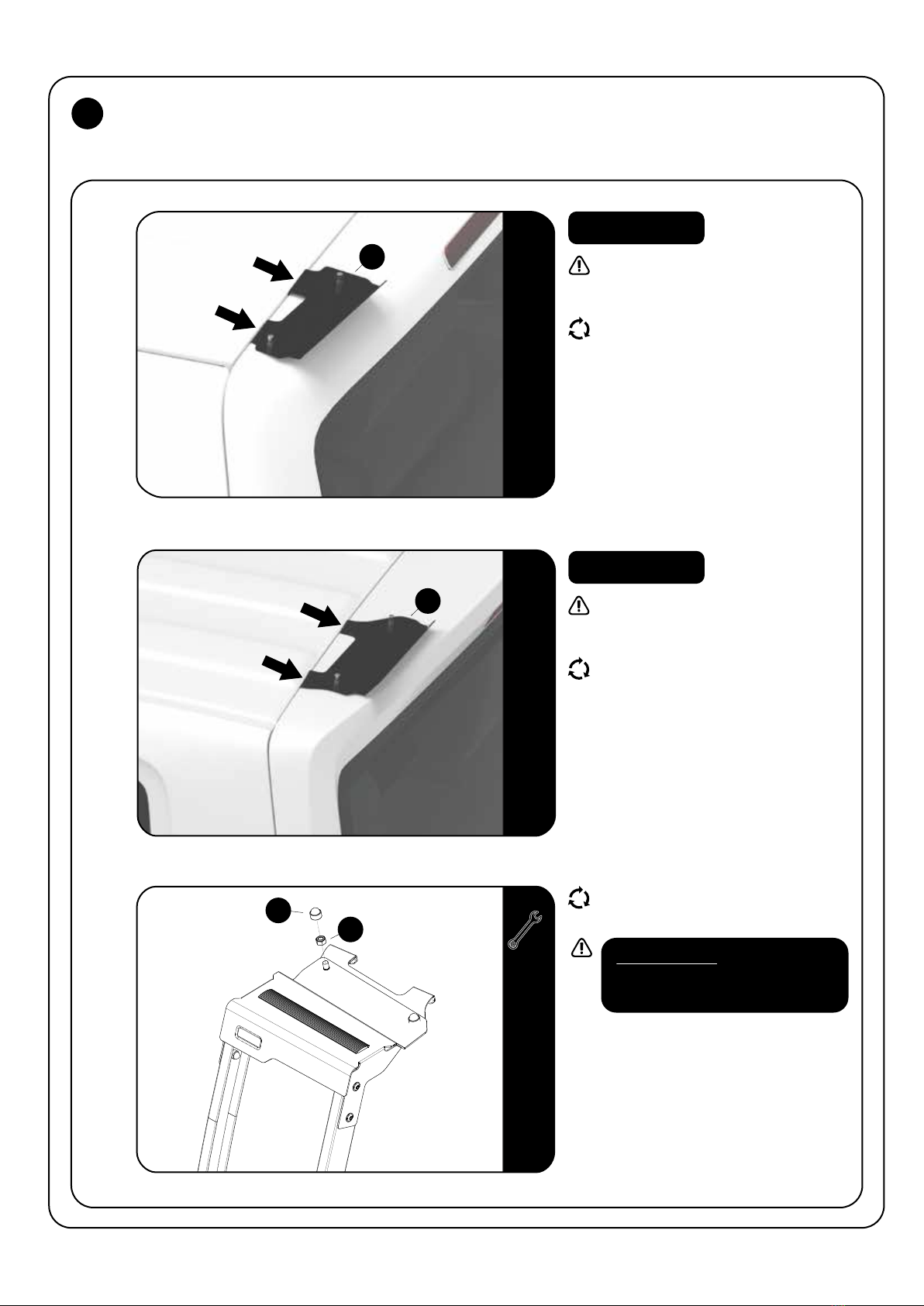

FIT AND SECURE - T5 OR T6 TOP BRACKET

3.1

3.2

3.3

Ensure rubber strip is placed under the

bracket.

Hook the T5 - Ladder Top Mount (Item 1)

over the top edge of the Rear Door.

Pull the top lip against the top left edge of

the rear door as shown.

13mm

Secure the Ladder assembly from 2.3 to the

Top Mount Bracket as shown using a M8

Nyloc Nut and, and fully tighten.

Place M8 Nut Caps (Item 15) over all M8

Nyloc Nuts (Item 14).

Tightening Torque:

M8 : 15-20Nm / 11.06 ft lb - 14.75 ft lb

Ensure rubber strip is placed under the

bracket.

Hook the T6 - Ladder Top Mount (Item 10)

over the top edge of the Rear Door.

Pull the top lip against the top left edge of

the rear door as shown.

T5 - TOP BRACKET

T6 - TOP BRACKET

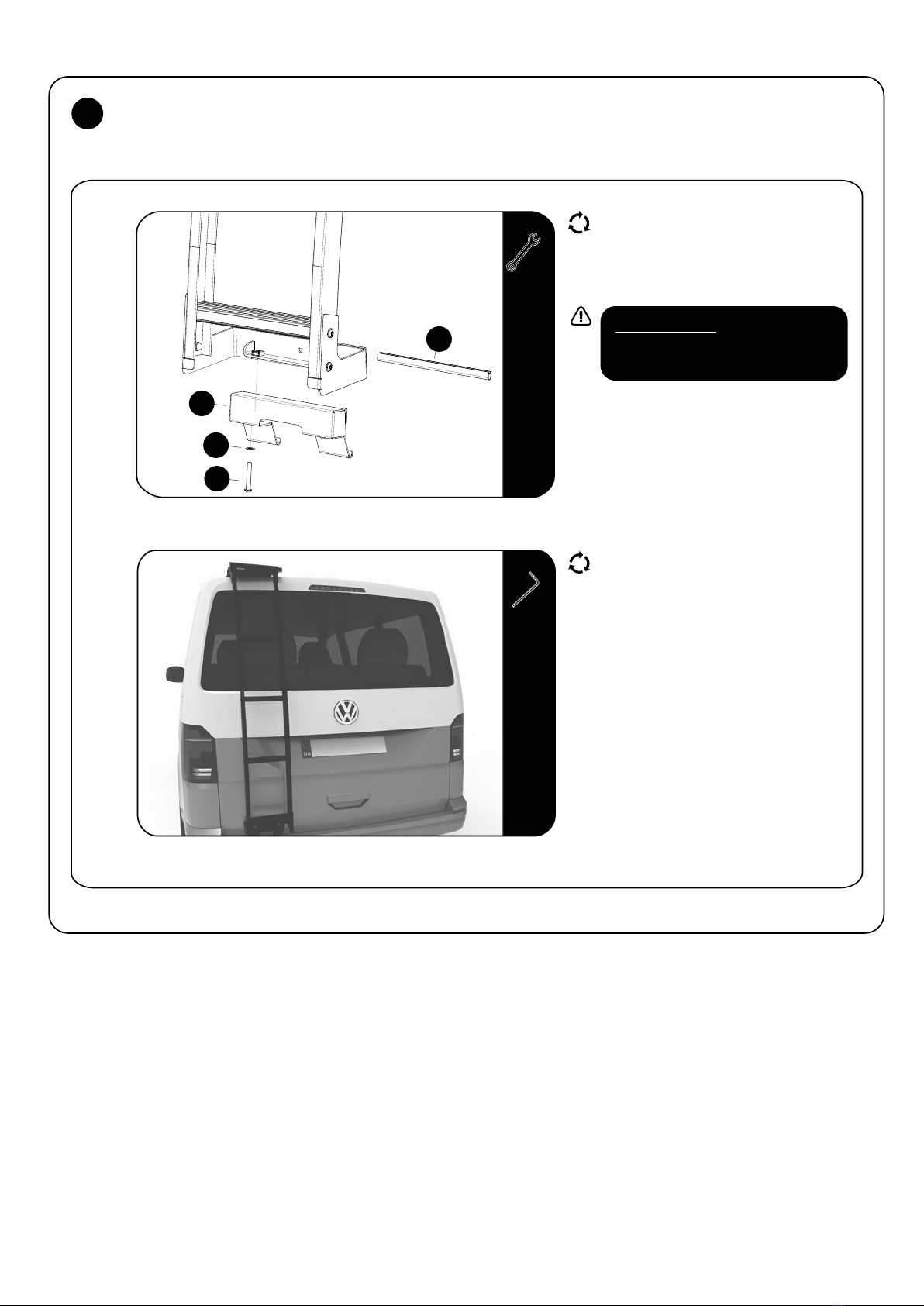

FIT AND SECURE - T5 OR T6 TOP BRACKET

3.4

3.5

For permanent ﬁtment refer to page 6.

13mm

4mm

Place the Pinch Weld on the vehicle door,

where the Leg Clamp Bracket will sit.

Hook the Leg Clamp Bracket (Item 7) over

the rear hatch and secure to the ladder

assembly using M6 x 40 Button Head Bolts

and M6 x 12 x 1 Flat Washers (Items 8 & 9)

Tightening Torque:

M6 : 8-10Nm / 5.9 ft lb - 7.38 ft lb

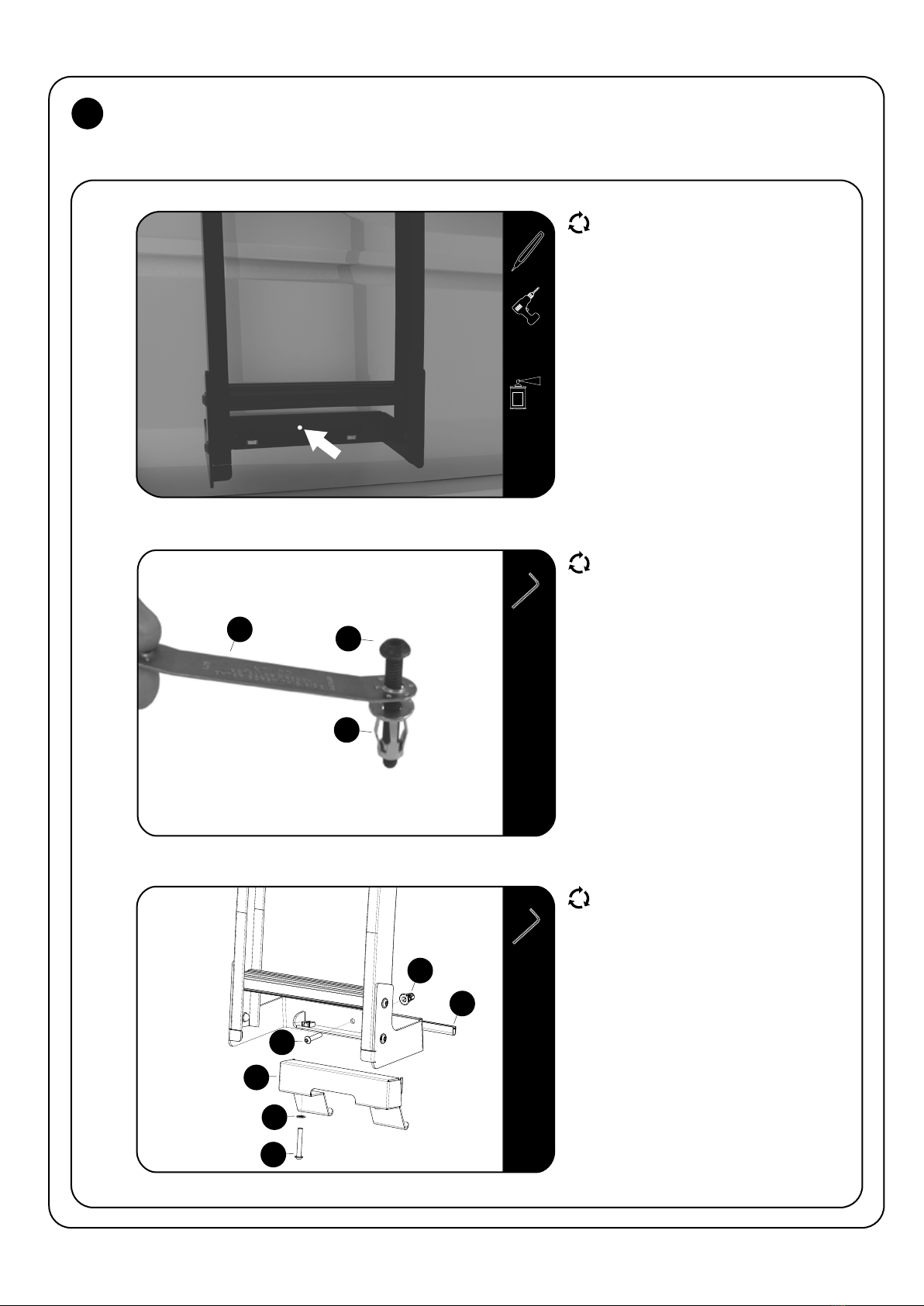

FIT AND SECURE - PERMANENT FITMENT

4.1

4.2

4.3

Remove the Leg Clamp Bracket (Item 7) and

mark the centre of the hole as shown.

Remove the Ladder.

Drill a 6mm pilot hole and open to 12mm.

Apply Anti-Rust around all holes drilled.

Insert a M6 x 25 Button Head Bolt (Item 18)

into the Jack Nut Tool (Item 17) and loosely

ﬁt a Jack Nut (Item 19) to the button head

bolt as shown.

Using the Jack Nut Tool and a M6 x 25 button

head bolt, set the M6 jack nut into both the

holes, opened in step 6.1.

Using a cordless driver and a 4mm allen

cordless bit, set the jack nut into the hole

while holding the Jack Nut Tool, to prevent

the Jack Nut from turning.

Secure the Ladder to the rear hatch using a

M6 x 25 Button Head Bolt (Item 18).

Place the Pinch Weld (Item 16) on the

vehicle door, where the Leg Clamp Bracket

will sit.

Hook the Leg Clamp Bracket (Item 7) over

the rear hatch and secure to the ladder

assembly using M6 x 40 Button Head Bolts

and M6 x 12 x 1 Flat Washers (Items 8 & 9)

6mm

12mm

Anti-

Rust

4mm

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
