Front Runner RRAC137 Manuale utente

Pro Canoe &

Kayak Carrier

front runner

RRAC137

ENG

Thank you for purchasing a Front Runner Pro Canoe & Kayak Carrier.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

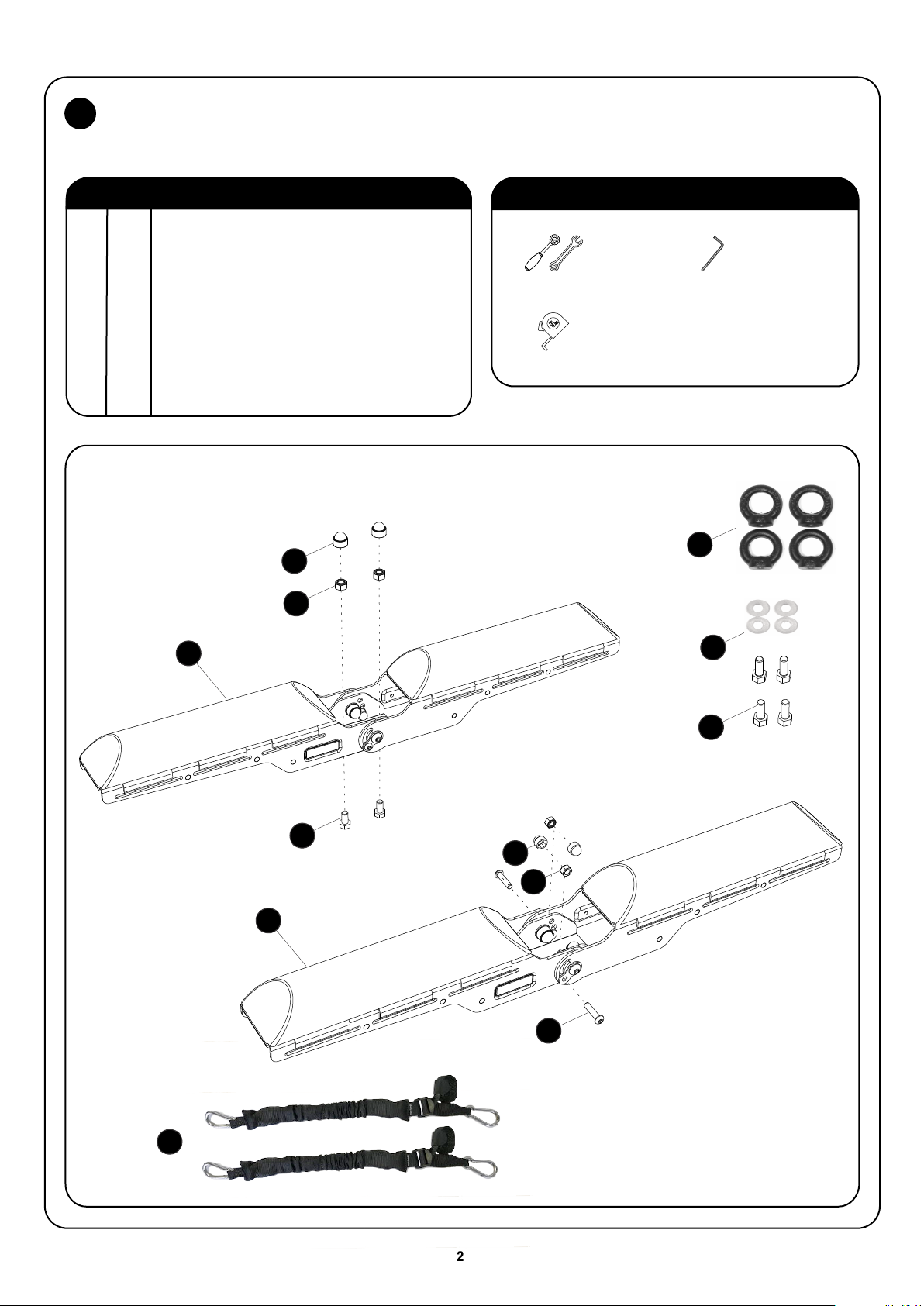

TOOLS NEEDED

FIGURE 1.1

GET ORGANIZED

IN THE BOX

1 2 X Pro Canoe & Kayak Carrier

2 8 X M8 x 20 Hex Bolt

3 4 X M8 Nyloc Nut

4 4 X M8 Nut Cap

5 4 X M6 x 25 Button Head

6 4 X M6 Nyloc Nut

7 4 X M6 Nut Cap

8 1 X Stratchit with Carabiner (Pair)

9 4 X M8 Eye Nut

10 4 X M8 Nylon Washer

4mm

13mm

10mm

A(2:1)

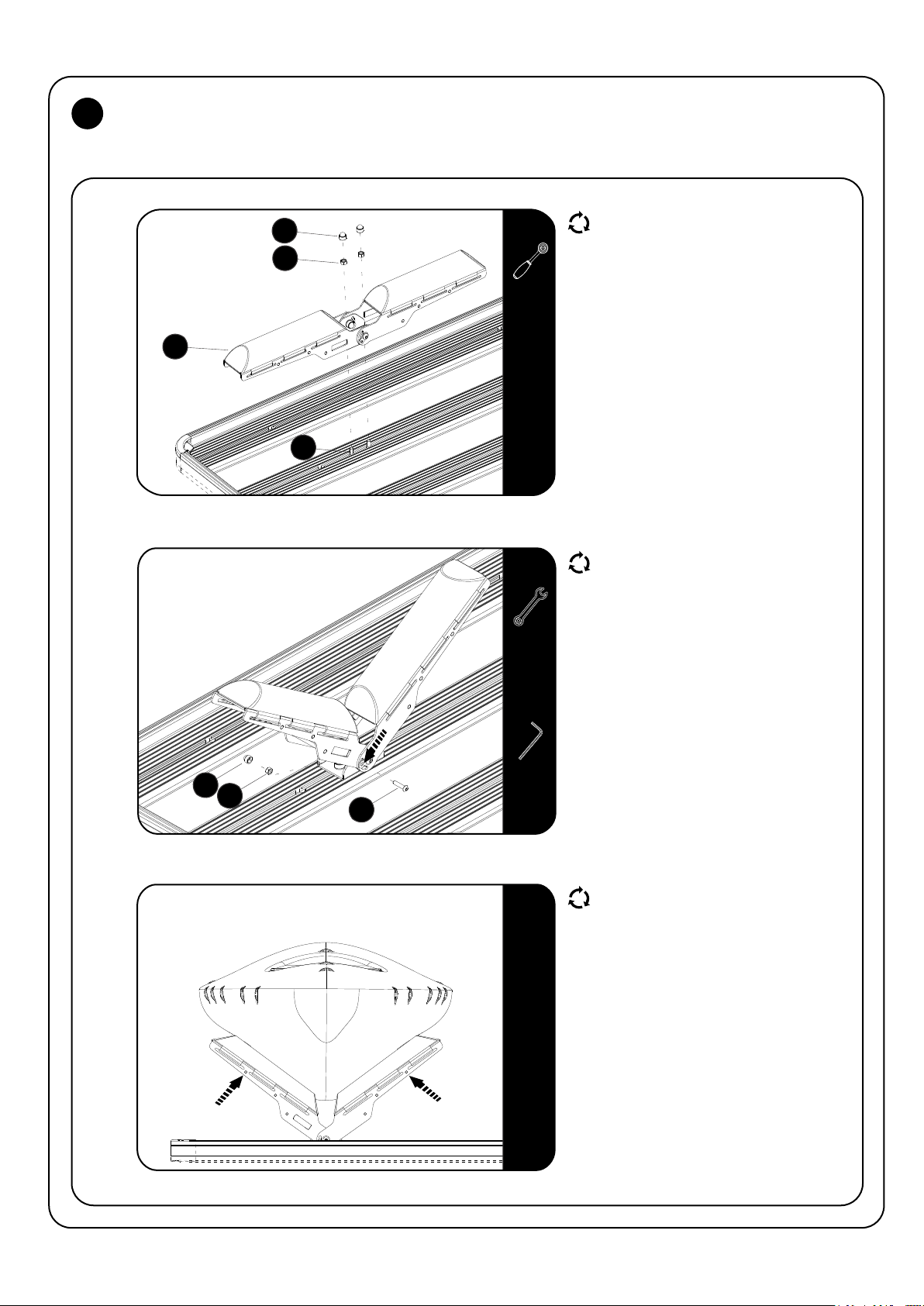

FIT AND SECURE2

2.1

2.2

2.3

4mm

10mm

13mm

Decide where on your rack you would like

to place your Pro Canoe / Kayak Carriers

(Item 1). Work out the correct spacing

between the two Carriers according to the

the length of what you are carrying.

Slide four M8 x 20 Hex Bolts (Item 2) into the

machined slot of each of the two chosen

slats. Place each Carrier over two Hex Bolts.

Loosely fasten the Carriers to the rack using

M8 Nyloc Nut (Item 3) as shown.

Position the two Carriers left to right as

required and fully tighten all the Nyloc Nuts.

Place an M8 Nut Cap (Item 4) over each of

the Nyloc Nuts.

Each Carrier has three settings, allowing

you to adjust the angle. (Refer to Step 2.3).

Loosen and remove the two M6 x 25 Button

Head Bolts (Item 5).

Adjust the Carrier up or down as required,

aligning the hole on the outside of the

Carrier with one of the three adjustment

holes on the inside of the Carrier.

Lock the Carrier in the chosen position by

using the M6 x 25 Button Head and

M6 Nyloc Nuts (Items 5 & 6) removed earlier

and fully tighten.

Place M6 Nut Caps (Item 7) over the Nyloc

Nuts.

Secure your Kayak / Canoe using the

Stratchits supplied. The carabiners are

attached to the Carriers on one of the cross

bars as indicated in Step 2.3.

Should your Kayak be extra wide, the

Stratchits can be attached to the M8 Eye

Nuts (Item 9) by ﬁxing them in the T- Slots

of your Rack, using M8 x 16 Hex Bolts and

M8 Nylon Washers (Items 2 & 10).

FIT AND SECURE2

2.4

2.5

If you want to create more space on your

rack, the Pro Canoe / Kayak Carrier can be

mounted to the left or right side, overhanging

the rack as shown. (Refer to Step 2.5)

Adjust one arm of the Carrier up or down as

required, aligning the hole on the outside of

the Carrier with one of the ﬁve adjustment

holes on the inside of the Carrier.

Fasten the Carrier in position using M6 x 25

Button Bead and M6 Nyloc Nuts

(Items 5 & 6) as shown removed earlier.

Place M6 Nut Caps (Item 7) over the Nyloc

Nuts.

Secure your Kayak/Canoe using the

Stratchits (Item 8) supplied. The Carabiners

are attached to the Carriers on one of the

cross bars as indicated or by using the M8

Eye Nuts, M8 Nylon Washers and M8 x 16

Hex Bolts and ﬁxing them in a suitable

T-slot on your Rack.

4mm

10mm

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
