Front Runner RRAC105 Manuale utente

ENG

15 min

Rotopax Mounting Plate

IMPORTANT WARNING!

Thank you for purchasing a Front Runner Rotopax Mounting Plate.

Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE.

IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH.

YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.

THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE.

IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES,

YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

RRAC105

READ ME !

IN THE BOX

FIGURE 1.1

1 1 X RotoPax Mounting Plate

2 6 X M8 Nut Cap

3 6 X M8 Nyloc Nut

4 6 X M8x16x1.6ss Flat Washer

5 6 X M8x16 Hex Bolt

IN THE BOX TOOLS NEEDED

IN THE BOX

13MM

1GET ORGANIZED

Here is what you are looking at for RRAC105

FIT AND SECURE

2.2

2.3

2.4

2.1

2.2

2.3

Fit 2 RotoPax RX-PM Pack mounts to the

Rotopax mounting plate (item1).

Fasteners are supplied with the

RotoPax RX-PM Pack mounts.

Place the Rotopax over the RotoPax RX-PM

Pack mounts and tighten.

13MM

Slide 2 M8x16 hex bolts (item 5) into each of

the 2nd, 3rd and 4th slats t-slot. Place the

Rotopax mounting plate (item 1) over the

bolts. Move the mounting plate into the

desired position by using the Rotopax

tank before securing it with items 3 and 4.

Finnish it of by placing a M8 nut cap

(item 2) over each of the 6 nyloc

nuts (item 3).

RotoPax RX-PM Pack mounts

2nd

3rd

4th

Rotopax

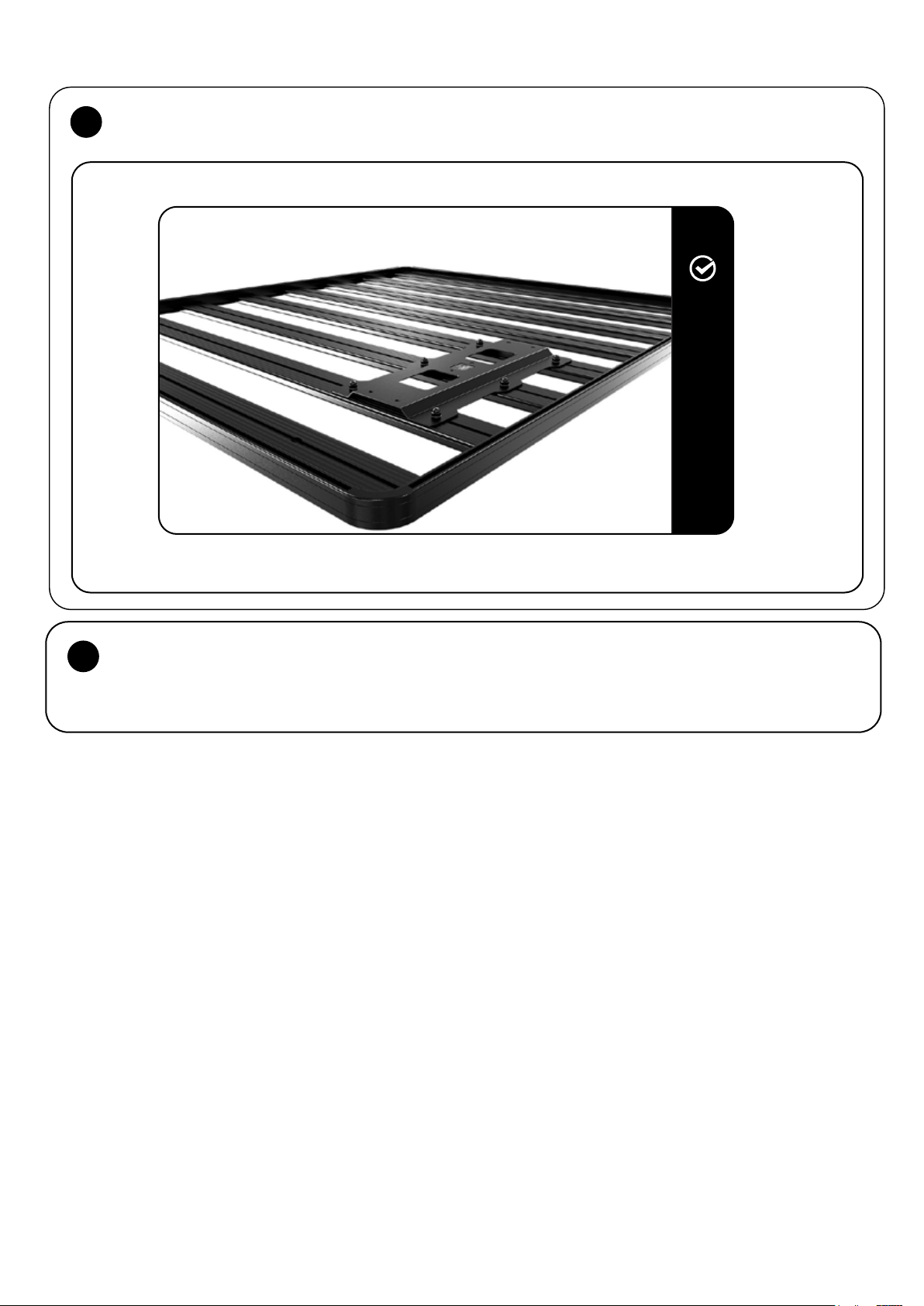

COMPLETION

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

3.1

Congratulations. You did it. Take a step back and admire your work!
