Front Runner RRAC178 Manuale utente

front runner

RRAC178

ENG

Thank you for purchasing a Front Runner Rack Mount Shower Cubicle.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

Rack Mount Shower Cubicle

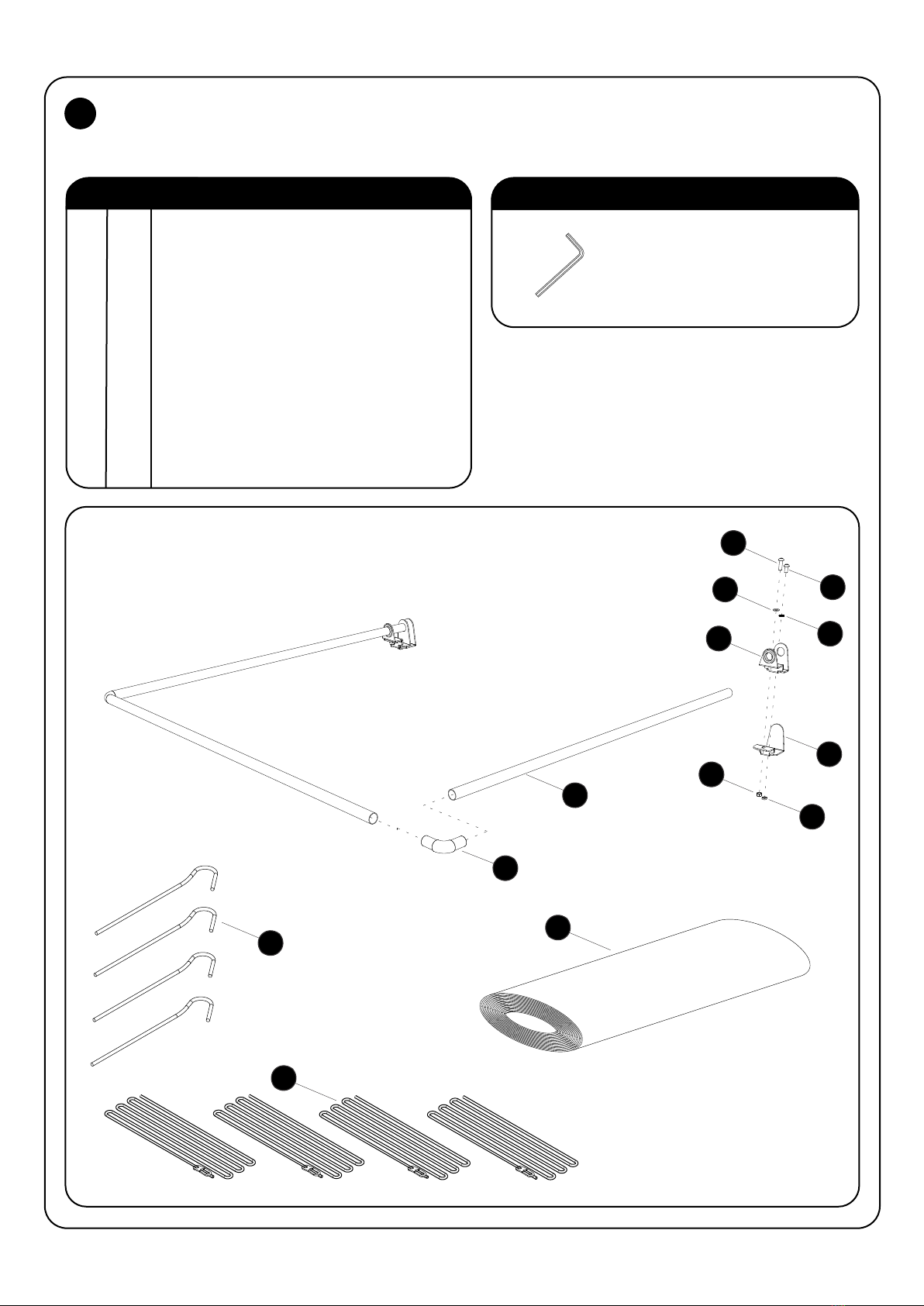

TOOLS NEEDED

FIGURE 1.1

GET ORGANIZED

IN THE BOX

1 1 X Shower Cubicle Kit

4 X Peg

4 X Guy Rope and Tensioner

2 3 X Poles

3 2 X Top Bracket

4 2 X Bottom Bracket

5 2 X Elbow

6 2 X M8 x 16 Button Head Bolt

7 2 X M8 x 25 Button Head Bolt

8 2 X M8 Schnorr Washer

9 2 X M8 x 16 x 1.6SS Flat Washer

10 2 X M8 Thin Nut

11 2 X M8 Nyloc Nut

5mm

FIT AND SECURE2

2.1

2.2

2.3

Determine where you want to mount your

Shower Cubicle on the side of your Front

Runner Rack.

The Shower Cubicle frame spans over six

slats.

Slide two M8 Nyloc Nuts (Item 11), nyloc

facing down in the side proﬁle using the

opening on the inside of the corner as show.

Align the nuts with slat 1 and slat 6. See 2.2.

Slide two M8 Thin Nuts (Item 10) into the

chosen slats using the machined slots as

shown.

Secure the Top and Bottom Brackets (Items

3 & 4) to the rack using M8 x 16 Button Head

Bolts, M8 x 25 Button Head Bolts, M8 x 16

x 1.6SS Flat Washers, M8 Schnorr Washers

(Items 6, 7, 8 & 9) and the nuts inserted in

2.1 as shown

Insert two Poles (Item 2) through both the

holes in the Top Bracket (Item 3) as shown.

4mm

FIT AND SECURE2

2.4

2.5

2.6

Slide the Curtain onto one of the Poles

inserted in 2.3.

Insert the Elbows (Item 5) into each end of

the third Pole (Item 2).

Slide the other ends of the Elbows into the

two Poles inserted in 2.3 as shown.

Close the Cubicle by slide it along the rail to

the other side.

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

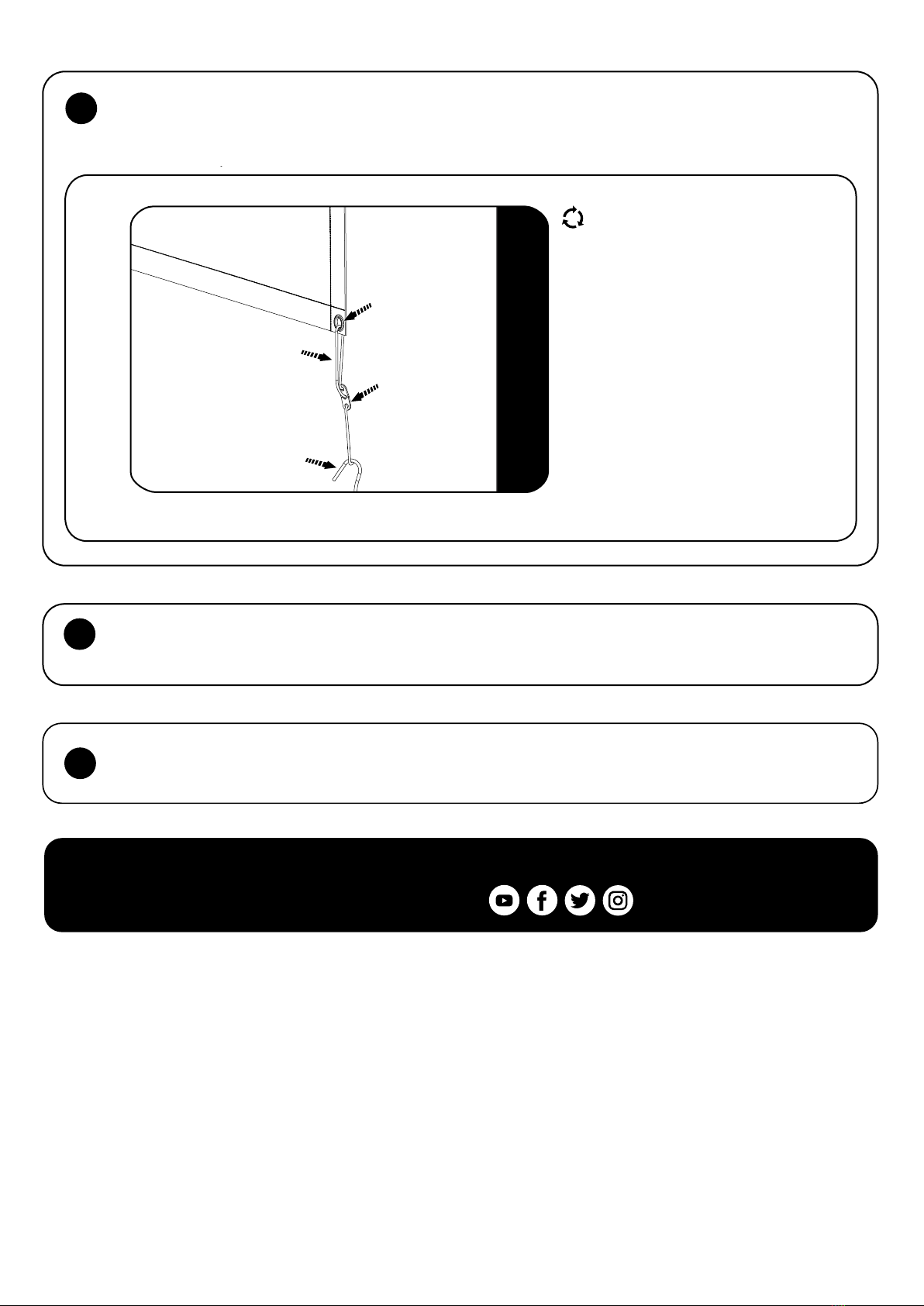

FIT AND SECURE2

2.7

Set the four bottom corners using the Guy

Ropes and Pegs

Loop the one end of the Guy Rope through

the eyelet and back through the Tensioner.

Tie the end of the Guy Rope to the Peg.

Eyelet

Guy Rope

Peg

Tensioner
