Front Runner SSDS111 Manuale utente

DRAWER DECK COMPLETION SET

SSDS111

ENG

Kia Sorento 2016-Current

Thank you for purchasing a Front Runner Deck Completion Set.

Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

TOOLS NEEDED

10MM

8MM

8MM 10MM

17MM

3MM

4MM

1 1 X Side Deck LH

2 1 X Replacement Top Deck

3 1 X Side Deck RH

4 2 X Drawer Rear Bracket 2

5 2 X Drawer Rear Bracket 1

6 2 X Drawer Front Ajustable Bracket

7 2 X Drawer Front Fixed Bracket

8 2 X Drawer Front Mount 1LH And 1RH

9 2 X Front Faces 1LH and 1Rh

10 1 X Replacement Bottom Deck

11 2 X Drawer Rear Mount 1LH And 1RH

12 20X M10x30x3 Flat Washer

13 8 X M10 Spring Washer

14 8 X M10x40 Hex Bolt Fine Thread

15 4 X M5x10 Button Head

16 4 X M5 Flat Washer

17 4 X M5 Nyloc

18 2 X Pinchweld 310mm

19 8 X M6x16 Hex Bolt

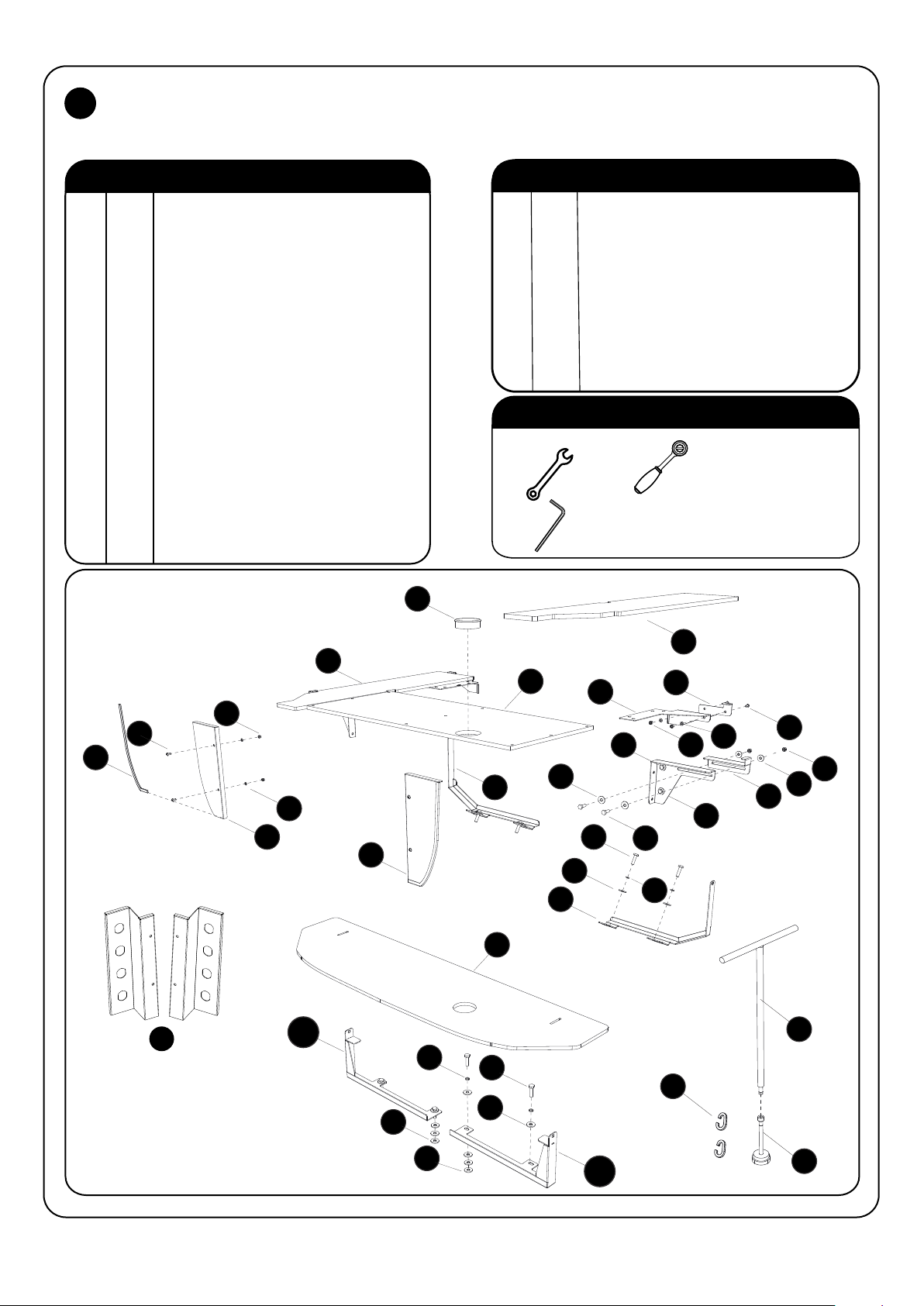

IN THE BOX

FIGURE 1.1

9LH

8RH

9RH

8LH

22 23 24

11LH

11RH 27

20 12X M6x19x1ss Flat Washer

21 4 X M6 Spring Washer

22 8 X M6 Nyloc

23 4 X M6 Flat Washer

24 4 X M6x12 Button Head

25 1 X

26 1 X Wheel Winder T-Handel

27 1 X Wheel Winder Adapter

28 2 X Carabiner Hook 37mm

29 2 X Front Face 1LH + 1RH With Knockouts

PlasticEnd Cap

GET ORGANIZED

IN THE BOX IN THE BOX

Here is what you are looking at for SSDS111

FIT AND SECURE

2.2

2.3

2.4

2.1

2.2

2.3

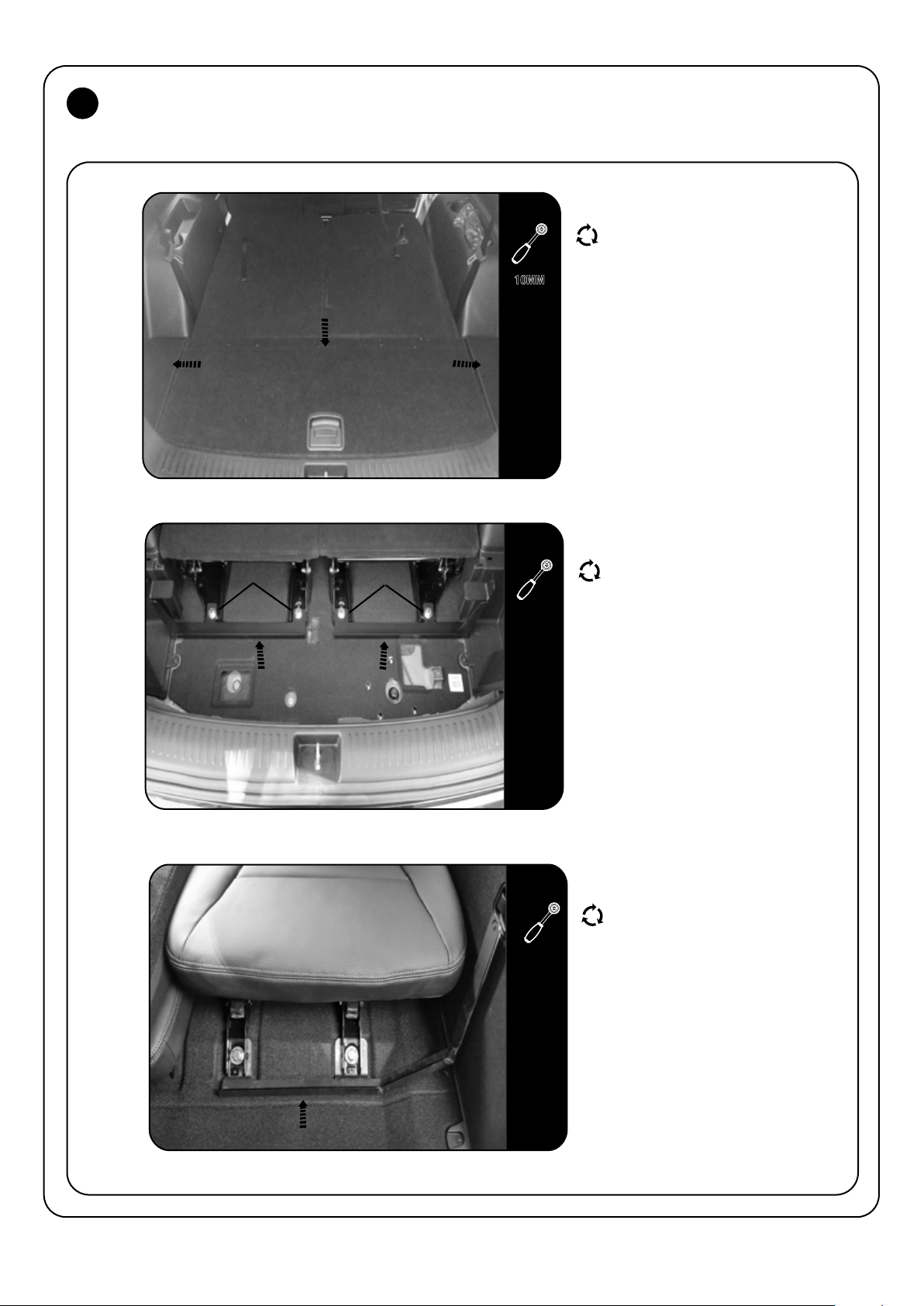

Loosen the rear seat rear bolts and secure

item 11LH and 11RH with the fasteners

shown in 1.1. Place 3 washers at the 4

mounting points between item 11 and the

seats base frame.

Loosen the rear seat front bolts and secure

item 8LH and 8RH with the fasteners

shown in 1.1.

Remove the tool tray and side covers.

Remove tools from tool tray.

After the drawer has been installed

the tools can be stored next to it.

Spacer Spacer

10MM

17MM

2.2

2.3

FIT AND SECURE

2.4

2.1

2.4

2.5

2.6

21 20

Loosen the rear deck and secure the rear

wings as shown. Refer to 1.1 for

wing placement.

Place item 10 in the vehicle. Make sure

that the two tie-down points shown in

Place the drawer in the vehicle before

assembling the wings onto the drawer.

Refer to 1.1 for wing placement.

10MM

4MM

FIT AND SECURE

LOWERING THE SPARE WHEEL

9RH

Remove the front top deck and replace it

with item 2.

Secure the drawer to the tie-down point

using the items shown in 3.5

Before securing the drawer, make sure

that the rear door does not interfere with

the drawer when colsed.

225

2.7

2.8

2.9

The turnbuckles and c-hooks are

supplied with SSDR005

elkcuBnruT

C-Hook

4MM

8MM

3MM

Assemble the two Front Faces (Item 9

or 29) to the Drawer System using M5 x

10 Button Head, M5 Flat Washer and M5

Nyloc Nut (Item 15, 16 & 17).

FIT AND SECURE

Fit the side decks (item 1 and 2).

2.10

LOWERING THE SPARE WHEEL

Remove item 25. Open the

drawer and insert item 26 and 27

into the hole. Locate the wheel

winder and turn to lower the wheel.

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

5Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

COMPLETION

Congratulations! You did it. Take a step back and admire your work!

4RH

FITTING ELECTRICAL SOCKETS

Twist the pre cut knock outs to remove.

These cut outs can then be used to ﬁt Front

Runners range of electrical sockets.

(Sold Separately)

ECOM117 - Amp

ECOM118 - USB

ECOM119 - 12/24V

ECOM120 - Merit

ECOM121 - Engel

ECOM124 - Volt

3.1
