Thank you for purchasing a Front Runner Mercedes Geladewagen G Class (1979 - 2018) Ladder.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
MERCEDES GELANDEWAGEN G CLASS (1979-2018)
LADDER
LAMG003_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
2

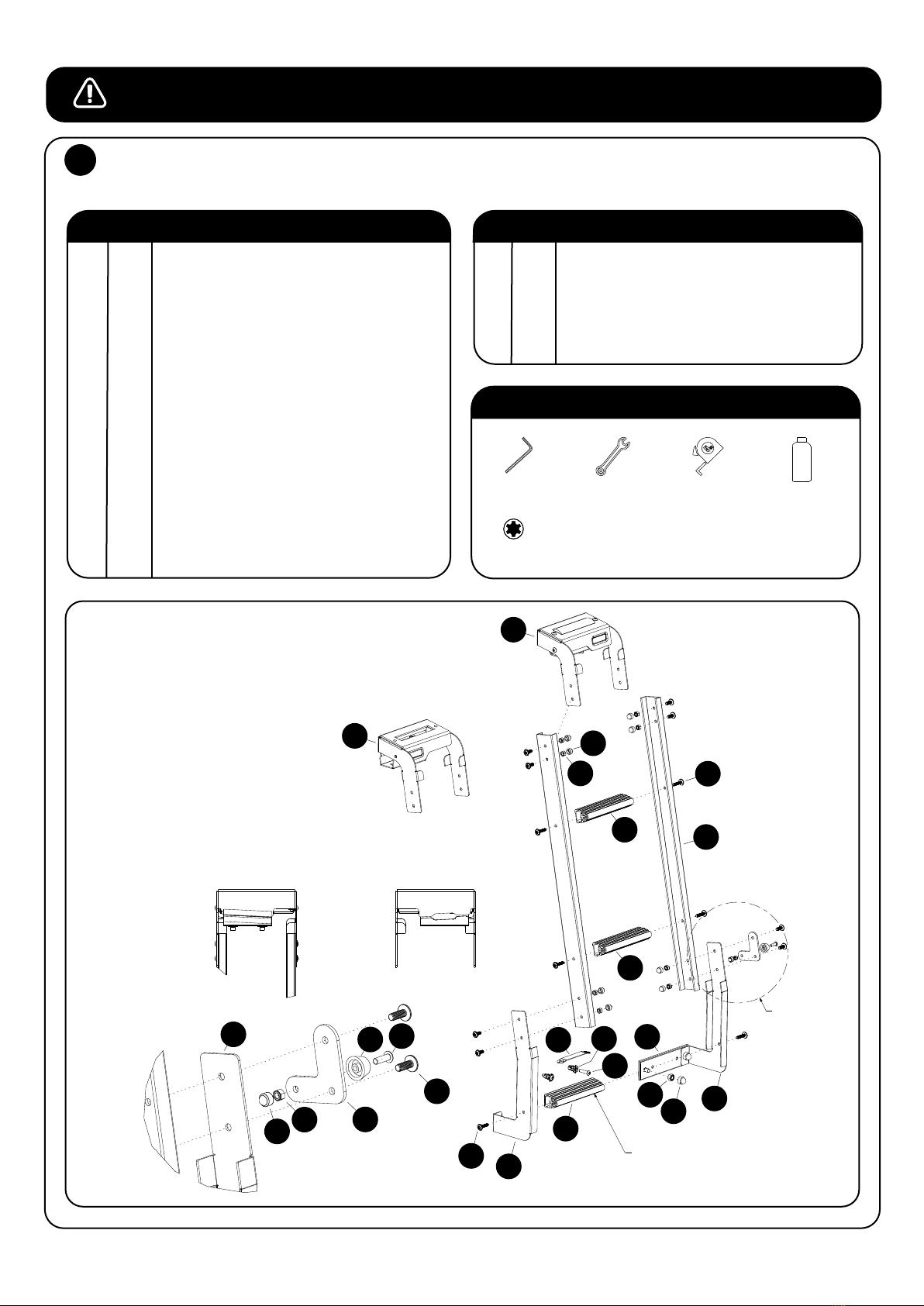

FIGURE 1.1
CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM
GET ORGANIZED
1
TOOLS NEEDED
IN THE BOX
1 1 X Ladder Top Assembly LH
2 2 X Ladder Side
3 2 X Ladder Step - 150mm Long
4 6 X M6 x 25 Thread Forming Screw
5 8 X M6 x 16 Button Head Bolt
6 8 X M6 Nyloc Nut
7 8 X M6 Nut Cap
8 1 X Bottom Support LH
9 1 X Ladder Bottom Step 156.5mm
10 1 X Bottom Support RH
11 1 X Ladder Base Assembly
12 1 X Stopper Bracket
13 1 X Rubber Buffer
14 1 X M5 x 16 Button Head Bolt
15 1 X M5 Nut Cap
16 1 X Ladder Top Assembly RH
17 1 X M5 Nyloc Nut
IN THE BOX
18 2 X M8 Nyloc Nut
19 2 X M8 Nut Cap
20 2 X M6 Jack Nut
21 2 X M6 x 25 Button Head Bolt
22 1 X Jack Nut Tool
23 1 X M6 x 35 Button Head Bolt
4mm
5mm
8mm
10mm
13 mm
Denatured
Alcohol
1
16
6
7
3
3
21
22 20 11
18
19
9
8
4
2
10
17 12
15
5
13 14
8
NOTE: Bottom Step is a different length
(156.5mm Long)
RH Top assembly parts
supplied loose.
Torx
T30
4
LAMG003_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
3
FIT AND SECURE2
2.1
2.2
2.3
The side the door opens will determine
which side the ladder will be installed.
If the rear door opens to the right hand side,
the ladder must be installed on the left hand
side of the vehicle as shown.
If the rear door opens to the left hand side,
the ladder must be installed on the right
hand side of the vehicle.
Identify the Ladder Top Clamp and Gutter
Clamp you will use during the ladder
assembly.
Item 1 = Left Hand Side identifier
Item 16 = Right Hand Side identifier
For the purpose of this fitment guide a left
hand assembly and installation will be
shown.
Loosely assemble the Stopper Bracket (Item
12) to the Bottom RH Support and Ladder
Side (Items 2 & 10), using a Rubber Buffer,
M5 x 16 Button Head Bolt, M5 Nyloc Nut and
M5 Nut Cap (Items 13, 14, 15 & 17).
Loosely assemble the Ladder Sides LH & RH
and Bottom LH & RH Supports (Item 2, 8 &
10) using M6 x 16 Flange Button Head Bolts,
M6 Nyloc Nuts and M6 Nut Caps (Items 5, 15
& 17).
Loosely assemble the Ladder Base Assembly
(Item 11) to the Bottom Support Plates
(Item 8 & 10).
Left Hand Side Right Hand Side
Left Hand Side Right Hand Side
11
14
13
5
12
15 17
5
17
15
2
18
19
8
10
16
1
Torx
T30
8mm
10mm
13mm
4mm
70mm
Door Frame Edge
Ladder Side
LAMG003_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
4
FIT AND SECURE2
2.4
2.5
2.6
Loosly assemble the Ladder Top Assembly
(Item 1) to the Ladder sides (Item 2) using
M6 x 16 Flange Button Heads and M6 Nyloc
Nuts (Items 5 & 17).
Secure the Steps (Item 3 & 9) to the Ladder
Sides as shown using M6 x 25 Thread
Forming Screws (Item 4)
Swing open the Gutter Clamp on the top
assembly. Fit the top assembly into vehicle's
gutter and let the Bottom Support rest
against the vehicle. Align and space the
Ladder Side at the top and the Ladder Side
at the bottom, 70mm away from door frame
edge.
Fully tighten the two M6 x 60 Cap Screws,
clamping the Ladder to the gutter.
Clean the surface area where the Double
Sided Tape rests against the vehicle with
Denatured Alcohol.
Make sure the spacing at the top and bottom
is 70mm from the Door Frame Edge.
Remove the backing tape from the Double
Sided Tape and firmly push and secure the
bottom of the ladder against the vehicle.
1
5
17
15
4
3
3
9
Use a little petroleum jelly on screw
threads before inserting. Note these are
Thread Forming Screws.
NOTE: Step Length differs refer to fig 1.1
or 2.5.
Tightening Torque:
M6 : 8-10Nm / 5.9 ft lb - 7.38 ft lb
5mm
Denatured
Alcohol
Torx
T30
Torx
T30
10mm
LAMG003_REV_A00 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
5
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
4
Now's the time to visit your favorite Front Runner Dealer in person or online.
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
FINISH
3
Congratulations! You did it. Take a step back and admire your work!
