Introduction
Thank you for choosing N9510-64D switch. This guide is designed to familiarize you with the
layout of the switch and describes how to deploy the switch in your network.
Accessories
Grounding Cable x1Power Cord x4 M6*16 Screw x12
M6 Nut x12 Sliding Rail x2
N9510-64D
1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F
3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F
N9510-64D
ASSETTAG
FUNC
CONSOLE MGMT
Link Act
SYS BMCPSU FAN ID
1
EN
1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F
3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F
N9510-64D
ASSETTAG
FUNC
CONSOLE MGMT
Link Act
SYS BMCPSU FAN ID
Hardware Overview
Front Panel Ports
Ports Description
QSFPDD
USB
MGMT
QSFPDD ports for 100/400G connection.
A USB management port for software, configuration backup and offline
software upgrade.
An ethernet management port.
CONSOLE An RJ45 console port for serial management.
MGMT
USB
CONSOLE QSFPDD
Front Panel LEDs
1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F
3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F
N9510-64D
ASSETTAG
FUNC
CONSOLE MGMT
Link Act
SYS BMCPSU FAN ID
SYS /BMC/ PSU /FAN/ ID
Asset Tag Link/Act
2
EN
LEDs Description
SYS
BMC
The system is malfunctional.
The system is powered off.
The system is abnormal.
The BMC module works normally.
The BMC module is not-in-position or not working.
The BMC module hasn’t finished functional initialization.
The control function of the fun hasn’t finished initialization.
The system is powered off.
The fun works normally.
More than one fans are not in-the-position.
More than one fans work abnormally.
FAN
The system is powered off.
The control function of the power supply hasn’t finished
initialization.
The power supply is in a normal state.
The system is initializing.
The system is operational.
PSU
More than one power supplies are not connected with AC
power cord.
More than one power supply modules are in an abnormal
state.
CPLD sets default control and doesn’t locate position.
ID Positioning on the site. The operational people control
opening and closing of ID light.
State
Solid Red
Blinking Green
Solid Green
Off
Blinking Green
Solid Yellow
Solid Red
Blinking Green
Off
Solid Green
Off
Blinking Green
Solid Green
Off
Solid Green
Solid Yellow
Solid Yellow
Solid Red
Off
Solid Blue
3
EN
LEDs DescriptionState
Power Supply
Grounding point

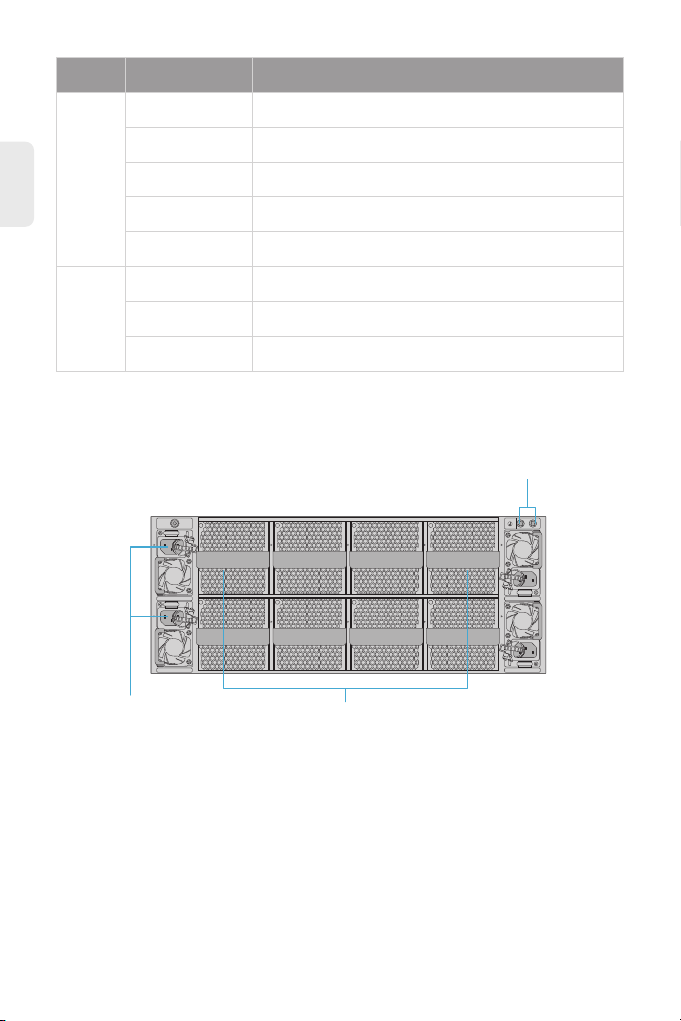

Back Panel Ports
LINK/ACT
QSFPDD
The port is connected at 1000Mbps.
The port is not connected.
The port is transmitting or receiving data.
The port is connected at 400/100G.
The port is not connected.
The port is transmitting or receiving data at 400/100G.
The port is connected at 100Mbps.
The port is not transmitting or receiving data.
Solid Green
Solid Yellow
Solid Green
Off
Blinking Green
Link Off
Act Off
Act Blinking Green
FAN1
PSU1
FAN3
FAN2
FAN4
FAN5
FAN6
FAN7FAN8
PSU2
PSU3PSU4
Fan Slots
4
EN
LEDs Description
Fan Status
The fan is initializing.
The fan is powered off.
There is no power input or the power supply fails.
1.The AC power is off and it is only 12VBS.
2.The AC power is cold standby and it doesn’t output
efficiency.
The power output is normal.
1.An error occurs, e.g. overcurrent, overvoltage or fan fault.
2.The AC power in redundancy is plugged out.
An alarm is generated but the power module keeps working.
The alarm may be caused by high power, high current, high
temperature, or low fan rotation speed.
Power Supply
Status
The fan is operational.
The fan fails or stops.
State
Blinking Green
Solid Green
Blinking Green
Solid Green
Red Light
Blinking Red
Off
Solid Red
Off
Power Supply Status
Back Panel LEDs
FAN1
PSU1
FAN3
FAN2
FAN4
FAN5FAN6
FAN7FAN8
PSU2
PSU3PSU4
Fan Status
5
EN
Installation Requirements
Before you begin the installation, make sure that you have the
followings：
Phillips screwdriver.
Category 5e or higher RJ45 Ethernet cables, fiber optical cables and console cable for
network devices.
Site Environment：
The operating temperature is 0°C-40°C, the humidity is 10%-90%.
The installation site must be free from leaking or dripping water, heavy dew, and humidity.
The installation site must be well ventilated. Ensure that there is adequate airflow around
the switch.
Be sure that the switch is level and stable to avoid any hazardous conditions.
Do not install the equipment in a dusty environment.
Ensure rack and working platforms are well earthed.
6
EN
1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F
3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F
N9510-64D
ASSETTAG
FUNC
CONSOLE MGMT
Link Act
SYSBMC PSU FAN ID
1. Secure the two L-shaped brackets to assemble a rack with eight M6 nuts.
2. Attach the switch to the rack and use four M6 screws to fix.
Rack Mounting
Mounting the Switch
7
EN
Replacing the Power Supply Module
1. Press the power supply module and pull the handle of it slowly and straightly.
2. Hold the handle of the power module with one hand, and hold the bottom with the other
hand.
3. Horizontally push the power module into the slot. The power module completely inserts in the
slot until a “click” is heard.
FAN3
FAN2
FAN4
FAN5FAN6
FAN7FAN8
PSU2
PSU3PSU4
FAN1
PSU1
FAN3
FAN2
FAN4
FAN5FAN6
FAN7FAN8
PSU2
PSU3PSU4
8
EN
NOTE: 1. Insert the power/fan module steadily and pay attention to the direction of
the fan module. If the position is not proper, pull the module and re-insert it.
2. If the fan module can be extracted without pushing the handle, maybe the fan
module is not inserted into the switch totally, please check carefully.
Replacing the Fan Module
1. Push the handle of the fan module and pull out the fan module slowly.
2. Hold the handle of the fan module and insert it into the chassis slowly, ensure the fan module
has a good contact with the slot until a “click” is heard.
FAN3
FAN2
FAN4
FAN5FAN6
FAN7FAN8
PSU2
PSU3PSU4
FAN1
PSU1
FAN3
FAN2
FAN4
FAN5FAN6
FAN7FAN8
PSU2
PSU3PSU4
9
EN
