FujiFilm ApeosPort 2560 Manuale utente

Prepared by Customer Training Team

ApeosPort®2560 / 3560

Quick Reference Notes –DAILY CARE

簡易操作 - 日常保養

CONTENTS
目錄

1Clear Paper Jam 夾紙排解....................................................................................................2
1.1 Document Feeder / 送稿裝置.........................................................................................2
1.2 Upper Left Door A 左上蓋 A..........................................................................................3
1.3 Duplex Module 雙面列印組件 .......................................................................................4
1.4 Bottom Left Door B 左下蓋 B........................................................................................5
1.5 Bottom Left Door C 左上蓋 C........................................................................................6
1.6 Standard Tray 標準紙盤................................................................................................7
1.7 Bypass Tray 手送紙盤 ...................................................................................................7
2Replacing Toner 更換碳粉匣.................................................................................................8




1 CLEAR PAPER JAM 夾紙排解

1.1 DOCUMENT FEEDER /送稿裝置

1. Open the document feeder left cover

until it stops.

2. Turn the knob to transfer the jammed

paper upward and remove it.

3. Make Sure that the orginal is not torn,

wrinkled or folded, and then load the

orginal again following the instructions

displayed on the touch screen.

1. 向上拉起自動送稿裝置左蓋把手，將左

蓋完全打開。

2. 旋轉旋鈕以向上移除夾紙，並取出。

3. 確定原稿是否未撕破、起皺或摺疊，再

依照觸控式顯示面板中的指示重新方入

原稿。

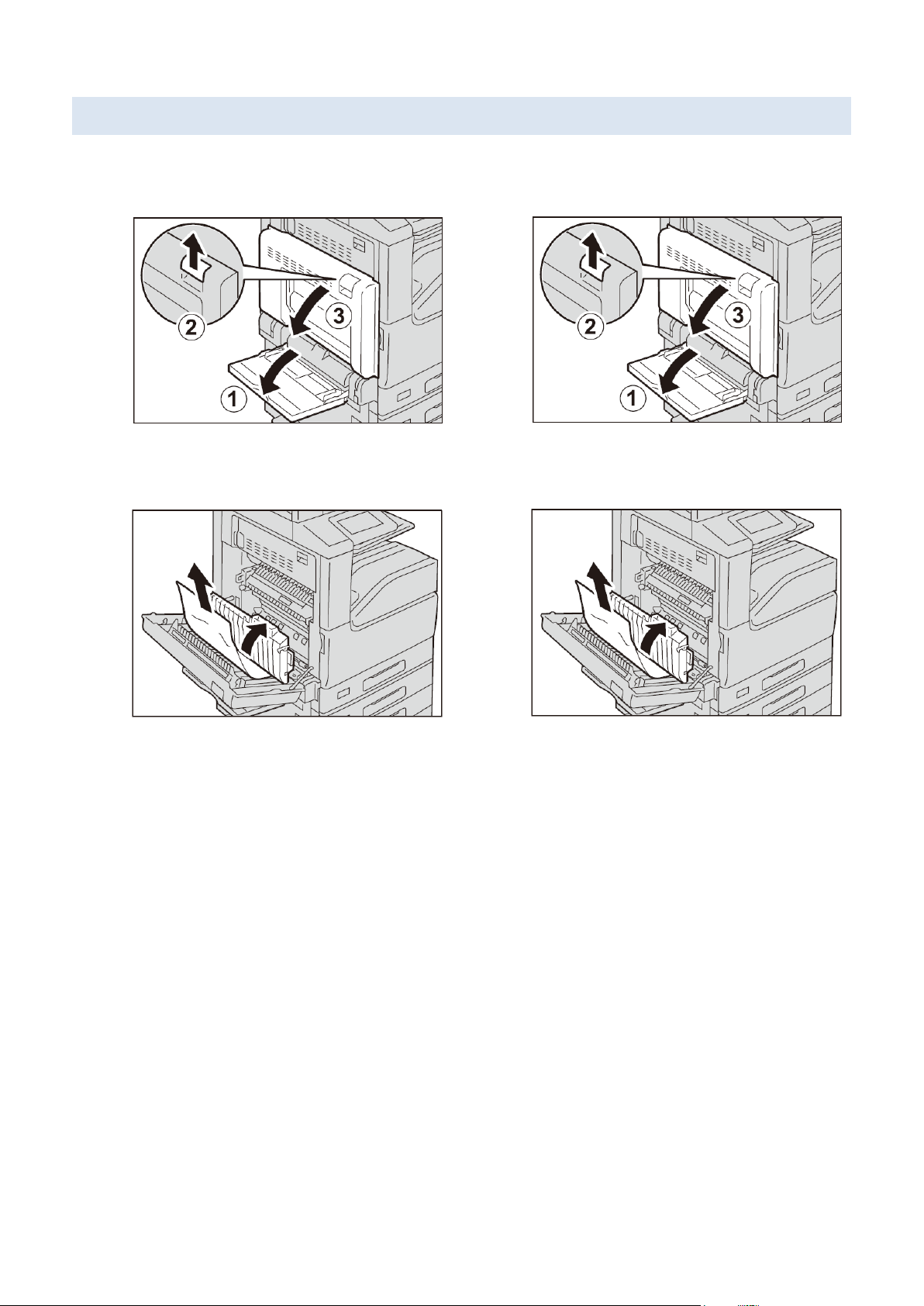

1.2 UPPER LEFT DOOR A左上蓋 A

1. While lifting up the release lever of the

door A (1), open the door (2).

2. If paper is jammed outside the fusing

unit, remove the jammed paper.

3. Pull down the lever A1 in the arrow

direction, and then open the fusing unit

cover.

1. 提起蓋 A （1）的釋放杆，同時打開蓋

（2）。

2. 如果紙張卡在熔著部組件外部，請取出

夾紙。

3. 沿箭頭方向拉下控制杆 A1，然後打開

熔著部組件蓋。

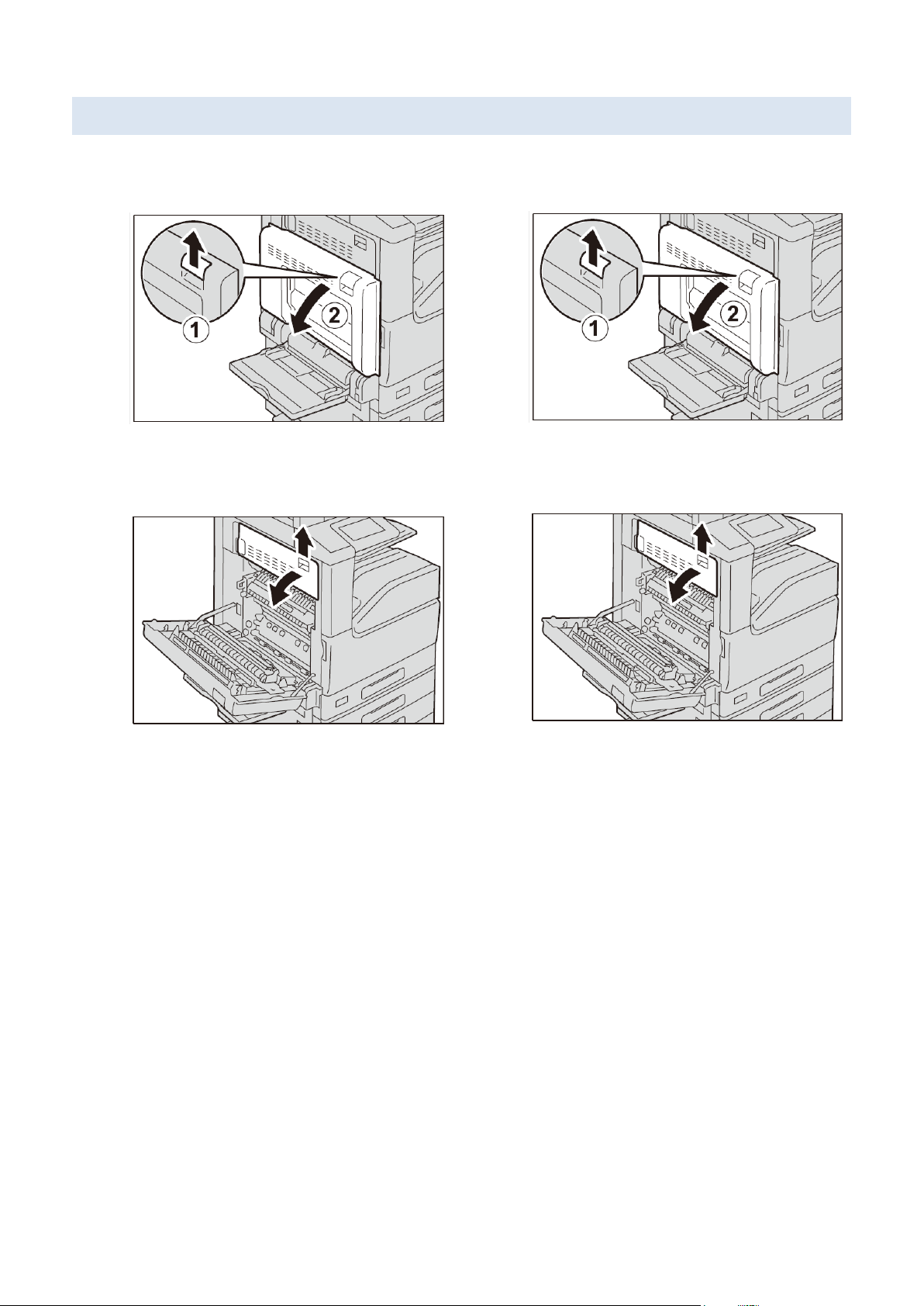

1.3 DUPLEX MODULE 雙面列印組件

1. Gently open the bottom left door while

pulling the release lever.

2. Lift up the lever A2, remove the

jammed paper, and return the lever A2.

1. 沿箭頭方向拉下控制杆 A1，然後打開

熔著部組件蓋。

2. 提起控制杆 A2，取出夾紙，然後將控

制杆 A2 恢復原位。

1.4 BOTTOM LEFT DOOR B左下蓋 B

1. Gently open the bottom left door while

pulling the release lever.

2. Remove the jammed paper.

1. 沿箭頭方向拉下控制杆 A1，然後打開

熔著部組件蓋。

2. 取出夾紙。

1.5 BOTTOM LEFT DOOR C左上蓋 C

1. While lifting up the release lever of the

door A (1), open the door (2).

2. While lifting up the release lever, open

the door C at the top part.

1. 提起蓋 A （1）的釋放杆，同時打開蓋

（2）。

2. 提起拉桿時，打開上部的蓋 C。

1.6 STANDARD TRAY 標準紙盤

1. Pull out the paper tray where the paper

jam occurred until it stops.

2. Remove the jammed paper.

3. Push in the paper tray.

1. 將發生卡紙的紙盤完全拉出。

2. 清除卡紙的紙張。

3. 推入紙盤。

1.7 BYPASS TRAY 手送紙盤

1. Remove the jammed paper.

1. 清除卡紙的紙張。

2 REPLACING TONER 更換碳粉匣

1. Confirm that the machine is not operating,

and open the front cover.

1. 先確定裝置已經停止運作，然後開啟前蓋。

2. Pull out the toner cartridge slowly.

2. 慢慢拉出碳粉卡匣。

3. Shake the new toner cartridge gently.

3. 輕輕搖晃新碳粉卡匣。

4. Hold the cartridge with the arrow facing

up, and insert the cartridge slowly.

4. 把碳粉卡匣的箭咀標誌向上，然後慢慢地

插入卡匣。

5. Close the front door.

5. 關上前蓋。
