Fujitsu D2917 Manuale utente

Mainboard

Short Description

Mainboard D2917

Congratulations, you have decided to buy an

innovative Fujitsu product.

The latest information about our products, useful tips, updates etc. is available

from our website: "http://ts.fujitsu.com"

For automatic driver updates, go to: "http://support.de.ts.fujitsu.com/de/support/index.html"

Should you have any technical questions, please contact:

• our Hotline/Service Desk

(see the Service Desk list or visit: "http://ts.fujitsu.com/support/servicedesk.html")

• Your sales partner

• Your sales ofﬁce

We hope you really enjoy using your new Fujitsu system.

Fujitsu Technology Solutions 2009/12

Published by

Fujitsu Technology Solutions GmbH

Mies-van-der-Rohe-Straße 8

80807 Munich, Germany

Contact

http://ts.fujitsu.com/support

availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be

trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may

infringe the rights of such owner. For further information see "http://ts.fujitsu.com/terms_of_use.html"

Order No. Fujitsu Technology Solutions GmbH: A26361-D2917-Z210-1-8N19, edition 1

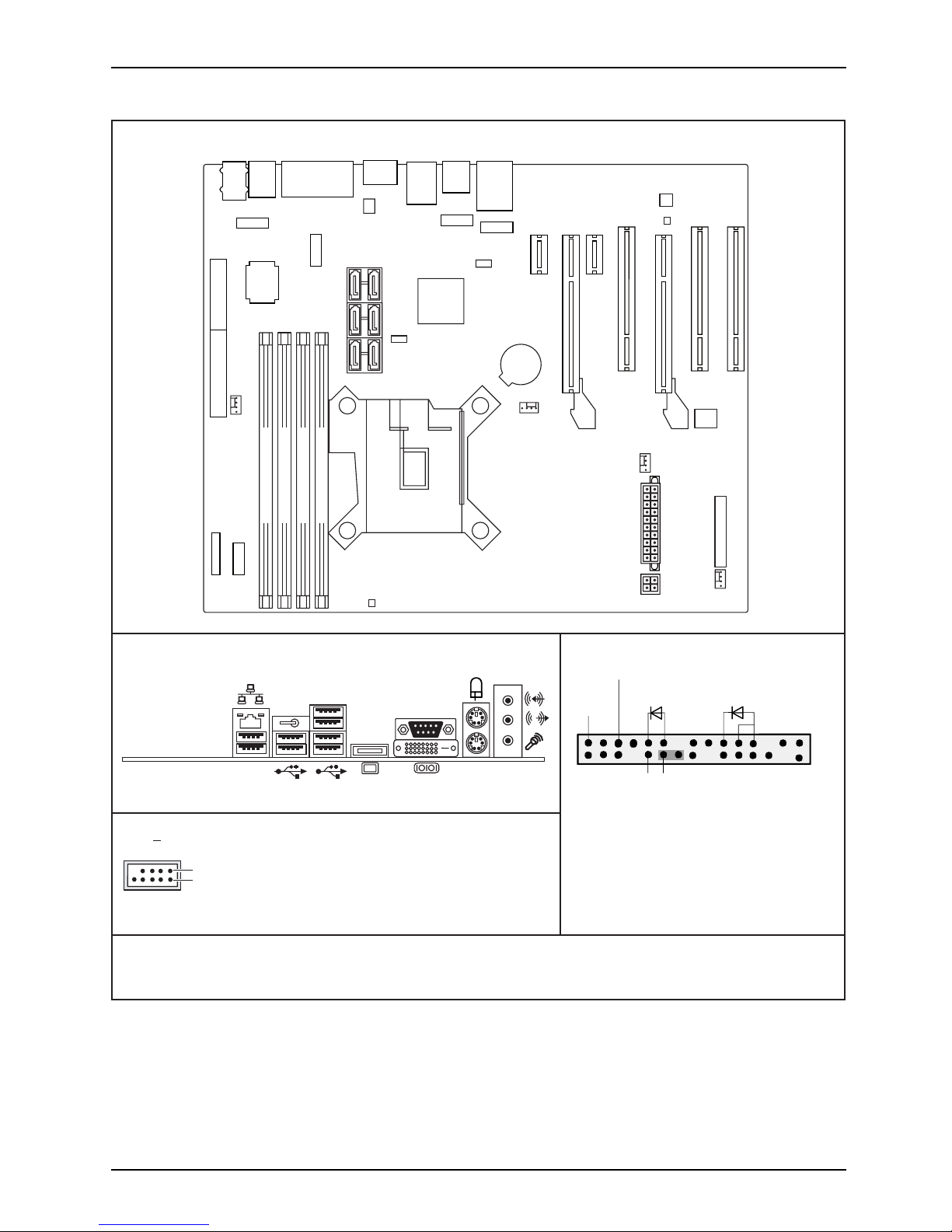

Internal connectors and slots

External connectors rear

USB dual channel

DVI-I

1 = VCC AUX

2 = VCC AUX

3 = Data negative Port X

4 = Data negative Port Y

6 = Data positive Port Y

Data positive Port X

7 =

5 =

GND

8 = GND

9 = Key

10 = Not connected

A26361-D2917-Z240-1-8N19_2

Front panel

1) Both connector positions possible

2) 2pin or 3pin connector possible

HD-LED

Power On/Off

Recovery

Reset

Power On

LED2)

Recovery inserted = The system starts

from floppy and allows a BIOS recovery

Module 4 Channel B

Module 2 Channel B

Module 3 Channel A

Module 1 Channel A

Battery

Audio PS2 COM1

DVI-I

Display

Port USB

Port

11+1

USB

Port

9+10

LAN,

USB

Port 8+7

PCI2

PCI1

PCIe1

PCI3

PCIe4

Intrusion

FAN1

Temp.-

Sensor

FAN2

FAN1

Power

Supply 2

Frontpanel

Audio

Frontpanel

SATA

5+4

Intel-LAN

Firewire

SATA

3+2

SATA

1+0

CPU

LGA1156

Power Supply 1

USB Port

4+3

USB Port

FW intern

LCD-Connector

FAN 3

1+2

USB Port

PCH

1+3

Floppy Connector Parallel Port

PCIe16

Super

I/O

Temp.-

Sensor

FAN1: Front Fan CPU

FAN2: Front Fan Slotcards

FAN3: Heatsink CPU (optional)

Fujitsu Technology Solutions

Internal connectors and slots

List of onboard Features D2917

Chipset Intel® iQ45

Board size µBTX

DVI-I/VGA/DisplayPort / /

Stereo Audio / 5.1 Multichannel Audio - /

Buzzer / int. Speaker Support -/

LAN 1 Gbit / 100 Mbit/ 10 Mbit / /

LAN ASF /Aol / WoL / Remote Boot /iAMT - / - / / /

Serial ATA / ATA / RAID / eSATA-support /-/ /

FireWireTM / USB 2.0 /

FAN monitored PSU* / CPU FAN(1) / System (FAN2) / AUX2 (FAN3)/ AUX2

(FAN4) ///-/-

FAN controlled PSU* / CPU FAN(1) / System (FAN2) / AUX2 (FAN3)/ AUX2

(FAN4) ///-/-

TEMP monitored CPU / ONB1 / ONB2 / HDD / / /-

SmartCard SystemLock (USB / serial) /-

Fujitsu Technology Solutions Keyboard Power Button Support

Special onboard features D2917

Silent Fan / Silent Fan LT / System Guard / Silent Drives /-/ /

Recovery BIOS / Desk Update / Multi Boot / /

HDD Password / Logo Boot /

* not supported by standard Power Supplies

Special Features

Green Edition Halogen-free and lead-reduced product

Silent Fan Independent temperature related processor fan and system fan supervision

and control

System Guard View and adjust Silent Fan

Silent Drives Noise reduction for optical and hard disk drives

Recovery BIOS Restores a corrupted BIOS

Desk Update Simple driver update with DU CD

Multi Boot Comfortable boot from any boot device

HDD Passwort Access protection for disk drives

Silent Fan LT Independent temperature related processor fan and system fan control

Fujitsu Technology Solutions

Mainboard D2917

First-time setup

Deutsch 5

English 17

Inhalt Deutsch - 1

DeutschInhalt

Kurzbeschreibungdes Mainboards .................................................... 3

Anschlüsse und Steckverbinder . ....................................................... 4

Prozessorein-/ausbauen ............................................................... 5

TechnischeDaten ....................................................................... 5

Vorgehensweise . . ...................................................................... 6

Hauptspeicher ein-/ausbauen .......................................................... 7

PCI-Bus-Interrupts-AuswahldesrichtigenPCI-Steckplatzes ........................... 8

BIOSUpdate ........................................................................... 9

BIOS-Update unter Windows mit dem Utility DeskFlash .................................... 9

BIOS-Update mit einem USB-Stick ....................................................... 10

Fujitsu Technology Solutions 5

Intel, Pentium und Celeron sind eingetragene Warenzeichen der Intel Corporation, USA.

Windows 7, Windows Vista und Windows XP sind eingetragene Warenzeichen der Microsoft

Corporation.

PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines, Inc.

Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen

der jeweiligen Inhaber und werden als geschützt anerkannt.

Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.

Zuwiderhandlungen verpﬂichten zu Schadenersatz.

Liefermöglichkeiten und technische Änderungen vorbehalten.
