Fujitsu DL7400 Manuale utente

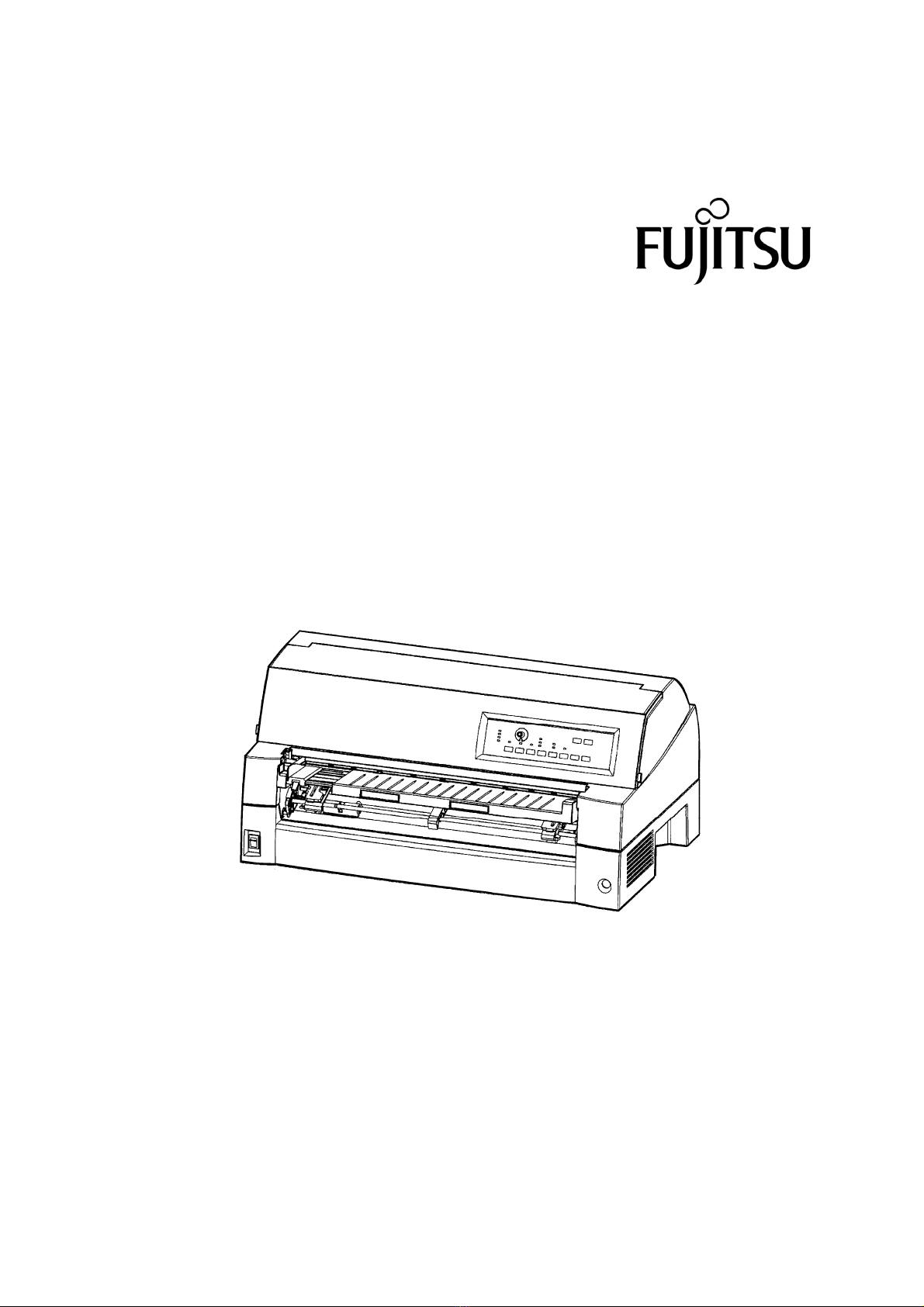

FUJITSU DL7400

DOT MATRIX PRINTER

USER'S MANUAL

READ THE ENTIRE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.

INCORRECT USE OF THE PRODUCT MAY RESULT IN INJURY OR DAMAGE TO

USERS, BYSTANDERS OR PROPERTY.

While FUJITSU ISOTEC has sought to ensure the accuracy of all information in this manual,

FUJITSU ISOTEC assumes no liability to any party for any damage caused by any error or

omission contained in this manual, its updates or supplements, whether such errors or omissions

result from negligence, accident, or any other cause. In addition, FUJITSU ISOTEC assumes no

liability with respect to the application or use of any product or system in accordance with

descriptions or instructions contained herein; including any liability for incidental or

consequential damages arising therefrom. FUJITSU ISOTEC DISCLAIMS ALL WARRANTIES

REGARDING THE INFORMATION CONTAINED HEREIN, WHETHER EXPRESSED,

IMPLIED, OR STATUTORY.

FUJITSU ISOTEC reserves the right to make changes to any products described herein without

further notice and without obligation.

This product is designed and manufactured for use in standard applications such as office work,

personal devices, household appliances, and general industrial use. This product is not intended

for special uses (nuclear-reactor control in atomic energy facilities, aeronautic and space systems,

air traffic control, operation control in mass transit systems, medical devices for life support, or

missile firing controls in weapons facilities) where particularly high reliability requirements exist,

where the pertinent levels of safety are not guaranteed, or where a failure or operational error

could threaten a life or cause a physical injury (hereafter referred to as “high-risk” use).

Customers considering the use of this product for high-risk applications must have safety-

assurance measures in place beforehand. Moreover, they are requested to consult our sales

representative before embarking on such specialized use.

IMPORTANT NOTE TO USERS

Using This Product in High-risk Situations

User's Manual i

Federal Communications Commission

Radio Frequency Interference Statement

for United States Users

NOTE: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15B of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of

the following measure:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

FCC warning: Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to

operate the equipment.

NOTES

1. Testing of this equipment was performed on model number

M33324A.

2. The use of a nonshielded interface cable with the referenced device

is prohibited. The length of the parallel interface cable must be 3

meters (10 feet) or less. The length of the optional serial interface

cable must be 15 meters (50 feet) or less.

3. The length of the power cord must be 3 meters (9.8 feet) or less.

ii User's Manual

Notice for Canadian Users

This class B digital apparatus (M33324A) meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Cet appareil (M33324A) numérique de la Classe B respecte toutes les

exigences du Règlement sur le matériel brouilleur du Canada.

User's Manual iii

Energy Saving

As an ENERGY STAR® Partner, FUJITSU ISOTEC LIMITED has

determined that this product meets the ENERGY STAR® guidelines for

energy efficiency.

The International ENERGY STAR® Office Equipment Program is an

international program that promotes energy saving through the use of

computers and other office equipments. The program backs the

development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which

business proprietors can participate voluntarily. The targeted products

are office equipment such as computers, displays, printers, facsimiles,

and copiers. Their standards and logos are uniform among participating

nations.

iv User's Manual

The contents of this manual may be revised without prior notice and

without obligation to incorporate changes and improvements into units

already shipped.

Every effort has been made to ensure that the information included here

is complete and accurate at the time of publication; however, Fujitsu

Isotec Limited cannot be held responsible for errors and omissions.

Printer model specifications differ with the power supply input voltage

(M33324A; 100-120 or M33324B; 220-240 VAC).

C147-E051-03EN April 2010

reproduced or translated, stored in a database or retrieval system, or

transmitted, in any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without the prior written

permission of Fujitsu Isotec Limited.

FUJITSU is a registered trademark and Fujitsu Creative Faces is a

trademark of Fujitsu Limited. Centronics is a trademark of Centronics

Data Computer Coporation. IBM PC and IBM Proprinter XL24E are

trademarks of International Business Machines Corporation. ESC/P2 is a

trademark of Seiko Epson Corporation. Microsoft is a registered

trademark and MS-DOS and Windows are trademarks of Microsoft

Corporation. Nimbus Sans is a registered trademark of URW

Unternehmensberatung Karow Rubow Weber GmbH, Hamburg.

Other product names mentioned in this manual may also be trademarks

of their respective companies.

TRADEMARK

ACKNOWLEDGEMENT

User's Manual v

ABOUT THIS MANUAL

Thank you for buying the Fujitsu DL7400 dot matrix printer. You can

expect years of reliable service with very little maintenance. This manual

explains how to use your printer to full advantage. It is written for both

new and experienced printer users.

This manual describes how to install, set up, and use your printer and

printer options. It also explains how to keep the printer in good working

condition and what to do should something go wrong. Detailed

procedures are provided for first-time users. Experienced users can skip

some of the details, using the table of contents and chapter introductions

to locate information.

This manual has several appendixes, a glossary, and an index. Appendix

A lists supplies and additional documentation and information available

from your dealer or authorized Fujitsu representative. Fujitsu offices are

listed at the end of the manual.

This manual covers model DL7400, a 136-column printer. Each model

has a 100-120 (M33324A) VAC or 220-240 (M33324B) VAC power

supply. A LAN card, a user add-on option, can be installed only on

printer models with the Centronics parallel+USB interfaces. You must

specify these when purchasing the printer.

Other options include a cut sheet feeder can be added by yourself after

purchasing the printer.

DL7400

Basic specifications

Print line at 10 cpi: 136 columns (DL7400)

Interface: Centronics parallel + RS-232C

Centronics parallel + USB + LAN (LAN:user option)

Alternative specification

Power supply: 100-120 VAC (M33324A)

220-240 VAC (M33324B)

User add-on option

LAN card

Cut sheet feeder

Tractor unit

Large Paper Table

Large Stacker

cpi: characters per inch

PRINTER MODELS

AND OPTIONS

vi User's Manual

This manual is organized as follows:

Quick Reference summarizes everyday printer operations. After you

become familiar with the printer, use this section as a memory aid.

Chapter 1, Introduction, introduces the printer and identifies key

features and options that enhance the printer’s capabilities.

Chapter 2, Setting Up, gives step-by-step procedures for setting up the

printer for immediate use and identifies the main parts of the printer. If

this is your first printer, you should read the entire chapter before

attempting to use the printer.

Chapter 3, Paper Handling, explains how to load and use paper with

your printer.

Chapter 4, Printing, covers basic printing operations. This chapter

describes everyday operations from the printer’s control panel, such as

loading paper and selecting print features, in detail. After you become

more familiar with the printer, use Quick Reference at the beginning of

the manual to refresh your memory as needed.

Chapter 5, Using Setup Mode, describes how to change the printer’s

optional settings, such as print features, hardware options, and top-of-

form. Most settings only affect print features such as the typestyle and

page format. Note that certain settings directly affect hardware and

software compatibility. Refer to this chapter as indicated in Chapter 2 or

as required.

Chapter 6, Maintenance, explains basic maintenance procedures for

this printer.

Chapter 7, Trouble-Shooting, describes problem-solving techniques.

Before you contact your dealer for help, check the list of problems and

solutions provided in this chapter.

Chapter 8, Installing Options, describes the options available for the

printer and explains how to install them.

At the end of this manual, you will find several appendixes, a glossary,

and an index. Appendix A gives order numbers for printer supplies,

options, and publications. Other appendixes provide additional technical

information about the printer.

ORGANIZATION
