Furitek TEGU 3S Manuale utente
Features:
- Built-in ESC FOC 20A, LED controller, Bluetooth (optional)
- Support brushless DC and brushed DC motor (config via app, default is brushless)
- FOC technology for very low speed in crawler mode with brushless motor
- Work with external receiver
- Built in BEC 5V-1.5A
- Super easy to use programing via App on Android and IOS
- Firmware update available
- Real-time telemetry up 10Hz
- Support 2S liPo
Specifications:
- Dimension (mm): 30.6(L)x30.6(W)
- Weight: about 5.2g
- Voltage support: 2s-3s lipo
- Motor type: Sensorless Brushless DC / Brushed DC
- BEC output: 5V/2A
- Const Current (A): 20A
- Brust Current (A): 40A
Pinout:
FURITEK TEGU 3S MAIN BOARD FOR AXIAL SCX24
WITH FOC TECHNOLOGY
TEGU Manual V1.0
Battery input:
Support 2s-3s liPo batteries
Switch ON/OFF
Inupt
(ESC signal)
Calibrate button
(configure page 3)
Bat+
C B A
Bat-
Output
(Servo out)
LED control
Motor output: Default (Brushless motor)
Brushless or brushed motor (configure page 2)
Motor output:
Default (Brushless motor)
C B A
FURICAR
*The port “Servo” and “LED” does’not support in this version.
Bluetooth
(configure page 3)
www.modellmarkt24.ch
*DEFAULT configuration is Brushless motor, if you use BRUSHED motor, please
configure it as below:
- Step 1: Please make sure to plug your battery to esc and open FURICAR app on android or IOS device
- Step 2: Please Click the Setting icon (see picture)
- Step 3: Please click ”Motor Type” menu, a new window pops up, select “Brushless” or “Brushed”
and then click “OK”

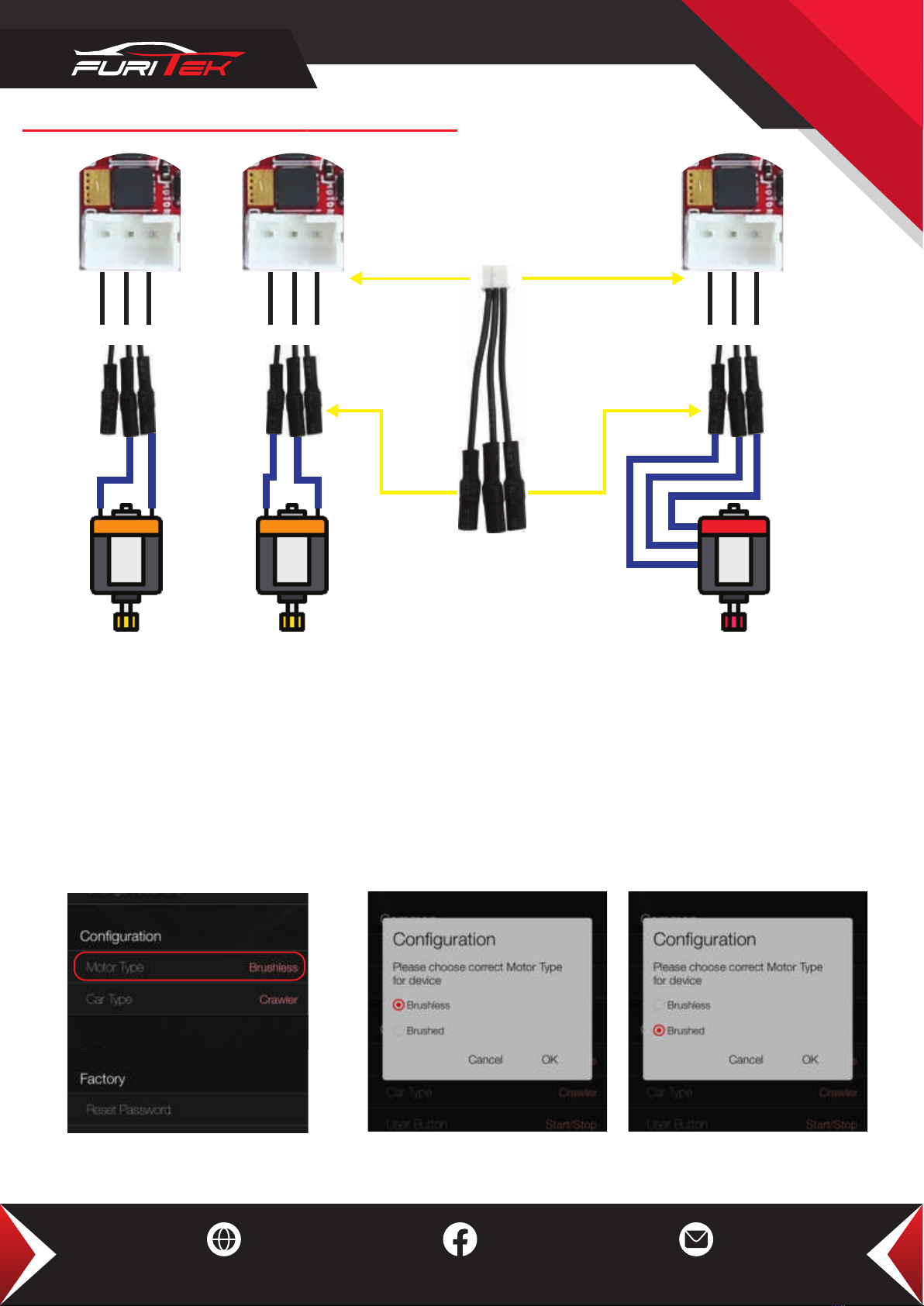

Connect Brushed/Brushless motor to ESC:
TEGU Manual V1.0
JST to banana
cable
Brushless motor to ESCBrushed motor to ESC
ABC
OR
ABCABC
ABC
x x
www.modellmarkt24.ch
Default password:
1234
Change password
Esc Manual calibration:
A.Calibration on ESC Mainboard:(Do not use for Tegu with case and waterproof)
- Step 1: Please make sure to plug the battery to your esc
- Step 2: Press and hold the button of ESC (wait for 6 secs and the ESC LED indicator will start blinking
followed by a motor beeping sound)
- Step 3:Set to 0% Throttle or lowest speed (please make sure that your radio throttle stick at
NEUTRAL POSITION, press the ESC button, ESC LED indicator will blink 1 time and motor will beep 1 time)
- Step 4: Set to 100% Throttle or Maximum speed (move your radio throttle stick FORWARD and press the ESC
button, ESC LED indicator will blink 2 times and motor will beep 2 times)
- Step 5: Setting up of your BRAKE (move the radio throttle stick BACKWARD and press the ESC button, ESC
LED indicator will blink 3 times and motor will beep 3 times)
- Step 6: When your ESC show 4 blinking LED light and your motor beep 4 times mean you successfully
CALIBRATED your Furitek ESC
B.Calibrattion via App: (Your esc need a Bluetooth to communicate with app)
- Step 1: Please make sure to plug your battery to esc and open FURICAR app on android or IOS device
- Step 2: Please click “MENU” and click “THROTTLE”
- Step 3: Please click ”CALIB” and then click “YES”
Bluetooth:
- Default password to connect via Bluetooth "1234"
*Change password:
- Step 1: Please make sure to plug your battery to esc and open FURICAR app on android or IOS device
- Step 2: Please Click the Setting icon (see picture)
- Step 3: Please Click ”Change Password” menu, a new window pops up, type your new password
and then click “OK”
*Follow intructions on the app screen till fishnish calibration
TEGU Manual V1.0
www.modellmarkt24.ch

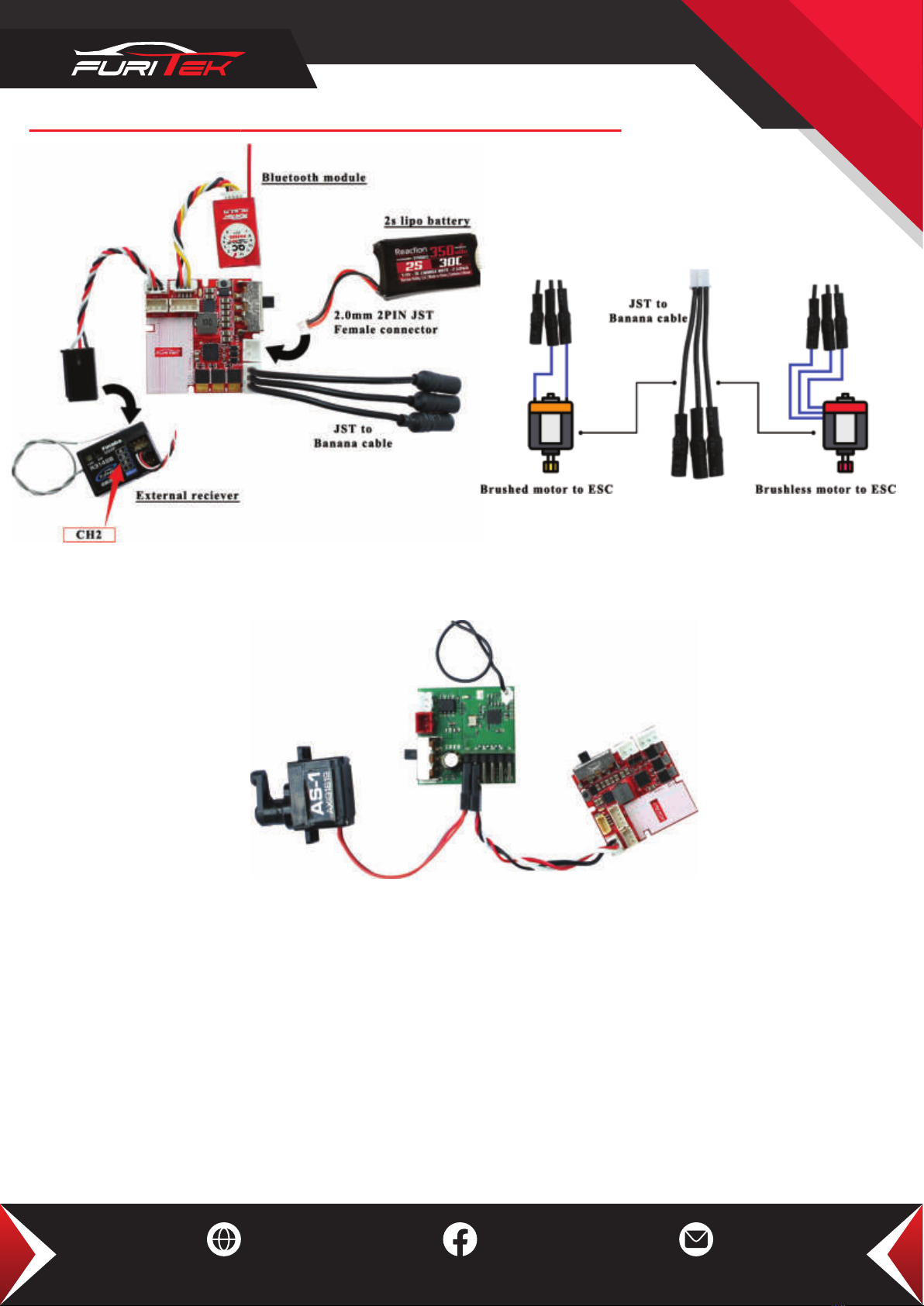

Connection Diagram for external receiver
Choose Channel2 to connect Receiver to ESC main board:
TEGU Manual V1.0
Connection Diagram for stock receiver/radio
www.modellmarkt24.ch
