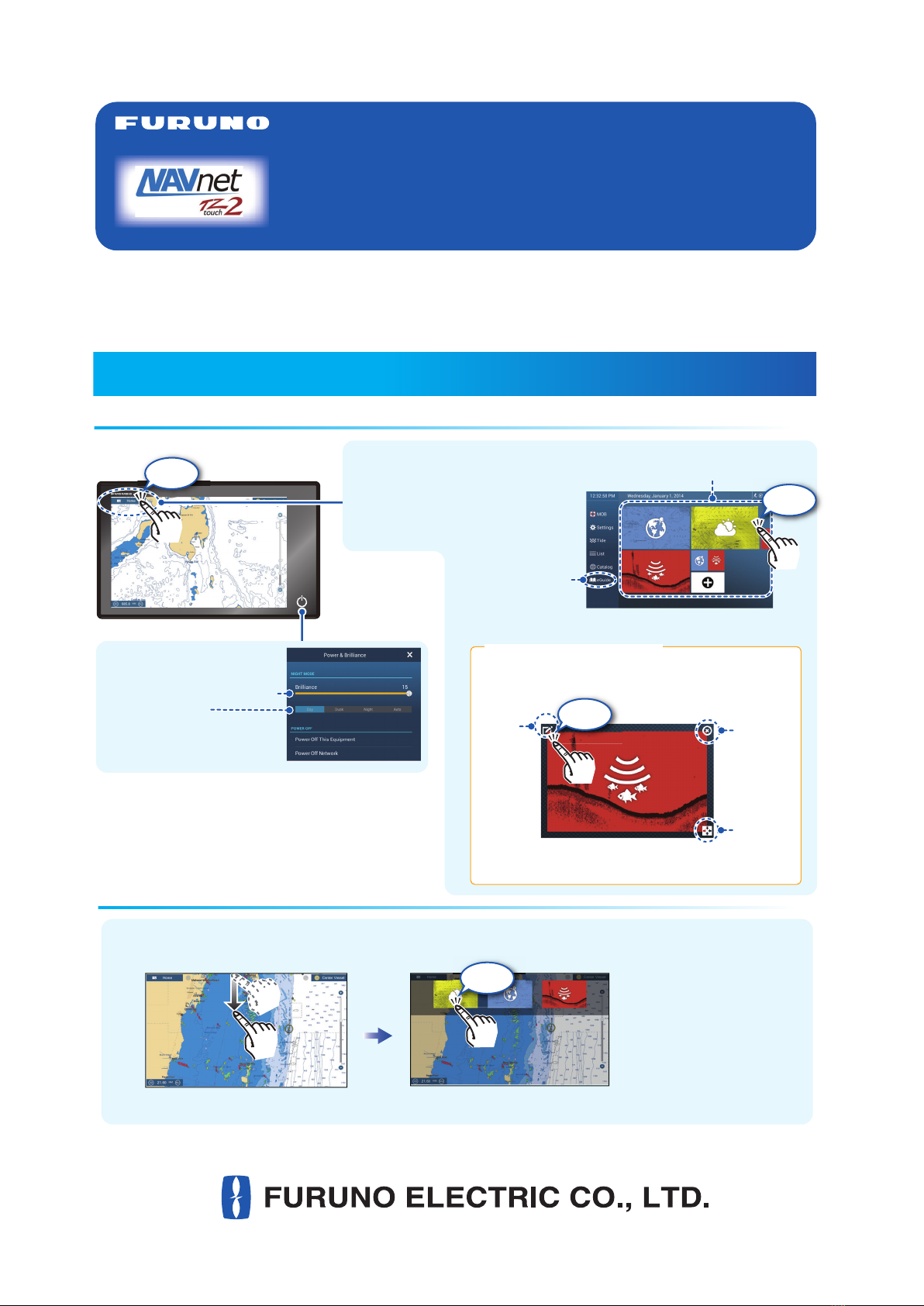

Home screen operations

Operational Overview

POWER switch

- Power on/off.

- Adjusts display brilliance.

- Changes hue.

Tap

Displays the home screen.

Home icon

Display icons

(max. 10)

Home screenHome screenHome screen

Home screenHome screen

Long tap a display icon to edit, delete, resize, or

change its location.

Display icon long tapped

Edit Delete

Size

(large or

small)

Tap

How to select a display

- From the home screen (see above)

- From the quick page

The quick page has the display

icons selected to large size on

the home screen.

Quick pageQuick pageQuick page

Quick pageQuick page

“eGuide” provides

an abbreviated

operator’s guide.

Tap

MULTI FUNCTION DISPLAY

TZTL12F/TZTL15F

Operator’s Guide

Model

The purpose of this guide is to provide the basic operation for this equipment. For detailed information,

see the operator’s manual in the supplied CD-ROM. You can get the latest version of the manual by

accessing the quick response code at the back of this guide.

iPhone, iPod and iPad are trademarks of Apple Inc. Android is a trademark of Google Inc. All brand and

product names are trademarks, registered trademarks or service marks of their respctive holders.

Tap

How to edit a display icon

Touchscreen operations

Touchscreen operationsTouchscreen operations

Tap

- Select an item on a menu.

- Select an object to show the

corresponding pop-up menu.

- Move the chart.

- Scroll the menu.

Zoom in Zoom out

Do the function assigned to

[Function Gesture] in the

[Settings] - [General] menu.

Drag

Two finger pinch Two finger tap

Menu operation

- Zoom in, zoom out the

plotter and weather displays.

- Change the range on the

radar display.

Slider barSlider barSlider bar

Slider barSlider bar

Drag

Tap operation also

available.

Pop-up menu

Tap any part of the

screen or an object.

Tap the required function.

(”>” indicates additional options.)

Layer menu

Tap the required function.

Layer menuLayer menuLayer menu

Layer menuLayer menu

Slide-out menu

Tap the required function.

Slide

Swipe leftward from the

right edge. Icon color and function state

Yellow: ON, White: OFF

Tap the [Home] icon.

Tap [Settings].

Tap the required menu. Tap the required option.

Settings menu

Two finger drag

Change the viewpoint

position on the 3D

display.

Zoom

out

Zoom

out

Zoom

out

Zoom

out

Zoom

out

Pop-up

Swipe upward from

the bottom edge.

Plotter

Display range

Data area Heading line

Inactive route

(expanded)

Point

Track

COG

Return own

ship to screen

center

Tap

Orientation Mode

Switch between

NU and HU.

Switch between 2D

and 3D. (Drag upward

with two fingers also.)

2D: 3D

3D: 3D

Swipe from the left edge of the screen rightward to show the data area at the left edge of the screen. Tap

“<” to hide the data area.

How to add a data box

How to remove or change the contents of a data box

Tap the data to add.

Tap an unoccupied space.

Ex. “Cursor” data added to the data

box

Data Area (Data Box)

Tap the data to remove or change.

Tap the data to remove or change.Tap the data to remove or change.

Data box settings

Remove: Tap [Remove].

Change: Tap the data to use.

Use flipswitch to set data format.

(ON: Analog, OFF: Digital)

Boat icon

urso

Inactive route

(sleeping)

(Departure or

arrival point,

selectable on

[Layers] menu.)

DATA ROUTE RADAR

Points

Points can be entered on the plotter and radar displays to mark important locations such as a

good fishing spot. Point attributes (position, symbol type, color, etc.) are recorded to the points

list.

Tap where to enter a point.

The point is entered

on the screen.

Tap a point or the location

to set as destination.

On-screen point Selected location

On-screen point

Points list

How to enter a point

Yellow line:

Shortest course from own

ship to the destination.

Red dashed line (thick):

Indicates course to go to the

destination.

Tap the point to set as the destination.

How to set a point as destination

Tap [List] on the

home screen.

The point is put at the center

of the plotter display.

Sort the list by name, icon, color, range.

Destination point

Routes

route is comprised of a series of waypoints leading to a destination. Routes are saved to the

routes list.

On-screen route

Routes list

Tap the first point for

the route.

At the last point

Tap the next point for the route.

Repeat to enter all points for the route.

How to create a new route

How to follow a route

Tap a leg of the route.

Tlfth t

1st point

(route start point)

1st point

(route start point)

Last point

Home screen

Sort list by name, color, or total length.

Tap the route.

Enter a name for the route, then tap [ ].

(Top right corner)

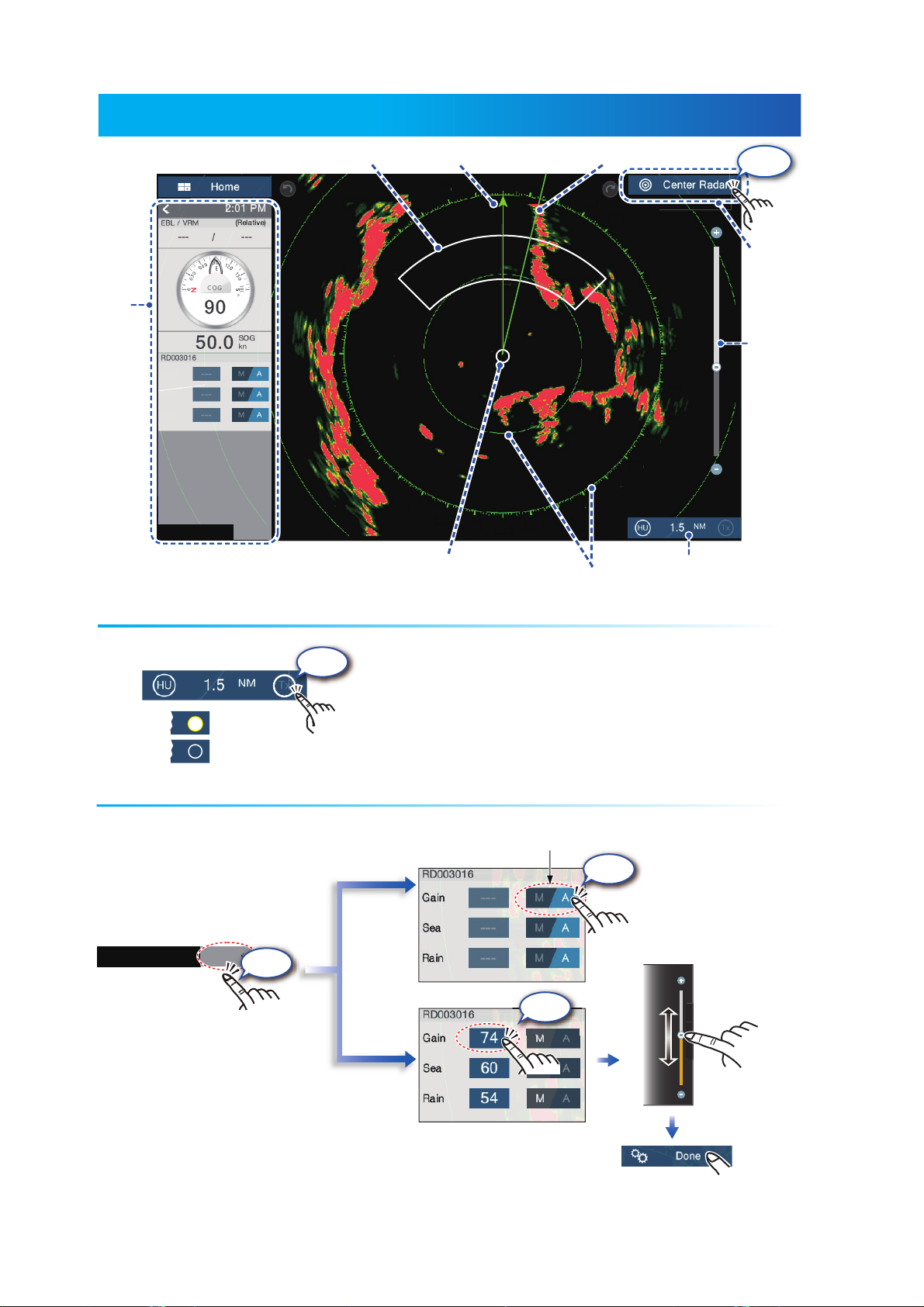

Radar

How to switch between standby and TX

Select

method

Manual

adjustment

Tap to switch between

automatic and manual.

method

Manual

Drag the

slider/tap the

slider bar to

adjust.

How to adjust the gain / sea clutter / rain clutter

ADAR

ATA

DATA

Tap

: Standby

: TX

Tap

“A” means automatic adjustment

“M” means manual adjustment

Tap

Data

area

Own ship position

Heading line

Guard zone

Fixed range rings Range

North mark

Slider

bar

Return own

ship icon to

screen

center.

100

110

120

200

230

240

250 260 270

280

290

300

310

320

330

340

350

210

180

170

160

140

220

190

150

130

340

Gain

Sea

Rain

Tap

(At bottom of data area)

RADAR

DATA ROUTE

RADAR

DATA ROUTE

Tap

(Top right corner)

Tap

Target

Tap a target to show its range

and bearing from own ship.

How to measure the range, bearing from own ship to a target

How to set a guard zone

A guard zone alerts you (with aural and visual alarms) when a radar target enters the area you

specify.

The guard zone appears in dashed

lines.

A circle appears at each corner

of the guard zone.

The dashed lines change to

solid lines, indicating the

guard zone is active.

Drag the circles to set guard zone.

100

110

120

200

230

240

250 260 270

280

290

300

310

320

330

340

350

210

180

170

160

140

220

190

150

130

340

Open the

[Layers] menu.

Tap dashed line on guard zone.

Tap

Guard zone

Tap the guard zone again.

Tap

2:01 PM

RADARDATA ROUTE

(Top right corner)

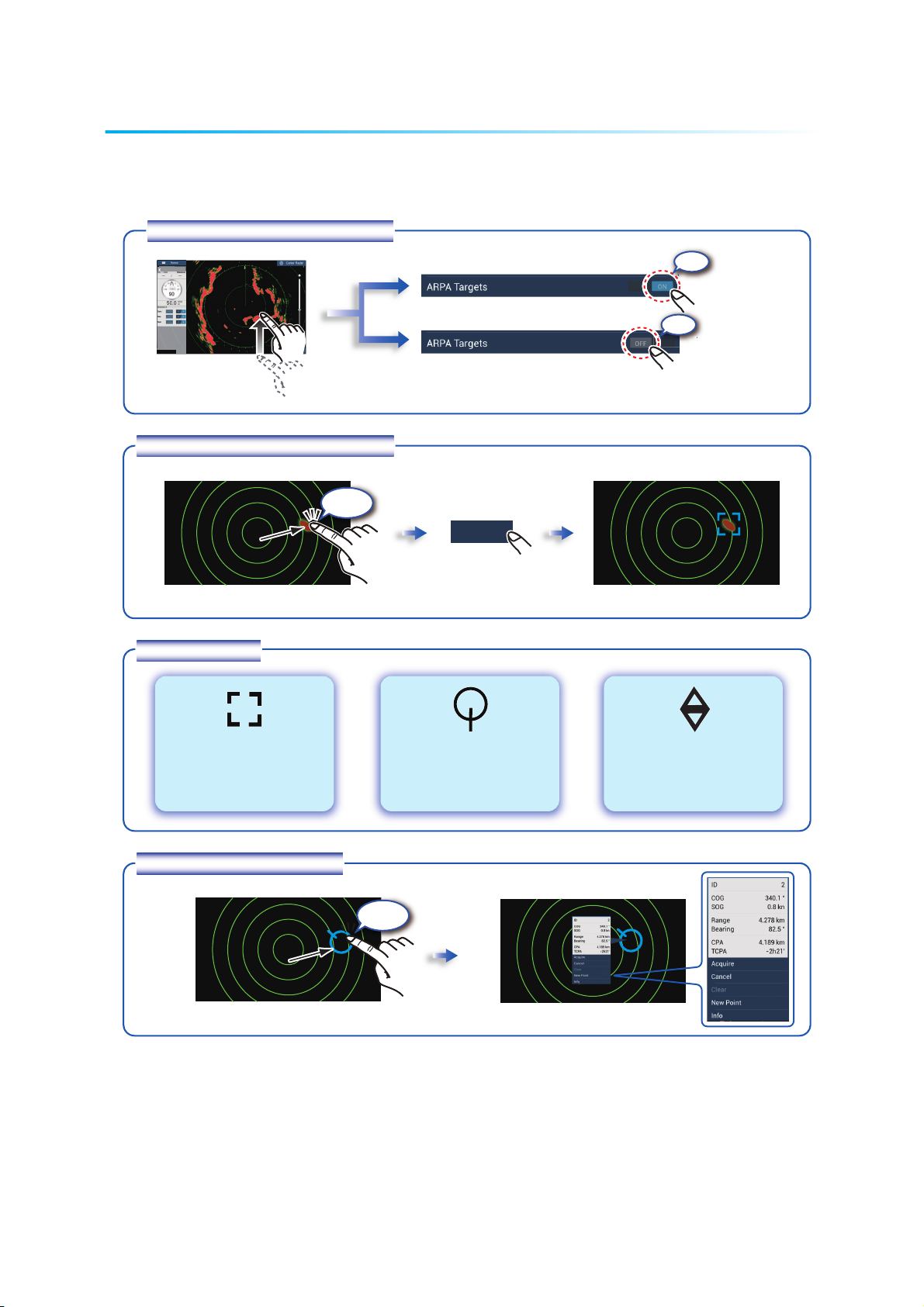

ARPA Operation

How to activate, deactive ARPA

How to manually acquire a target

Tap the target to acquire.

Target

Tap

ARPA symbols

At acquisition Lost target

How to display target data

Tap an ARPA target to show its data.

ARPA

target

ARPA

target

Tap

ARPA is an anti-collision aid that tracks the movement of other ships to help prevent collision.

ARPA not only tracks other ships but also provides their navigation data. Targets can be acquired

manually, automatically, or both automatically and manually.

BRG

RNG

CPA

TCPA

Within 30 seconds

after acquisition

ARPA activated

ARPA deactivated

Acquire

Open the

[Layers] menu.

㔎㔐෻኿

100

110

120

200

230

240

250 260 270

280

290

300

310

320

330

340

350

210

180

170

160

140

220

190

150

130

340

2:01 PM

ARP

OFF

RADARDATA ROUTE

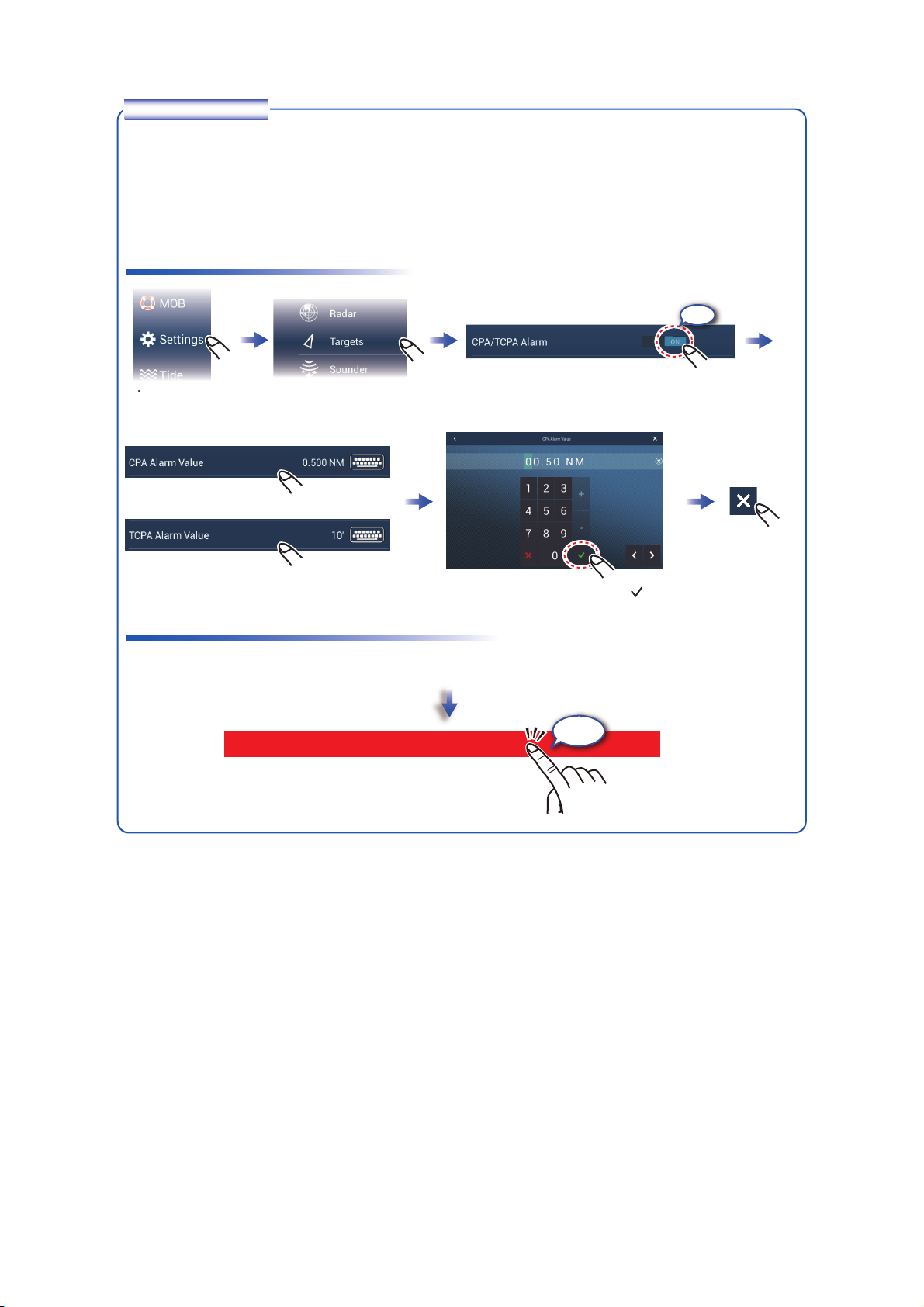

CPA/TCPA alarm

The CPA/TCPA alarm releases aural and visual alarms when both the CPA and TCPA of a tracked

target are equal to or lower than the CPA/TCPA alarm setting.

How to set the CPA/TCPA alarm

CPA: Closest point of approach

TCPA: Time to closest point of approach

How to acknowledge the CPA/TCPA alarm

CPA/TCPA Alarm

Tap the alarm message (top of screen) to acknowledge the alarm and stop the aural alarm.

Tap

Home screen

Set the alarm value, then tap [ ].

AIS symbols ON

AIS symbols OFF

How to show or hide AIS target symbols

AIS target symbols

Class B AIS

Color: blue

SOG/COG

vector

Color: green

SOG/COG

vector

Flashing

Color: red

Color

- AIS target: blue

- “x” symbol: red

Color

- AIS target: green

- “x” symbol: red

Class A AIS

Normal target

Dangerous target

Lost target

Proximity AIS target alarm

The proximity AIS target alarm releases aural and visual alarms when the distance between own ship and an

AIS target is less than the alarm value.

How to show AIS target data

Tap an AIS target to show its data.

AIS

target

AIS

target

Tap

AIS (Automatic Identification System)

Home screen

FURUNO

987654321

URUN

Set the alarm value, then tap [ ].

Open the

[Layers] menu.

AISs

OFF

RADARDATA ROUTE
