Futech 0273DG Manuale utente
USER
MANUAL
027.03D MULTICROSS 3D BRAVE GREEN
EN ENGLISH
Manual
in your language?
Check the back cover
2
02
03
01
08
04
05
06
01
03
02
07
D
E
C
A
F
B
OVERVIEW
KEYPAD
A H-button for horizontal lines / Power button
B V-button for vertical lines
C Receiver button
D Power indicator
E Receiver indicator
F Warning indicator
CASE
01 Horizontal laserexit
02 Front vertical laserexit (V1)
03 Side vertical laserexit (V2)
04 On/Off/Transport security switch
05 Battery compartment
06 Tripod thread 1/4”
07 Power socket
08 Keypad
3
b
a
d
c
TURNING TABLE OPTIONAL ACCESSORY ART.NR.: H027.TUR
a Rotation point
b Fine tuning
c Shifting plate
d Tripod thread 5/8”
· Slide the device onto the turning table
· Manually rotate the laser to the desired position
· Using the ne tuning [b] the shifting plate [c] will
move and brings the laser line is the exact position.
(plumb stays in position)
QUICK START GUIDE
KEYPAD
NAME
FUNCTION
A
H-button / Power button Press (De-)activate horizontal laser lines
Hold Switch ON device whit pendulum locked (for manual slope)
B V-button Press (De-)activate vertical laser lines
C Receiver button Press (De-)activate the receiver mode (Pulse)
D LED Power indicator No The device is switched OFF
Green The device is switched ON
E LED receiver indicator No Receiver mode OFF, detection with receiver is not possible
Red Receiver mode ON, laser line pulses, detection with receiver is possible
F Warning indicator Orange, ashing slow Slope active (pendulum is locked, laser not levelled)
Orange, ashing fast Out of self-levelling range
4
SAFETY
Please read the safety instructions is provided in
the separate booklet provided with the device.
LASER RADIATION – Class 2 Laser product. – Do
not stare into beam
BATTERY
This laser can be used with the supplied battery
(7.4V, 2200 mAh) or using the supplied USB-C
power adapter. The battery will charge when it is
in the device while the power adapter is connect-
ed. The device can be used while charging.
FIRST TIME USAGE
Remove all protection foils.
Place the provided LI-ION battery in the device
by opening the battery cover [05]. Make sure the
batteries are fully charged.
USE
AUTO-LEVELLING
ON
OFF ON
OFF
Slide the On/Off/Transport security switch [04] to
the “ON” position. The laser is switched on, the
pendulum levelling mechanism is released, and
the instrument is able to level itself.

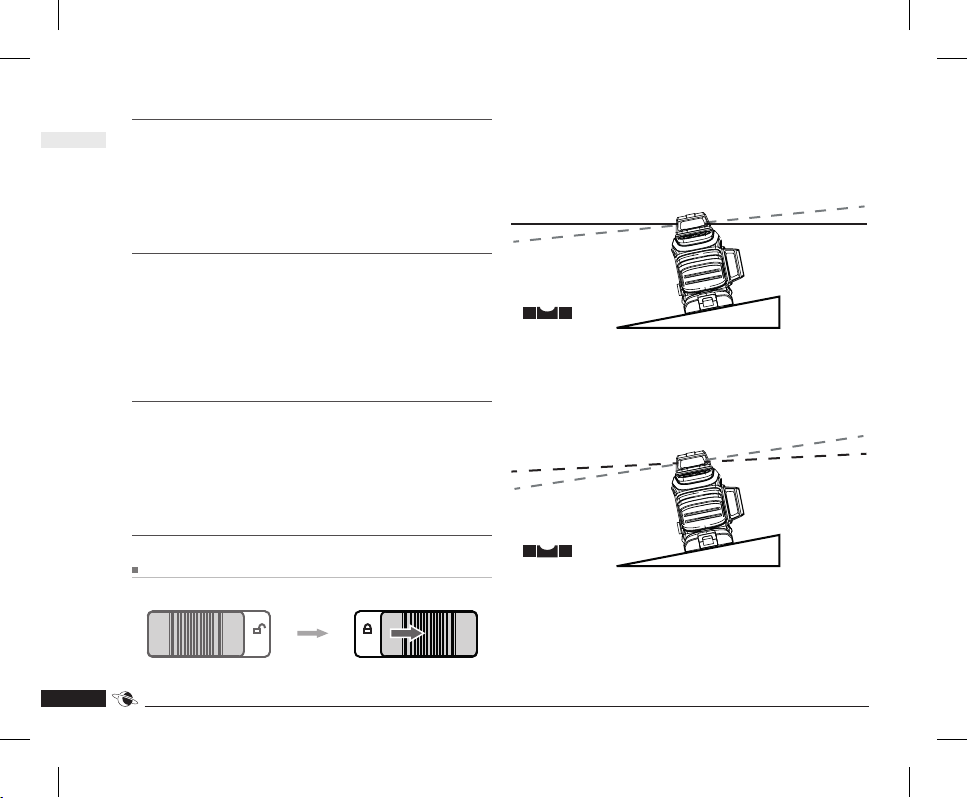

< 3°
The laser can level itself in a range of approx. 3°
in every direction. This means the laser can show
100% horizontal or vertical lines when placed on
a sloped surface of approx. 3° maximum.
> 3°
In case the laser is placed on a surface that
exceeds the 3°, a levelled horizontal or vertical
laser line will no longer be possible.
5
The warning indicator [F] will ash fast and the
laser lines will turn off.
Place the laser device on a atter surface, within
the levelling range of 3° if possible. The laser will
self level automatically when placed within its
levelling range.
SWITCHING ON/OFF LASER LINES
When switching on the device, all 3 laser diodes
will be activated.
HORIZONTAL LASER LINES
To change the projected horizontal laser lines,
press the H-button for horizontal lines [A].
…
· Press the H-button [A] a rst time to switch off
the horizontal laser line (V1) [02].
· Press the H-button [A] a second time to switch
on the horizontal laser line (V1) [02].
· ... (these two previous steps will repeat)
NOTE
We advise to set the horizontal line on your
working height, using a tripod.
VERTICAL LASER LINES
To change the projected vertical laser lines, press
the V-button for vertical lines [B].
…
· Press the V-button [B] a rst time to switch off all
verical laser lines.
· Press the V-button [B] a second time to switch
on the front vertical laser line (V1) [02].
· Press the V-button [B] a third time to switch on
the side vertical laser line (V2) [03].
· Press the V-button [B] a fourth time to switch on
both vertical laser line (V1+V2) [02][03].
· ... (these four previous steps will repeat)
NOTE
When both vertical lines are switched on, you
can measure an exact angle of 90° or show a
plumb line (imaginary line between the cross
on the oor and the cross on the ceiling)
6
SLOPE MODE
ON
OFF
3 sec.
+
Slide the On/Off/Transport security switch [04] to
“OFF” so the laser beams are turned off and the
transport lock is active (pendulum is blocked).
Hold the H-button / Power button [A] for approx.
3 seconds. All laser lines will switches on without
loosen the transport security (pendulum is still
locked in position). The warning indicator [E]
ashes slow. This to warn you the laser is not
levelled!
Hold the H-button / Power button [A] again for
approx/ 3 seconds to shut down the laser in
slope mode.
MANUAL SLOPE
You can physically position the device at the
desired slope by using an inclined surface or a
slope adapter (optional accessory).
NOTE
In slope mode, the laser lines no longer levelled
automatically. A slow ashing warning indicator
[F] will remind you the pendulum is blocked
and the laser is not able to level.
RECEIVER MODE
Press the receiver button [C] to turn on the
receiver mode (pulse). When this mode is
activated, the receiver indicator [E] will light up.
At this moment, laserlines can be picked up by
a laser receiver.
Press the receiver button [C] again to turn off
the receiver mode (pulse).
NOTE
All Futech laser will use 10Khz as frequency in
receiver mode. Only receivers that can detect
laser lines at 10KHz are compatible.
7
TECHNICAL SPECIFICATIONS
027.3DG
MULTICROSS 3D BRAVE GREEN
Visibility
Accuracy ± 2 mm / 10 m
Range with receiver 2x 40 m
Levelling range ± 3°
Levelling Pendulum levelling
Slope fucntion Manual (via pendulum lock)
Tripod thread 1/4”
Laser wavelenght 515 nm
Laser classi cation Class 2, < 1mW
Power supply Li-Ion battery 7.4V, 2200mAh
Protection IP54
Dimensions (l x w x h) 116 x 82 x 120 mm
Weight 0,400 kg
Operation temperature -5°c ~ +40°c
DECLARATION OF CONFORMITY
Futech (Belgium) declares under its own responsibility that
this device:
- 027.3DG, MULTICROSS 3D BRAVE GREEN
is in conformity with the standards
EN IEC 61326-1:2021,
IEC 60825-1:2014
following the provisions of Directive(s)
2014/30/EU.
Lier, Belgium,
March 30, 2023
Patrick Waûters
Potential misprints are reserved. Images used are not strict. All features,
functionality and other product speci cations are subject to change without
notice or obligation.
@futechtools
Facebook
@futechtools
futechtools
LinkedIn
YouTube
futech-tools.com
World Wide Web
230331090855
