GBC FUSION 5100L Manuale utente

FUSION

™5100L

A3 LAMINATORS

start here

commencer ici

hier beginnen

inizia da qui

beginnen hier

empieza aquí

começar aqui

buradan başlayın

ξεκινήσει εδώ

starter her

aloita tästä

starter her

börja här

zacznij tutaj

začněte zde

itt kezdődnek

начать здесь

GB instruction manual 4

F manuel d’utilisation 12

D bedienungsanleitung 20

I manuale d’istruzioni 28

NL gebruiksaanwijzing 36

E manual de instrucciones 44

P manual de instruções 52

TR kullanım kılavuzu 60

GR οδηγίες 68

DK brugsvejledning 76

FI käyttöopas 84

NO bruksanvisning 92

S bruksanvisning 100

PL instrukcja obsługi 108

CZ návod k obsluze 116

H használati útmutató 124

RUS руководствo по зкcплyатации 132

FUSION

™5100L

A3 LAMINATORS

4register this product online at www.accoeurope.com

professional finish… automatically!

Welcome to the new GBC 5100L laminator which allows

lamination to be completed quickly and simply with GBC

quality lamination output. Perfect for novice users choosing

automatic self setting to expert users with multiple pouch

thicknesses and document sizes.

For best lamination results and performance, use only GBC

branded pouches.

Please take a little time to study these instructions to ensure

you get the best results out of your machine.

Electrical shock hazard.

Do not open. No user

serviceable parts inside.

Refer servicing to qualied

service personnel.

WARNING

The following warning is found on the

product in several languages.

This safety message means that you

could be seriously hurt or killed if you

open the product and expose yourself

to hazardous voltage.

safety instructions

Your safety as well as the safety of others is important to ACCO® Brands. In this

instruction manual and on the product are important safety messages. Read these

messages carefully.

The safety alert symbol precedes each safety message in this instruction manual.

This symbol indicates a potential personal safety hazard that could hurt you or others,

as well as cause product damage or property damage.

service

Do not attempt to service or repair the pouch laminator yourself. Unplug the unit and contact an

authorised GBC service representative for any required repairs.

points to note

• Use this unit only for its intended use of laminating documents

• Only use 40mic (with carrier) 75mic, 125mic, 175mic or 250mic pouches with this laminator

• Do not laminate an empty pouch

• The unit must be connect to a supply voltage corresponding to the electrical rating shown on the

unit

• Ensure the machine is clear of pouches prior to starting the next pouch

• Clean the lamination rollers on a regular basis

• Maximum A3 document pouch 426x303mm on GBC Fusion 5100L A3 Laminator

• Active anti jam feature may not detect issue on smaller items

• Failure to comply will result in damage and invalidate guarantee

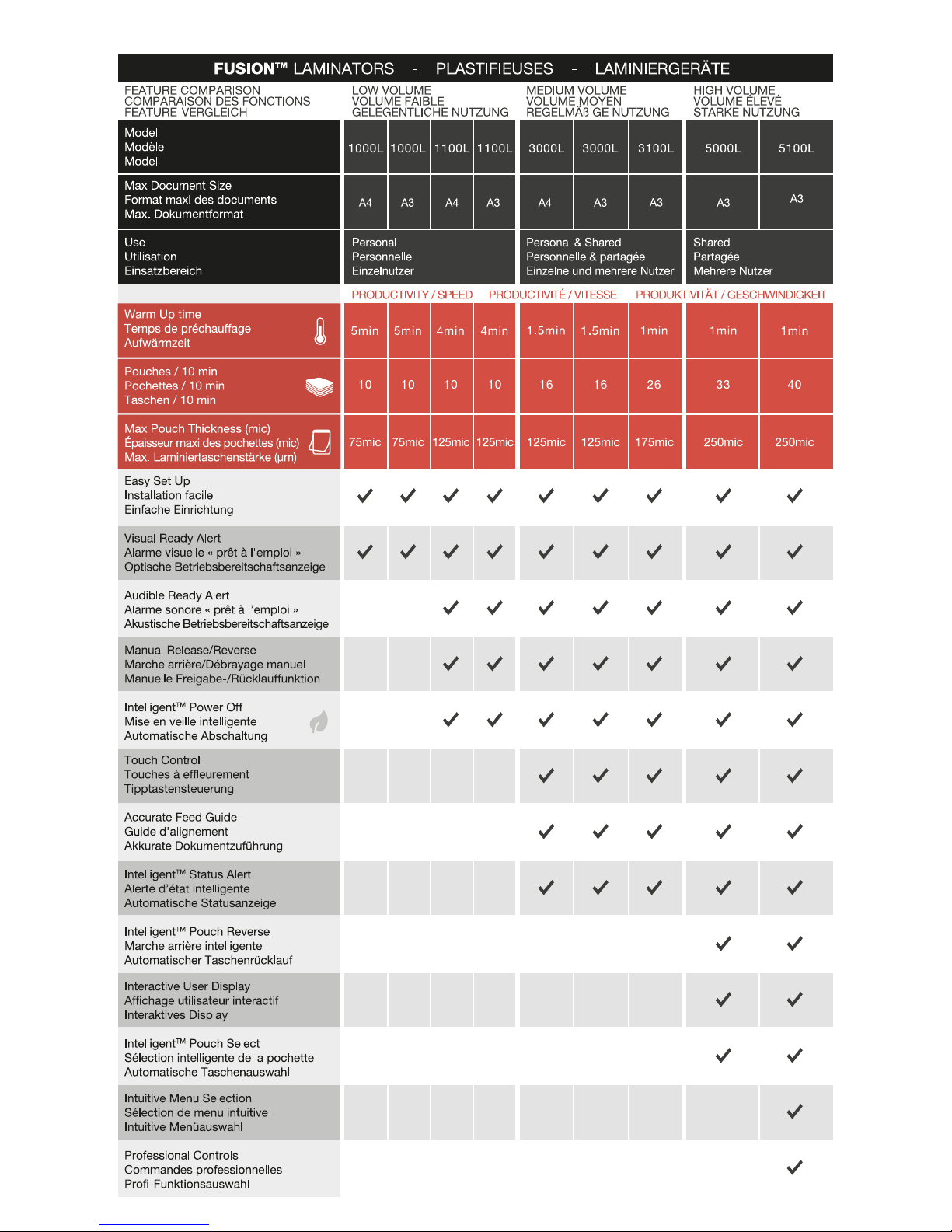

FUSION™5100L A3 LAMINATORS 5

Electrical

220-240V AC / 50Hz/60Hz /

6.5A / 1520W

Machine Dimensions 570x193x132mm

Machine Weight 4.6kg

Maximum Pouch Width A4: 241mm

A3: 303mm

Maximum Pouch

Thickness

2x250micron (total 500)

Maximum Thru-put

Thickness

1.0mm

Warm-Up Time Approximately 1 minute

Speed Variable (max.: 1000mm/min.)

technical specifications

6register this product online at www.accoeurope.com

getting ready to laminate

Easy Set Up

1 Remove the plastic exit tray from the box and place into the two holes on the back of the

laminator and extend to use. Ensure that there is sucient space behind the laminator for the

item to be removed.

2 Take the electrical plug and place in an appropriate power source, which is near the table you

intend to use.

3 The laminator will briey ash the GBC logo on the control panel and will make an audible beep.

4 To use the laminator gently tap the ‘power on’ button.

NOTE: Your new laminator may emit

a slight odour during the initial

operation. Its is normal and will

diminish after a few hours of

operation.

Manual Select ( ) – scroll through and select the required micron setting, i.e. 75mic.

NOTE: If 40mic setting is selected

ALWAYS use a carrier

mic40

mic75

mic125

mic175

mic250

Interactive Menu Selection

5 A GBC logo will show in the screen followed by the main menu:

MANUAL SELECT AUTO POUCH SELECT

SETTINGS HELP

NOTE: Use arrows to scroll up/down and left/right, use ENTER button

to select.

Use at anytime to go back – one screen at a - time to the main

menu.

FUSION™5100L A3 LAMINATORS 7

loading the pouch

1 Take your item to be laminated and place into the laminating pouch. Ensuring it is rmly placed

along the sealed edge of the pouch. This is to help ensure that you get optimal quality output.

Before laminating important or unique documents, always run a test pouch through

the laminator using a similar type document.

SEALED EDGE

A3, A4, A5, etc. Irregular shaped item

SEALED EDGE

NOTE: Do not cut pouches prior to

lamination.

NOTE: The machine will not take any

pouch during warm up.

Intelligent Pouch Select

Auto Pouch Select ( ) - the laminator automatically measures document and pouch thickness

and self set accordingly.

NOTE: In both Manual Select and Auto Pouch Select modes during

warm up the Wait indicator will ash until ready.

8register this product online at www.accoeurope.com

laminating

2 Feed the sealed edge of the pouch, into the laminator between the guides. The laminator will

grip the pouch and guide it through to the exit tray.

NOTE: Do not force guides

against pouch

3Do not force guides tightly against pouch. Move guides to an appropriate setting to allow pouch

to be fed in without touching guides.

4When you are nished laminating tap the ‘power’ button and if required remove the tray, unplug

and store accordingly.

Upon exiting remove your

laminated item immediately

and lay on a at surface to

ensure optimal quality.

1 On the front of the laminator there are adjustable guides to help you feed your pouch accurately.

Move the guides to appropriate line which matches your pouch/ item to be laminated.

Accurate

Feed Guides

FUSION™5100L A3 LAMINATORS 9

additional features

NOTE: Never reuse a misfed or jammed

pouch

NOTE: Do not put partially laminated

items back into the laminator.

If you wish to recover a partially fed pouch press and hold the “Reverse” button and the pouch will

be quickly reversed out of the laminator. You will hear a series of single beeps until Reverse button

is released.

Intelligent Status Alert

If you try to laminate a 40mic pouch without a carrier the pouch will be automatically reversed out.

Intelligent Pouch Reverse

If pouch misfeed or jam starts to occur a constant beep will be emitted and the laminator will

automatically reverse the document out.

10 register this product online at www.accoeurope.com

settings

Help ( ) – Scroll through to select country then either follow the link to the web address,

scan the QR code. Alternatively contact the local service centre, see pXXX.

Professional Control

From the main menu select ( ) and the following options will appear:

SPEED

ADJUST

JOB

COUNTER

LANGUAGE

SELECT

Scroll through the menu to select the required setting and press enter:

Speed Adjust - Allows you to ne tune speed if required for optimal results. Use arrows to

adjust the speed, up (+) or down (-). Reducing the speed will slightly increase the exposure to

heat. Increasing the speed will slightly decrease the exposure to heat.

Job Counter – Allows you to count the number of documents laminated. Use the arrows to

select Reset if required.

Language Select – Scroll up or down to select desired language and press enter.
