GE
Digital Solutions
Pressure Automated Calibration Equipment
Calibration manual - K0450 Revision B
PACE5000
PACE6000
PACE1000
© 2010 General Electric Company. All Rights Reserved. Specifications are subject to
change without notice. GE is a registered trademark of General Electric Company. Other
company or product names mentioned in this document may be trademarks or registered
trademarks of their respective companies, which are not affiliated with GE.
PACE Series Calibration Manual
[EN] English i K0450 Revision B
Introduction
This technical manual provides calibration instructions for the PACE Pressure Controllers and
Indicators.
The features shown and described in this manual may not be available on some models.
Safety
The manufacturer has designed this equipment to be safe when operated using the
procedures detailed in this manual. Do not use this equipment for any other purpose than
that stated.
This publication contains operating and safety instructions that must be followed to ensure
safe operation and to maintain the equipment in a safe condition. The safety instructions are
either warnings or cautions issued to protect the user and the equipment from injury or
damage.
Use suitably qualified* calibration technicians and good engineering practice for all
procedures in this publication.
Pressure
Do not apply pressures greater than the maximum working pressure to the equipment. It is
the responsibility of the calibration technician to apply pressures within the published
pressure range and to only use external pressure equipment with correctly rated fittings and
components.
Toxic Materials
There are no known toxic materials used in construction of this equipment.
Maintenance
The equipment must be correctly maintained, the manufacturer’s procedures should be
carried out by authorized service agents or the manufacturer’s service departments.
Technical Advice
For technical advice contact the manufacturer.
* A qualified calibration technician must have the necessary technical knowledge,
documentation, special calibration/test equipment and tools to carry out the required work
on this equipment.
K0450 Revision B ii [EN] English
Abbreviations
The following abbreviations are used in this manual; the abbreviations are the same in the
singular and plural.
abs Absolute
a.c. Alternating current
ALT Altitude
BSP British pipe thread
CAS Calculated airspeed
CSK Countersunk
d.c. Direct current
DPI Digital Pressure Instrument
e.g. For example
etc. And so on
Fig. Figure
ft Foot
g Gauge
Hg Mercury
HTS High tensile steel
Hz Hertz
IAS Indicated airspeed
i.e. That is
IEC International Electrotechnical Commission
IEEE 488 Institute of Electrical and Electronic Engineers standard 488 data
in Inch
kg Kilogram
kts/kn knot
LCD Liquid crystal display
m Metre
mA Milliampere
max Maximum
mbar Millibar
min Minute or minimum
mm Millimetre
mV Millivolts
MWP Maximum working pressure
No. Number
NPT National Pipe Thread
PACE Pressure Automated Calibration Equipment
Para. Paragraph
PDCR Pressure transducer
PED Pressure Equipment Directive
psi Pounds per square inch
PTX Pressure transmitter
ROC Rate of Climb
RS232 Serial communications data standard
RtCAS Rate of calculated airspeed
PACE Series Calibration Manual
[EN] English iii K0450 Revision B
Associated Publications
K0447 PACE5000/6000 User Guide and Safety Instructions
K0467 PACE1000 Indicator User Guide and Safety Instructions
K0443 PACE5000/6000 Controller User Manual
K0470 PACE1000 Indicator User Manual
K0476 Pressure Control Module User Guide and Safety Instructions
K0472 SCPI Communications Manual
K0469 Heritage Communications Manual - Instrument Emulation
Symbols
RtMach Rate of Mach
SCPI Standard Commands for Programmable Instruments
UUT Unit under test
V Volts
VFC Volts-free contact
+ve Positive
-ve Negative
°C Degrees Celsius
This equipment meets the requirements of all relevant European safety directives.
The equipment carries the CE mark.
This symbol, on the equipment, indicates that the user should read the user
manual.
This symbol, on the equipment, indicates a warning and that the user should refer
to the user manual.
Ce symbole, sur l’instrument, indique que l’utilisateur doit consulter le manuel
d’utilisation. Ce symbole, dans le manuel, indique une situation dangereuse.
This symbol warns the user of the danger of electric shock.
Ce symbole alerte l’utilisateur sur le danger de choc électrique.
Do not dispose of this product as household waste. Use an approved organisation
that collects and/or recycles waste electrical and electronic equipment. For more
information, contact one of these:
- Our customer service department: www.gemeasurement.com
- Your local government office.
K0450 Revision B iv [EN] English
WARNINGS
TURN OFF THE SOURCE PRESSURE(S) AND CAREFULLY VENT THE PRESSURE LINES BEFORE
DISCONNECTING OR CONNECTING THE PRESSURE LINES. PROCEED WITH CARE.
ONLY USE EQUIPMENT WITH THE CORRECT PRESSURE RATING.
BEFORE APPLYING PRESSURE, EXAMINE ALL FITTINGS AND EQUIPMENT FOR DAMAGE.
REPLACE ALL DAMAGED FITTINGS AND EQUIPMENT. DO NOT USE ANY DAMAGED
FITTINGS AND EQUIPMENT.
DO NOT EXCEED THE MAXIMUM WORKING PRESSURE OF THE INSTRUMENT.
THIS EQUIPMENT IS NOT RATED FOR OXYGEN USE.
THE GROUND LEAD OF THE INSTRUMENT MUST BE CONNECTED TO THE AC SUPPLY
PROTECTIVE SAFETY GROUND.
ISOLATE THE POWER SUPPLY BEFORE MAKING ANY ELECTRICAL CONNECTIONS TO THE
REAR PANEL.
PACE Series Calibration Manual
[EN] English v K0450 Revision B
Pressure Units and Conversion Factors
Unit Conversion
To convert FROM pressure VALUE 1 in pressure UNITS 1 TO pressure VALUE 2 in pressure
UNITS 2, calculate as follows:
Note: The PACE instrument contains selectable pressure units and user defined units. Use the
conversion factors to calculate a user defined unit from the table above. Refer to the
data sheets for the list of selectable pressure units.
Pressure units Factor (hPa) Pressure units Factor (hPa)
mbar 1.0 cmH2O @ 20°C 0.978903642
bar 1000.0 mH2O @ 20°C 97.8903642
Pa (N/m2)0.01 kg/m20.0980665
hPa 1.0 kg/cm2980.665
kPa 10.0 torr 1.333223684
MPa 10000.0 atm 1013.25
mmHg @ 0°C 1.333223874 psi 68.94757293
cmHg @ 0°C 13.33223874 lb/ft20.4788025898
mHg @ 0°C 1333.223874 inH2O @ 4°C 2.4908891
inHg @ 0°C 33.86388640341 inH2O @ 20°C 2.486413
mmH2O @ 4°C 0.0980665 inH20 @ 60°F 2.487641558
cmH2O @ 4°C 0.980665 ftH2O @ 4°C 29.8906692
mH2O @ 4°C 98.0665 ftH2O @ 20°C 29.836983
mmH2O @ 20°C 0.097890364 ftH20 @ 60°F 29.8516987
VALUE 2 VALUE 1 FACTOR 1
FACTOR 2
----------------------
=
K0450 Revision B vi [EN] English
Table of Contents
1 Introduction......................................................................................................................................................1
2 Calibration Status..........................................................................................................................................1
3 Calibration Equipment ................................................................................................................................1
4 Preliminary Operations...............................................................................................................................1
5 Notes on Calibration ....................................................................................................................................1
5.1 PACE Controller Connection .........................................................................................................2
Gauge Reference...............................................................................................................................2
5.2 PACE Indicator Connection...........................................................................................................3
Gauge Reference...............................................................................................................................3
6 Calibration Check (All Ranges).................................................................................................................4
6.1 Procedure..............................................................................................................................................4
7 Calibration Adjustment...............................................................................................................................5
Appendix A PACE Menus and Screens..................................................................................................6
A.1 PACE Controller Menus ...................................................................................................................6
A.2 PACE Controller Screens.................................................................................................................7
A.3 PACE Indicator Menus .....................................................................................................................8
A.4 PACE Indicator Screens ..................................................................................................................9
PACE Series Calibration Manual
[EN] English 1 K0450 Revision B
1 Introduction
The PACE controller incorporates a calibration facility; for the PACE to stay accurate, a
calibration check should be carried out at chosen intervals. If the accuracy of the PACE is not
within the permissible deviation, carry out a calibration adjustment.
2 Calibration Status
Using the Measured Pressure/Instrument Status menu, the calibration status of the
calibrator can be displayed on the front panel screen. The status menu includes Calibration
History which gives a list of dates of the stored calibration corrections.
Note: The Date and Time must be set correctly using the Measured Pressure/Global Set-up/
Calibration menu.
3 Calibration Equipment
The original GE Calibration Certificate shows the measurement uncertainty of the original
calibration standard. To preserve uncertainty of the PACE calibration, checks and
adjustments must be performed using a calibrator uncertainty of less than or equal to the
original calibration standard.
4 Preliminary Operations
Review and become familiar with the whole procedure before beginning a calibration
process. Allow at least one hour for the PACE to thermally stabilize in a thermally stable
environment after switching on and before calibration.
Before starting a calibration procedure:
Carry out a leak test as detailed in PACE user manual K0443.
5 Notes on Calibration

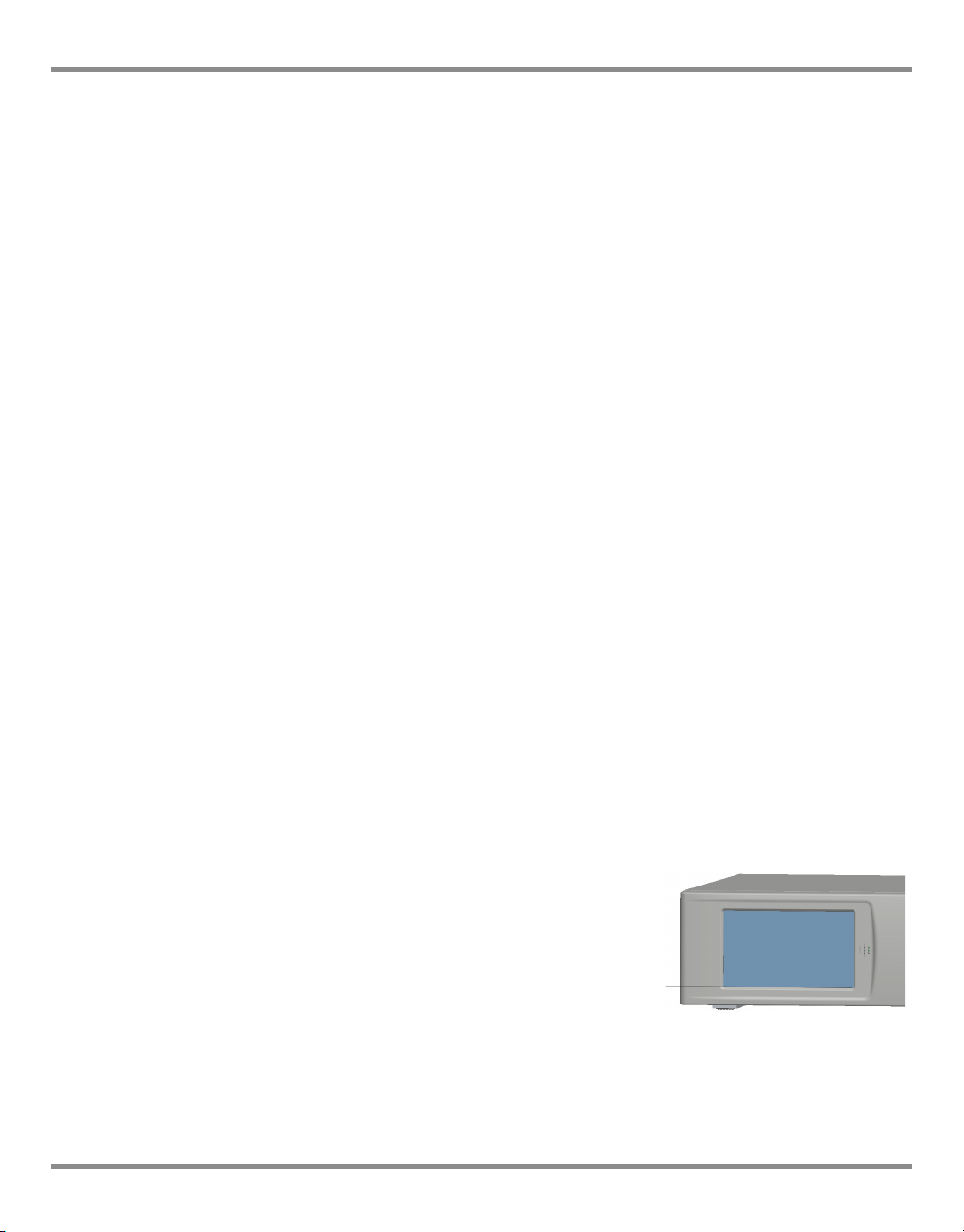

The pressure standard output port and the reference
level must be at the correct level or use height-
corrected applied pressure.
To prevent applied calibration pressure “back feed” in
PACE controllers, fit blanking plugs to both positive and
negative supply ports on the manifold.
Set the PACE units of pressure to one of the required units for calibration.
Reference
Level
K0450 Revision B 2 [EN] English

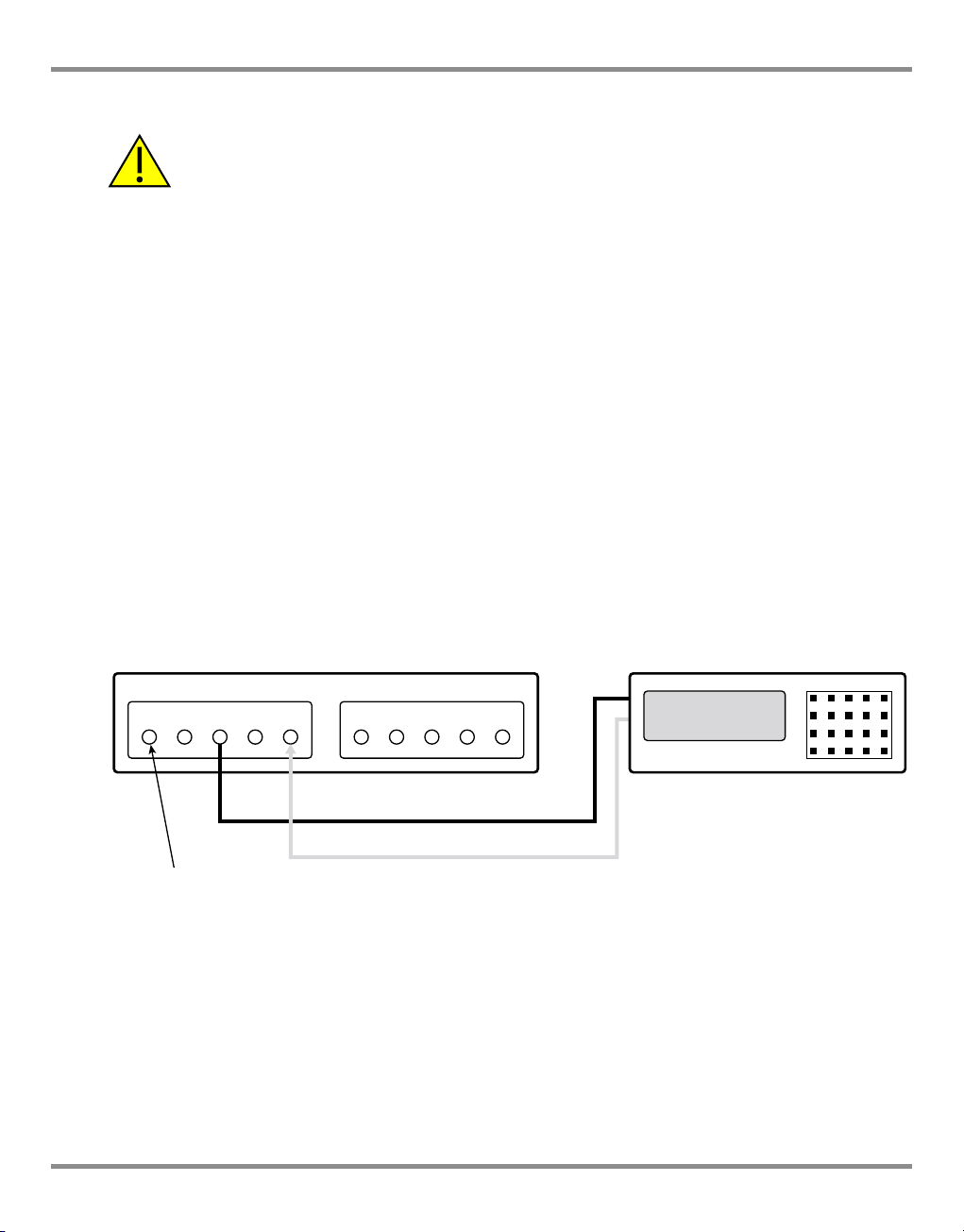

5.1 PACE Controller Connection
WARNING
ON COMPLETION OF CALIBRATION, OPEN THE ON/OFF VALVE TO VENT TRAPPED
PRESSURE FROM THE SUPPLY + PORT TO ATMOSPHERE.
Connect the calibrator for each pressure range as follows:
Connect the output of the pressure standard to the PACE module output port.
Fit an on/off valve to the supply + input of the PACE controller. Leave the other side of the
valve open to atmosphere. Turn the valve to the closed position.
Gauge Reference
If the pressure standard has a reference connection, then connect this to the PACE reference
port on the module manifold. Otherwise the calibrator reference port should be open to
atmosphere.
Note: Module 2 reference port open to atmosphere or to reference port of the pressure
standard.
Note: Optimum performance is achieved by connecting the PACE reference port to the
pressure standard.
SUPPLY OUTLET VENT REF
+-
Module 2
SUPPLY OUTLET VENT REF
+-
Module 1
PACE Controller
Rear view of
instrument
Pressure Standard
On/off valve fitted to supply +
Altri manuali per PACE5000
2
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali GE Apparecchiature di prova
GE
GE PACE5000 Manuale utente
GE
GE PACE Series Manuale utente
GE
GE ADTS542F Manuale utente
GE
GE DMS Go+ Manuale utente
GE
GE Druck DPI 821 Manuale utente
GE
GE ADTS552F Guida all'installazione
GE
GE PACE5000 Manuale utente
GE
GE Multilin EPM 7000 Manuale utente
GE
GE Druck DPI 620 Genii Manuale utente
GE
GE Druck DPI611 Istruzioni operative e di manutenzione
GE
GE Druck ADTS 405 R/F Mk2 Manuale utente
GE
GE Druck DPI 841 Manuale utente
GE
GE Druck DPI 832 Manuale utente
GE
GE Druck DPI 620 Manuale utente
GE
GE Druck ADTS 405 Manuale utente
GE
GE SpotChecker Manuale utente
GE
GE Druck ADTS 405 R Mk2 Manuale utente
GE
GE NOVA Manuale elenco delle parti
GE
GE XL VU Manuale utente
GE
GE Druck DPI612 Manuale utente
Manuali Apparecchiature di prova popolari di altre marche
SMART
SMART KANAAD SBT XTREME 3G Series Manuale utente
Agilent Technologies
Agilent Technologies BERT Serial Manuale utente
Agilent Technologies
Agilent Technologies N3280A Manuale utente
Vernier
Vernier Go Direct Voltage Manuale utente
Lifeloc
Lifeloc R.A.D.A.R. Manuale utente
Fluke
Fluke T5-600 Istruzioni per l'uso e l'installazione
