Gefen EXT-COMPAUD-CAT5-444 Manuale utente

www.gefen.com

4x4 Component

Matrix over

CAT-5

EXT-COMPAUD-CAT5-444

User Manual

ASKING FOR ASSISTANCE

Rev A4

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

4x4 Component Matrix Over CAT-5 is a trademark of Gefen, LLC

All trademarks are the property of their respective companies

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 4x4 Component Matrix Over CAT-5 Front Panel Layout

5 4x4 Component Matrix Over CAT-5 Front Panel Descriptions

6 4x4 Component Matrix Over CAT-5 Back Panel Layout

7 4x4 Component Matrix Over CAT-5 Back Panel Descriptions

8 4X4 Component Audio Over CAT-5 Receiver Panel Layout

9 4X4 Component Audio Over CAT-5 Receiver Panel Description

10 Connecting And Operating The 4x4 Component Matrix Over CAT-5

11 Operating The 4x4 Component Matrix Over CAT-5 Receiver

12 RMT-16IR Remote Description

13 Adjusting The 4x4 Component Matrix Over CAT-5 Receiver

14 RMT-16IR Remote Control Installation

15 RMT-16IR Remote Control Conﬁguration

16 RMT-4IR Remote Control Installation

17 RMT-4IR Remote Control Conﬁguration

18 RS-232 Serial Control Interface

19 Network Cable Wiring Diagram

20 Rack Mount Installation

21 Speciﬁcations

22 Warranty

Congratulations on your purchase of the 4x4 Component Matrix Over CAT-5.

Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen 4x4 Component Matrix Over CAT-5

The Gefen 4x4 Component/Audio CAT5 Matrix offers unprecedented ﬂexibility

and convenience by routing high deﬁnition video and analog/digital audio

from any of four Component video sources to any of 4 remote displays over

inexpensive, standard CAT-5 cabling.

Each remote display has a control box that allows the viewer to select any of the

4 video sources and control that source via an IR remote control as if the viewer

was standing in the room where the source originates.

Full High-Resolution HDTV signals are supported up to a resolution of 1080p at a

maximum distance of 1000 feet. The Gefen 4x4 Component/Audio CAT5 Matrix

works with any Component video source including DVD players, cable boxes,

and satellite set-top boxes that connect to a Component display. Every source is

accessible at all times by any display by selecting it with the IR remote.

How It Works

You simply connect up to 4 local Component video and analog/digital audio

sources to the Matrix’s inputs. Connect the included 1-foot loop back cables into

the upper board for the CAT-5 extension function. Then run each of your CAT-5

cables from the Matrix to the remote displays. At each remote display, terminate

the CAT-5 cable run with a Component/Audio CAT5 Receiver device. Connect

each Receiver to a display and your analog/digital audio equipment and you’re all

set.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 4X4 COMPONENT MATRIX OVER CAT-5

• The extender functionality of the 4x4 Component Matrix Over CAT-5 requires

the use of the supplied 1 foot component video and audio jumper cables.

These cables must be used to connect the component video and audio

output ports to the component video and audio extension input ports.

• IR repeater functionality is only from the receiving unit to the sending unit. IR

data cannot be transmitted from the sending unit to the receiving unit.

• A single CAT cable is needed for each extension. Gefen recommends using

solid core CAT-5e cabling. Termination should adhere to the TIA/EIA-568-B

speciﬁcation. See page 19 for details.

• The 4x4 Component Matrix over CAT-5 Receiver unit has a Focus EQ

trimpot to compensate for color convergence (color bleeding) or when no

picture is displayed; both of which are caused by variances that can be

found in different CAT-5 cable brands. See page 13 for details.

OPERATION NOTES

Features

• Switches easily between any four component/audio sources

• Sends up to four video inputs to any four remote displays

• Maintains 1920 x 1200, Full 1080p HD, and 2k resolution video

• Extends video up to 1000 feet (300 meters) over CAT-5 cable

• IR remote

• RS-232 serial port

• Rack ears

Package Includes

(1) 4x4 Component/Audio CAT5 Matrix

(4) Component/Audio over CAT5 Receiver Units

(4) RMT-4 Infrared Remote Controls

(4) 1 Foot 5 RCA Component Video/Audio Cables

(4) 6 Foot 5 RCA Component Video/Audio cables

(4) 5V DC Power Supplies (for Receivers)

(1) 24V DC Power Supply (for Matrix)

(1) Rack Ears

(1) User Manual

FEATURES

12 3 4 5

67 8 9 10 11

4X4 COMPONENT MATRIX OVER CAT-5 FRONT

PANEL LAYOUT

1 Power LED Indicator

This LED will become active once the included 24V DC power adapter is

properly connected.

2 Output 1 Source LED Indicator

The currently selected source being displayed on Monitor Output 1 will be

visually acknowledged by an active LED. There are 4 LED’s, one for each input

source.

3 Output 2 Source LED Indicator

The currently selected source being displayed on Monitor Output 2 will be

visually acknowledged by an active LED. There are 4 LED’s, one for each input

source.

4 Output 3 Source LED Indicator

The currently selected source being displayed on Monitor Output 3 will be

visually acknowledged by an active LED. There are 4 LED’s, one for each input

source.

5 Output 4 Source LED Indicator

The currently selected source being displayed on Monitor Output 4 will be

visually acknowledged by an active LED. There are 4 LED’s, one for each input

source.

6 IR Receiver

This port will receive IR commands from the included RMT-16IR remote control.

7 Power Button

Pressing this button while the unit is on will place the unit in stand-by mode.

Pressing this button again while the unit is in stand-by will turn it on.

8 Output 1 Source Button

Each press of this button will cycle through the 4 inputs which will be displayed

on the Monitor Output 1.

9 Output 2 Source Button

Each press of this button will cycle through the 4 inputs which will be displayed

on the Monitor Output 2.

10 Output 3 Source Button

Each press of this button will cycle through the 4 inputs which will be displayed

on the Monitor Output 3.

11 Output 4 Source Button

Each press of this button will cycle through the 4 inputs which will be displayed

on the Monitor Output 4.

4X4 COMPONENT MATRIX OVER CAT-5 FRONT

PANEL DESCRIPTIONS

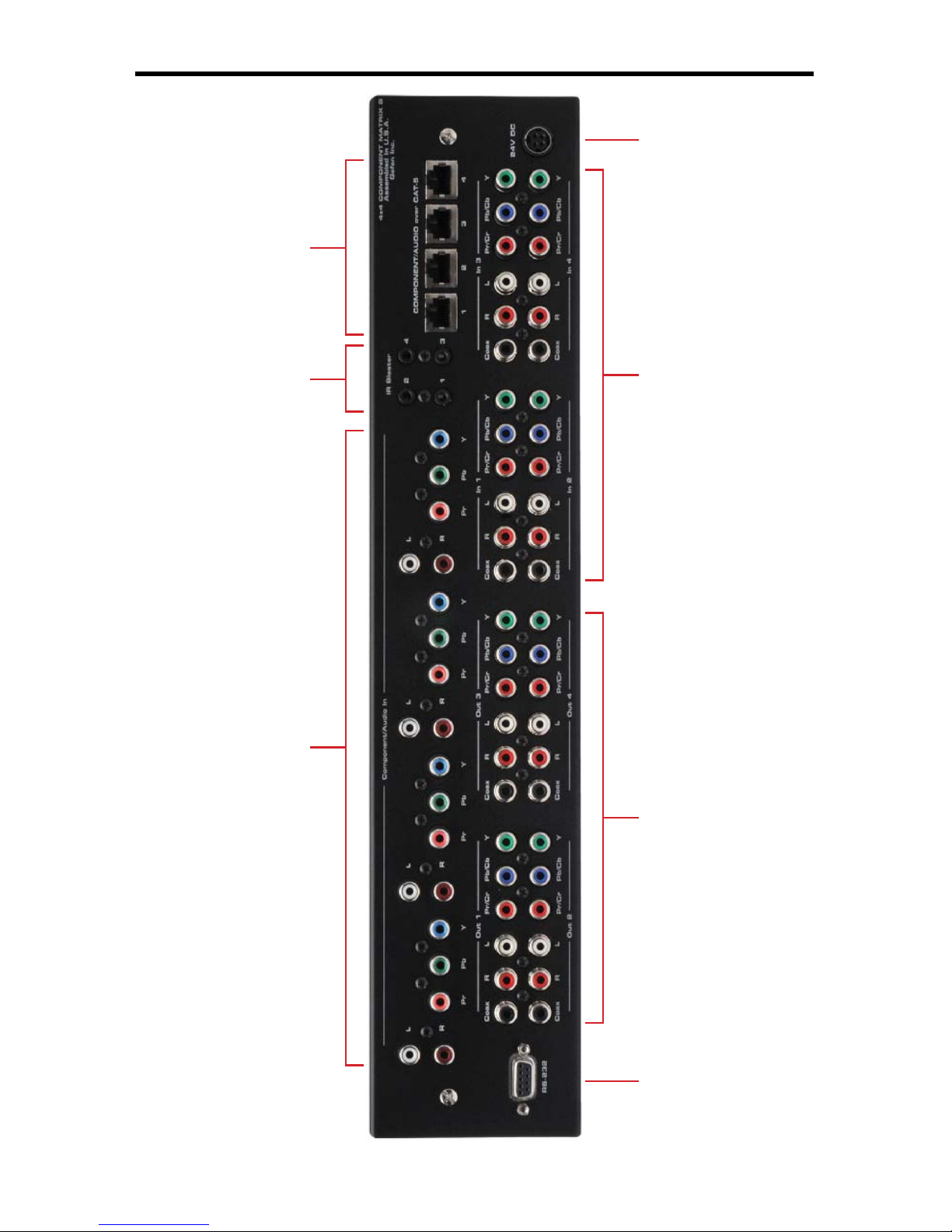

4 5 6 7

1 2 3

4X4 COMPONENT MATRIX OVER CAT-5 BACK

PANEL LAYOUT

1 Component With Audio Extension Input

Connect the included jumper cables between the Component WithAudio

Outputs (Item 5 on this page) and these inputs. Inputs include component video,

analog audio, and digital audio connectors. There are 4 inputs that are used in

conjunction with the CAT-5 output ports for extension.

2 IR Blaster Outputs

Connect IR emitters/blaster (sold separately, Gefen Part # EXT-2IREMIT) to

these output ports. Each output is linked to one of the extension receivers. IR

information is relayed from each remote location and is sent to these blasters for

control of local equipment from the extended location. Place the blaster “eye” on

or near the IR receiver of the connected equipment.

3 CAT-5 Extension Ports

Connect user supplied CAT-5e cables between these ports and the 4x4

ComponentAudio Over CAT-5 Receivers at remote locations. These cables

will transmit the component and audio signals to the remote locations while

receiving IR data from each receiver.

4 RS-232 Serial Control Interface

This port is used for control of the 4x4 ComponentAudio Over CAT-5 by RS-232

serial communication. Please see page 18 for more information.

5 Component With Audio Outputs

Connect the included jumper cables between the Component WithAudio

Extension inputs (Item 1 on this page) and these inputs. Outputs include

component video, analog audio, and digital audio connectors. There are 4

outputs.

6 Component With Audio Inputs

Connect the component video and audio source devices to these input ports

using the supplied component and audio cables. Up to 4 sources can be

connected at one time. Inputs include component video, analog audio, and

digital coaxial connectors.

7 24V DV Power Input

Connect the included 24V DC power supply to this input.

4X4 COMPONENT MATRIX OVER CAT-5 BACK

PANEL DESCRIPTIONS
