16x16 DVI Matrix
EXT-DVI-16416
User Manual
ASKING FOR ASSISTANCE
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM PST Monday thru Friday PST
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
16x16 DVI Matrix is a trademark of Gefen Inc.
© 2010 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective owners
Rev C4
4.6
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Panel Layout
5 Panel Descriptions
6 Connecting And Operating The 16x16 DVI Matrix
7 Front Panel Display
9 RMT-16416IR Remote Description
10 RMT-16416IR Remote Installation
11 RMT-16416IR Code Configuration
12 EDID Management Feature
13 RS-232 Serial Control Interface
14 RS-232 Serial Control Commands
19 WEB Interface - Main Page
20 WEB Interface - Manage EDID
23 WEB Interface - Masking
24 WEB Interface - IP Configuration
25 WEB Interface - Backup/Restore & Power Management
26 Peripheral Device Power
27 Firmware Update
29 Specifications
30 Warranty
1
Congratulations on your purchase of the 16x16 DVI Matrix. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 16x16 DVI Matrix
Now you can easily combine sixteen cross-platform computers and sixteen digital
displays using the 16x16 DVI Crosspoint Matrix. The Matrix provides a simple,
reliable and highly effective method of routing multiple computer workstations.
Each computer is capable of displaying video on any one of the 16 monitors.
There are 4 methods of controlling the Matrix - by using the front panel buttons,
the IR remote, a built-in RS-232 interface, and IP control over a local area
network.
How It Works
The 16x16 Crosspoint Matrix has sixteen DVI inputs and sixteen DVI outputs.
Using the supplied DVI cables, connect your sixteen computers to the DVI input
ports on the Matrix’s input side. Connect the Matrix’s sixteen DVI outputs to
the displays. Plug in the power cord and power on the Matrix. The connected
displays will show video according to the selection.
Note: This device only supports DVI-D.
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 16X16 DVI MATRIX
• The 16x16 DVI Matrix is not HDCP compliant
• There is a LOCAL EDID storage bank for each of the 16 DVI inputs. By
default, the EDID from the display connected to DVI Output 1 will be copied
to all 16 banks for use by each source device upon powering of the unit.
Please ensure that a display is powered and connected to the first output
port before applying power to the 16x16 DVI Matrix. If a display is not
detected, an internal default EDID (640x480) will be used. This feature can
be disabled by using the Secure Local EDID function via the RS-232 serial
controls. Please see page 17 for more information.
• There is no internal scaling in the 16x16 DVI Matrix. All of the attached
monitors must be able to display the resolutions output by the source
devices. For maximum compatibility it is recommended that only one
compatible/common resolution be used by all of the source devices.
• Advanced EDID features and IP configuration features are accessible via the
RS-232 serial communications. Please see page 13 for more information.
• Routing and EDID features can be accessed via a web browser using the IP
control feature built into the 16x16 DVI Matrix
2
OPERATION NOTES
3
Features
• Increases productivity by providing access to 16 displays from any 16
computers.
• Web-based control switching
• Maintains beautiful, sharp resolutions up to 1080p, 2K, and 1920x1200.
• Serial RS-232 for remote control via a computer or control automation
devices
• Supports DDWG standards for DVI monitors
• Discrete IR remote control included
Package Includes
(1) 16x16 DVI Matrix
(16) 6-foot DVI cable (M-M)
(1) 6-foot serial DB9 cable (M-F)
(1) RMT-16416IR remote control
(1) 24V DC Power Supply
(1) Set of Rack Ears
(1) Users Manual
FEATURES
4

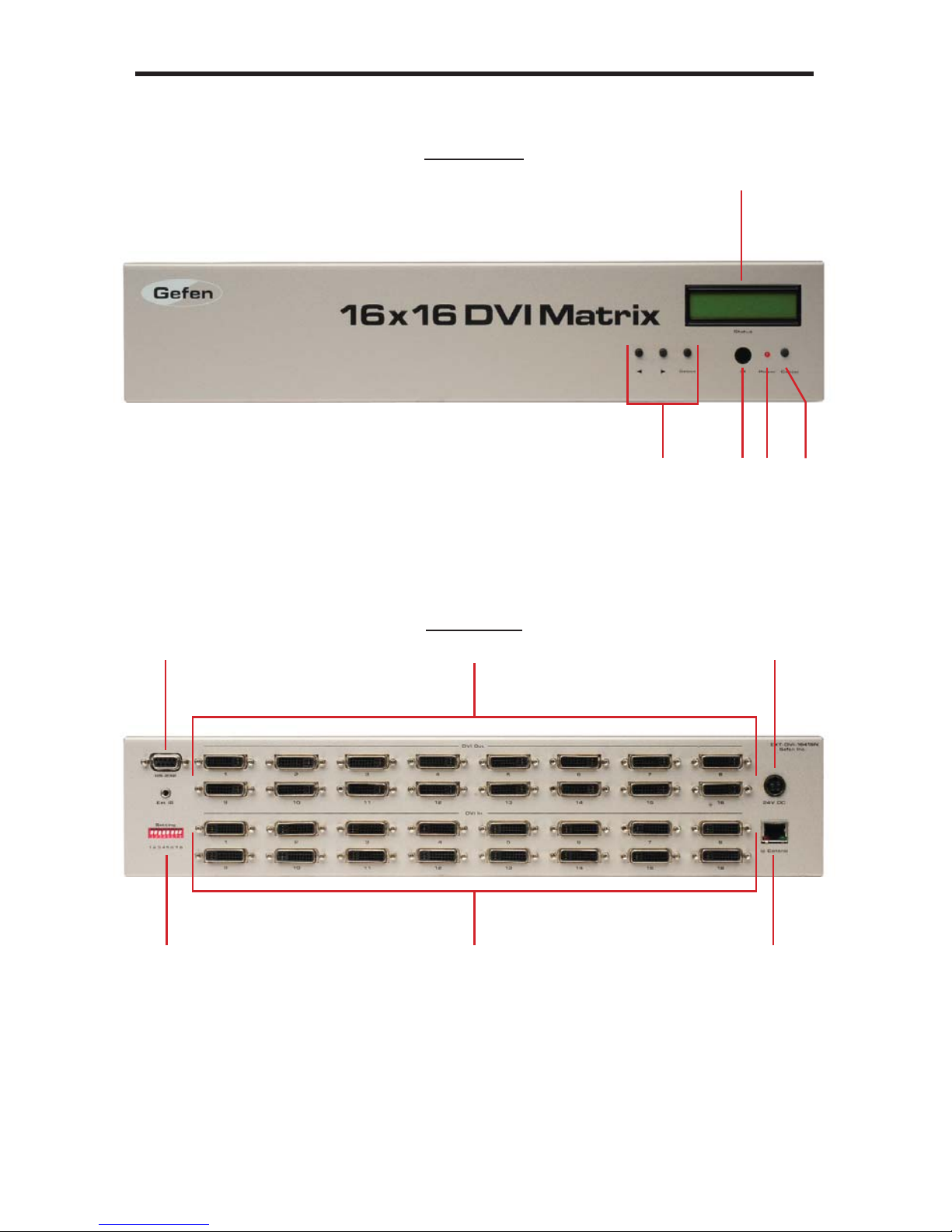

Front Panel
Back Panel
1
2
7
10
3
911
4 5
6 8
PANEL LAYOUT
5
1 Main LCD Display
This 2 line 16 character display will display status information and is also used to
manage the display/source routes.
2 Control Buttons
These buttons are used to navigate the functions of the 16x16 DVI Matrix. The
following buttons are available:
◄- Left
►- Right
Select - Select
For complete details on these controls and how they are utilized, please see
page 7 and 8.
3 Infrared (IR) Receiver
This IR receiver will accept commands form the included RMT-16 remote
control. Line-of-sight between this receiver and the remote controls needs to be
preserved for proper operation.
4 Power LED Indicator
This LED indicator will be active when the included 24V DC power supply is
properly connected to the unit.
5 Cancel Button
This button is used to return the user to the main status screen once a routing
change has been initiated and the user decides to not continue with the change.
6 RS-232 Serial Communications Interface
This interface was designed to accept commands from an external control
system. This port will allow switching commands as well as EDID management
and configuration operations. Please see page 13 for more information.
7 DVI Output Ports 1-16
These outputs are used to connect up to 16 DVI capable displays.
8 24V DC Power Receptacle
The port will accept power from the included 24V DC power supply.
9 DIP Switch Configuration Bank
These DIP switches are used to control the IR Code Configuration. Please see
page 11 for more information.
10 DVI Input Ports 1-16
These inputs are used to connect up to 16 DVI capable sources.
11 10/100 Ethernet Control Interface
This port is used to connect the 16x16 DVI Matrix to a network for IP control.
Please see page 19 for more information.
PANEL DESCRIPTIONS
6
How to Connect the 16x16 DVI Matrix
1. Connect up to 16 DVI source devices to the DVI inputs on the rear panel of
the 16x16 DVI Matrix using the supplied DVI cables.
2. Connect up to 16 DVI capable display to the DVI outputs on the rear panel of
the 16x16 DVI Matrix using user supplied DVI cables.
3. Connect the included 24V DC power supply to the power input receptacle
on the rear panel of the 16x16 DVI Matrix. Connect the opposite end of the
cable into a open wall power socket.
How to Operate the 16x16 DVI Matrix
The 16x16 DVI Matrix offers a number of control options. The following options
can be used to control basic routing functions of the 16x16 DVI Matrix:
1. Front Panel Control Buttons - Page 7 and 8
2. RMT-16416IR Remote Control - Page 9 and 10
3. RS-232 Serial Control - Page 14 -18
4. IP Control - Page 19-25
CONNECTING AND OPERATING THE 16X16 DVI MATRIX
7
FRONT PANEL DISPLAY
MAIN DISPLAY

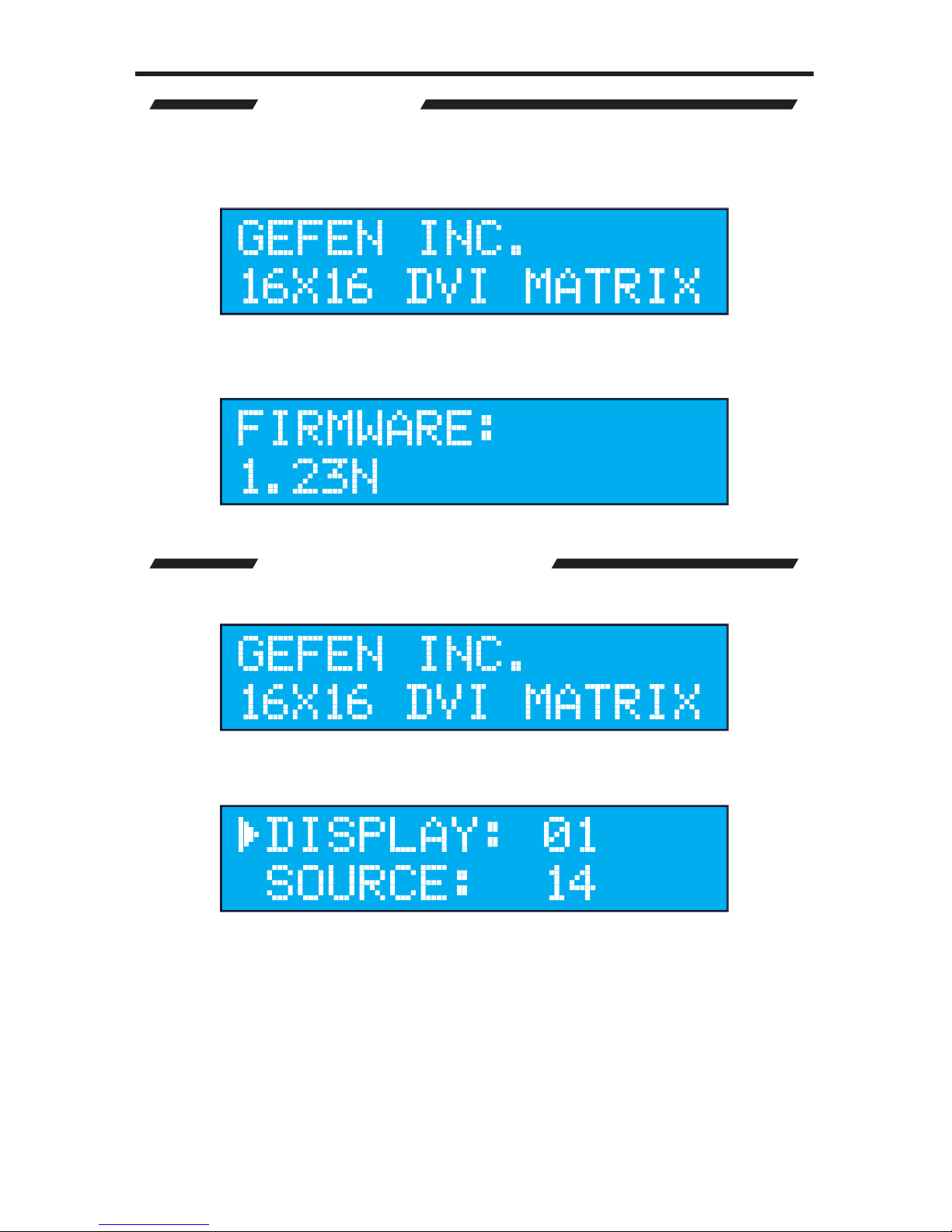

The Main Display of the 16x16 DVI Matrix is a 16 character 2 line display. This
display will show the standby screen and will also be used to aid in performing
routing commands. The following is the standby screen:
This screen will display the company and product name.
Pressing the ◄or ►will display the firmware screen:
This screen will display the current firmware revision.
FRONT PANEL SELECTION
To route sources to a display :
Starting at the standby screen, press the SELECT button. The display selection
screen will now be displayed:
On this screen use the ◄or ►buttons to select the desired display that will
have a source routed to it in the next step. Once selection is complete press the
SELECT button to confirm the selection. To cancel this operation at this time
press the CANCEL button.
