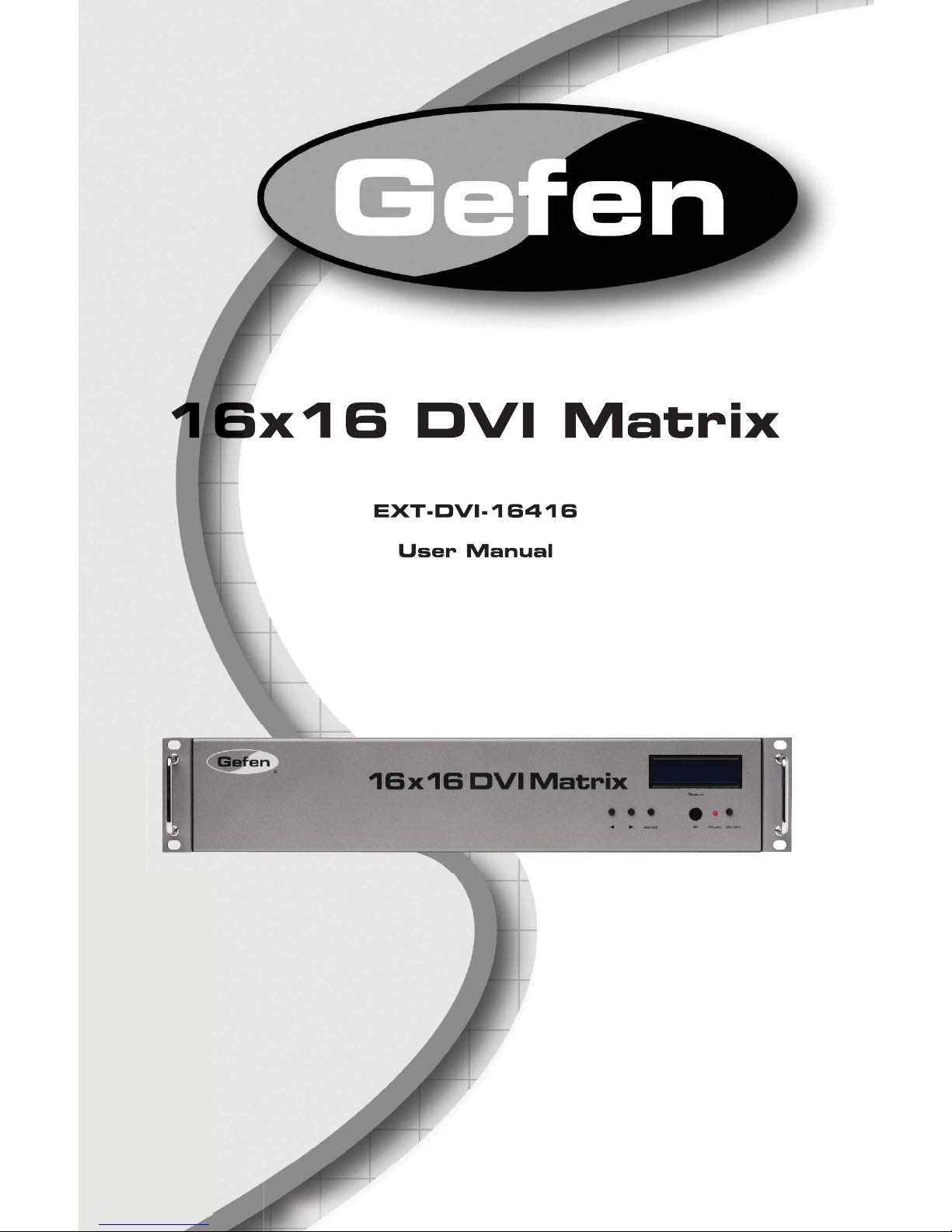

Gefen EXT-DVI-16416 Manuale utente

www.gefen.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

16x16 DVI Matrix is a trademark of Gefen, LLC

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

6 Connecting And Operating The 16x16 DVI Matrix

7 Front Panel Display

9 RMT-16416IR Remote Description

10 RMT-16416IR Remote Installation

11 RMT-16416IR Remote Conﬁguration

12 Standby Mode Feature

13 EDID Management Feature

14 RS-232 Serial Control Interface

15 RS-232 Serial Control Commands

29 IP Control - Main Page

30 IP Control - Manage EDID

33 IP Control - Masking

34 IP Control - IP Conﬁguration

35 IP Control - Backup/Restore & Power Management

36 IP Control - I/O Management Without The Web Interface

40 Firmware Update

42 Warning Messages

44 Speciﬁcations

45 Warranty

46 Licensing

Congratulations on your purchase of the 16x16 DVI Matrix. Your complete

satisfaction is very important to us.

Gefen

Gefen delivers innovative computer and electronic solutions that harness

integration, extension, distribution and conversion technologies. Gefen’s

reliable, plug-and-play products supplement cross-platform computer systems,

professional audio/video environments and HDTV systems of all sizes with hard-

working solutions that are easy to implement and simple to operate.

The Gefen 16x16 DVI Matrix

Now you can easily combine sixteen cross-platform computers and sixteen digital

displays using the 16x16 DVI Matrix. The 16x16 DVI Matrix provides a simple,

reliable and highly effective method of routing multiple computer workstations.

Each computer is capable of displaying video on any one of the 16 monitors.

There are 4 methods of controlling the Matrix - by using the front panel buttons,

the IR remote, a built-in RS-232 interface, or through IP Control over a local area

network.

How It Works

The 16x16 DVI Matrix has sixteen DVI inputs and sixteen DVI outputs. Connect

your sixteen computers to the DVI input ports on the Matrix’s input side. Connect

the Matrix’s sixteen DVI outputs to the displays. Connect the power supply to the

Matrix and connect the power cord to an available wall outlet. The connected

displays will show video according to the selection.

NOTE: This device only supports DVI-D.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 16X16 DVI MATRIX

• The 16x16 DVI Matrix will not pass HDCP content.

• There is no internal scaling in the 16x16 DVI Matrix. All of the attached

monitors must be able to display the resolutions output by the source

devices. For maximum compatibility it is recommended that only one

compatible/common resolution be used by all of the source devices.

• Advanced EDID features and IP conﬁguration features are accessible via the

RS-232 serial communication port. Please see page 14 for more information.

• Routing and EDID features can be accessed via a web browser using the IP

control feature, built into the 16x16 DVI Matrix.

OPERATION NOTES

Features

• Increases productivity by providing access to 16 displays from any 16

computers.

• Web-based control switching

• Maintains beautiful, sharp resolutions up to 1920x1200.

• Serial RS-232 port for remote control via a computer or control automation

device.

• Supports DDWG standards for DVI monitors

Package Includes

(1) 16x16 DVI Matrix

(16) 6-foot DVI cables

(1) IR Remote (EXT-RMT-16416IR)

(1) 24 V DC Power Supply

(1) Set of Rack Ears

(1) User Manual

FEATURES

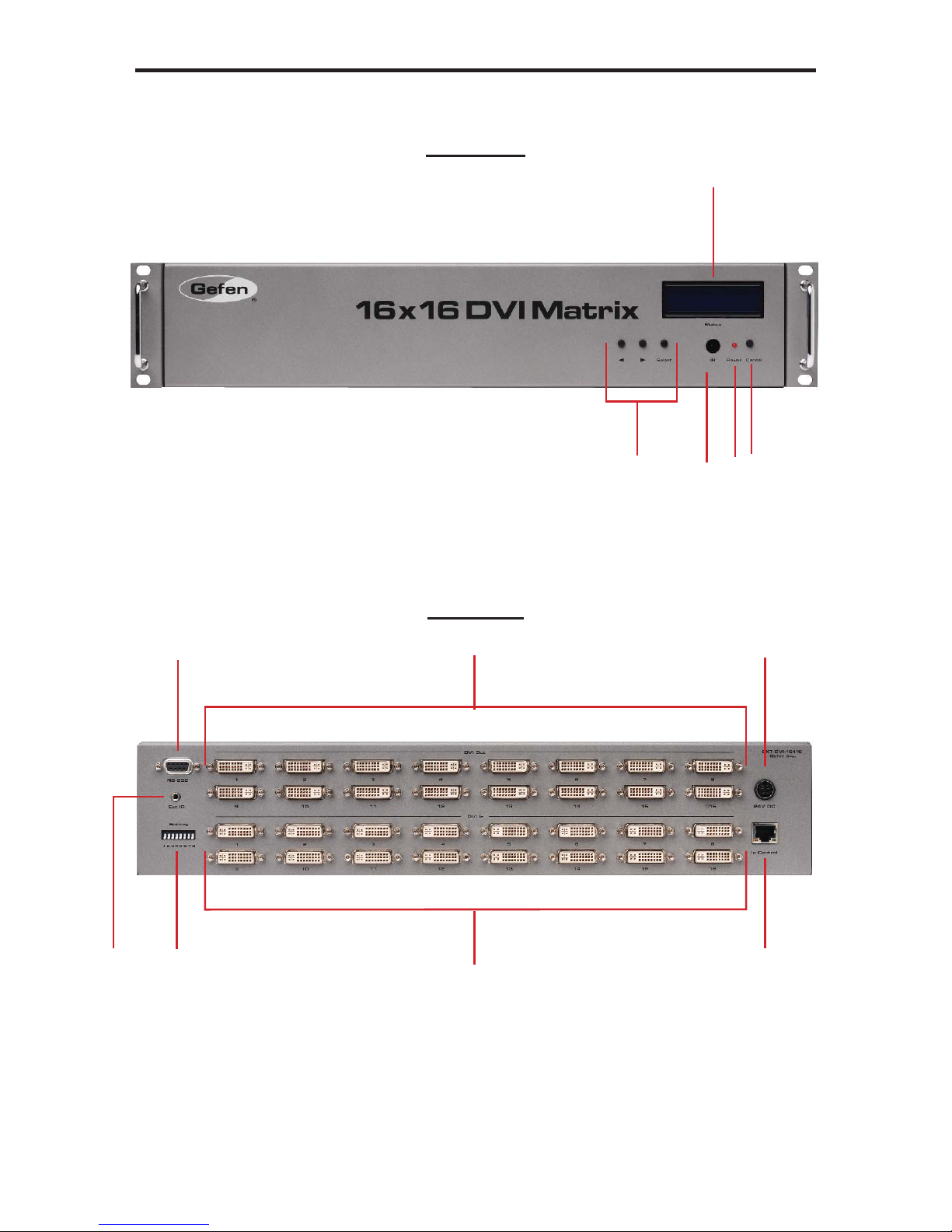

Front Panel

Back Panel

PANEL LAYOUT

PANEL DESCRIPTIONS

1 Main LCD Display

This 2 line 16 character display will display status information and is also used to

manage the display/source routes.

2 Control Buttons

These buttons are used to navigate the functions of the 16x16 DVI Matrix. For

complete details on these controls and how they are used, please see page 7

and 8.

3 Infrared (IR) Receiver

This IR receiver will accept commands from the RMT-16416IR remote control.

Line-of-sight between this receiver and the remote controls needs to be

preserved for proper operation.

4 Power LED Indicator

This LED indicator will be active when the included 24V DC power supply is

properly connected to the unit.

5 Cancel Button

This button is used to return the user to the main status screen once a routing

change has been initiated and the user decides to not continue with the change.

6 RS-232 Serial Communications Interface

This interface was designed to accept commands from an external control

system. This port will allow switching commands as well as EDID management

and conﬁguration operations. Please see page 14 for more information.

7 DVI Output Ports 1-16

These outputs are used to connect up to 16 DVI-capable displays.

8 24V DC Power Receptacle

The port will accept power from the included 24V DC power supply.

9 10/100 Ethernet Control Interface

This port is used to connect the 16x16 DVI Matrix to a network for IP control.

Please see page 29 for more information.

10 DVI Input Ports 1-16

These inputs are used to connect up to 16 DVI-capable sources.

11 DIP Switch Conﬁguration Bank

These DIP switches are not used and are for future use.

12 IR Extender Jack

Accepts an optional IR Extender which allows relocation of the IR receiver up to

6 feet away from the Matrix.

How to Connect the 16x16 DVI Matrix

1. Connect up to 16 DVI source devices to the DVI inputs on the rear panel of

the 16x16 DVI Matrix using DVI cables.

2. Connect up to 16 DVI capable display to the DVI outputs on the rear panel of

the 16x16 DVI Matrix using DVI cables.

3. Connect the included 24V DC power supply to the power input receptacle

on the rear panel of the 16x16 DVI Matrix. Connect the opposite end of the

cable into a open wall power socket.

How to Operate the 16x16 DVI Matrix

The 16x16 DVI Matrix offers a number of control options. The following options

can be used to control basic routing functions of the 16x16 DVI Matrix:

1. Front Panel Control Buttons - Page 7 - 8

2. RMT-16416IR Remote Control - Page 9 - 11

3. RS-232 Serial Control - Page 14 -28

4. IP Control - Page 29-35

CONNECTING AND OPERATING THE 16X16 DVI MATRIX

FRONT PANEL DISPLAY

MAIN DISPLAY

The Main Display of the 16x16 DVI Matrix is a 16 character 2 line display. This

display will show the standby screen and will also be used to aid in performing

routing commands. After the Matrix has been turned on, the following screen will

be displayed:

This screen will display the company and product name.

Pressing the ◄will display the firmware version:

Pressing the ◄button again will display the bootloader version:

The ►button can also be used to switch the LCM display between firmware

version and the bootloader version.


