Gefen EXT-DIGAUD-241 Manuale utente

RMT IR Extender

RMT-2

Optional

Accessories

2x1 Digital Audio Switche

Switch Between Two Digital Audio Sources and One Digital Audio

Receiver or Amplifier

This simple to use Digital Audio Switcher allows you to connect two digital audio sources to a digital

audio receiver or amplifier with one input, making it a worthy addition to home theater, hi-fi system

with multiple audio sources.

Both digital audio sources remain live all the time and you can switch between the two at will.

Access is controlled with the unit's IR remote control or the manual selection button on the front

panel. Downtime is nonexistent--the switch occurs instantaneously.

How It Works

Simply connect both sources to the Digital Audio Switcher's inputs, then connect the Digital Audio

Switcher output to the receiver's output. Apply power by connecting the power supply and you're

ready to switch.

Features:

zConnects two digital audio sources to a receiver using one input

zSupports two formats: S/PDIF and optical

zEliminates the need to unplug and replug devices

zFront panel switching

zDiscrete IR remote (included)

zParallel remote port (RMT-2 not included)

zEasy to operate: sources are selected remotely or manually

Specifications:

zInput/Output: S/PDIF (Digital Coax), Optical TOSlink

zS/PDIF (Digital Coax): 96 kHz Performance

zPower Supply 5V DC

zPower Consumption: 5 watts (max)

zDimensions: 4" W x 1.25" H x 3.25" D

zShipping Weight: 2 lbs.

Package Includes:

zDigital Audio Extender

zRMT-2IR Remote Control

z5VDC Power Supply

zTwo TOSLINK fiber optic cables

zUser Manual

EXT-DIGAUD-241

Dystrybucja i sprzedaż: Meditronik Sp. z o.o.

02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46

http://www.meditronik.com.pl e-mail: [email protected]

2x1 Digital Audio

Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

2x1 Digital Audio Switcher is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the 2x1 Digital Audio Switcher

RMT2-IR Installation

IR Extender Installation

Speciﬁcations

Warranty

Congratulations on your purchase of the ex•tend•it 2x1 Digital Audio Switcher. Your

complete satisfaction is very important to us.

Gefen’s line of HDTV switches, extenders, and splitters are designed to make yourA/V

equipment use more comfortable, more productive and less expensive.

The 2x1 Digital Audio Switcher allows access to multiple Digital Audio devices, using a

single Digital Audio reciever.

The ex•tend•it line offers solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of support from a team of outstanding engineers.

The ex•tend•it 2x1 Digital Audio Switcher allows two SPDIF or OPTICAL devices to be

switched easily in to one Digital Audio reciever. Simply connect your digital audio to the

digital out.

INTRODUCTION

FEATURES

Features

• Switches easily between any two Digital Audio sources

• Optional RMT-2 remote control

• TOSLINK cables are used to connect the TOSLINK inputs and 2x1 TOSLINK Digital

Audio Switcher output

• SPDIF cables are used to connect the SPDIF inputs and 2x1 SPDIF Digital Audio

Switcher output

• Installs in seconds

Includes:

(1) Digital Audio Switcher

(2) 6’ TOSlink cables

(1) 5VDC Power Supply

(1) RMT2-IR

PANEL DESCRIPTIONS

Connects to

5VDC power supply

Connects to IR

extender

IR eye

Indicates if port 1 or

port 2 is selected Selects port 1

or port 2

SPDIF Out Optical Out

SPDIF 1 SPDIF 2 OPT 2

OPT 1

PANEL

DESCRIPTIONS

Connecting and Operating the 2x1 Digital Audio Switcher

How to Connect the 2x1 Digital Audio Switcher to your devices

1Connect the digital audio cables from your devices into the 2x1 DigitalAudio Switcher

inputs.

2 Connect your digital audio receiver to the 2x1 DigitalAudio Switcher output.

3 Input 1 and 2 can either be S/PDIF or TOSlink, not both.

4 Regardless of the input type the output can be both S/PDIF and TOSlink.

5 Plug the 5VDC power supply into the 2x1 Digital Audio Switcher.

How to Operate the 2x1 Digital Audio Switcher

1 Use the front panel push button to switch between sources.

2 Alternatively, use the RMT2-IR remote control port to remotely toggle between sources.

RMT2-IR Installation

1. Remove battery cover from the back of the RMT2-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT2-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

The optional IR extender allows you to relo-

cate your 2x1 HDMI Digital Audio Switcher

and still have IR control of the 2x1 HDMI

Digital Audio Switcher

IR Extender Instructions

How to Connect the IR Extender to the 2x1 Digital Audio Switcher

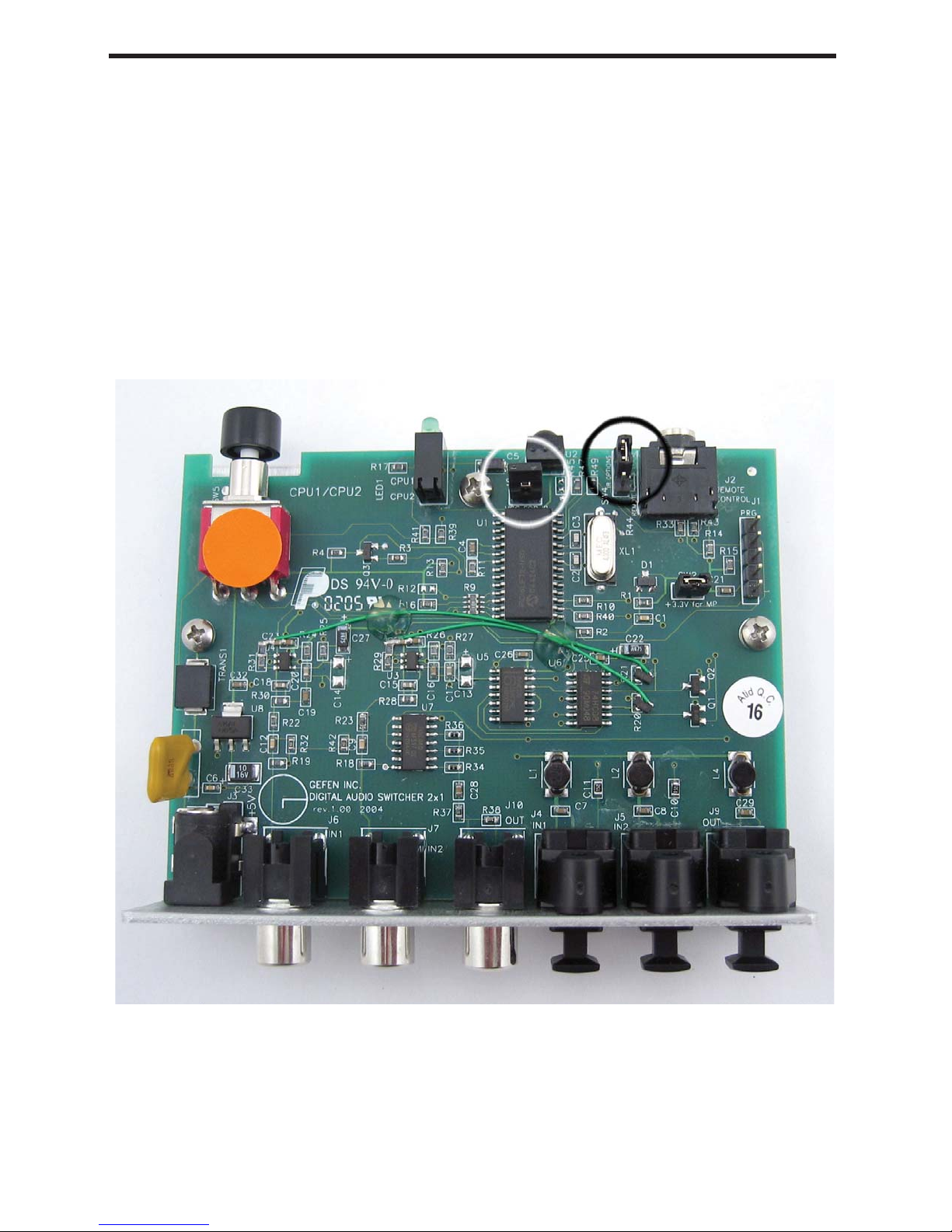

1 Open the unit so the circuit board below is accessible.

2Add a jumper to close the contact between the pins in the white circle

3 Move the jumper in the black circle from the local to the remote pins

4 Plug the IR Extender into the remote jack on the front of the unit
