Gefen EXT-HDMI1.3-841 Manuale utente
®
8x1 Switcher for
1.3
EXT-HDMI1.3-841
User Manual
www.gefen.com
ASKING FOR ASSISTANCE
Rev A4
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday Pacific Time.
Write To:
Gefen, LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
8x1 Switcher for HDMI 1.3 is a trademark of Gefen, LLC
© 2011 Gefen, LLC. All rights reserved.
All trademarks are the property of their respective owners.
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Panel Layout
5 Panel Descriptions
6 Connecting And Operating The 8x1 Switcher For HDMI 1.3
7 RMT8-IR Remote Control Description
8 IR Channel Configuration
9 RS-232 Serial Communication
10 Specifications
11 Warranty
1
Congratulations on your purchase of the 8x1 Switcher for HDMI 1.3. Your
complete satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 8x1 Switcher for HDMI 1.3
The Gefen 8x1 Switcher for HDMI 1.3 routes eight different HD sources at
resolutions of up to 1080p full HD to a single HDTV display. This unit supports
HDMI 1.3 which adds features such as enhanced color and audio capabilities
that enrich the Hi-Def experience.
The availability of up to eight HDMI inputs makes this unit ideal for simultaneous
connection of multiple HDMI devices such as set-top boxes, satellite systems,
Blu-Ray players, and gaming consoles such as the XBox 360 and PlayStation 3.
How It Works
You simply connect all your sources to the Switcher’s inputs. Then connect the
display on the output port. Once the sources, the Switcher and the display(s) are
powered and connected, you simply select which source you want to view using
the IR remote.
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 8X1 SWITCHER FOR HDMI 1.3
• This devices is HDMI 1.3 compliant. Please see page 3 for supported HDMI
1.3 features.
• Supports HDTV resolutions up to 1080p Full HD and computer resolutions of
1900 x 1200.
2
OPERATION NOTES
3
Features
• Switch easily between any eight HDMI sources
• Extends the range of HDMI compliant devices by equalizing and reclocking
the HDMI signal
• Serial RS-232 port for remote switching
• Discrete IR remote included
• HDMI and HDCP pass-through
HDMI 1.3 Features
• Dolby TrueHD & DTS-HD MasterAudio
• Deep Color Supported (XV Color)
• 225 MHz (up to 12 bit YUV 444 supported @ 1080p)
• CEC Protocol Pass Through
• Lip-Sync Pass Through
Package Includes
(1) Gefen Switcher for HDMI 1.3
(8) 6 Foot HDMI cables (M-M)
(1) 5V DC Power Supply
(1) Rack Ears
(1) RMT-8IR Remote control
(1) User Manual
FEATURES
4
Front Panel
Back Panel
12 4
3
6 87
5
PANEL LAYOUT
5
1 Infrared (IR) Receiver Extension Port
This port will accept an optionally purchased IR extension cable (Gefen part#
EXT-RMT-EXTIR). This is useful for installations where the IR receiver, located
on the front panel (Item 2 on this page), is not in line-of-sight with the IR remote
control used to relay commands to the device at the sender’s location.
2 Infrared (IR) Receiver
This IR receiver will relay IR commands from the receiving unit to the sending
unit for output to a IR transmitter (blaster) on a IR controllable device.
3 Currently Selected Input LED Indicator
There is one LED for each of the eight HDMI input ports. The LED for the
currently selected HDMI input will be active.
4 LED Power Indicator
This LED will become active once the included 5V DC power supply is properly
connected between the sender and an open wall power socket.
5 RS-232 Serial Communication port
This port will accept a DB-9 serial communication cable for control by a separate
device. This port only uses the send, receive, and ground pins. Please see page
9 for more information.
6 5V DC Power Receptacle
This receptacle will require power from the included 5V DC power supply for
proper operation. Connect the included power supply between this port and an
open wall power socket.
7 HDMI Input Ports 1-8
Connect up to eight HDMI source devices to these HDMI input ports. Selection
of the viewable input is executed by the included RMT-8IR remote control or by
an external device that uses the RS-232 serial communication port.
8 HDMI Output Port
Connect one HDMI capable device (i.e. HDMI display) to this HDMI output port.
The currently selected HDMI input source device will be output through this port.
PANEL DESCRIPTIONS
6
How to Connect the 8x1 Switcher for HDMI 1.3
1. Connect up to eight HDMI source devices to the 8x1 Switcher for HDMI 1.3
using the supplied HDMI cables (8 are included).
2. Connect one HDMI capable device (i.e. HDMI display) to the 8x1 Switcher
for HDMI 1.3 using a user supplied HDMI cable.
3. Connect the included 5V DC power supply to the power receptacle on the
8x1 Switcher for HDMI 1.3. Connect the power plug on the opposite end to
an open wall power socket.
4. Initialize (power on) the HDMI capable output device (i.e. HDMI display) first
and then the HDMI source devices.
How to Operate the 8x1 Switcher for HDMI 1.3
Use the included RMT8-IR remote control to switch between HDMI inputs.
Please see page 7 for a description of the RMT8-IR remote control.
CONNECTING AND OPERATING THE 8X1 SWITCHER FOR HDMI 1.3
7

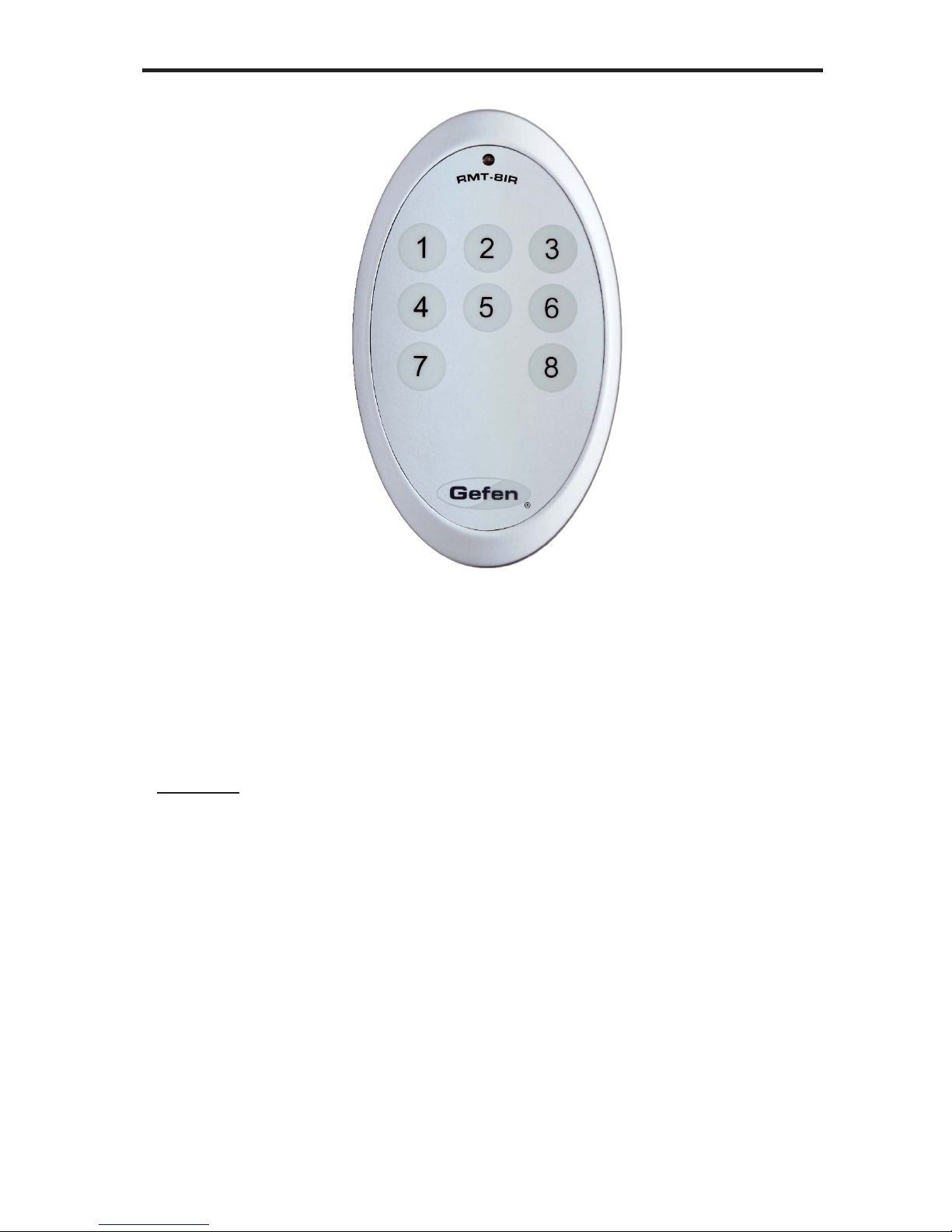

The included RMT-8IR remote control is used to switch between inputs on the 8x1
Switcher for HDMI 1.3. Only one input can be selected at a time and this input is then
output through the single HDMI output port on the rear panel.
Switching
Press the 1 button to switch to HDMI input 1.
Press the 2 button to switch to HDMI input 2.
Press the 3 button to switch to HDMI input 3.
Press the 4 button to switch to HDMI input 4.
Press the 5 button to switch to HDMI input 5.
Press the 6 button to switch to HDMI input 6.
Press the 7 button to switch to HDMI input 7.
Press the 8 button to switch to HDMI input 8.
RMT-8IR REMOTE CONTROL DESCRIPTION
