Gefen HDMI Manuale utente
8x1 HDMI Switcher
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 884-6294
(800) 545-6900
Fax (818) 884-3108
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
6265 Variel Ave.
Woodland Hills, CA91367-9897
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
8x1 HDMI Switcher is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
Features
Panel Desciptions
Connecting and Operating the 8x1 DVI Switcher
RMT-8IR Installation
RS-232 Interface
Specifications
Warranty
1
2
3
4
5
6
7
8
Congratulations on your purchase of the ex•tend•it 8x1 HDMI Switcher. Your complete
satisfaction is very important to us.
Gefen’s line of HDMI switches, extenders, and splitters are designed to make yourA/V
equipment use more comfortable, more productive and less expensive.
The 8x1 HDMI Switcher allows access to multiple HDMI devices, using a single HDMI
display.
The ex•tend•it line offers solutions for noise, space and security concerns, data center
control, information distribution, conference room presentation, school and corporate
training environments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime of support from a team of outstanding engineers.
The 8x1 HDMI Switcher allows eight HDMI devices to be switched easily through one
HDMI compatible monitor or projector. The 8x1 HDMI Switcher can also be placed at
the end of a long HDMI cable to regenerate the HDMI signal.
INTRODUCTION
1
FEATURES
Features
• Switch easily between any eight HDMI sources
• Extends the range of HDMI compliant device by equalizing and reclocking the HDMI
signal
• Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k,
and computer resolutions up to 1920 x 1200 are easily achieved
• Discrete IR remote (included)
• No loss of quality
• Serial RS-232 remote port
• HDCP pass-through
• HDMI pass-through
• Installs in minutes
• Rackmountable
Includes:
(1) 8x1 HDMI Switcher
(1) RMT-8IR Remote control
(8) 6-foot HDMI cables
(1) 5VDC Power Supply
(1) User’s Manual
(1) Set of Rack Ears
2

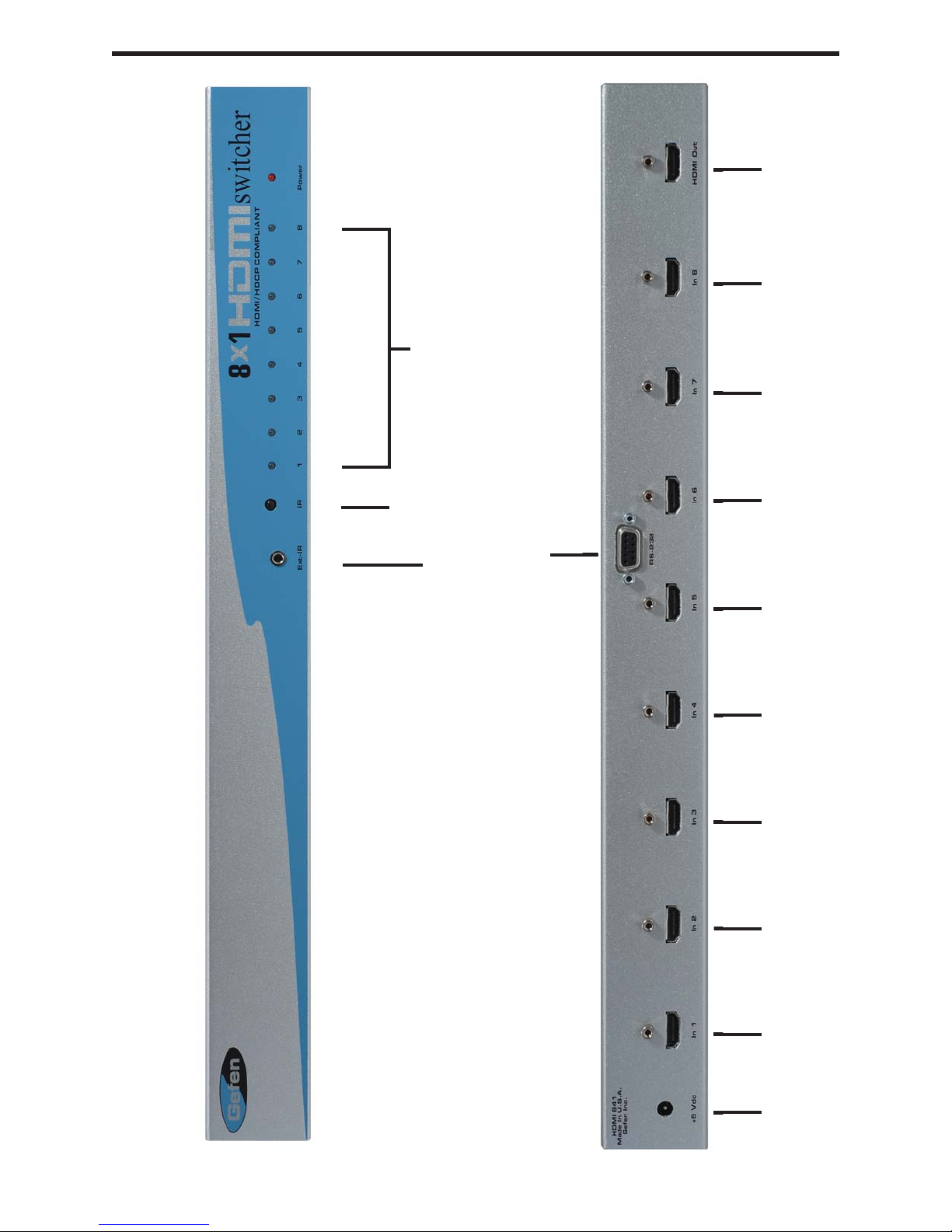

PANEL DESCRIPTIONS
3
LED Indicators for the
eight sources
IR Eye
HDMI
Input 1
5v Power HDMI
Input 2
RS-232
Port
HDMI
Input 3 HDMI
Out
HDMI
Input 4 HDMI
Input 5 HDMI
Input 6 HDMI
Input 7 HDMI
Input 8
IR Extender
Port
CONNECTING AND OPERATING THE 8x1 HDMI SWITCHER
How to Connect the 8x1 HDMI Switcher to your devices
1. Connect the supplied HDMI cables from the HDMI sources into the HDMI Switcher
Inputs.
2. Connect the cable from your display (HDTV or projector) into the HDMI Out of the
8x1 HDMI Switcher.
3. Connect 5V power supply to the HDMI 8x1 Switcher.
How to Operate the 8x1 HDMI Switcher
1. Use the RMT8-IR remote control port to remotely switch between sources.
2. Alternatively, use an RS-232 control system to switch between sources.
4

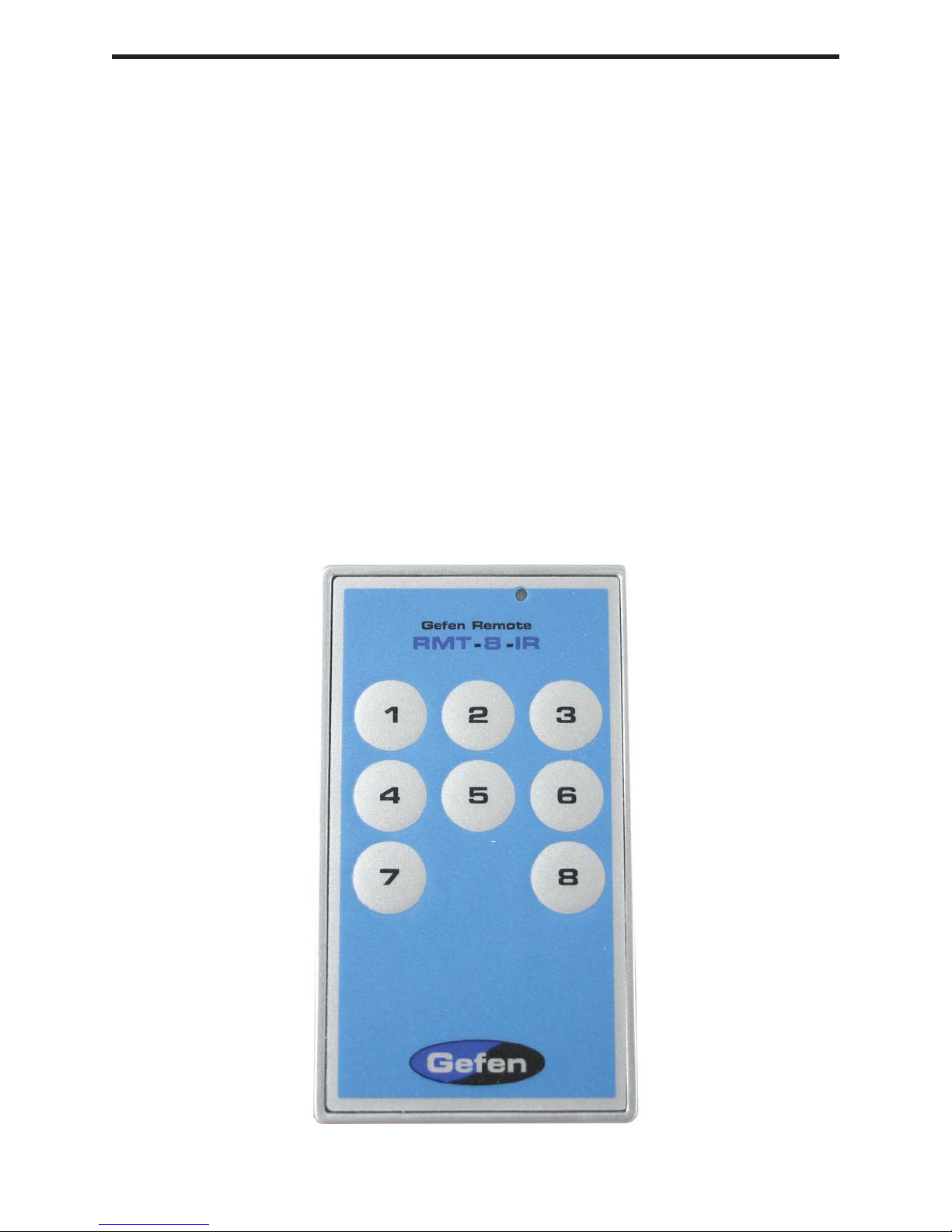

RMT8-IR INSTALLATION
1. Remove battery cover from the back of the RMT8-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up. The
side that is not marked must be facing down.
4. Underneath the unit are a set of dip switches that need to match the switches on the
remote. Find and remove the silver sticker to show the dip switches underneath the
unit. Verify that switches 1 & 2 on the unit are both on the down (OFF) position. There
are 4 possible sets of IR Codes which at least one should relieve any IR conflicts with
other Home Theater devices.
5. Test the RMT8-IR remote by pressing ONLY one button at a time. The indicator light
on the remote will flash once each time you press a button. WARNING: Do not press
multiple buttons simultaneously and do NOT press buttons rapidly. These actions will
cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT8-IR ships with two batteries. One battery is required for operation, the
second battery is complimentary.
5

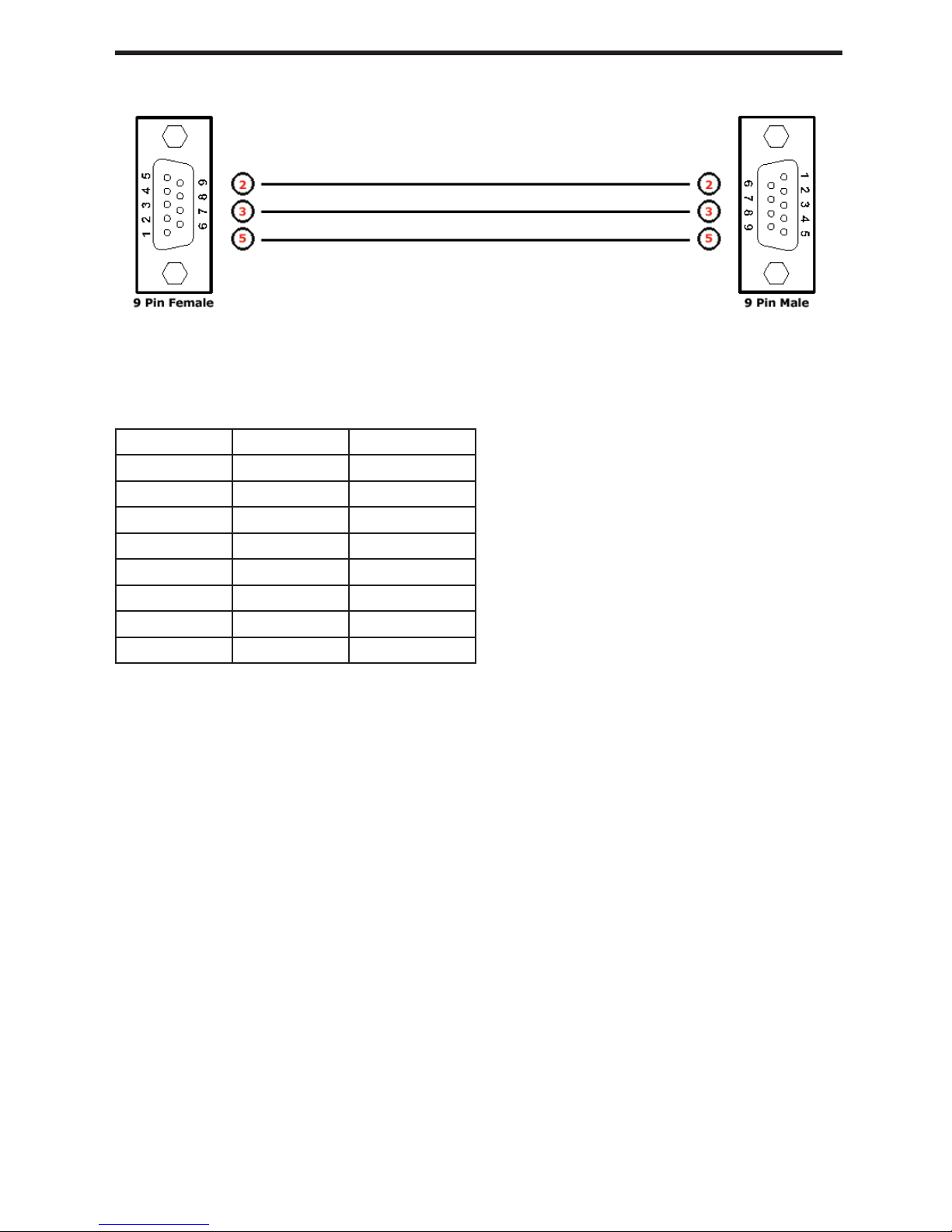

RS-232 INTERFACE
6
Binary Table
ASCII Input Binary
1 1 0011 0001
2 2 0011 0010
3 3 0011 0011
4 4 0011 0100
5 5 0011 0101
6 6 0011 0110
7 7 0011 0111
8 8 0011 1000
RS232 Settings
Bits per second ...................................................................................................... 19200
Data bits ......................................................................................................................... 8
Parity ....................................................................................................................... None
Stop bits ..........................................................................................................................1
Flow Control ............................................................................................................ None
Receive
Ground
Transmit
SPECIFICATIONS
7
Video Amplifier Bandwidth ................................................................................ 1.65 Gbps
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Single Link Range................................................................................1080p/1920 x 1200
HDMI Connector................................................................................Type A 19 pin female
Remote Control Port.................................................................RS232 female, mini-stereo
Power Consumption .................................................................................. 20 watts (max)
Power Supply ......................................................................................................... 5V DC
Dimensions ............................................................................ 17” W x 1.75” H x 4.375” D
Rackmountable ........................................................................................... 1 Rack Space
Shipping Weight ..................................................................................................... 12 lbs.
