Genius KYE Systems SP-HF1250X Manuale utente
S
SE
ER
RV
VI
IC
CE
E
G
GU
UI
ID
DE
E
KYE SYSTEMS CORP.
S
SP
P-
-H
HF
F1
12
25
50
0X
X
Version:1.0
Total 14 Pages (Cover Page included)
Version: 1.0 Page 1/13
Version Date Changes
1．0 Official Release
s
Guide
ervic
e
SP-HF1250X
Revision History
Version: 1.0 Page 2/13
Revision History………………………………………………………………………..1
Table of Contents………………………………………………… ………….2
Getting Started………………………………………………… ……….……………....3
Conventions Used in this Guide………………… ………...……………….3
Safety Precautions……………………………… ………………...………..3
Chapter1. How to Handle Defective Returns………………… ……………………….4
1.1 Overview……………………………………………………………….4
1.2 Problems………………………………………………………………..5
1.2.1 Power LED (indicator) Unlight…………………...……………......6
1.2.2 Does not work or one channel no sound……………………….…..7
1.2.3 Noise……………………………………………………………….7
Chapter2. Specifications………………………………………………………………..8
Chapter3. Block Diagram……………………………………………………………....9
Chapter4. Exploded View……………………………………………………………...10
Chapter5. Part List…………………………………………………………………….11
Chapter6. Important Notes…………………………………………………………....12
6.1 Packing Requirement for sending the PCBAssembly by post……….…12
6.2 Short of Spare Parts while Repairing a Speaker System…………….….12
Chapter7. Circuit Schematic……………………………………………………………13
s
Guide
ervic
e
SP-HF1250X
Table of Contents
Version: 1.0 Page 3/13
Conventions Used in this Guide
Pay Special Attention: Instructions that areimportantto
remember and may prevent mistakes.
Safety Precautions
The following precautions should be observed in handling the speaker described in this guide:
Place the speakers on a flat , level and stable surface.
Do not place the speakers in environments subject to mist, smoke, vibration, excessive dust,
salty or greasy air, or other corrosive gases and fumes.
Do not drop or jolt the speakers.
Do not allow anything to drop into the subwoofer case through its ventilator, as it could
result in fatal electric shock or fire.
Place the unit far enough from other equipments for good heat dissipation.
Disconnect the AC power cord from the AC outlet before performing any maintenance on the
speakers.
Do not perform any maintenance with wet hand.
Prevent foreign substance, such as water, other liquids or chemicals, from entering the
speakers while performing maintenance procedures on the speakers.
s
Guide
ervic
e
SP-HF1250X
Getting Started
Attention
Caution: Information that, if not followed, may result in
damage to the product.
Version: 1.0 Page 4/13

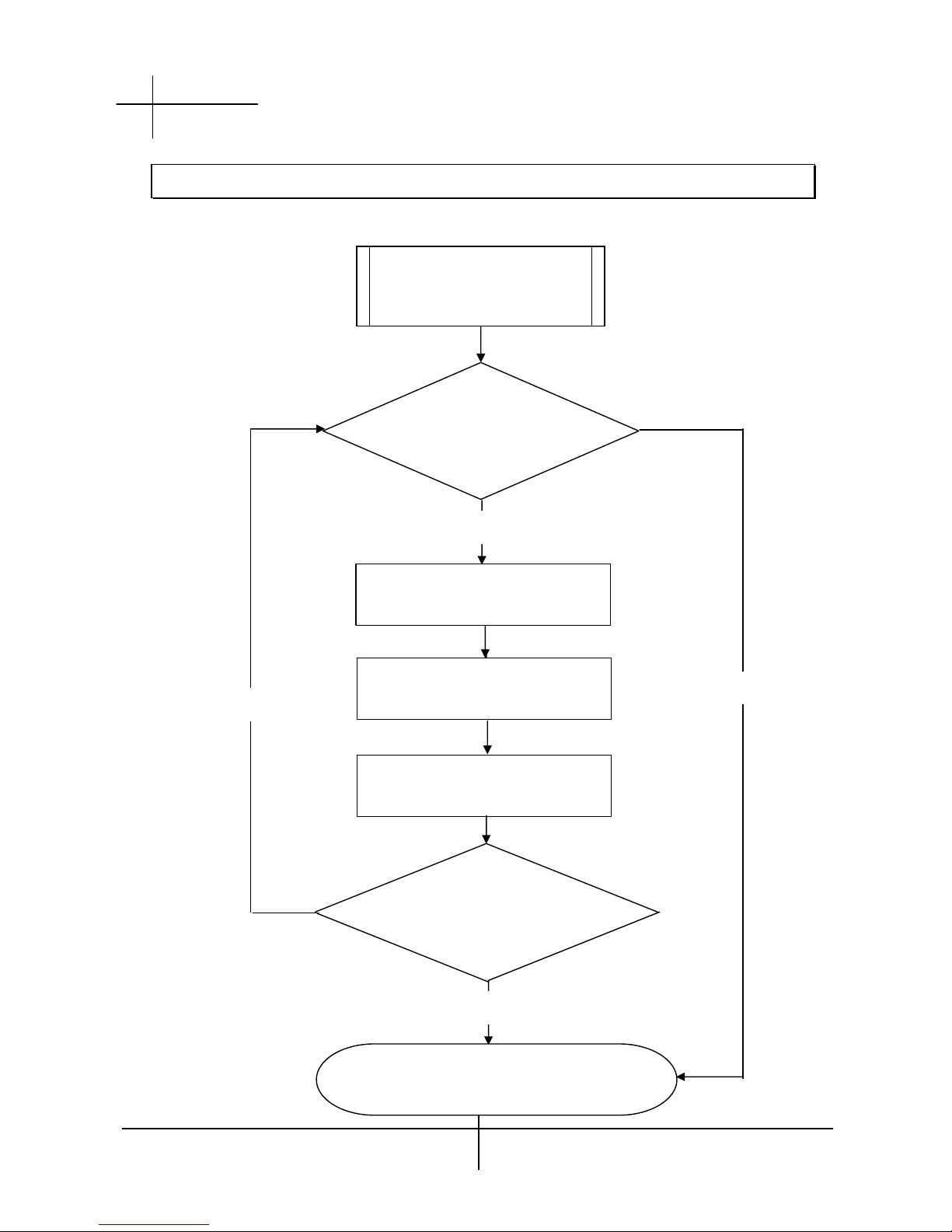

1.1 Overview
s
Guide
ervic
e
SP-HF1250X
Chapter 1. How to Handle Defective Returns
Receiving Defective
Speakers
from Customers
Verifying problems&
Proceeding necessary tests
Analyzing possible
Malfunction causes
Deciding & proceeding
the rectification methods
Replacing necessary
Defective parts
Proceeding tests
To verify if the speaker is
functioning normally
Functioning OK
Return the speakers with
Pro
p
er re
p
acka
g
in
g
to customers
Functioning NG Functioning OK
Functioning NG
Version: 1.0 Page 5/13
1.2 Problems
Item Problemdescriptions
1.2.1 Power LED (indicator) unlight
1.2.2 Does not work or one channel no sound
1.2.3 Noise
s
Guide
ervic
e
SP-HF1250X
Version: 1.0 Page 6/13
Attention
1.2.1 Power LED (indicator) unlight
s
Guide
ervic
e
SP-HF1250X
Please follow the numbered sequence marked withing parenthesis given in individual
Flow chart, in that this is the best-recommended sequence to rectify the problems.
Problem
Analyze and
Identify the
Causes
Solutions
Power LED (indicator) unlight
Diode D1.2.5.6
burnt Defective power
Switch or LED
Secondary wire
Of transformer is
Disconnected or
defective
Resolder or replace defective component(s)
Version: 1.0 Page 7/13

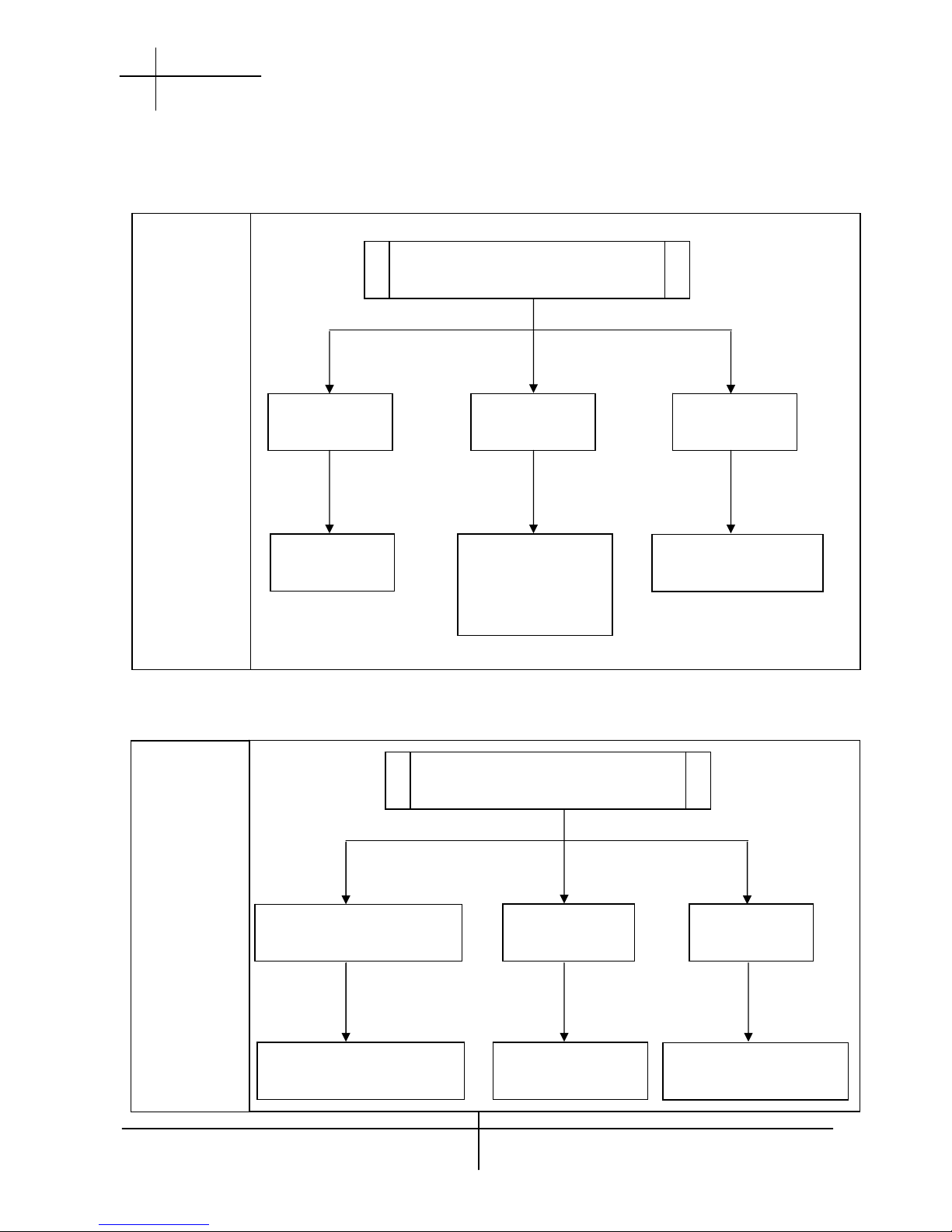

1.2.2 Does not work jor jone channel no sound
1.2.3 Noise
s
Guide
ervic
e
SP-HF1250X
Problem
Analyze and
Identify the
Causes
Solutions
Does not work or
One channel no sound
Broken o
r
Short circuit Defective IC
Defective
Audio cable
Replace
Audio cable Check solde
r
Points on PCB
And resolder
defective one(s)
Check and replace
Defective IC
Problem
Analyze and
Identify the
Causes
Solutions
Noise
Defective VR Defective IC
Check and replace
defective component(s) Replace
Defective VR Replace defective IC
Component(s) aroun
d
IC is/are defective
Version: 1.0 Page 8/13
No. DESCRIPTION UNIT NOMINAL LIMIT
1 INPUT SENSITIVITYAT 10% mV 340 340+/-50
2 DISTORTION AT 1 KHz % 0.15 <0.5
3 OUTPUT POWER AT 10% DISTORTION W 18 18+/-1
4 S/N RATIO dB 74 >60
5 CHANNEL SEPARATION dB 49 >40
6 FREQUENCY RESPONSE
(DOWN3dB) (LOW)
(HIGH)
Hz
KHz
20
20
+/-10%
+/-10%
7 HUM LEVEL (AT VOL. MIN.)
HUM LEVEL (AT VOL. MAX.)
mV
mV
1
2.5
<3
<5
8 OPERATING VOLTAGE MAX.253VAC
MIN.207VAC
TEST CONDITION:
1) LOAD 4Ω
2）RATED POWER 1 W
VOLUME AT MAX.
s
Guide
ervic
e
SP-HF1250X
Chapter 2. Specifications
Version: 1.0 Page 9/13
s
Guide
ervic
e
SP-HF1250X

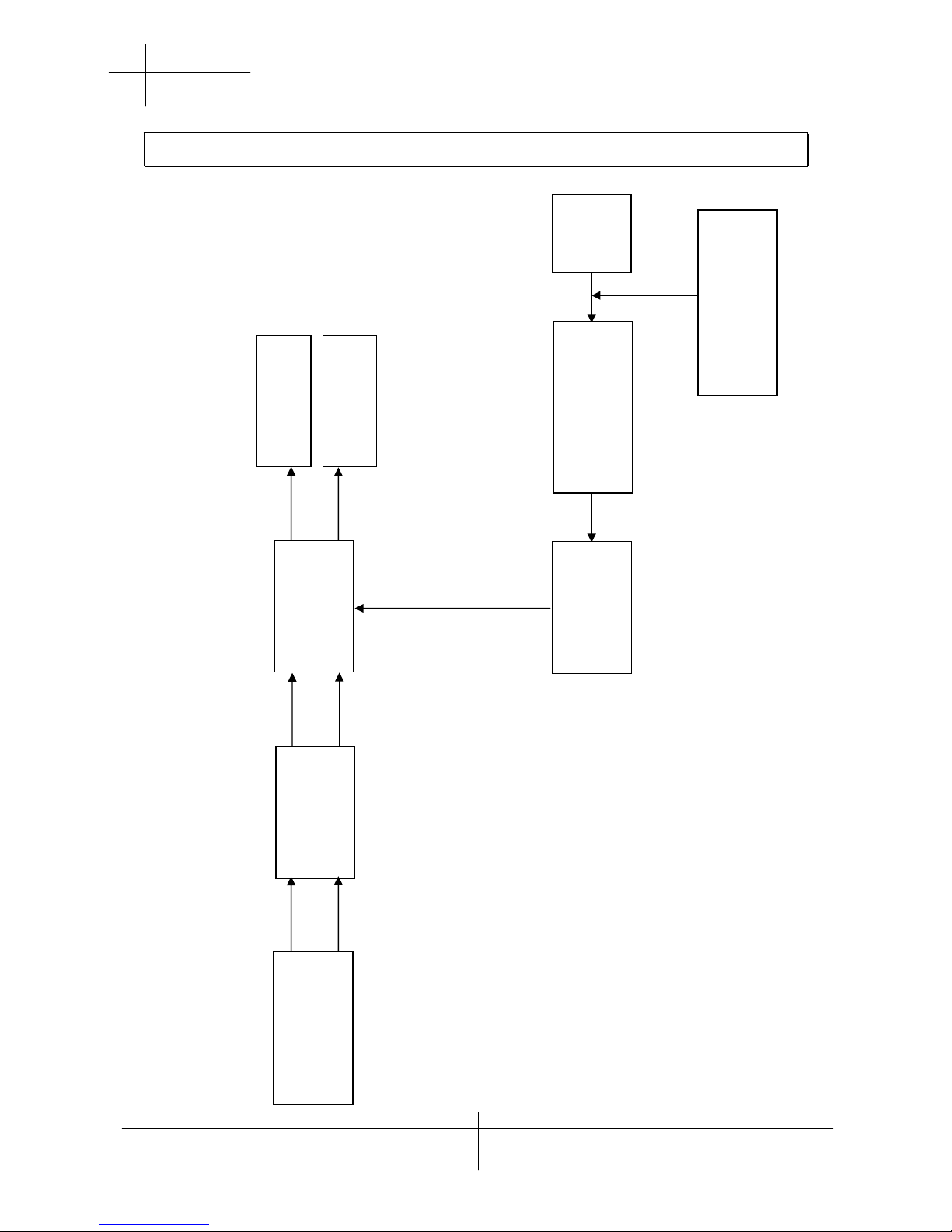

Chapter 3. Block Diagram
R.IN
L.IN
R.OUT
L.OUT
R.CH
SPEAKER
L.CH
SPEAKER
POWER
AMPLIFIER
VOLUME
CONTROL
AC IN
TRANSFORMER
POWER SWITCH
FILTER
AUDIO INPUT
