GeoVision GV-BX2400D-E Manuale utente

GV-BX2400-E September 16, 2013

- 1 -

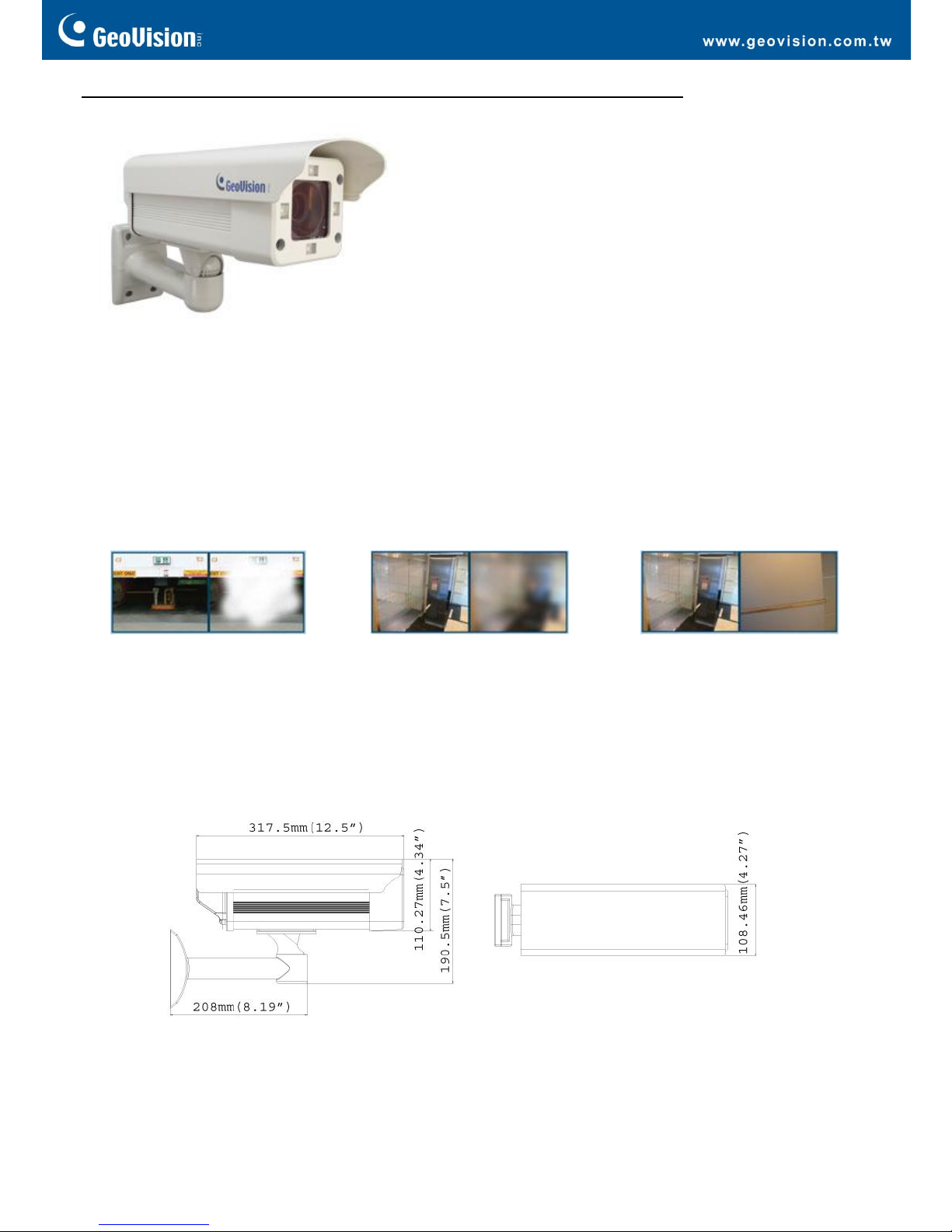

GV-BX2400D-E 2MP H.264 WDR Pro IR Arctic Box IP Camera

2 megapixel progressive scan CMOS

Dual streams from H.264 and MJPEG

Up to 30 fps at 1920 x 1080

Day / Night function (with removable IR-cut filter)

Vandal resistance (IK10 for metal casing)

Ingress protection (IP67)

Built-in heater and fan

Support for TV-out

Two-way audio

Wide Dynamic Range Pro (WDR Pro)

Defog

Motion detection

Tampering alarm

Privacy mask

Text overlay

IP address filtering

Power supplied through PoE (IEEE 802.3at)

Megapixel lens

Support for iPhone, iPad, Android and 3GPP

31 languages on Web interface

ONVIF (Profile S) conformant

Active Tampering Alarm

Tampered

Focus Change

Camera Shift

Introduction

The GV-BX2400-E is an outdoor cameras designed for environments of extreme temperatures. The camera adheres to IP67 and IK10

protection standards, and is equipped with IR LEDs and a removable IR-cut filter for day and night surveillance. The camera is

capable of processing scenes with contrasting intensity of lights and producing clear images using the built-in WDR Pro.

Dimensions

GV-BX2400-E September 16, 2013

- 2 -

Specifications

Camera

Image Sensor

1/3.2”progressive scan CMOS

Picture Elements

1920 (H) x 1080 (V)

Minimum

Illumination

Color

0.08 Lux

B/W

0.05 Lux

IR ON

0 Lux

Shutter Speed

Automatic, Manual (1/5 ~ 1/8000 sec.)

White Balance

Automatic, Manual (2800 ~ 8500K)

Gain Control

Automatic

S/N Ratio

47 dB

WDR Pro

Yes

BLC

Yes

Lens

Megapixel

Yes

Day/Night

Yes (with removable IR-cut filter)

Lens Type

Varifocal

Focal Length

3 ~ 10.5 mm

Maximum Aperture

F/1.4

Mount

Image Format

1/2.7”

Operation

Focus

Manual (w/lock)

Zoom

Manual (w/lock)

Iris

DC drive

IR Quantity

Max. IR Distance

15 m (50 ft.)

Torque (Focus/Zoom screws)

0.049 N.m

Operation

Video Compression

H.264, MJPEG

Video Stream

Dual streams from H.264 and MJPEG

Frame Rate

30 fps at 1920 x 1080

* The frame rate and performance may vary depending on the number of connections and data bitrates

(different scenes).

Image Setting

Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,

Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog

Audio Compression

G.711

Two-way Audio

Yes

Video Resolution

Main Stream

4:3

1600 x 1200, 1280 x 960, 640 x 512, 320 x 256

16:9

1920 x 1080, 1280 x 720, 640 x 360, 448 x 252

5:4

1280 x 1024, 640 x 512, 320 x 256

Sub Stream

4:3

640 x 480, 320 x 240

16:9

640 x 360, 448 x 252

5:4

640 x 512, 320 x 256

GV-BX2400-E September 16, 2013

- 3 -

Network

Interface

10/100 Ethernet

Protocol

HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS

(DSCP), ONVIF (Profile S)

Mechanical

Camera Angle

Adjustment

Pan

0°~ 330°

Tilt

0°~ 90°

Temperature Detector

Yes

Connectors

Power

PoE

Ethernet

Ethernet (10/100 Base-T), RJ-45 cable

Audio

1 In (externally connecting a microphone)

1 Out (Stereo phone jack, 3.5 mm / 0.14”)

Auto Iris

DC drive

TV-Out

BNC connector (640 x 480 resolution)

LED Indicator

1 LED: Status

General

Environment

Temperature

Start-up

-30°C ~ 50°C (-22°F ~ 122°F)

Operation

-40°C ~ 50°C (-40°F ~ 122°F )

Humidity

10% to 90% (no condensation)

Power Source

PoE (IEEE802.3at)

Max. Power Consumption

23 W

Dimensions (L X W X H)

100.5 x 100.5 x 317.5 mm (3.96”x 3.96”x 12.5”)

Weight

3.2 Kg (7.11 lb)

Heater On

-40°C ~ 8°C (-40°F ~ 46.4°F )

Fan

Constantly on

Ingress Protection

IP67

Vandal Resistance

IK10 for metal casing

Regulatory

CE, FCC, C-Tick, RoHS compliant

Power over Ethernet

PoE Standard

IEEE 802.3at Power over Ethernet / PD

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 600mA. Max. 34.2 watts

Web Interface

Installation Management

Web-based configuration

Maintenance

Firmware upgrade through Web Browser or Utility

Access from Web Browser

Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital

I/O Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay,

Digital PTZ

Language

Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew /

Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese /

Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai /

Traditional Chinese / Turkish

Applications

Network Storage

GV-NVR, GV-System, GV-Backup Center, GV-Recording Server

Smart Device Access

GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch

GV-Eye HD for iPad

Live Viewing

IE, mobile phone

CMS Server support

GV-Control Center, GV-Center V2, GV-VSM

Note: Specifications are subject to change without notice.

Packing List

1. IR Arctic Box Camera

2. Screw Anchor x 4

3. Screw x 4

4. Washer x 4

5. Big Torx Wrench

6. Small Torx Wrench

7. Silica Gel Bag x 2

8. GV-PA481 PoE Adapter and GV-PA481 Power Cord

9. GV-IPCAM H.264 Quick Start Guide

10. GV-IPCAM H.264 Software CD

11. GV-NVR Quick Start Guide

12. GV-NVR Software DVD

GV-BX2400-E September 16, 2013

- 4 -

Accessories

Model No. Name

Name

Details

GV-Mount300

Convex Corner Adapter Kit

Dimensions: 238.6 x 409.5 mm (9.4’’ x 16.1”)

Weight: 4.27 Kg (9.41 lb)

GV-Mount310

Concave Corner Adapter Kit

Dimensions: 238.6 x 409.5 mm (9.4’’ x 16.1”)

Weight: 4.27 Kg (9.41 lb)

GV-Mount400

Pole Mount Bracket Kit (Ø 4" ~ 6")

Dimensions

Bracket: 241 x 161 mm (9.5’’ x 6.3”)

Weight: 1.70 Kg ( 3.75 lb)

Steel Strap Diameter: Ø 4" ~ 6"

GV-Mount410

Pole Mount Bracket Kit (Ø 6" ~ 7.5")

Dimensions

Bracket: 241 x 161 mm (9.5’’ x 6.3”)

Weight: 1.70 Kg (3.75 lb)

Steel Strap Diameter: Ø 6" ~ 7.5"

GV-PA481 PoE Power

Adapter

The GV-PA481 PoE adapter is designed to provide power and network connection to

GV-BX1500-E / 2400-E / 3400-E / 5300-E over a single Ethernet cable.

GV-POE Switch

The GV-POE Switch is designed to provide power along with network connection for

IP devices. The GV-POE Switch is available in various models with different numbers

and types of ports.
