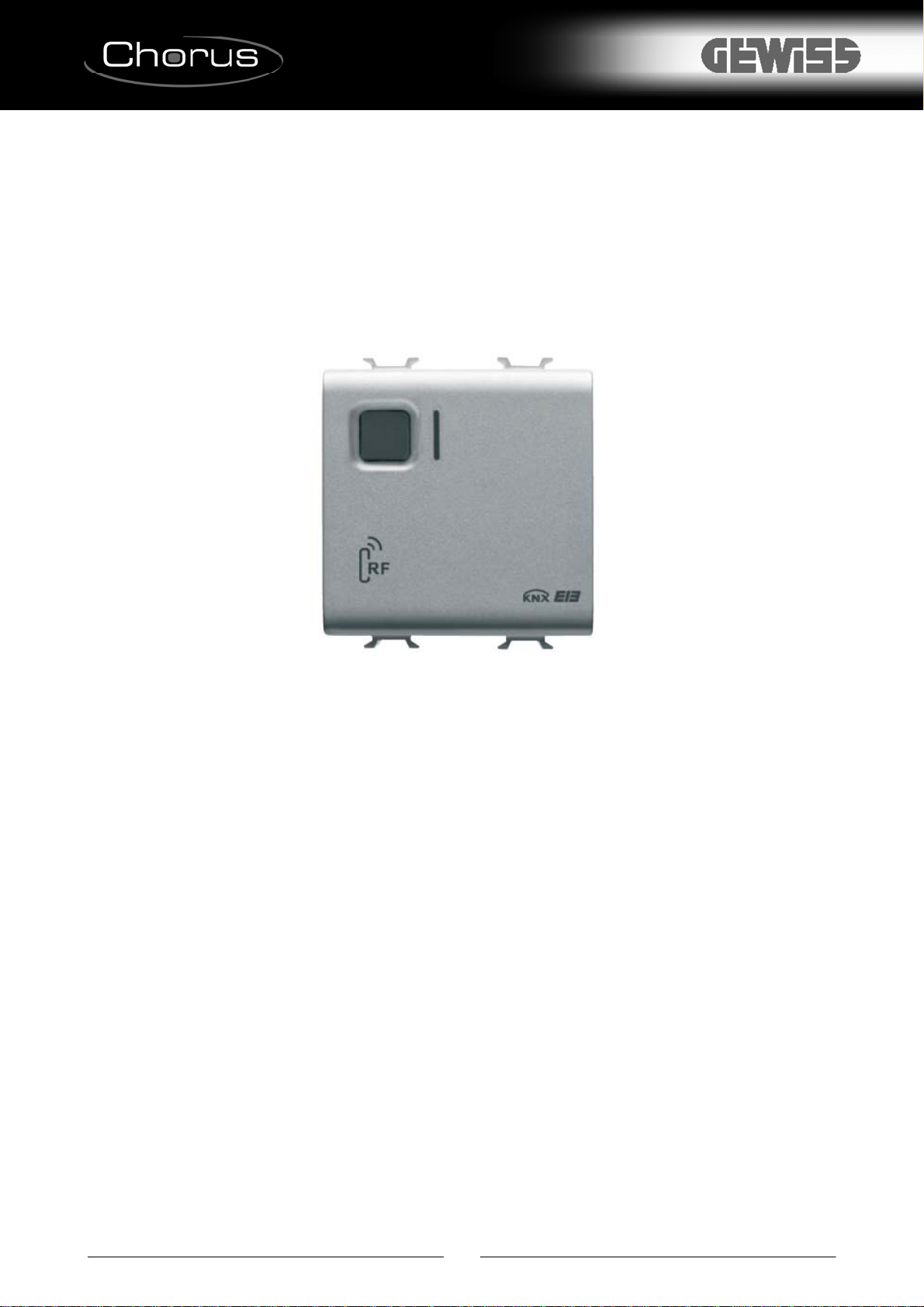

Gewiss Chorus Easy 8 channel RF receiver Manuale utente

Easy 8 channel RF receiver

GW 10 776

GW 12 776

GW 14 776

Technical Manual

Summary

1Introduction................................................................................................................................................ 3

2Application ................................................................................................................................................. 4

2.1Limits to the associations................................................................................................................... 4

3“Settings” menu ......................................................................................................................................... 5

3.1Parameters ........................................................................................................................................ 5

3.2Communication objects ..................................................................................................................... 5

4“Channel x” menu...................................................................................................................................... 6

4.1Parameters ........................................................................................................................................ 6

5“Switching” function ................................................................................................................................... 7

5.1Parameters ........................................................................................................................................ 7

5.2Communication objects ..................................................................................................................... 8

6”Dimmer” function...................................................................................................................................... 9

6.1Parameters ........................................................................................................................................ 9

6.2Communication objects ................................................................................................................... 10

7”Shutter” function..................................................................................................................................... 11

7.1Parameters ...................................................................................................................................... 11

7.2Communication objects ................................................................................................................... 11

8“Timing” function...................................................................................................................................... 12

8.1Parameters ...................................................................................................................................... 12

8.2Communication objects ................................................................................................................... 13

9“Scene” function....................................................................................................................................... 14

9.1Parameters ...................................................................................................................................... 14

9.2Communication objects ................................................................................................................... 15

10“Priority command” function................................................................................................................. 16

10.1Parameters ...................................................................................................................................... 16

10.2Communication objects ................................................................................................................... 17

1 Introduction

This manual describes the functions of the device named GW1x776 “Easy 8 channel EIB RF receiver” and

how to use the ETS configuration software to change the settings and configurations.

2 Application

The 8 channel EIB RF receiver is a device that allows the Chorus RF system command and control devices

to communicate with a KNX/EIB system, which hence allows the Home Automation Konnex system to be

extended using RF control devices.

This device is in fact fitted with 8 EIB output channels, each of which can be configured independently to

perform different functions. Up to 4 different RF command sources (transmitters) can be connected to each

channel which manages a total of 32 channels of the RF remote control, RF pushbutton panel, IR with

twilight switch RF movement detector, 2 RF channel input modules, etc.

The functions each channel is able to perform are those typical to an input interface, that is ON/OFF

commands, shutter control, dimmer control, scene management, priority commands.

Not all RF control devices can perform the above listed functions, so before starting to configure the device

using the ETS software, please read the INSTALLATION AND USER MANUAL, which lists all the

commands that the different RF control devices can perform.

This manual refers solely to the configuration using the ETS software. Please refer to the INSTALLATION

AND USER MANUAL supplied with the product for instructions on how to configure the RF Receiver with RF

control devices.

2.1 Limits to the associations

Maximum number of group addresses: 100

Maximum number of logical associations: 100

This means that it could be possible to define maximum 100 group addresses and realize maximum 100

associations between group addresses and communication objects.

3 “Settings” menu

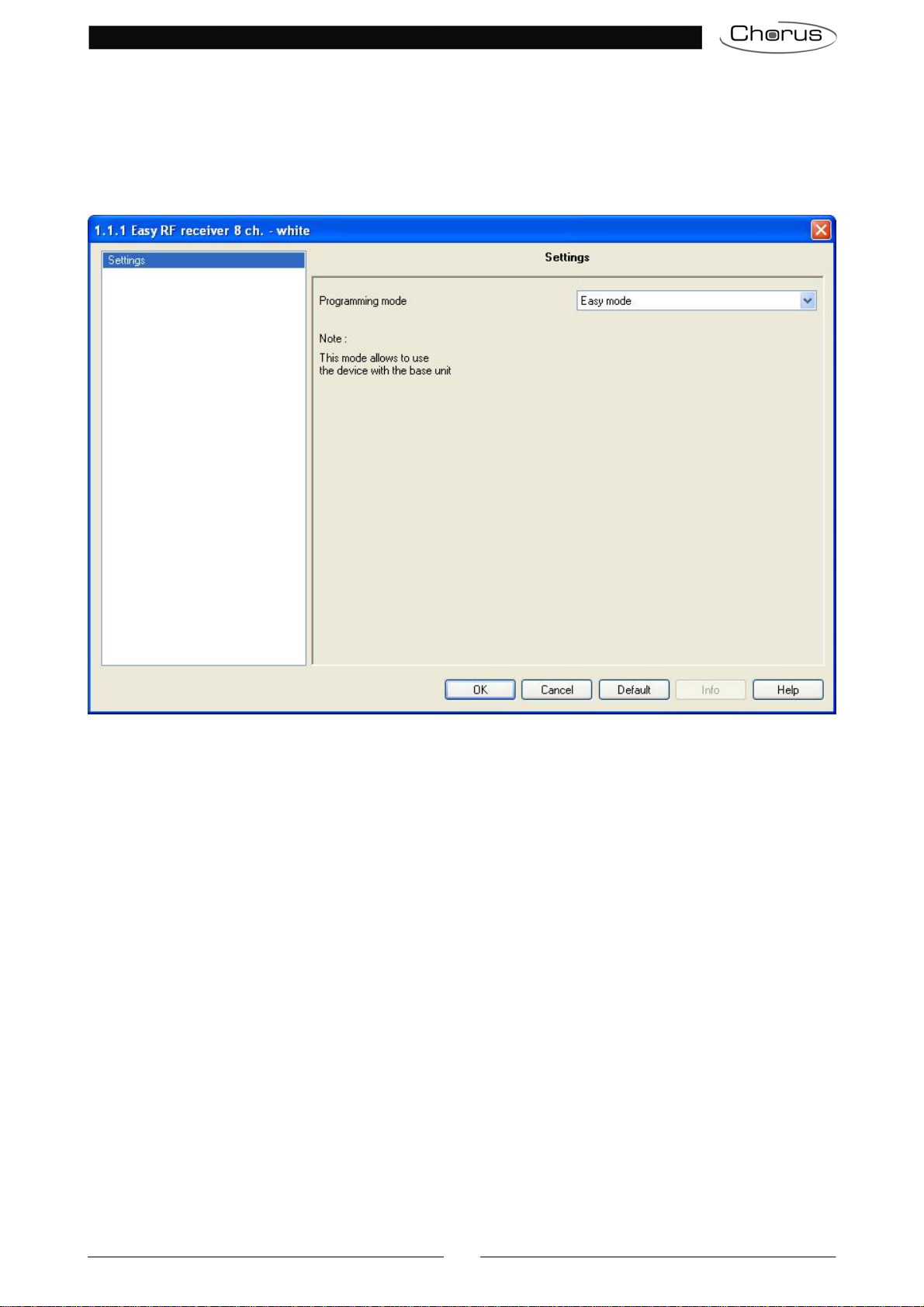

Here it is possible to configure the programming mode between ETS mode (S-Mode) and Easy mode by the

Easy controller software (Kit GW90837, Kit GW90838, GW90840) see Diag 3.1.

Diag 3.1

3.1 Parameters

¾3.1.1 Programming mode

This parameter determines the programming mode of the device:

•ETS mode

Select this value if you want to configure the device with ETS (S-Mode); all the configuration parameters

are now visible.

•Easy mode

Select this value if you want to configure the device with the Easy controller software.

Remember to download the application program with this value selected before using the device by the

Easy controller software if you have already used the device in an ETS project.

3.2 Communication objects

There are no communication objects enabled by the Settings menu.

For the sake of simplicity, the Channel 1, Channel 2, Channel 3, Channel 4, Channel 5, Channel 6,

Channel 7 and Channel 8 menu options will be described in the following chapters once only (referring to

the general menu Channel x) as all menus carry the same options.

4 “Channel x” menu

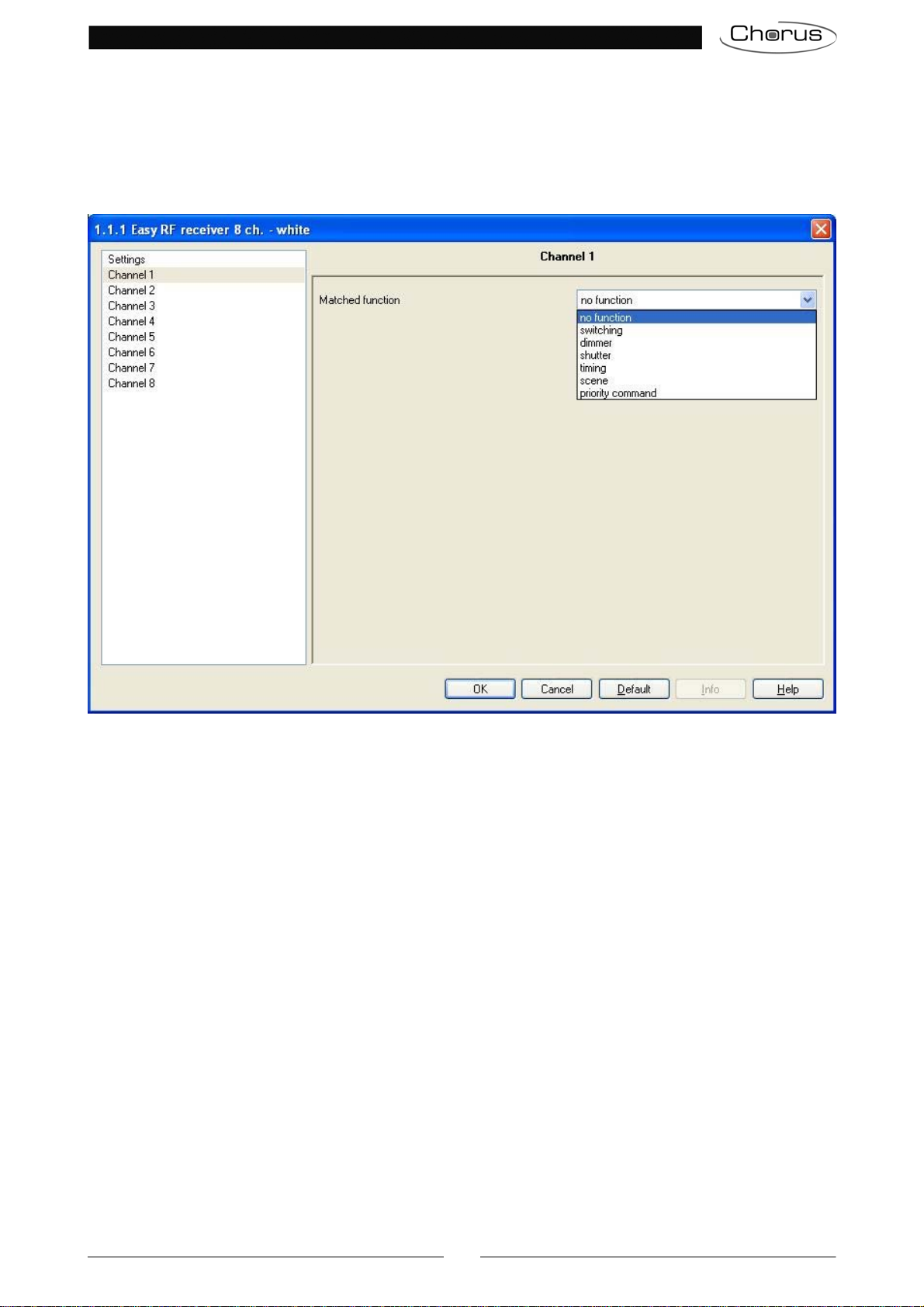

This chapter describes the parameters and the communication objects relative to channels 1, 2, 3, 4, 5, 6, 7

and 8 (hereinafter referred to generally as channel x) see Diag. 4.1.

The value set for the first option (Matched function) determines the structure of the entire menu.

Diag 4.1

4.1 Parameters

¾4.1.1 Matched function

This determines the function associated to the general channel x; according to the value of these

settings, the Channel x menu will behave differently. The settings are:

•no function

No function is associated to the general channel x, consequently it will not be used.

•switching

See chapter 5 - “Switching” function

•dimmer

See chapter 6 - “Dimmer” function

•shutter

See chapter 7 - “Shutter” function

•timing

See chapter 8 - “Timing” function

•scene

See chapter 9 - “Scene” function

•priority command

See chapter 10 - “Priority command” function

5 “Switching” function

This function allows you to enable the general channel x to send on/off commands to the actuators that

control the loads.

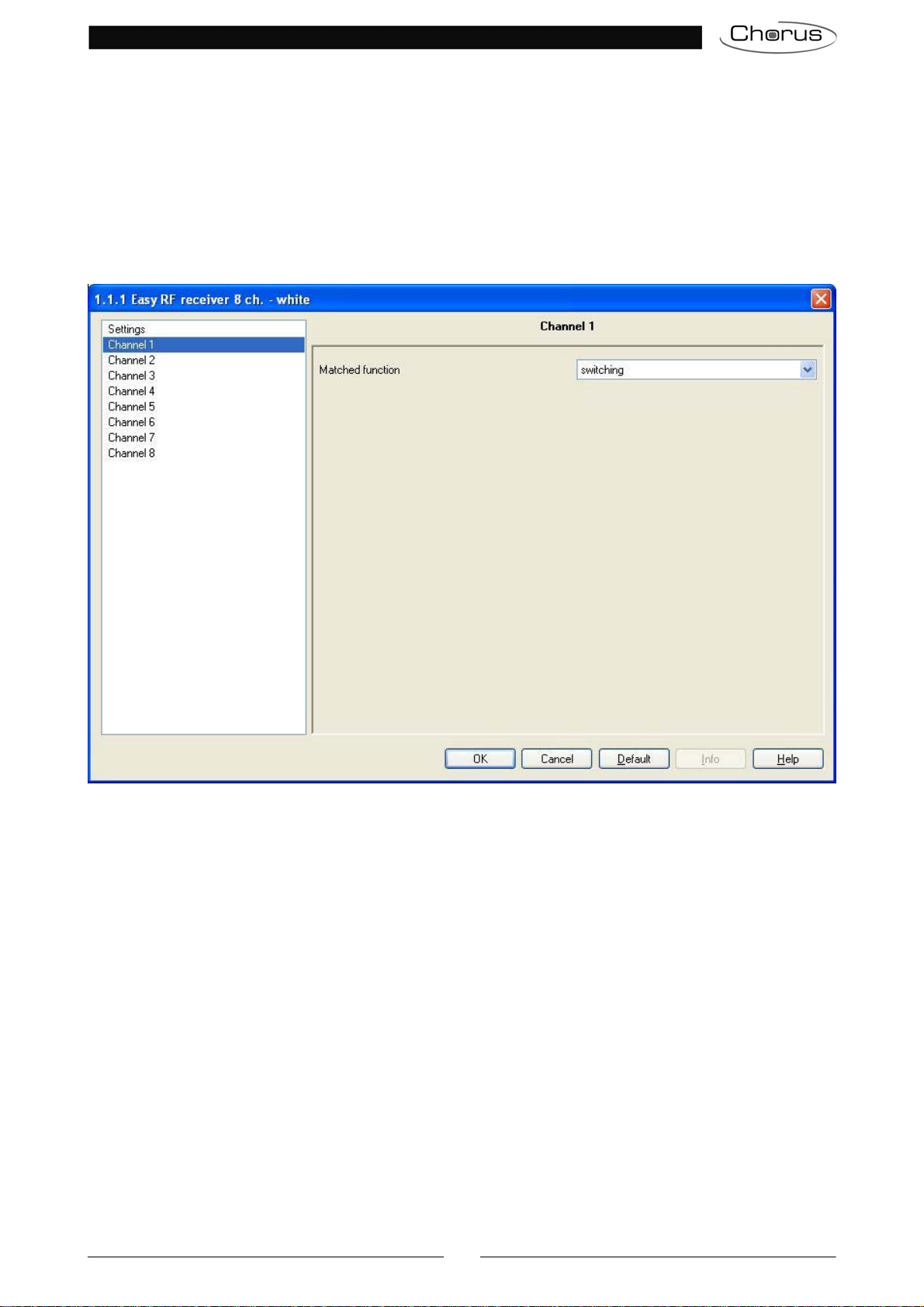

The Channel x menu can be seen in Diag.5.1 below.

Diag. 5.1

5.1 Parameters

There are no parameters to be configured for this function.

5.2 Communication objects

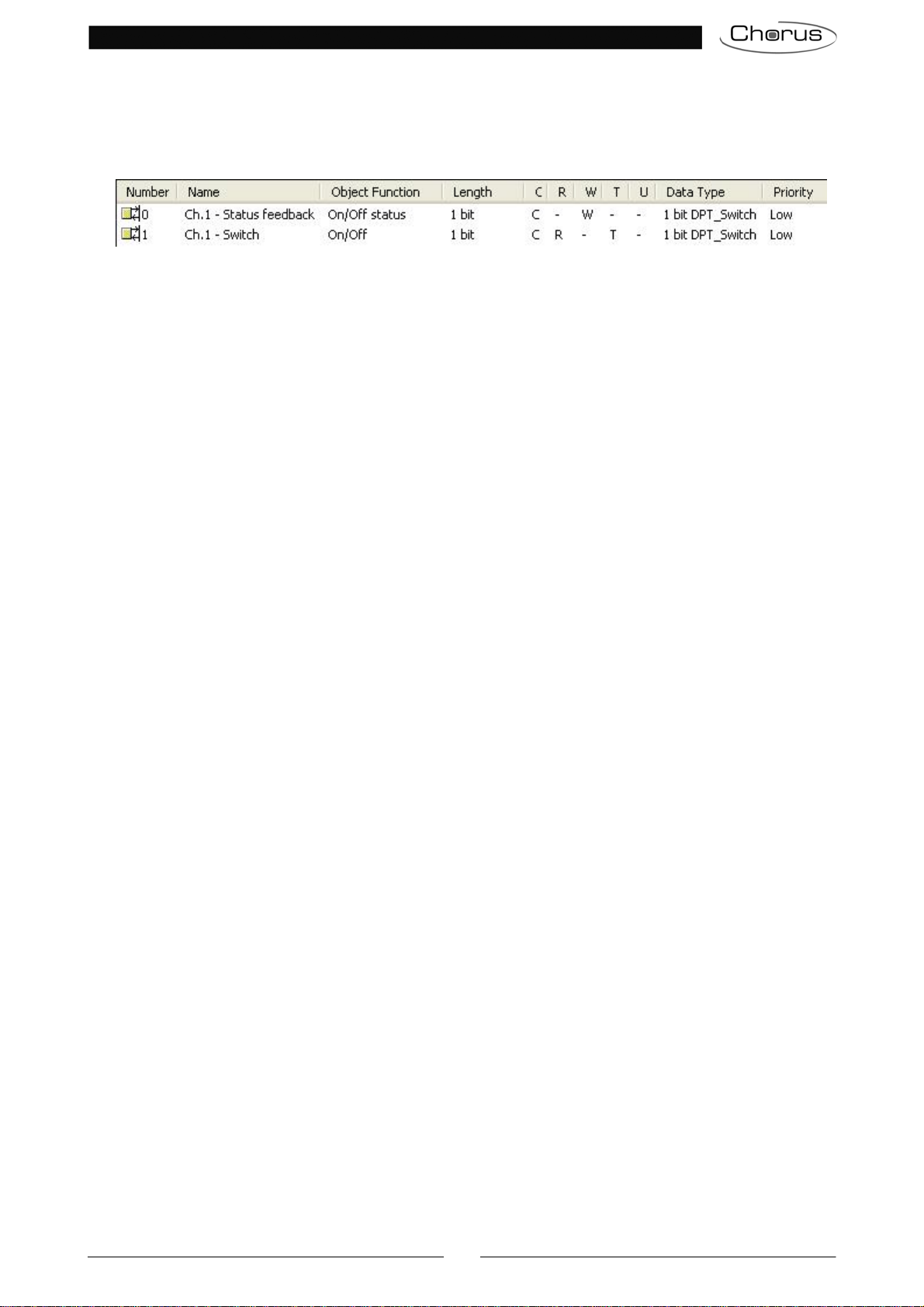

The switching function makes the following communication objects visible (See Diag. 5.2.):

Diag. 5.2

¾5.2.1 Ch.x – Switch

Using these communication objects, the device sends ON/OFF commands to the bus after receiving

load activation/deactivation commands from the RF control devices associated to the general channel x.

The enabled flags are C (communication), R (read by bus) and T (transmission) .

The standard format of the object is 1.001 DPT_Switch, the size of the object is 1 bit and the information

it sends is On/Off or more generally 1/0.

¾5.2.2 Ch.x – Status feedback

Through this communication object the device receives status feedbacks for the devices it controls,

generally actuators, so that it is always updated about their status and therefore able to manage them

correctly. Please note that the use of this object is essential in order for the cycle switching to function

correctly when the RF control device associated to the general channel x is a 2 RF channel input module

configured for cycle switching.

The enabled flags are C (communication), W (written by bus).

The standard format of the object is 1.001 DPT_Switch, the size of the object is 1 bit and the information

it contains is ON/OFF status or more generally 1/0 status.

6 ”Dimmer” function

Here it is possible to configure the channel to control a dimmer actuator, sending ON/OFF telegrams and

brightness dimming telegrams.

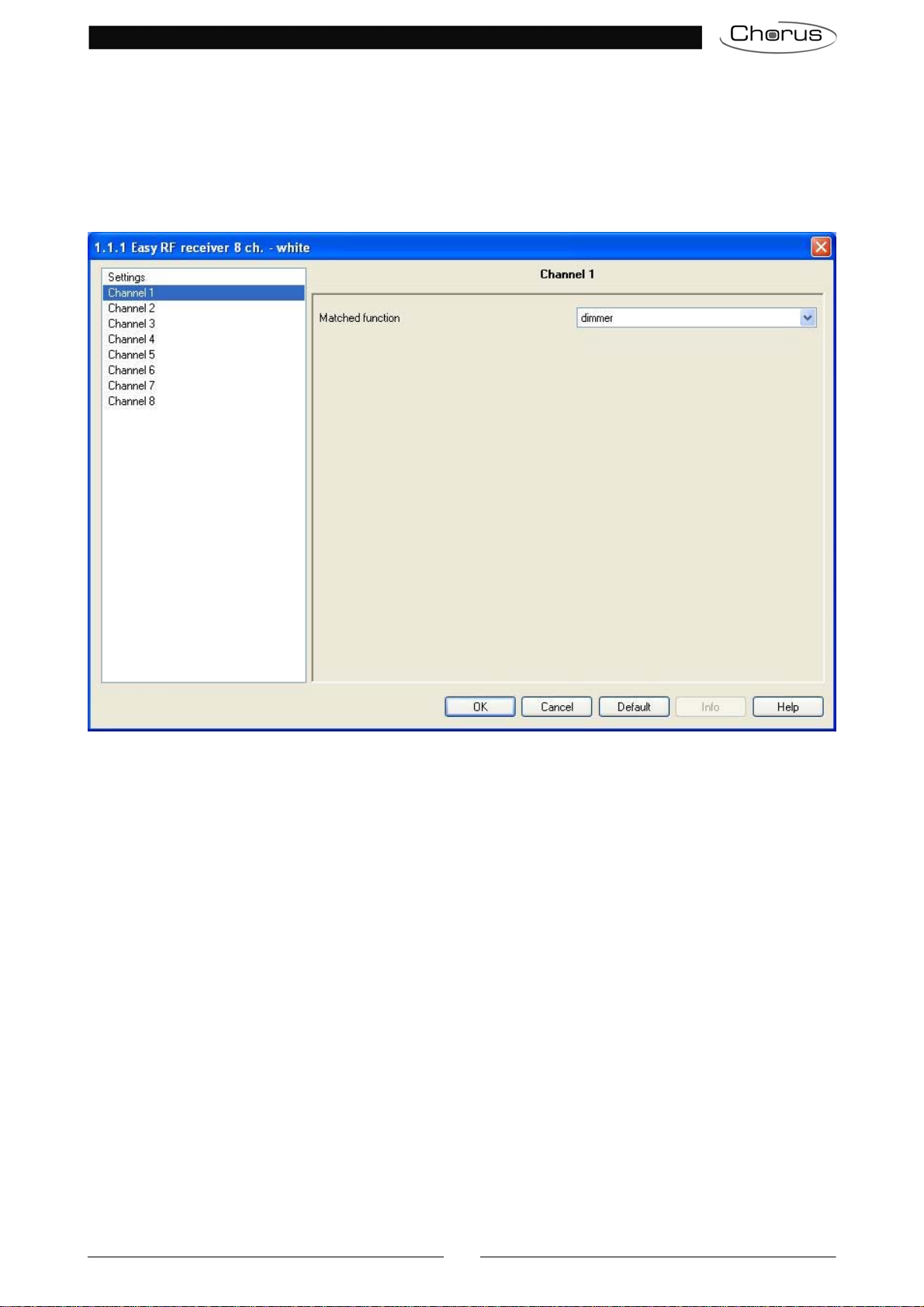

The Channel x menu can be seen in Diag.6.1 below.

Diag. 6.1

6.1 Parameters

There are no parameters to be configured for this function.

6.2 Communication objects

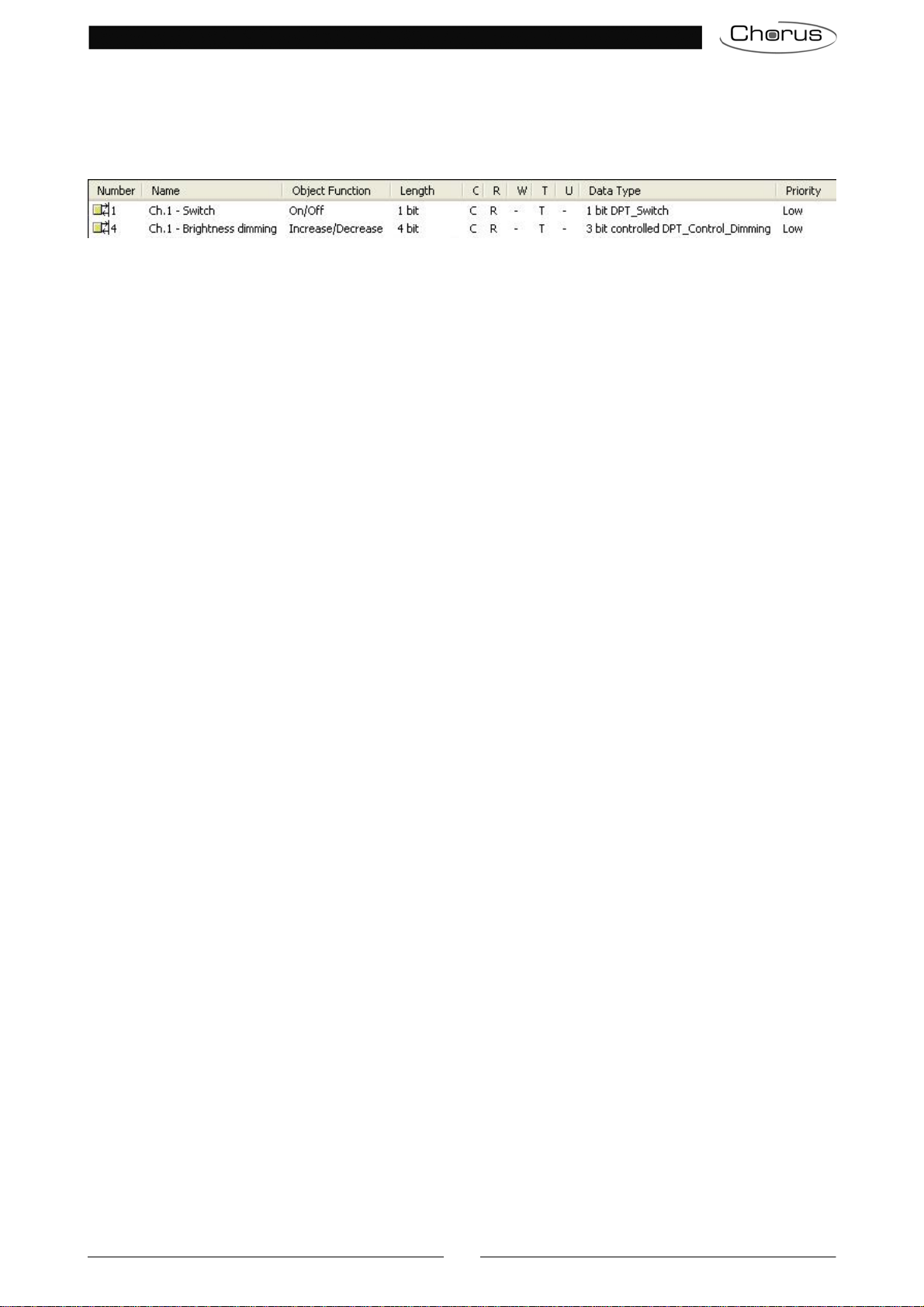

The dimmer function makes the following communication objects visible (See Diag. 6.2.):

Diag. 6.2

¾6.2.1 Ch.x - Switch

Using this communication object, the device sends ON/OFF commands to the bus according to the

command received from the RF control devices associated to the general channel x.

The enabled flags are C (communication), R (read by bus) and T (transmission) .

The standard format of the object is 1.001 DPT_Switch, the size of the object is 1 bit and the command it

sends is On/Off.

¾6.2.2 Ch.x - Brightness dimming

Using this communication object, the device sends brightness increase/decrease commands to the bus

according to the command received from the RF control devices associated to the general channel x.

The coding of this type of command allows you to differentiate between increase and decrease, and also

the percentage value of the same variation; in this specific case, according to the RF control received,

“increase to 100%” (decrease to 0%)” of the brightness value commands and stop control commands

are sent. This allows for a faster or slower dimmer action according to the manufacturing features on the

controlled device.

The enabled flags are C (communication), R (read by bus) and T (transmission) .

The standard format of the object is 3.007 DPT_Control_Dimming, the size of the object is 4 bit and the

command it sends is increase/decrease by the set percentage value.
