Gigabyte 586SGX Manuale utente

R-10-01-080123

586SGX

USER'S MANUAL

¯Support Intel Pentium, MMX/Cyrix/IBM 6x86MX & AMD K5,K6

CPUs.

¯Support auto detect CPU Voltage.

¯Support auto detect four positive Voltages and Fan Speed.

¯Support Parity check or Ecc Function.

¯Support Ultra DMA/33 Function.

¯Support Fully AGP 1.0 Specification.

¯Support switching mode Voltage regulator on Board.

¯Support 60/66/(75 MHz and 83MHz are optional).

¯Support Wake on Lan.

¯Support K/B Power-on , modem Ring-on (Only Support COM2), Win95

Power off , RTC Alarm.

¯Support 3 steps ACPI LED.

¯Thermal Protection :

1. When the system is overheating, it will stop for a few secs.

2. Then back to normal status after the system’s temperature

step down.

3. Users better check CPU fan immediately.

Pentium



Processor PCI - ISA BUS MAINBOARD

REV. 1.0 First Edition

Quick Istallation Guide

Release Date 98.01.23

586SGX

The author assumes no responsibility for any errors or omissions which may

appear in this document nor does it make a commitment to update the information

contained herein.

¯THIRD-PARTY BRANDS AND NAMES ARE THE PROPERTY OF THEIR

RESPECTIVE OWNERS.

JANUARY 23, 1998 Taipei, Taiwan

Quick Installation Guide

I. Quick Installation Guide:

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 JP9 JP10 JP11

1. Pentium



Processor 90 MHz ON OFF OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

2. Pentium



Processor 100

MHz

OFF OFF OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

3. Pentium



Processor 120

MHz

ON ON OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

4. Pentium



Processor 133

MHz

OFF ON OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

5. Pentium



Processor 150

MHz

ON ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

6. Pentium



Processor 166

MHz

OFF ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

7. Pentium



Processor 180

MHz

ON OFF ON OFF OFF OFF ON OFF 2-3 1-2 1-2

8. Pentium



Processor 200

MHz

OFF OFF ON OFF OFF OFF ON OFF 2-3 1-2 1-2

9. Intel MMX-150MHz ON ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

10. Intel MMX-166MHz OFF ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

11. Intel MMX-200MHz OFF OFF ON OFF OFF OFF ON OFF 2-3 1-2 1-2

12. Intel MMX-233MHz OFF OFF OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

13. P54CT-150 MHz ON ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

14. P54CT-166 MHz OFF ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

15. P54CTB-150 MHz ON ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

586SGX

16. P54CTB-166 MHz OFF ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

17. P54CTB-180 MHz ON OFF ON OFF OFF OFF ON OFF 2-3 1-2 1-2

18. P54CTB-200 MHz OFF OFF ON OFF OFF OFF ON OFF 2-3 1-2 1-2

19. AMDK5-PR133 OFF ON OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

20. AMDK5-PR166 OFF ON ON OFF OFF OFF ON OFF 2-3 1-2 1-2

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 JP9 JP10 JP11

21. AMD-K6/166 (2.9V) OFF ON ON OFF OFF ON ON OFF 2-3 1-2 1-2

22. AMD-K6/180 (2.9V) ON OFF ON OFF OFF ON ON OFF 2-3 1-2 1-2

23. AMD-K6/200 (2.9V) OFF OFF ON OFF OFF ON ON OFF 2-3 1-2 1-2

24. AMD-K6/233 (3.2V) OFF OFF OFF ON OFF OFF ON OFF 2-3 1-2 1-2

25. Cyrix/IBM 6x86-120MHz-

PR150+ ON ON OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

26. Cyrix/IBM 6x86-133MHz-

PR166+ OFF ON OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

27. Cyrix/IBM 6x86-150MHz-

PR200+ OFF ON OFF OFF OFF OFF ON OFF 1-2 2-3 1-2

28. Cyrix/IBM 6x86L- PR150+

(2.8V) ON ON OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

29. Cyrix/IBM 6x86L-PR166+

(2.8V) OFF ON OFF OFF OFF OFF ON OFF 2-3 1-2 1-2

30. Cyrix/IBM 6x86L-PR200+

(2.8V) OFF ON OFF OFF OFF OFF ON OFF 1-2 2-3 1-2

31. Cyrix/IBM 6x86MX-PR150

(60*2 2.9V) ON ON OFF OFF OFF ON ON OFF 2-3 1-2 1-2

32. Cyrix/IBM 6x86MX-PR166

(60*2.5 2.9V) ON ON ON OFF OFF ON ON OFF 2-3 1-2 1-2

33. Cyrix/IBM 6x86MX-PR166

(66*2 2.9V) OFF ON OFF OFF OFF ON ON OFF 2-3 1-2 1-2

34. Cyrix/IBM 6x86MX-PR200

(60*3 2.9V) ON OFF ON OFF OFF ON ON OFF 2-3 1-2 1-2

Quick Installation Guide

35. Cyrix/IBM 6x86MX-PR200

(66*2.5 2.9V) OFF ON ON OFF OFF ON ON OFF 2-3 1-2 1-2

36. Cyrix/IBM 6x86MX-PR200

(75*2 2.9V) OFF ON OFF OFF OFF ON ON OFF 1-2 2-3 1-2

37. Cyrix/IBM 6x86MX-PR233

(66*3 2.9V) OFF OFF ON OFF OFF ON ON OFF 2-3 1-2 1-2

38. Cyrix/IBM 6x86MX-PR233

(75*2.5 2.9V) OFF ON ON OFF OFF ON ON OFF 1-2 2-3 1-2

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 JP9 JP10 JP11

39. Cyrix/IBM 6x86MX-PR233

(83*2 2.9V) ON ON OFF OFF OFF ON ON OFF 1-2 1-2 2-3

40. Cyrix/IBM 6x86MX-PR266

(66*3.5 2.9V) OFF OFF OFF OFF OFF ON ON OFF 2-3 1-2 1-2

41. Cyrix/IBM 6x86MX-PR266

(75*3 2.9V) OFF OFF ON OFF OFF ON ON OFF 1-2 2-3 1-2

42. Cyrix/IBM 6x86MX-PR266

(83*2.5 2.9V) ON ON ON OFF OFF ON ON OFF 1-2 1-2 2-3

¬Note: If Cyrix 6x86 is being used, please check the CPU Date Code after 605.

¬Note: We don’t recommend you to setup up your system speed up to 75 or 83 MHz because

they, are not the standard spec. of pheriphrals. If you want to run 75 or 83 MHz in your

system properly, it depends on your hardware configurations: CPU, SDRAM, Cards, etc.

586SGX

Quick Installation Guide

1. Pentium



Processor 90 MHz

CPU

JP9

JP10

JP11

JP12

JP8

1 2 3 4 5 6 7 8

JP11 JP10

JP9

2. Pentium



Processor 100 MHz

CPU

JP9

JP10

JP11

JP12

JP8

1 2 3 4 5 6 7 8

JP11 JP10

JP9

JP13

586SGX

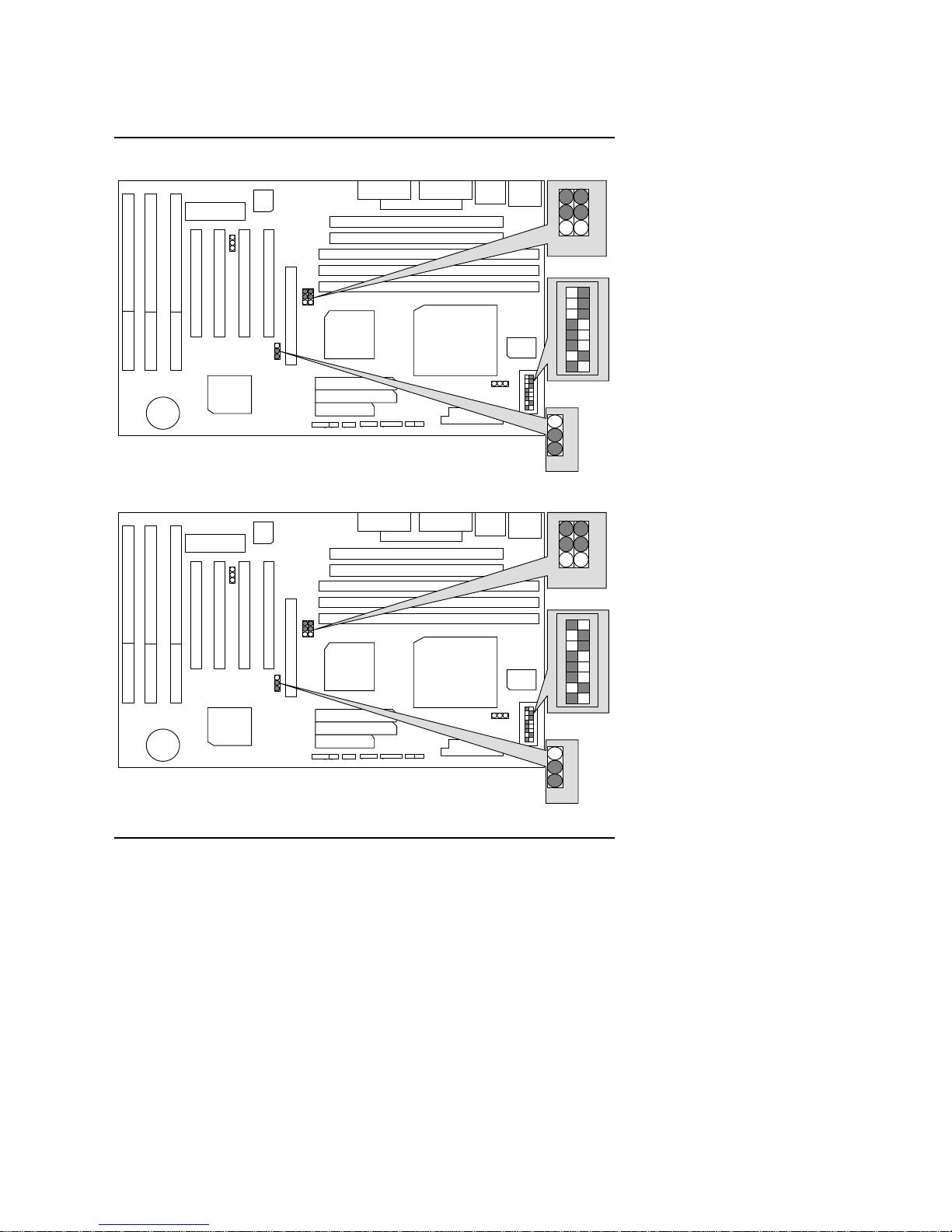

3. Pentium



Processor 120 MHz

CPU

JP9

JP10

JP11

JP12

JP8

1 2 3 4 5 6 7 8

JP11 JP10

JP9

JP13

4. Pentium



Processor 133 MHz

CPU

JP9

JP10

JP11

JP12

JP8

1 2 3 4 5 6 7 8

JP11 JP10

JP9

JP13

Quick Installation Guide

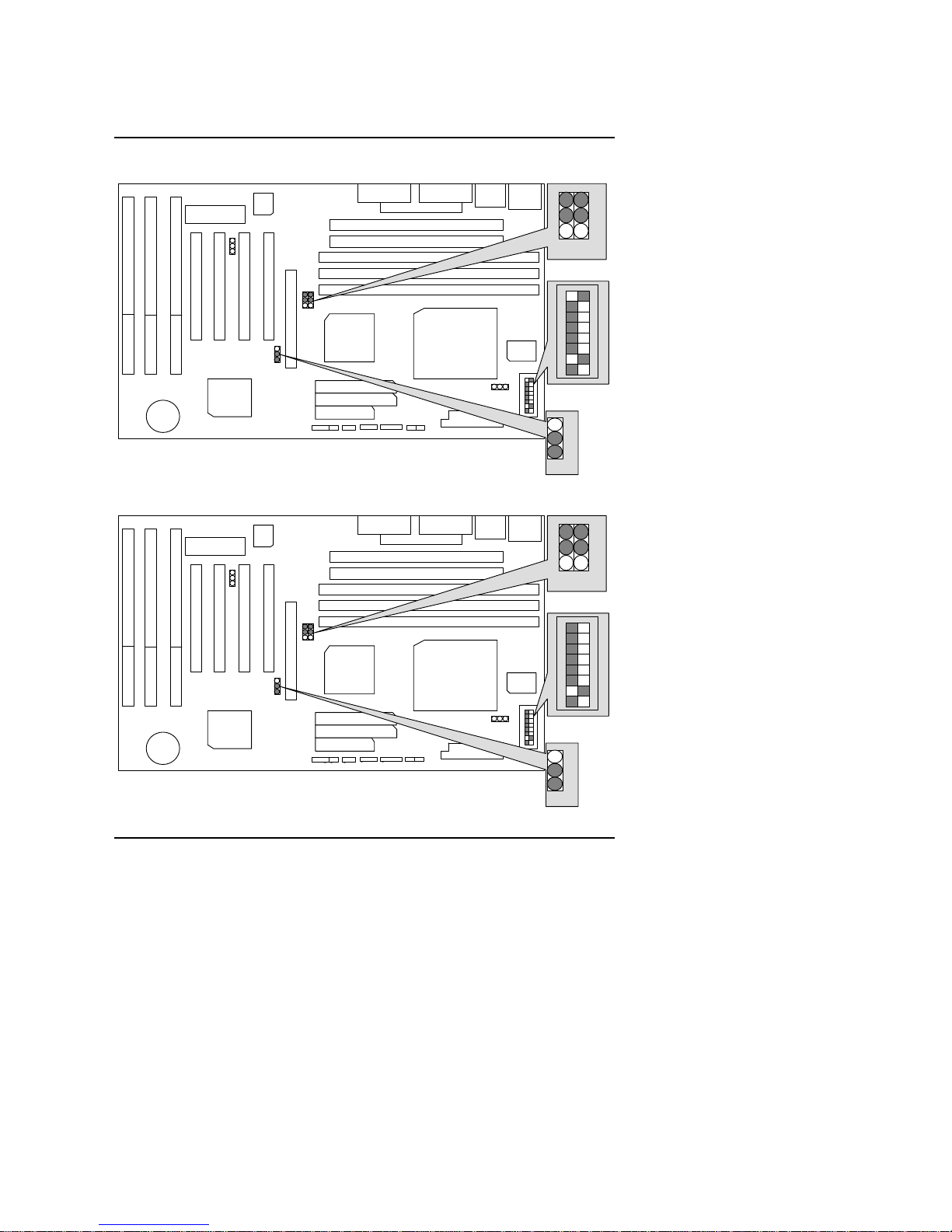

5. Pentium



Processor 150 MHz

CPU

JP9

JP10

JP11

JP12

JP8

1 2 3 4 5 6 7 8

JP11 JP10

JP9

JP13

6. Pentium



Processor 166 MHz

CPU

JP9

JP10

JP11

JP12

JP8

1 2 3 4 5 6 7 8

JP11 JP10

JP9

JP13
