Gigabyte 686LX3 Manuale utente

R-22-01-081015

686LX3

USER'S MANUAL

1. System power on by PS/2 Mouse: First, enable this function

in CMOS Setup, then you can power on the system by double

clicking the right or left button of your PS/2 Mouse.(Optional)

2. System power on by Keyboard: If your ATX power supply

supports larger than 100~300 mA 5V Stand-By current, you

can power on your system by entering password from the

keyboard after setting the “Keyboard power on”password in

CMOS Setup.

3. Supports 3 steps ACPI LED

4. WAKE-UP ON LAN. (The ATX power supply supports larger

than 720 mA 5V Stand-By current)

MJ13.JP12.J6 Jumpers for PCB 2.0/2.2 use, please reference

P16

¡B

P17

Pentium



II Processor MAINBOARD

Table of Contents

REV. 2.2 First Edition

686LX3

The author assumes no responsibility for any errors or omissions that may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective owners.

Sound Blaster is a registered trademark of Creative Technology Ltd in the

United States and certain other countries. Sound Blaster-LINK and SB-LINK

are trademarks of Creative Technology Ltd.

Quick Installation Guide

Oct 15, 1998 Taipei, Taiwan

I. Quick Installation Guide:

CPU SPEED SETUP

The default system bus speed is set to 66MHz. The user can change the DIP

SWITCH (SW) selection to set up the CPU speed for 200 - 366MHz processor.

The CPU speed MUST match with the frequency RATIO and external

clock frequency. It will cause system hanging up if the frequency RATIO

and the external clock frequency are higher than that of CPU.

DIP SWITCH (SW)

FREQ. RATIO SW1 SW2 SW3 SW4

X 3 ON OFF ON ON

X 3.5 OFF OFF ON ON

X 4 ON ON OFF ON

X 4.5 OFF ON OFF ON

X 5 ON OFF OFF ON

X 5.5 OFF OFF OFF ON

MJP2, JP3, JP4 (Select the system speed¡Ð66 / 75 / 83 / 100MHz )

Main Clock JP4 JP3 JP2

66 MHz 1-2 1-2 1-2

75 MHz 1-2 2-3 1-2

83 MHz 2-3 1-2 2-3

100 MHz 1-2 2-3 2-3

Note: We don’t recommend you to setup your system speed to 75, 83

or 100MHz because these frequencies are not the standard

specifications for CPU, Chipset and most of the peripherals.

Whether your system can run under 75, 83 or 100MHz properly will

depend on your hardware configurations: CPU, SDRAM, Cards,

etc.

686LX3

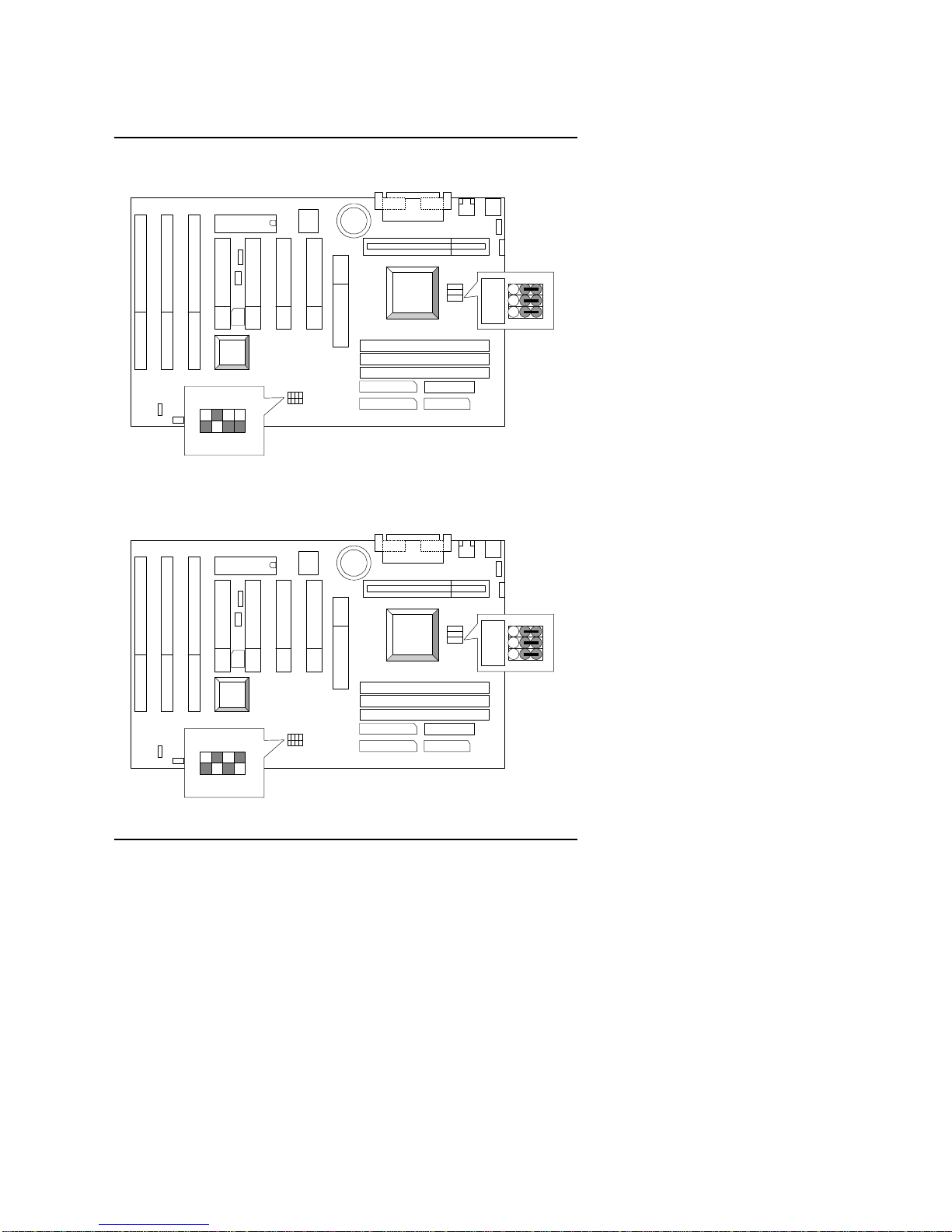

1. PentiumII 200 MHz

686LX3

PIIX4

INTEL

440LX

4 321

JP2

JP3

JP4

3 2 1

2. PentiumII 233 MHz

686LX3

PIIX4

INTEL

440LX

4321

JP2

JP3

JP4

3 2 1

Quick Installation Guide

3. PentiumII 266 MHz

686LX3

PIIX4

INTEL

440LX

4321

JP2

JP3

JP4

3 2 1

4. PentiumII 300 MHz

686LX3

PIIX4

INTEL

440LX

4321

JP2

JP3

JP4

3 2 1

686LX3

5. PentiumII 333 MHz

686LX3

PIIX4

INTEL

440LX

4321

JP2

JP3

JP4

3 2 1

6. PentiumII 366 MHz

686LX3

PIIX4

INTEL

440LX

4321

JP2

JP3

JP4

3 2 1

Quick Installation Guide

II. Jumper setting :

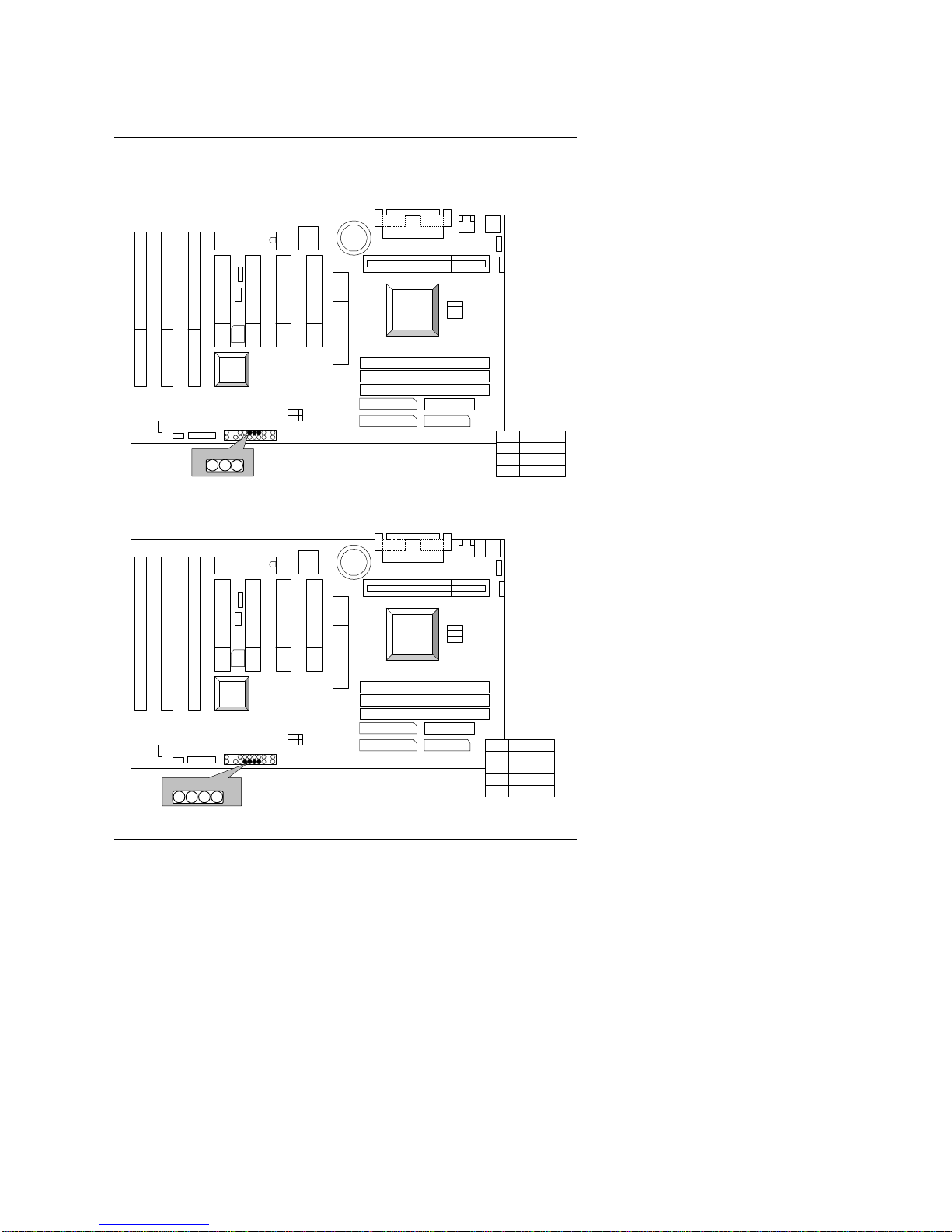

PWR : Power LED Connector

686LX3

PIIX4

INTEL

440LX

Pin No Functioin

1LED (+)

2LED (-)

3LED (-)

SPK : Speaker Connector

686LX3

PIIX4

INTEL

440LX

Pin No Function

1VCC(+)

2NC

3NC

4Data(-)

+–

686LX3

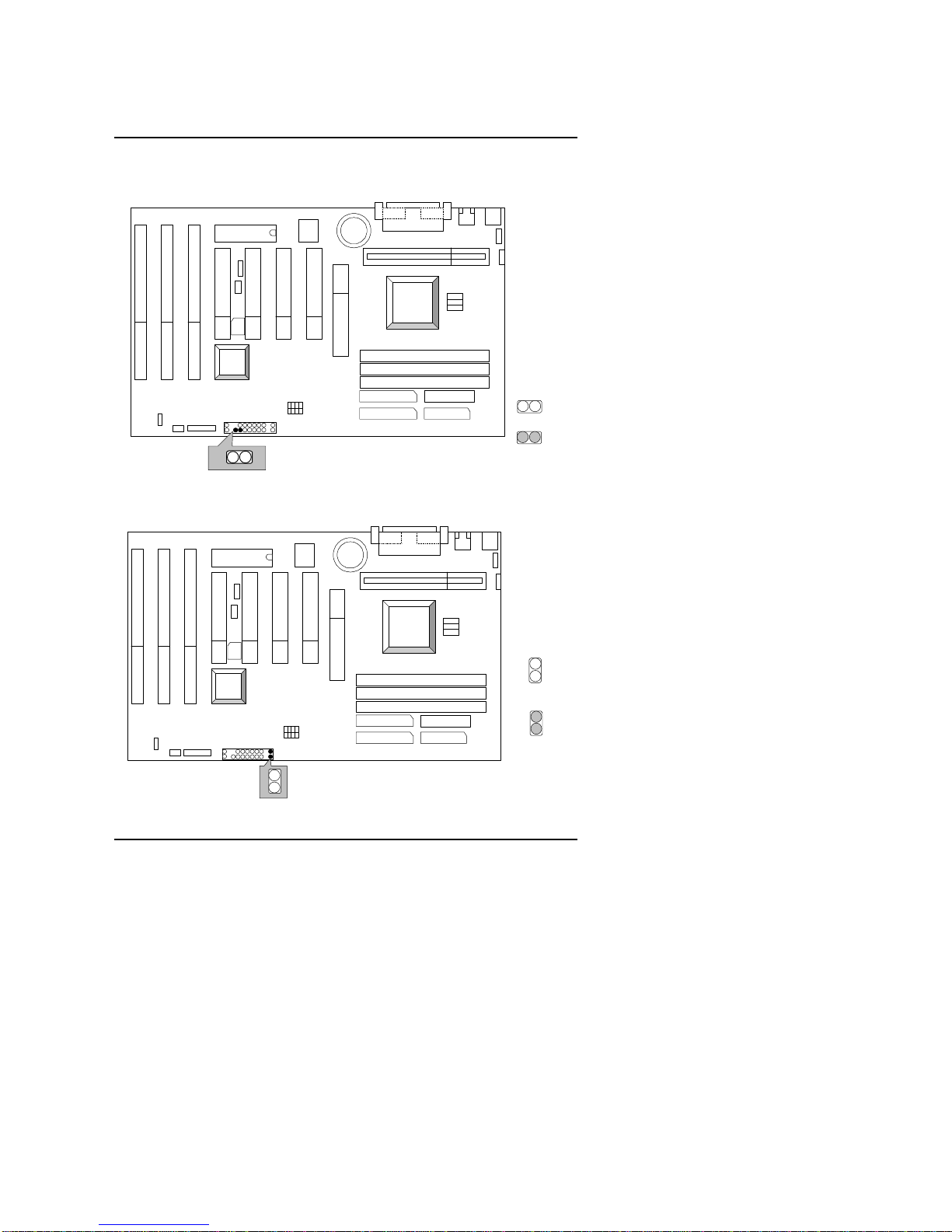

RST : Reset Switch

686LX3

PIIX4

INTEL

440LX

Open: Normal

Close:

Reset System

GN : Green Function Switch

686LX3

PIIX4

INTEL

440LX

Close:

Enter Green Mode

Open:

Normal

Quick Installation Guide

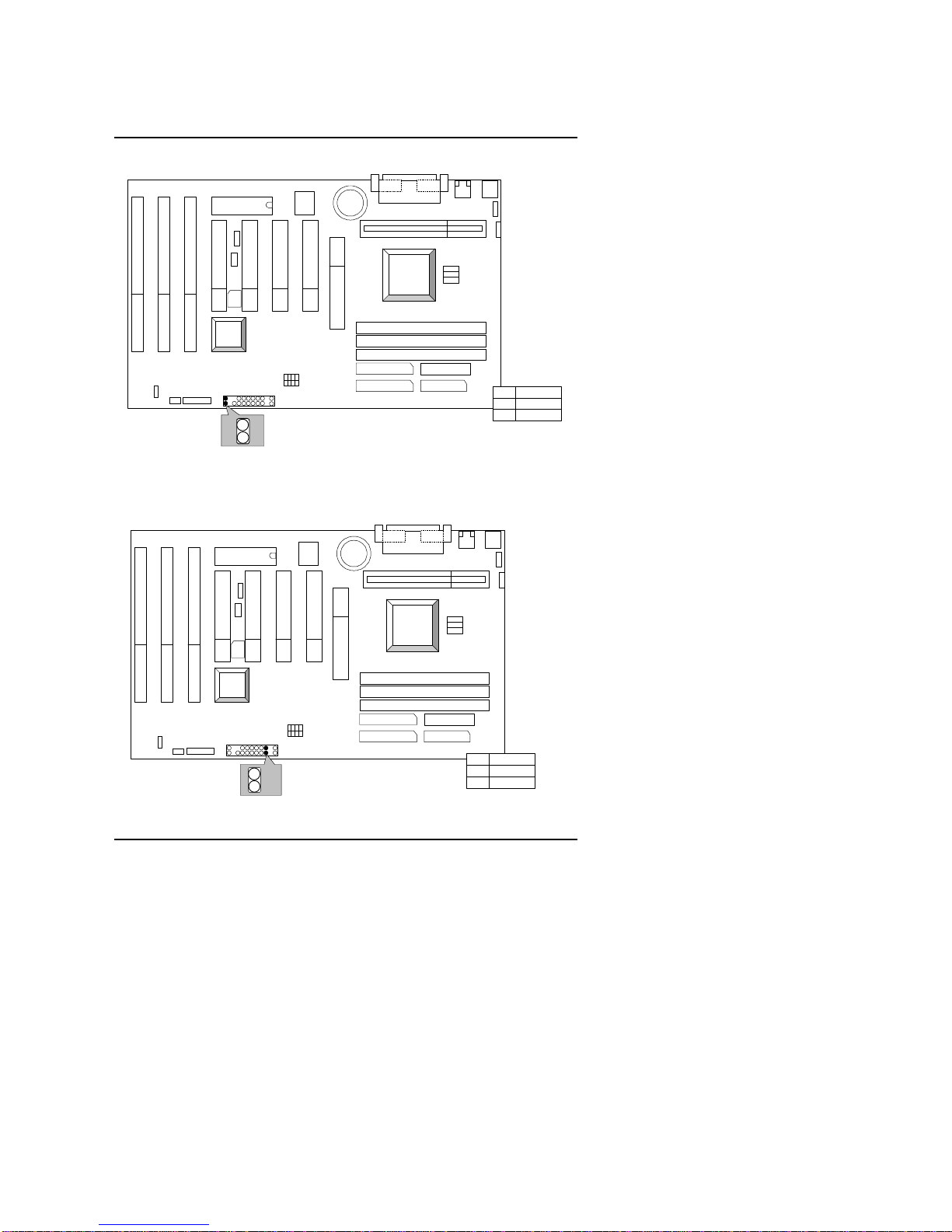

GD : Green LED

686LX3

PIIX4

INTEL

440LX

Pin No Function

1LED (+)

2LED (-)

HD : IDE Hard Disk Active LED

686LX3

PIIX4

INTEL

440LX

Pin No Function

1LED (+)

2LED (-)
