Gigabyte 6BMM Manuale utente
6BMM
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE..........................................................................................................1-1
1.2. KEY FEATURES...............................................................................................1-1
1.3. PERFORMANCE LIST......................................................................................1-2
1.4. BLOCK DIAGRAM.............................................................................................1-3
1.5. INTRODUCE THE PentiumII Processor & AGP...........................................1-4
1.6. What is AGP?....................................................................................................1-6
2. SPECIFICATION
2.1. HARDWARE .....................................................................................................2-1
2.2. SOFTWARE......................................................................................................2-2
2.3. ENVIRONMENT................................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING.....................................................................................................3-1
3.2. MAINBOARD LAYOUT.....................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS..............................3-2
3.4. DRAM INSTALLATION.....................................................................................3-6
3.5. CPU SPEED SETUP.........................................................................................3-6
3.6. CMOS RTC & ISA CFG CMOS SRAM.............................................................3-8
3.7. SPEAKER CONNECTOR INSTALLATION......................................................3-8
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION....................3-8
3.9. POWER LED CONNECTOR INSTALLATION.................................................3-8
Table of Contents
2
3.10. IDE & ATAPI DEVICE INSTALLATION..........................................................3-9
3.11. PERIPHERAL DEVICE INSTALLATION........................................................3-9
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION...............................................3-9
4. BIOS CONFIGURATION
4.1. ENTERING SETUP...........................................................................................4-1
4.2. CONTROL KEYS ..............................................................................................4-1
4.3. GETTING HELP................................................................................................4-2
4.4. THE MAIN MENU..............................................................................................4-2
4.5. STANDARD CMOS SETUP MENU..................................................................4-4
4.6. BIOS FEATURES SETUP ................................................................................4-8
4.7. CHIPSET FEATURES SETUP.........................................................................4-12
4.8. POWER MANAGEMENT SETUP....................................................................4-17
4.9. PNP/PCI CONFIGURATION ............................................................................4-20
4.10. LOAD BIOS DEFAULTS.................................................................................4-22
4.11. LOAD PERFORMANCE DEFAULTS .............................................................4-23
4.12. INTEGRATED PERIPHERALS.......................................................................4-24
4.13. SUPERVISOR/USER PASSWORD...............................................................4-29
4.14. IDE HDD AUTO DETECTION........................................................................4-30
4.15. SAVE & EXIT SETUP .....................................................................................4-31
4.16. EXIT WITHOUT SAVING ...............................................................................4-32
APPENDIX A: On-Board Display Driver Installation
A.1. ATi RAGE PRO DISPLAY DRIVER INSTALLATION......................................A-1
6BMM
3
A.2. YAMAHA SOUND DRIVER INSTALLATION...................................................A-6
6BMM
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6BMM motherboard. It is a PentiumII / Celeron
Processor based PC / AT compatible system with AGP/ PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / Celeron Processor based PC / AT compatible
mainboard.
qSlot 1 supports PentiumII / Celeron processor running at 233-633 MHz.
qIntel 440BX chipset, Supports SDRAM / Ultra DMA/33 IDE.
qBuilt-in ATi 3D RAGE PRO 3D graphics acceleration chip.
qBuilt-in PCI YAMAHA audio chip.
qSupports external Modem Ring-On on COMA & COMB and internal
Modem Ring-On.
qSupports Wake-up on LAN (JP7).
qSupports 3xDIMMs using 3.3V SDRAM DIMM module.
qSupports 8 MB - 768 MB SDRAM memory on board.
q3xPCI Bus slots, 1xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports1x Line in, 1x Line Out, 1x Mic in, 2x CD Line in,1x GAME Port.
qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2Mbits FLASH ROM.
q24.5 cm x 20 cm Micro-ATX form factor, 4 layers PCB.
Introduction
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (The different Hardware & Software
configuration will result in different benchmark testing results.)
•CPUPentiumII processor
•DRAM (128 x 1) MB SDRAM (SEC KM48S8030BT-GH)
•CACHE SIZE 512 KB included in CPU
•DISPLAY Onboard ATi AGP 3D graphics acceleration chip (8MB
SDRAM)
•STORAGE Onboard IDE (Seagate ST34520A)
•O.S. Windows NT™4.0
•DRIVER Display Driver at 1024 x 768 x 64k colors x 75Hz.
TRIONES Bus Master IDE Driver 3.70
Intel PentiumII
Processor 350MHz(100x3.5) 450MHz(100x4.5)
Winbench98
CPU mark32 909 1130
FPU Winmark 1810 2300
Business Disk 2130 2160
Hi-End Disk 5160 5270
Business Graphics 183 210
Hi-End Graphics 206 246
Winstone98Business 33.8 37.6
Hi-End 39.1 43.4
6BMM
1-3

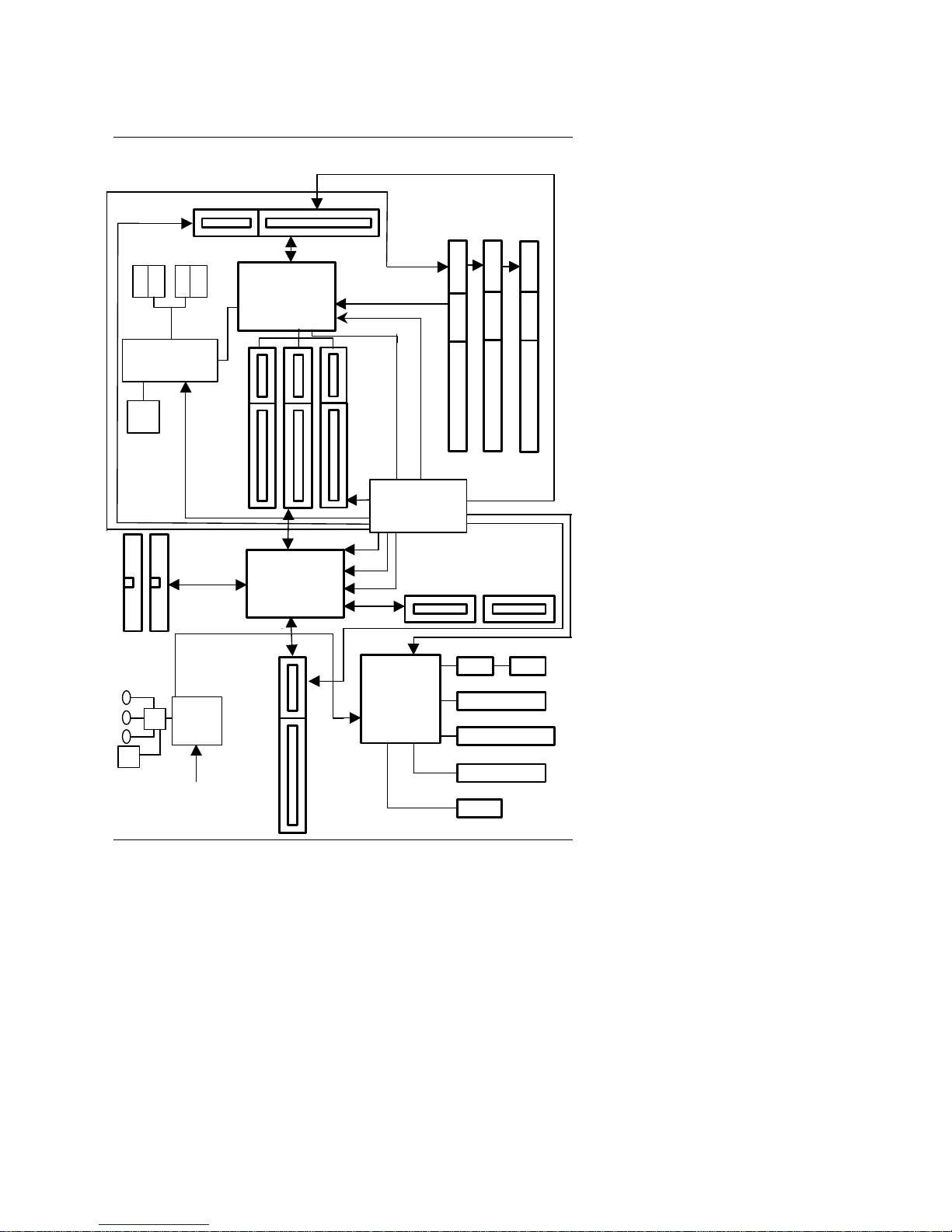

1.4. BLOCK DIAGRAM
PS/2 Keyboard
24MHz
3.3V EDO/SDRAM
DIMM Sockets
33MHz
33MHz
33MHz
100MHz
100MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
Floppy Port
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
Winbond
83977EF
Host Bus
PAC
82443BX
CHIPSET
PIIX4
82371EB
CHIPSET
Clock
Generator
ATi
RAGE PRO
SDRAM
100MHz
MIC
L-IN
L-OUT
YAMAHA
24.576MHz
14.318MHz
100MHz
VGA
Game
Port
AC-2
100MHz
Introduction
1-4
1.5. INTRODUCE THE Pentium
II Processor & AGP

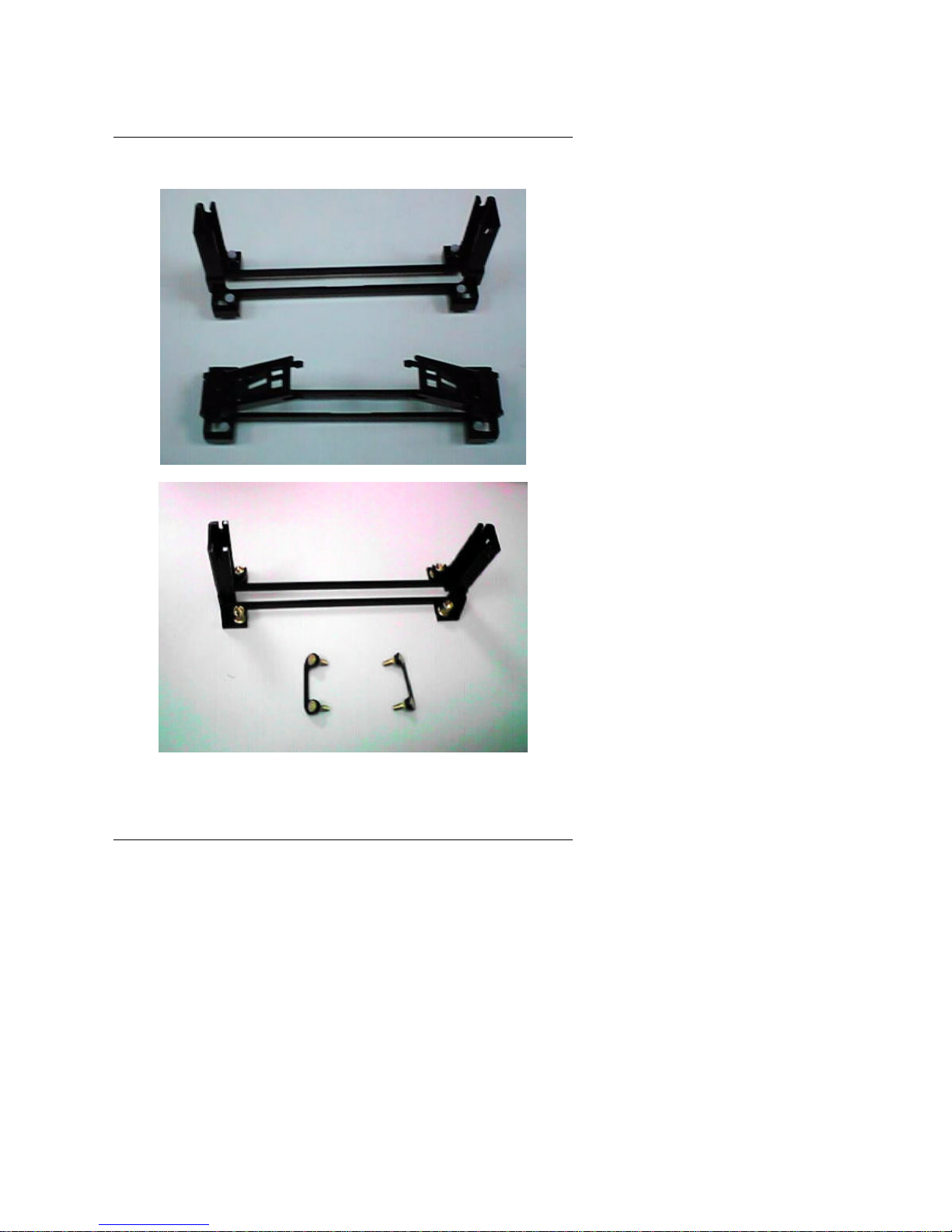

Figure 1:Universal Retention Mechanism & attach Mount
Figure 2:Retention Mechanism & attach Mount
6BMM
1-5

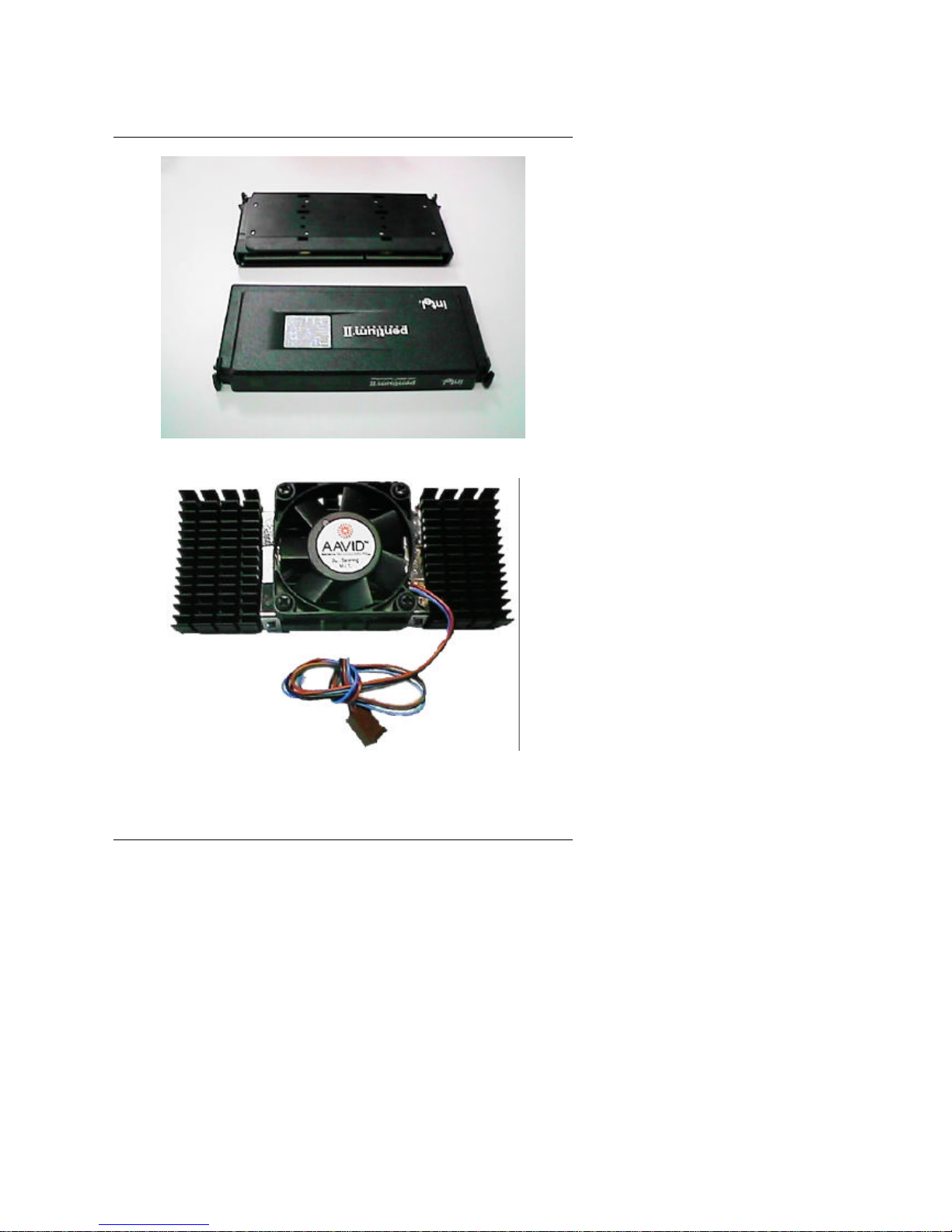

Figure 3:OEM PentiumII Processor
Figure 4:Heatsink / FAN & Heat sink support for OEM PentiumII Processor
Introduction
1-6

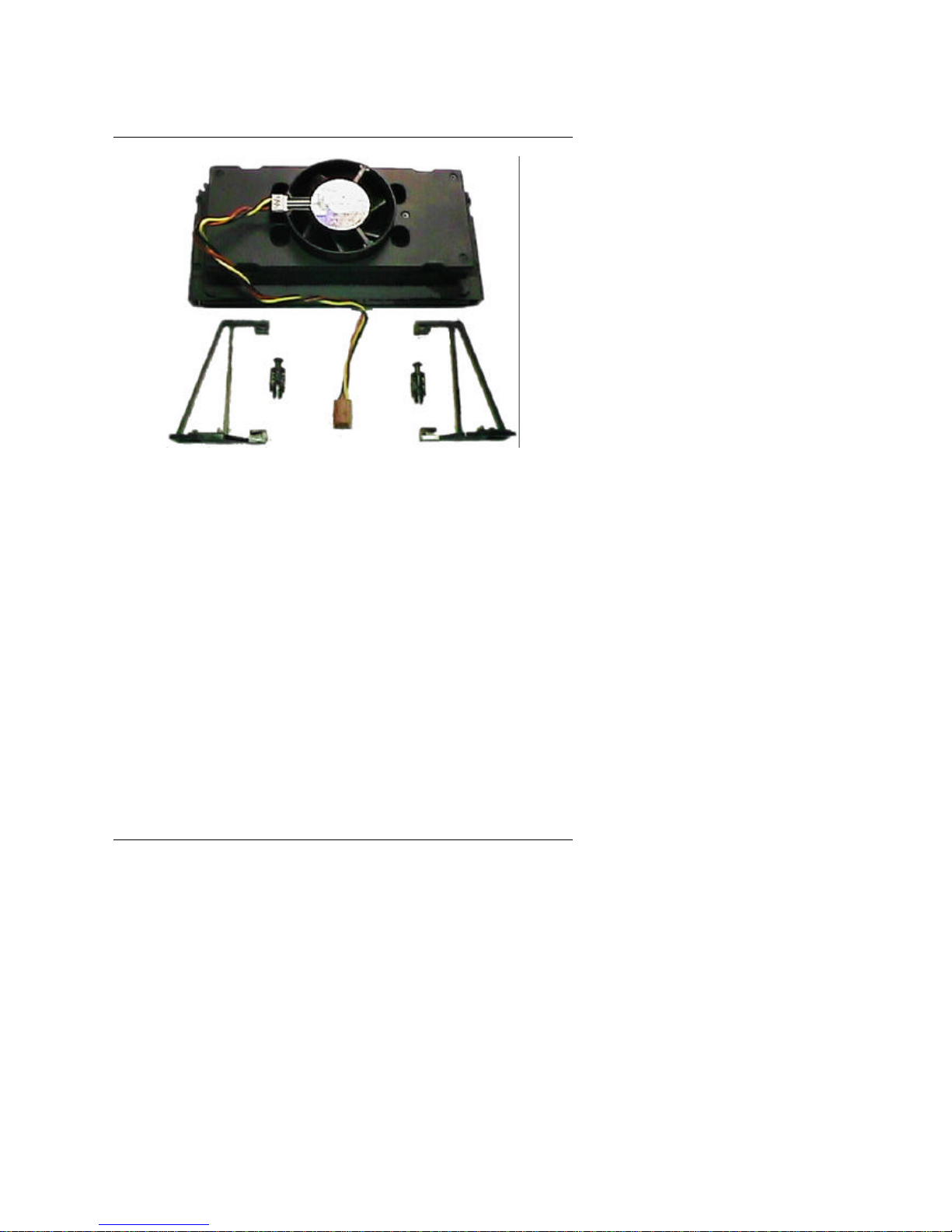

Figure 5:Boxed PentiumII Processor & Heat sink support
1.6 What is AGP
?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-bits
at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and
side band addressing. When the 2x-data rate is used, the port can transmit
data at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –
removing the effects of the reads-latency. Side band addressing can be used to
transmit the data address on a separate line in order to speed up the
transaction.
