TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE.............................................................................................................1-1
1.2. KEY FEATURES..................................................................................................1-1
1.3. PERFORMANCE LIST.........................................................................................1-2
1.4. BLOCK DIAGRAM ...............................................................................................1-3
1.5. INTRODUCE THE PentiumII Processor..........................................................1-4
1.6. What is AGP?.......................................................................................................1-6
2. SPECIFICATION
2.1. HARDWARE........................................................................................................2-1
2.2. SOFTWARE.........................................................................................................2-2
2.3. ENVIRONMENT...................................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING........................................................................................................3-1
3.2. MAINBOARD LAYOUT........................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS ................................3-2
3.4. DRAM INSTALLATION........................................................................................3-5
3.5. CPU SPEED SETUP ...........................................................................................3-5
3.6. CMOS RTC & ISA CFG CMOS SRAM................................................................3-7
3.7. SPEAKER CONNECTOR INSTALLATION ........................................................3-7
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION.......................3-7
3.9. POWER LED CONNECTOR INSTALLATION ...................................................3-7
6BXDU
23
3.10. IDE & ATAPI DEVICE INSTALLATION.............................................................3-7
3.11. SCSI DEVICE INSTALLATION ........................................................................3-7
3.12. PERIPHERAL DEVICE INSTALLATION...........................................................3-13
3.13. KEYBOARD & PS/2 MOUSE INSTALLATION..................................................3-13
4. BIOS CONFIGURATION
4.1. ENTERING SETUP .............................................................................................4-1
4.2. CONTROL KEYS.................................................................................................4-1
4.3. GETTING HELP...................................................................................................4-2
4.3.1. Main Menu................................................................................................4-2
4.3.2. Status Page Setup Menu / Option Page Setup Menu...............................4-2
4.4. THE MAIN MENU.................................................................................................4-2
4.5. STANDARD CMOS SETUP MENU ....................................................................4-4
4.6. BIOS FEATURES SETUP...................................................................................4-8
4.7. CHIPSET FEATURES SETUP............................................................................4-12
4.8. POWER MANAGEMENT SETUP.......................................................................4-17
4.9. PNP/PCI CONFIGURATION...............................................................................4-21
4.10. LOAD BIOS DEFAULTS....................................................................................4-23
4.11. LOAD PERFORMANCE DEFAULTS................................................................4-24
4.12. INTEGRATED PERIPHERALS. ........................................................................4-25
4.13. SUPERVISOR PASSWORD/USER PASSWORD...........................................4-30
4.14. IDE HDD AUTO DETECTION...........................................................................4-31
4.15. SAVE & EXIT SETUP........................................................................................4-32
4.16. EXIT WITHOUT SAVING..................................................................................4-33
Introduction
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6BXDU motherboard. It is a Dual PentiumII Processor
based PC / AT compatible system with AGP / PCI / SCSI / ISA Bus, and has
been designed to be the fastest PC / AT system. There are some new features
allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII Processor based PC / AT compatible mainboard.
qSlot 1 supports PentiumII processor running at 200-633 MHz.
qIntel 440BX chipset, Supports AGP / SDRAM / Ultra DMA 33 IDE / Wake
on LAN / Keyboard and PS/2 Mouse Power On/3 steps ACPI LED
features.
qSupports Intel LDCMNetwork Manageability.
qSupports 4xDIMMs using 3.3V SDRAM DIMM module.
qSupports 16MB - 1 GB SDRAM memory on board.
qSupports ECC or Non-ECC type DRAM module.
q1xAGP slot, 4xPCI Bus slots, 3xISA Bus slots.
qSupports 2 channels Ultra DMA 33 IDE ports for 4 IDE Devices.
qSupports 2 Channels SCSI.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2M bits FLASH RAM.
q30.5 cm x 26.3 cm ATX SIZE form factor, 4 layers PCB.
6BXDU
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (The different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU PentiumII processor
•DRAM (128x1)MB SDRAM (TOSHIBA TC59S6408FTL-80H)
•CACHE SIZE 512 KB included in CPU
•DISPLAY GA-601 AGP Display Card (4MB SGRAM)
•STORAGE Onboard Ultra II SCSI (IBM DDRS-39130)
•O.S. Windows NT™4.0
•DRIVER Display Driver at 1024 x 768 x 64k colors x 75Hz.
Adaptec AIC-789x PCI Ultra II SCSI Driver
Intel PentiumII
Processor 300MHz(100x3) 350MHz(100x3.5)
Winbench98
CPU mark32 776 905
FPU Winmark 1540 1800
Business Disk 2070 2080
Hi-End Disk 4840 4950
Business Graphics 172 197
Hi-End Graphics 180 208
Winstone98Business 31 33.8
Hi-End 34.6 37.8
Introduction
1-3

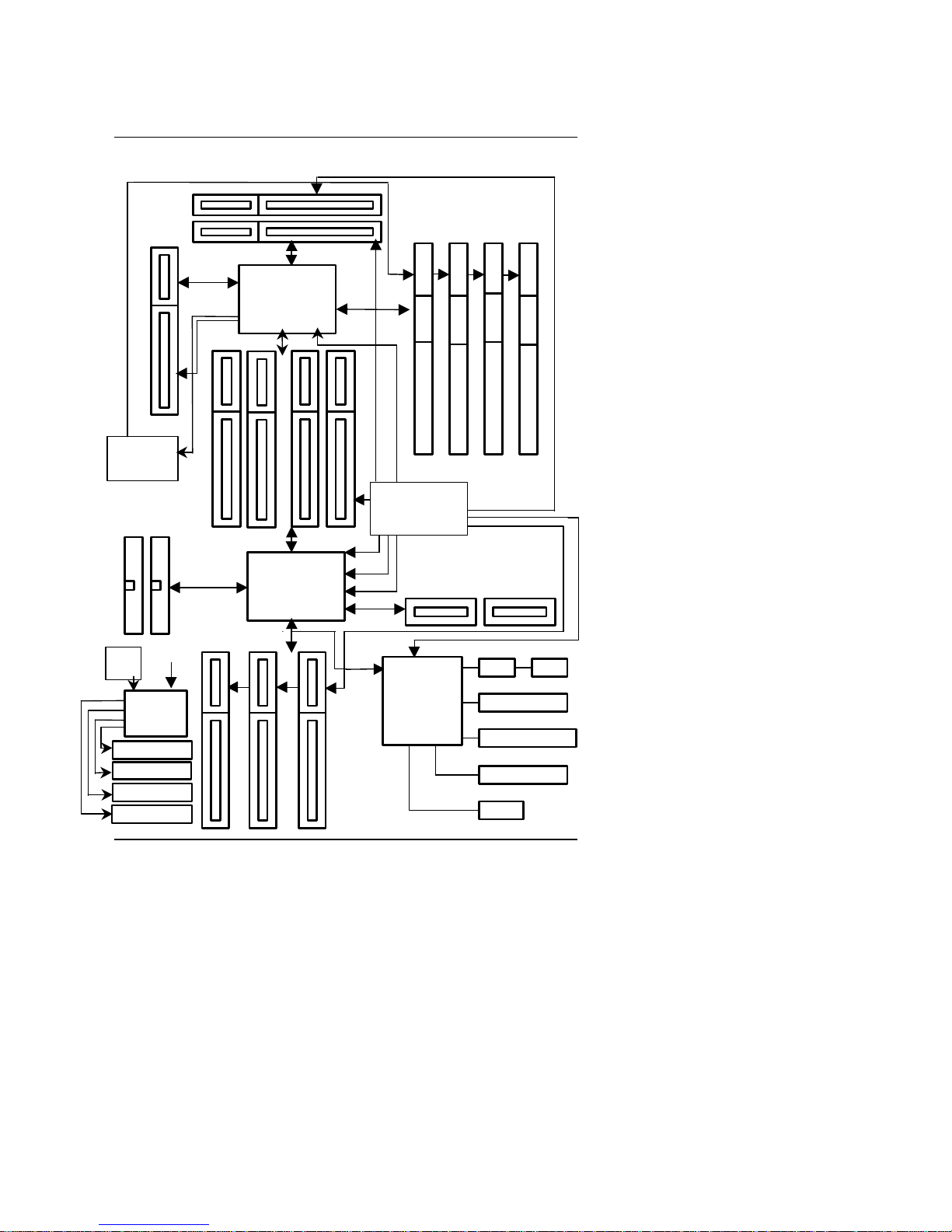

1.4. BLOCK DIAGRAM
48MHz
3.3V SDRAM
DIMM Sockets
14.318MHz
66 / 100
MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
Keyboard
Floppy Port
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
ITE8671
CPU 1
Host Bus
INTEL
82443BX
CHIPSET
Clock Gen
Buffer
PIIX4
82371EB
CHIPSET
Clock Gen
AGP
66MHz
66/100
MHz
66/100MHz
33
MHz
66/100MHz
CPU 2
PCI Bus
40MHz
OSC
SCSI
CHIPSET
AIC-7896
Ultra SCSI Port
INT LVD
INT. LVD
EXT. LVD
6BXDU
1-4
1.5. INTRODUCE THE Pentium
II Processor & AGP
Figure 1:Retention Mechanism & attach Mount
Figure 2:OEM PentiumII Processor
Introduction
1-5
Figure 3:Heatsink / FAN & Heat sink support for OEM PentiumII Processor
Figure 4:Boxed PentiumII Processor & Heat sink support
6BXDU
1-6
1.6 What is AGP
?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-bits
at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and
side band addressing. When the 2x-data rate is used the port can transmit data
at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –
removing the effects of the reads-latency. Side band addressing can be used to
transmit the data address on a separate line in order to speed up the
transaction.
Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII processor 200 –633 MHz.
−242 pins 66/100MHz slot1 on board.
•PROTECTION −Speaker Alarm when detect "CPU FAN Failure" or
“CPU Overheat”.
−Automatically slow down CPU speed when "CPU
Overheat".
−Intel LDCMsupported.
−H/W monitor power status (±5V, ±12V, VcoreA,
VcoreB, voltage & CMOS battery voltage).(Optional)
•SPEED −66/100 MHz system speed.
−66 MHz AGP bus speed. (2Xmode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −4 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module DRAM.
−16 ~ 1 GB SDRAM.
−Supports 3.3V SDRAM.
−Supports ECC or Non-ECC type DRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−256KB/512 KB 2nd cache in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −4 33MHz Master / Slave PCI-BUS.
−3 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
