Gigabyte A620M S2H Manuale utente

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/A620M-H-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/A620M-S2H-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

A620M H

A620M S2H

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

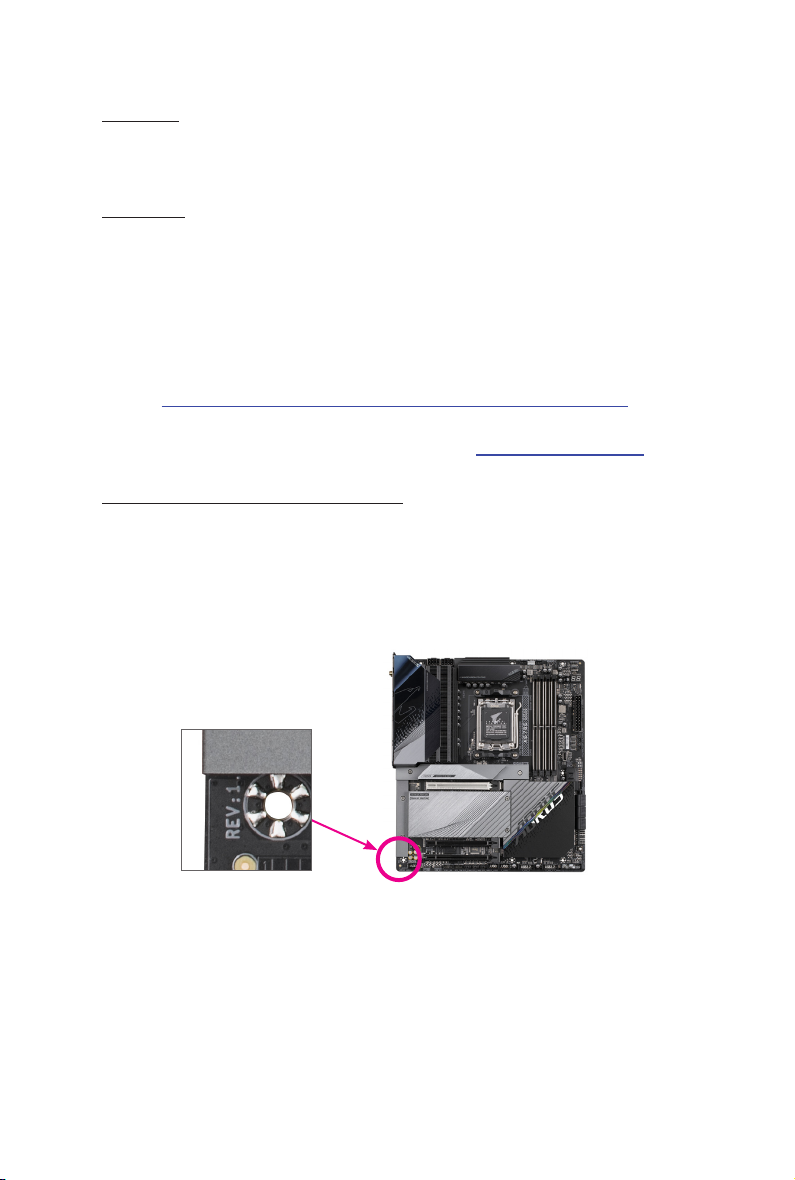

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

Chapter 2 Hardware Installation .....................................................................................5

2-1 Installation Precautions.................................................................................... 5

2-2 Product Specications...................................................................................... 6

2-3 Installing the CPU and CPU Cooler ................................................................. 9

2-4 Installing the Memory..................................................................................... 12

2-5 Installing an Expansion Card ......................................................................... 13

2-6 Back Panel Connectors.................................................................................. 14

2-7 Internal Connectors........................................................................................ 16

Chapter 3 BIOS Setup ..................................................................................................25

Chapter 4 Installing the Operating System and Drivers................................................27

4-1 Operating System Installation ........................................................................ 27

4-2 Drivers Installation.......................................................................................... 28

Chapter 5 Appendix ......................................................................................................29

5-1 Conguring a RAID Set.................................................................................. 29

Regulatory Notices.................................................................................................... 30

Contact Us ................................................................................................................ 31

- 4 -

1-1 Motherboard Layout

Chapter 1 Product Introduction

VGA (Note)

CPU_FAN

ATX

A620M H

A620M S2H

F_AUDIO

AUDIO

BAT

ATX_12V

CODEC

CLR_CMOS

USB_LAN

PCIEX16

iTE®

Super I/O

Realtek®

GbE LAN

SPI_TPM F_USB1 F_PANEL

SYS_FAN1F_USB2

SATA3 1 0

3 2

U32

M_BIOS

D_LED

LED_C

QFLASH_PLUS

F_U32

DP_HDMI

M2A_CPU

DDR5_B1

DDR5_A1

SYS_FAN2

QFLED

PCIEX1

KB_MS_USB

Socket AM5

AMD

Chipset

Temperature sensor

(Note) Only for A620M S2H.

ESPI_DB

- 5 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 6 -

2-2 ProductSpecications

CPU AMD Socket AM5, support for:

AMD Ryzen™7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD A620

Memory Support for DDR5 5200/4800/4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

 Support for AMD EXtended Proles for Overclocking (AMD EXPO™) and Extreme

Memory Prole (XMP) memory modules

(The CPU and memory conguration may affect the supported memory types, data

rate (speed), and number of DRAM modules, please refer to "Memory Support

List" on GIGABYTE's website for more information.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz (Note)

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To congure

7.1-channel audio, access the audio software for audio settings.

LAN Realtek®GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

Chipset:

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

(Note) Only for A620M S2H.

- 7 -

USB CPU:

- 2 x USB 3.2 Gen 1 ports on the back panel

- 1 x USB 2.0/1.1 port on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x Clear CMOS jumper

Back Panel

Connectors

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port (Note)

1 x Q-Flash Plus button

2 x USB 3.2 Gen 1 ports

1 x DisplayPort

1 x HDMI port

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

(Note) Only for A620M S2H.

- 8 -

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions

of each application may also vary depending on motherboard specications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/A620-H-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/A620-S2H-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version

of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

- 9 -

2-3 Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

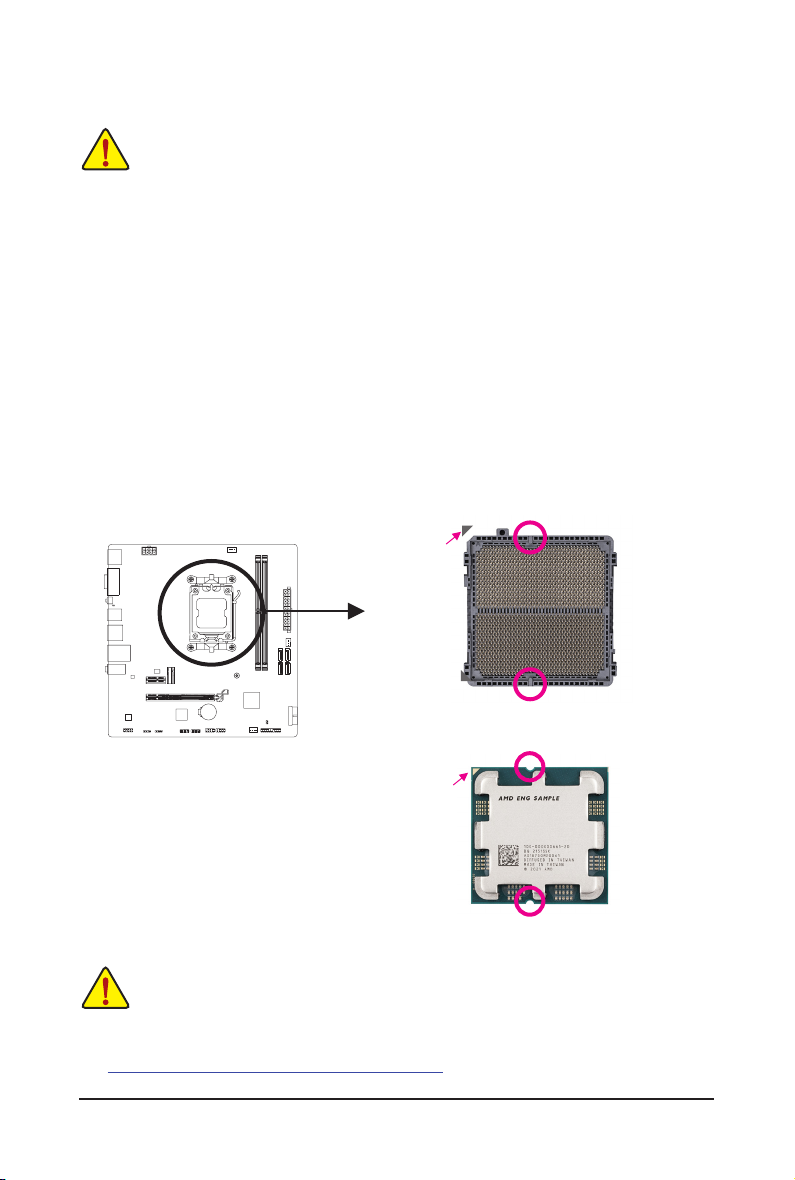

A. Note the CPU Orientation

Note the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically after you insert the CPU and close the load plate.

Notch

Triangle Pin One

Marking on the CPU

AM5 CPU

Alignment Key

AM5 CPU Socket

Triangle Pin One Marking

of the CPU Socket

&Please visit GIGABYTE's website for details on hardware installation.

http://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

- 10 -

B. Installing the CPU

Follow the steps below to correctly install the CPU into the motherboard CPU socket.

Do not force to engage the CPU socket locking lever when the CPU is not installed correctly

as this would damage the CPU and CPU socket.

Pin One

jGently press the CPU socket lever handle

down and away from the socket.

kCompletely lift up the CPU socket lock-

ing lever.

lWith your ngers, hold the plastic protec-

tive cover attached to the metal load plate

to lift open the metal load plate.

Hold the CPU with your ngers by the edges.

Align the CPU pin one marking (triangle) with

the pin one corner of the CPU socket (or you

may align the CPU notches with the socket

alignment keys) and gently insert the CPU

into position.

Make sure the CPU is properly installed and

then close the load plate. Secure the socket

lever under its retention tab. The plastic

protective cover will pop off by itself and can

be removed.

* Always replace the plastic protective cover

when the CPU is not installed to protect

the CPU socket.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte GA-8TRX330-L Manuale utente

Gigabyte

Gigabyte GA-B250N Phoenix-WIFI Manuale utente

Gigabyte

Gigabyte GA-8ILML4 Manuale utente

Gigabyte

Gigabyte GA-H61M-S1 Manuale utente

Gigabyte

Gigabyte GA-8I925X-G Manuale utente

Gigabyte

Gigabyte GA - 586ATX2 Manuale utente

Gigabyte

Gigabyte B650E AORUS ELITE X AX ICE Manuale utente

Gigabyte

Gigabyte GA-8IRM Manuale utente

Gigabyte

Gigabyte Z390 GAMING X Manuale utente

Gigabyte

Gigabyte GA-EP43C-DS3 Manuale utente

Gigabyte

Gigabyte GA-H61M-USB3-B3 Manuale utente

Gigabyte

Gigabyte MZ73-LM0 Manuale utente

Gigabyte

Gigabyte GA-Z77-HD4 Manuale utente

Gigabyte

Gigabyte GA-K8VT890 Manuale utente

Gigabyte

Gigabyte GA-P61-USB3P Manuale utente

Gigabyte

Gigabyte 7VM400AM-RZ Manuale utente

Gigabyte

Gigabyte GA-7VT600-P Manuale utente

Gigabyte

Gigabyte N5105I H Manuale utente

Gigabyte

Gigabyte B560M D2V Manuale utente

Gigabyte

Gigabyte GA-Z97M-DS3H Manuale utente

Gigabyte

Gigabyte GA-X99-SOC Force Manuale utente

Gigabyte

Gigabyte GA-586TX3 Manuale utente

Gigabyte

Gigabyte GA-H61M-DS2 DVI Manuale utente

Gigabyte

Gigabyte GA-Z68X-UD3P-B3 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
