GA-8GNXP-D

Intel®Pentium®4 LGA775 Processor Motherboard

User's Manual

Rev. 1002

12ME-8GNXPD-1002

Motherboard

GA-8GNXP-D

Jun. 11, 2004

Motherboard

GA-8GNXP-D

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

For quick installation, please refer to the "Hardware Installation Guide" included with the

product.

For detailed product information and specifications, please carefully read the

"Product User Manual".

For detailed information related to Gigabyte's unique features, please go to Gigabyte's

website under "Technology Guide" where information can be downloaded in .pdf format.

Fore more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -

Table of Contents

GA-8GNXP-D Motherboard Layout ............................................................................... 6

Block Diagram ............................................................................................................... 7

Chapter 1 Hardware Installation ................................................................................... 9

1-1 Considerations Prior to Installation ................................................................. 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and Heatsink ............................................................ 12

1-3-1 Installation of the CPU .......................................................................................... 12

1-3-2 Installation of the Heatsink ................................................................................... 13

1-4 Installing/Removing Cool-Plus (Northbridge Cooling Fan) ........................... 14

1-5 Installation of Memory ................................................................................... 14

1-6 Installation of Expansion Cards .................................................................... 16

1-7 I/O Back Panel Introduction .......................................................................... 17

1-8 Connectors Introduction ................................................................................ 18

Chapter 2 BIOS Setup ............................................................................................... 29

The Main Menu (For example: BIOS Ver. : F1) ....................................................... 30

2-1 Standard CMOS Features ............................................................................. 32

2-2 Advanced BIOS Features ............................................................................. 34

2-3 Integrated Peripherals ................................................................................... 36

2-4 Power Management Setup ............................................................................ 39

2-5 PnP/PCI Configurations ................................................................................ 41

2-6 PC Health Status ........................................................................................... 42

2-7 MB Intelligent Tweaker(M.I.T.) ...................................................................... 44

2-8 Load Fail-Safe Defaults ................................................................................ 46

2-9 Load Optimized Defaults ............................................................................... 46

2-10 Set Supervisor/User Password ..................................................................... 47

2-11 Save & Exit Setup ......................................................................................... 48

2-12 Exit Without Saving ....................................................................................... 48

- 5 -

Chapter 3 Drivers Installation ..................................................................................... 49

3-1 Install Chipset Drivers ................................................................................... 49

3-2 Software Applications .................................................................................... 50

3-3 Driver CD Information ................................................................................... 50

3-4 Hardware Information .................................................................................... 51

3-5 Contact Us ..................................................................................................... 51

Chapter 4 Appendix ................................................................................................... 53

4-1 Unique Software Utilities ............................................................................... 53

4-1-1 Xpress Recovery Introduction .............................................................................. 54

4-1-2 Flash BIOS Method Introduction .......................................................................... 57

4-1-3 Serial ATA BIOS Setting Utility Introduction ......................................................... 68

4-1-4 2- / 4- / 6- / 8- Channel Audio Function Introduction ........................................... 75

4-2 Troubleshooting ............................................................................................. 80

- 6 -

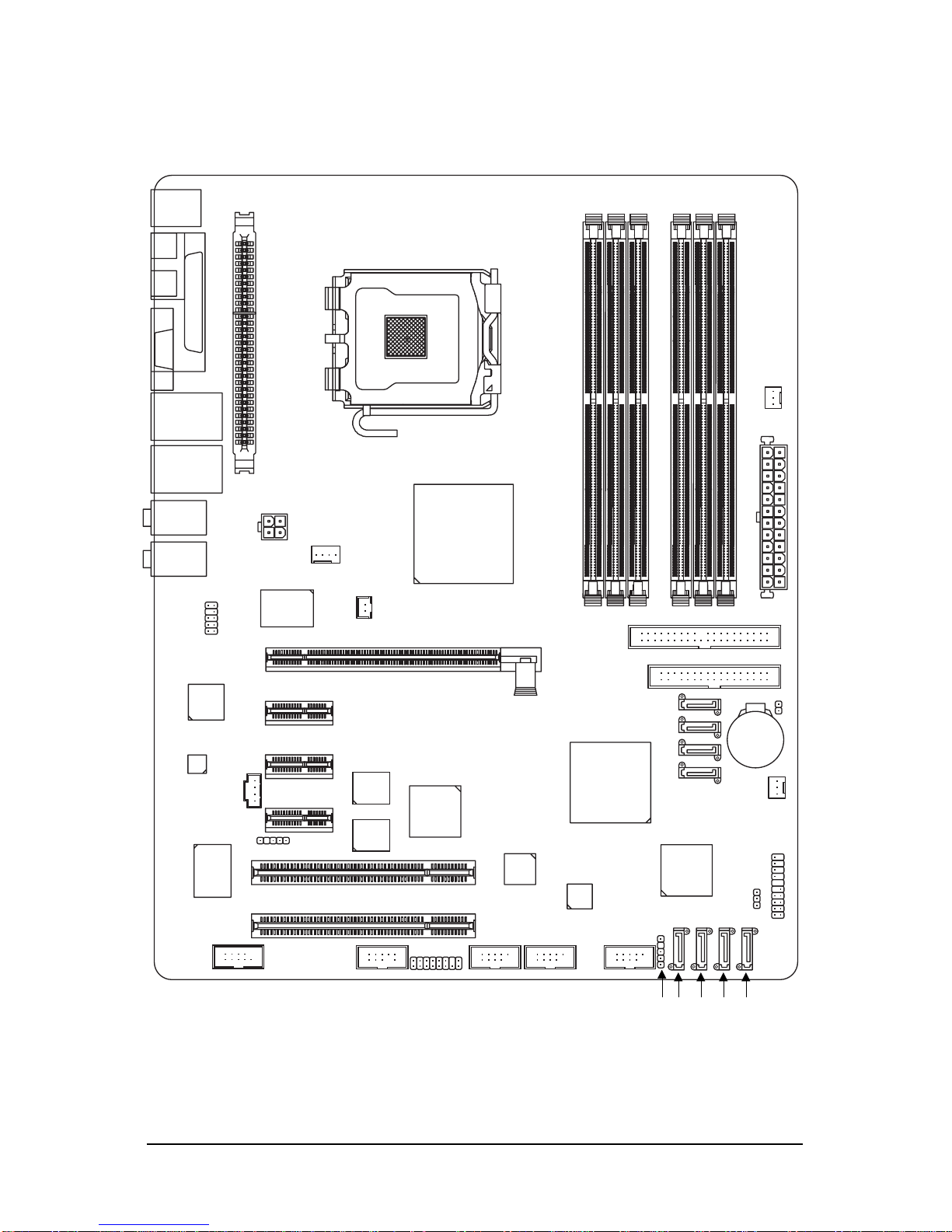

GA-8GNXP-D Motherboard Layout

KB_MS

ATX_12V

CPU_FAN

VRM_CONN

LGA775

AUDIO1

Intel 915G

PCIE_16

NB_FAN

CODEC

SPDIF_I

VGA

LPT

USB

LAN2

USB

LAN1

IT8712

SATA4_SB

SATA3_SB

SATA1_SII

Intel ICH6R

F_PANEL

SiI3114

Main

BIOS

Backup

BIOS

Marvell

8001

PCIE_1

PCIE_2

PCIE_3

PCI1

PCI2

Broadcom

5751

F1_1394

F2_1394

AZALIA_FP

F_USB3 F_USB2 F_USB1

F_USB4

SATA2_SB

SATA1_SB

TSB82AA2

TSB81BA3

CY7C6564D

BAT

PWR_FAN

ATX

IDE

FDD

CLR_CMOS

SYS_FAN

PWR_LED

CD_IN

SATA2_SII

SATA3_SII

SATA4_SII

GA-8GNXP-D

SPDIF_O

AUDIO2

COMA

DDRII1

DDRII2

DDRII3

DDRII4

DDRII5

DDRII6

- 7 -

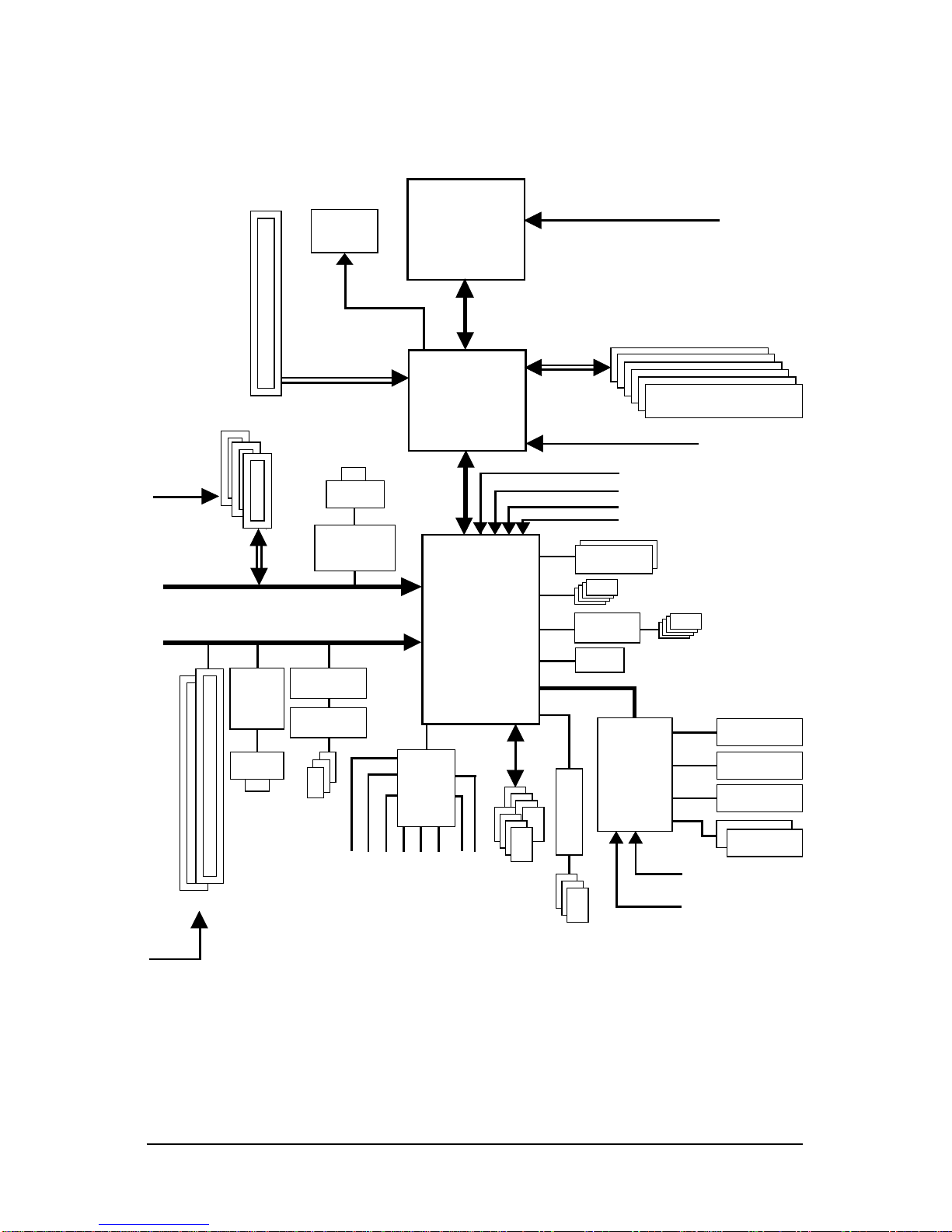

Block Diagram

Line-Out

MIC

LGA775

Processor

CPUCLK+/-(200/133MHz)

PCI Express x16

33MHz

Host

Interface

Intel

915G

GMCH GMCHCLK (133/200MHz)

66MHz

48MHz

DDRII 533/400MHz DIMM

24MHz

33MHz

IT 8712

4 Serial ATA

ATA33/66/100 IDE Channels

Intel

ICH6R

14.318MHz

Dual BIOS

CODEC

Line-In

PCICLK

(33MHz)

2 PCI

PCI Bus

Marvell

8001

RJ45

3 IEEE1394b

SPDIF In

SPDIF Out

3 PCI Express x 1 Ports

RJ45

PCI Express x 1 Bus

Broadcom

5751

8 USB

Ports

CY7C6564D

Dual Channel Memory

Floppy

PS/2 KB/Mouse

LPT Port

COM Port

TSB82AA2

TSB81BA3

4 Serial ATA

SiI3114

VGA

Side Speaker Out

Center/Subwoofer Speaker Out

Surround Speaker Out

PCI-ECLK

(100MHz)

PCI-ECLK

(100MHz)

- 8 -

Hardware Installation- 9 -

English

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please

follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic

pad or within a electrostatic shielding container.

5. Please verify that you the power supply is switched off before unplugging the power supply

connector from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers

are required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the

information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with

the motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard

or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Chapter 1Hardware Installation

GA-8GNXP-D Motherboard - 10 -

English

CPU Supports the latest Intel®Pentium®4 LGA775 CPU

Supports 800/533MHz FSB

L2 cache varies with CPU

Chipset Northbridge: Intel®915G Express Chipset

Southbridge: Intel®ICH6R

Memory 6 DDR II DIMM memory slots (supports up to 4GB memory) (Note 1)

Supports dual channel DDR II 533/400 unbuffered DIMM

Supports 1.8V DDR II DIMM

Slots 1 PCI Express x 16 slot

3 PCI Express x 1 slots

2 PCI slots

IDE Connections 1 IDE connection (UDMA 33/ATA 66/ATA 100), allows connection of

2 IDE devices

FDD Connections 1 FDD connection, allows connection of 2 FDD devices

Onboard SATA 8 Serial ATA ports :

4 ports from ICH6Rcontroller (SATA1_SB, SATA2_SB, SATA3_SB, SATA4_SB);

4 ports from SiI3114 controller (SATA1_SII, SATA2_SII, SATA3_SII, SATA4_SII)

Peripherals 1 parallel port supporting Normal/EPP/ECP mode

1 serial port (onboard COMA), 1 VGA port

11 USB 2.0/1.1 ports (rear x 4, front x 7 via cable)

3 IEEE1394b ports (requires cable)

1 front audio connector

1 IR connector

1 PS/2 keyboard port

1 PS/2 mouse port

Onboard VGA Built-in Intel®915G

Onboard LAN Onboard Marvell 8001 chip (10/100/1000 Mbit) (LAN1)

Onboard Broadcom 5751 chip (10/100/1000 Mbit) (LAN2)

2 RJ 45 ports

Onboard Audio ALC880 CODEC

Supports Jack Sensing function

Supports 2 / 4 / 6 / 8 channel audio

Supports Line In ; Line Out (Front Speaker Out) ; MIC ; Surround Speaker Out

(Rear Speaker Out) ; Center/Subwoofer Speaker Out ;

Side Speaker Out connection

SPDIF In/Out connection

CD In connection

(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage and

therefore the actual memory size is less than the stated amount.

For example, 4 GB of memory size will instead be shown as 3.xxGB memory during system startup.

1-2 Feature Summary
