Gigabyte GA-8SIML Manuale utente

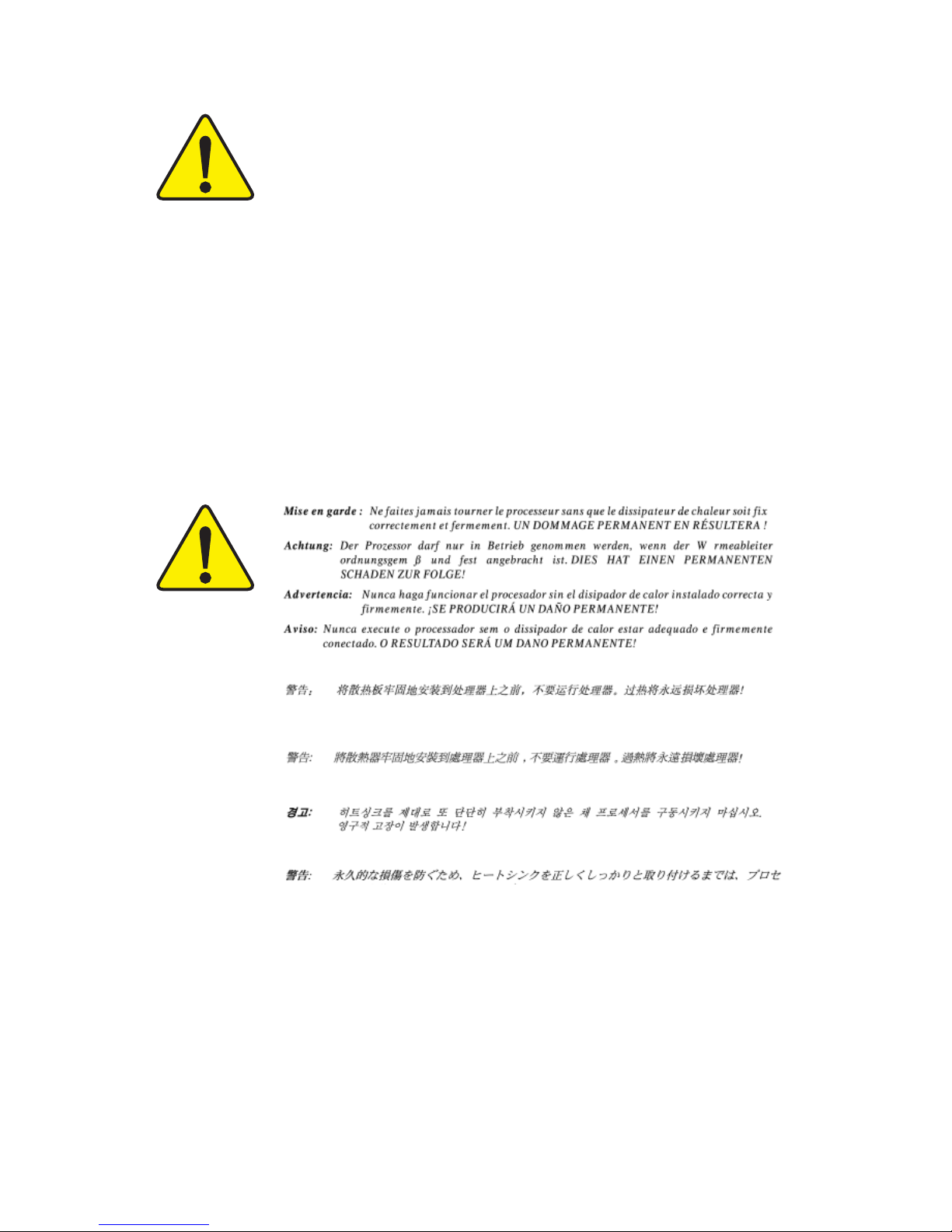

0The author assumes no responsibility for any errors

or omissions that may appear in this document nor

does the author make a commitment to up

date the information contained herein.

0Third-party brands and names are the property of

their respective owners.

0Please do not remove any labels on motherboard, this

may void the warranty of this motherboard.

0Due to rapid change in technology, some of the

specifications might be out of date before publication

of this booklet.

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8SIML

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2

Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : Dec. 18, 2001

7EN 60555-3

Timmy Huang



EN 50091-1

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109

(a),Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8SIML

Date:

ERIC LU

Dec. 18,2001

USER’S MANUAL

GA-8SIML

P4 Titan-DDR Motherboard

Pentium®4 Processor Motherboard

Rev. 1.1 First Edition

12ME-8SIML-1101

GA-8SIML Motherboard

Table of Content

Revision History..................................................................................... 4

Item Checklist ......................................................................................... 4

WARNING! ............................................................................................... 5

Chapter 1 Introduction ............................................................................. 6

Features Summary ...................................................................................... 6

GA-8SIML Motherboard Layout .................................................................. 8

Chapter 2 Hardware Installation Process ................................................ 9

Step 1: Install the Central Processing Unit (CPU)..................................... 10

CPU Installation ........................................................................ 10

CPU Heat Sink Installation ....................................................... 11

Step 2: Install memory modules ................................................................ 12

Step 3: Install expansion cards ................................................................. 13

Step 4: Connect ribbon cables, cabinet wires, and power supply ........... 14

I/O Back Panel Introduction ..................................................... 14

Connectors Introduction ........................................................... 16

Chapter 3 BIOS Setup .......................................................................... 22

The Main Menu (For example: BIOS Ver. :FA) ......................................... 23

Standard CMOS Features......................................................................... 25

Advanced BIOS Features .......................................................................... 28

Advanced Chipset Features ...................................................................... 31

Integrated Peripherals .............................................................................. 33

Table of Content

Power Management Setup ....................................................................... 38

PnP/PCI Configurations ............................................................................. 41

PC Health Status........................................................................................ 43

Frequency/Voltage Control ........................................................................ 45

Load Fail-Safe Defaults ............................................................................. 47

Load Optimized Defaults ........................................................................... 48

Set Supervisor/User Password .................................................................. 49

Save & Exit Setup ....................................................................................... 50

Exit Without Saving ................................................................................... 51

Chapter 4 Technical Reference ............................................................ 52

Block Diagram ........................................................................................... 52

@ BIOS Introduction .................................................................................. 53

Chapter 5 Appendix.............................................................................. 54

GA-8SIML Motherboard

Revision Revision Note Date

1.1 Initial release of the GA-8SIML motherboard user's manual. Jan. 2002

The GA-8SIML motherboard

IDE cable x 1/ Floppy cable x 1

CD for motherboard driver & utility (TUCD)

GA-8SIML user’s manual

Internal COM B Cable (Optional)

Revision History

Item Checklist

WARNING!

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

othercomponents.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are

no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting

holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful

of your hands). In this way you can still attach the motherboard to the base without worrying about short

circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard

PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact

any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the

board or cause board malfunctioning.

Installing the motherboard to the chassis…

WARNING!

GA-8SIML Motherboard

Chapter 1 Introduction

to be continued......

Features Summary

Form Factor y22.9cm x 24.3cm Micro ATX size form factor, 4 layers PCB.

CPU ySocket 478 for Intel®Micro FC-PGA2 Pentium®4 processor

y Support Intel ®Pentium ®4 (Northwood, 0.13um) processor

yIntel Pentium®4 400MHz FSB

y2nd cache depends on CPU

Chipset ySiS 650 Host/Memory controller

ySiS 961 MuTIOL Media I/O

Memory y2 184-pin DDR DIMM sockets

ySupports DDR333/DDR266/200 SDRAM

ySupports Up to 2 un-buffer DIMM DDR333 or up to 2 un-buffer

Double-sided DIMM DDR266/200

ySupports up to 2GB DDR DRAM (Max)

ySupports only 2.5V DDR DIMM

ySupports 64bit DRAM integrity mode

I/O Control yW83697HF

Slots y1 Universal AGP slot (1X/2X/4X) device support

y3 PCI slot supports 33MHz & PCI 2.2 compliant

y1 CNR(Communication and Networking Riser) Slot

On-Board IDE y2 IDE bus master (UDMA33/ATA66/ATA100) IDE ports for up to 4

ATAPI devices

ySupports PIO mode3,4 (UDMA 33/ATA66/ATA100) IDE & ATAPI

CD-ROM

On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes.

y1 Parallel port supports Normal/EPP/ECP mode

y1 Serial port (COMA),1 VGA port,COMB on board

y4 USB ports (Rear USB x 2,by optional cable)

y1 Front Audio Connector*

*For PCB 1.1ver only

Introduction

Please set the CPU host frequency in accordance with your processor’s specifications.

We don’t recommend you to set the system bus frequency over the CPU’s specification

because these specific bus frequencies are not the standard specifications for CPU,

chipset and most of the peripherals. Whether your system can run under these specific

bus frequencies properly will depend on your hardware configurations, including CPU,

Chipsets,SDRAM,Cards….etc.

y1 IrDA connector for IR

Hardware Monitor yCPU/System Fan Revolution detect

yCPU/System Fan Control

yCPU Overheat Warning

ySystem Voltage Detect

On-Board Sound yRealtek ALC201A CODEC

yLine In/Line Out/Mic In/CD In/ SPDIF/Game Port

On-Board LAN yBuilit in RTL8100L Chipset

y1 RJ45 port

On-Board VGA yBuilit in SiS650 Chipset

PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interace

BIOS yLicensed Award BIOS, 2M bit Flash ROM

AdditionalFeatures yPS/2 Keyboard power on by password

yPS/2 Mouse power on

ySTR(Suspend-To-RAM)

yAC Recovery

yUSB KB/Mouse wake up from S3

ySupports @BIOS

Altri manuali per GA-8SIML

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte P4 Titan GA-8SIMLH-P-C Manuale utente

Gigabyte

Gigabyte GA-H81N-D2H Manuale utente

Gigabyte

Gigabyte Z490M Manuale utente

Gigabyte

Gigabyte GA-P35-DS3P Manuale utente

Gigabyte

Gigabyte GA-8SR533 Series Manuale utente

Gigabyte

Gigabyte GA-EP45-UD3 Manuale utente

Gigabyte

Gigabyte GA-945GZM-S2 Manuale utente

Gigabyte

Gigabyte GA-7PCSL Manuale utente

Gigabyte

Gigabyte MU92-TU1 Manuale utente

Gigabyte

Gigabyte GA-8EGXDR-E Manuale utente

Gigabyte

Gigabyte X470 AORUS GAMING 7 WIFI Manuale utente

Gigabyte

Gigabyte N5105I H Manuale utente

Gigabyte

Gigabyte GA-M68MT-S2 Manuale utente

Gigabyte

Gigabyte GA-AX370M-DS3H Manuale utente

Gigabyte

Gigabyte GA-6CXB7 Manuale utente

Gigabyte

Gigabyte H310 D3 2.0 Manuale utente

Gigabyte

Gigabyte GA-G1975X Manuale utente

Gigabyte

Gigabyte GA-Z97N-Gaming 5 Manuale utente

Gigabyte

Gigabyte GA-8N-SLI Royal Manuale utente

Gigabyte

Gigabyte GA-H61M-D2H Manuale utente

Gigabyte

Gigabyte GA-B85M-Gaming 3 Manuale utente

Gigabyte

Gigabyte Z790 AORUS ELITE AX-W Manuale utente

Gigabyte

Gigabyte GS-R11U4S Manuale utente

Gigabyte

Gigabyte H310M H Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
