GA-B75M-D3V

User's Manual

Rev. 1001

12ME-B75MD3V-1001R

Motherboard

GA-B75M-D3V

Feb. 8, 2012

Motherboard

GA-B75M-D3V

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice. No part of this manual may be reproduced, copied, translated, trans-

mitted, or published in any form or by any means without GIGABYTE's prior written permis-

sion.

In order to assist in the use of this product, carefully read the User's Manual.



For product-related information, check on our website at: http://www.gigabyte.com



Identifying Your Motherboard Revision

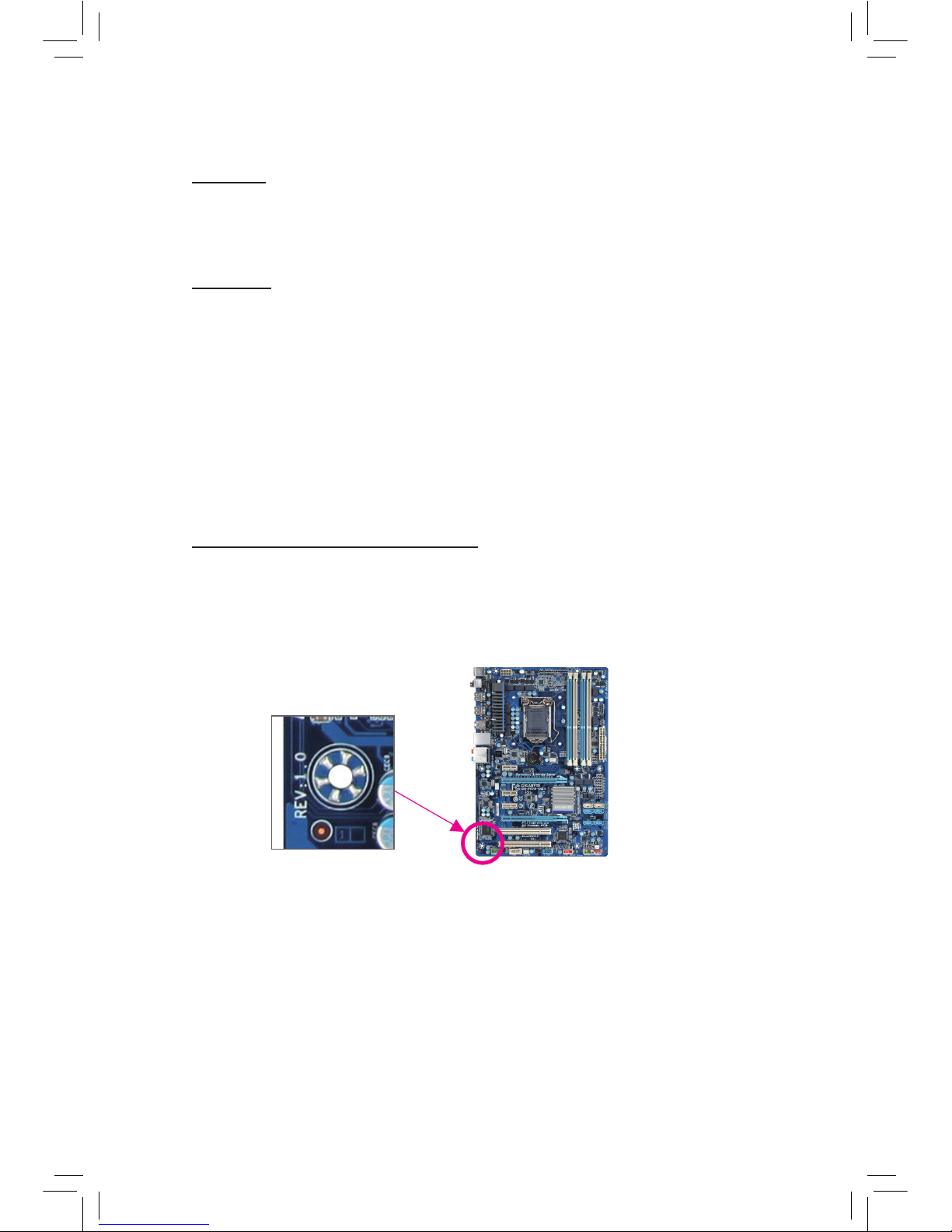

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-B75M-D3V Motherboard Layout...............................................................................5

GA-B75M-D3V Motherboard Block Diagram..................................................................6

Chapter 1 Hardware Installation .....................................................................................7

1-1 Installation Precautions ................................................................................... 7

1-2 Product Specications..................................................................................... 8

1-3 Installing the CPU.......................................................................................... 10

1-4 Installing the Memory .....................................................................................11

1-5 Installing an Expansion Card..........................................................................11

1-6 Back Panel Connectors ................................................................................. 12

1-7 Internal Connectors ....................................................................................... 13

Chapter 2 BIOS Setup..................................................................................................21

2-1 Startup Screen............................................................................................... 21

2-2 The Main Menu.............................................................................................. 22

2-3 M.I.T. .............................................................................................................. 23

2-4 System ........................................................................................................... 29

2-5 BIOS Features ............................................................................................... 30

2-6 Peripherals..................................................................................................... 32

2-7 Power Management....................................................................................... 35

2-8 Save & Exit .................................................................................................... 37

Chapter 3 Drivers Installation .......................................................................................38

Regulatory Statements ............................................................................................. 39

- 5 -

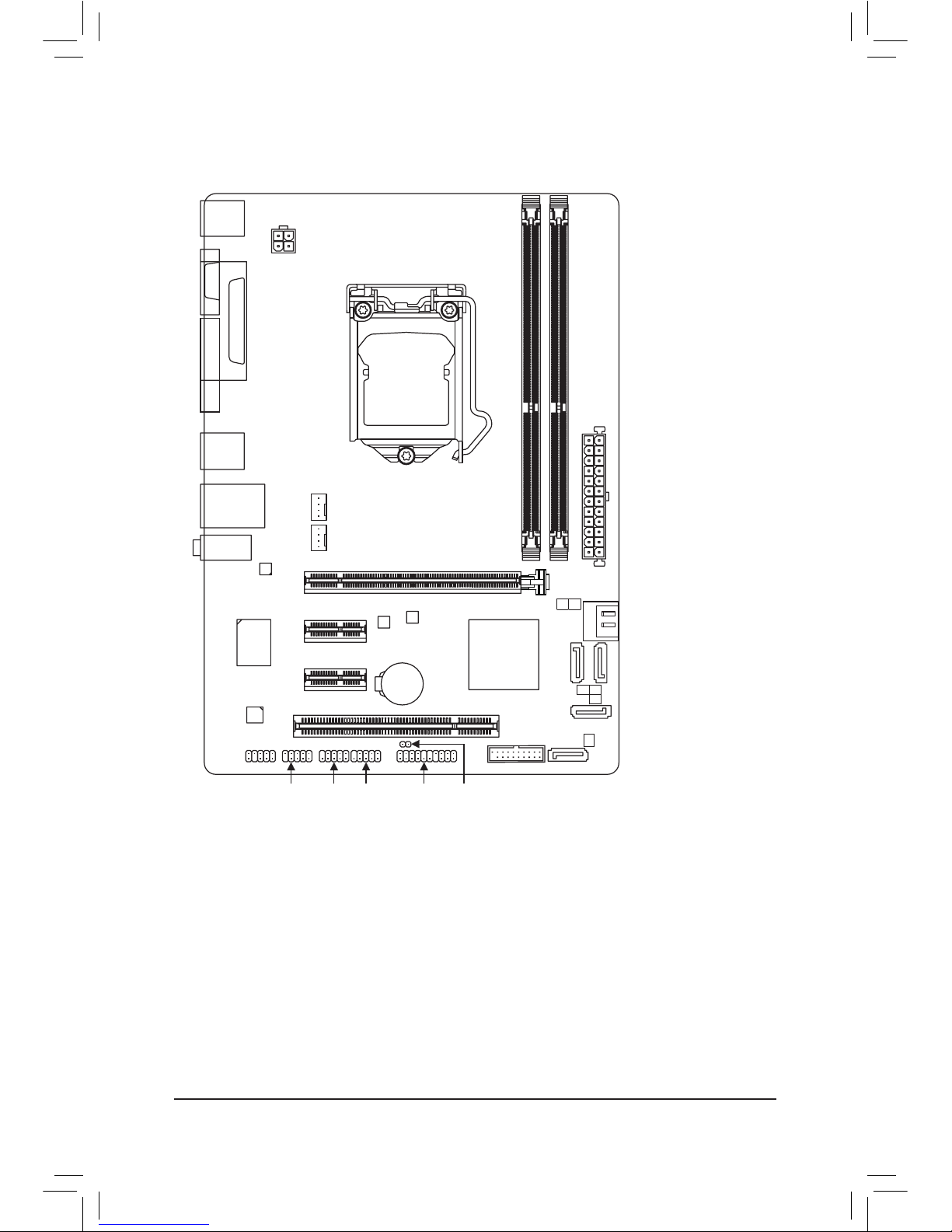

GA-B75M-D3V Motherboard Layout

KB_MS_USB

CPU_FAN

SYS_FAN

LGA1155

ATX

GA-B75M-D3V

F_AUDIO

AUDIO

B_BIOS

DDR3_1

DDR3_2

BAT

ATX_12V

Intel®B75

SATA2

R_USB30

CODEC

CLR_CMOS

F_USB30

M_BIOS

VGADVI

LPT

USB_LAN

PCIEX16

PCIEX1_1

PCIEX1_2

PCI

iTE

Super I/O

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

Atheros

GbE LAN

F_USB2 F_USB1 F_PANELCOM

4 3

SATA2 1

SATA3 0

Box Contents

GA-B75M-D3V motherboard

Motherboard driver disk

5Two SATA 6Gb/s cables

User's Manual

5I/O Shield

- 6 -

iTE

Super I/O

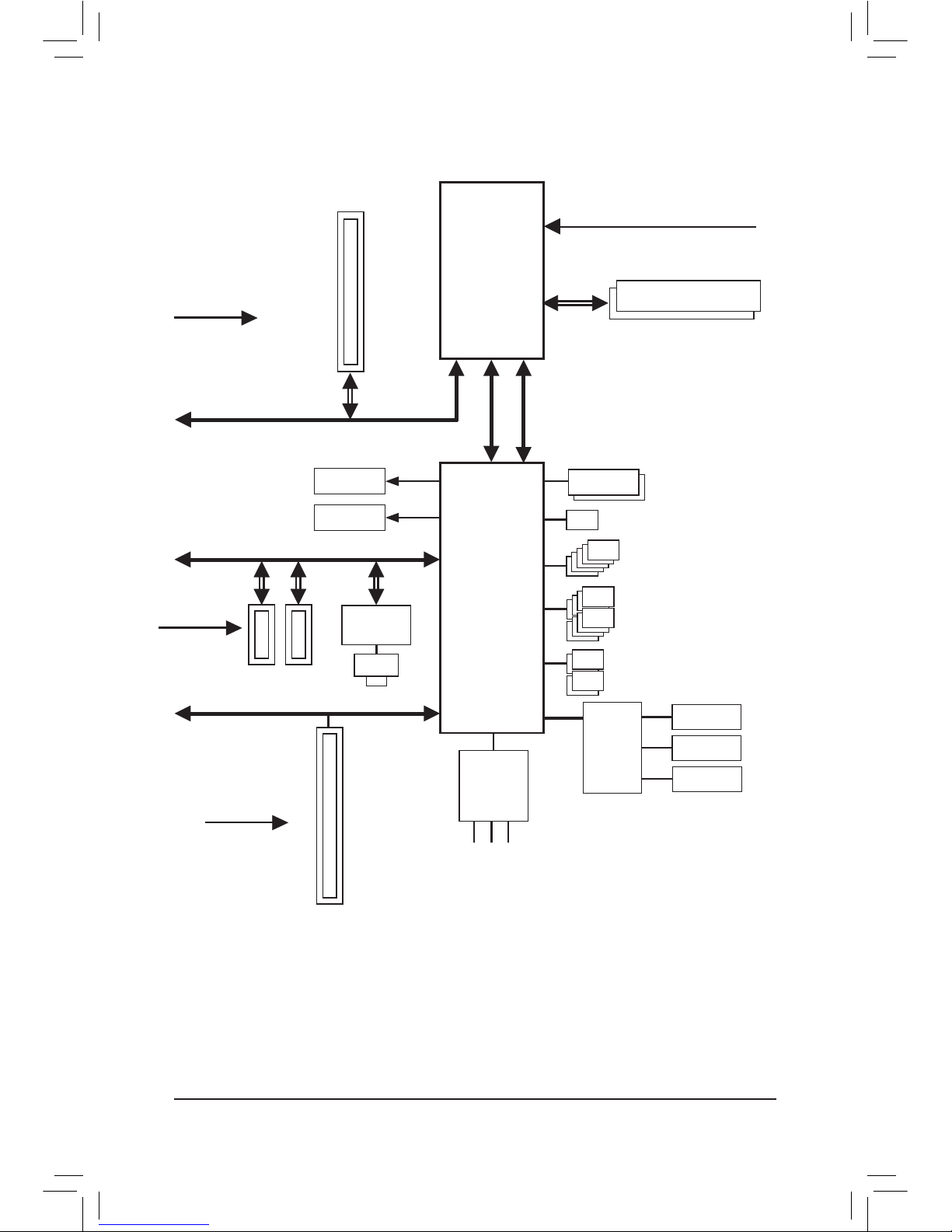

GA-B75M-D3V Motherboard Block Diagram

PS/2 KB/Mouse

LGA1155

CPU

Intel®B75

PCIe CLK

(100 MHz)

PCI Express Bus

CPU CLK+/- (100 MHz)

1 PCI Express x16

Dual BIOS

COM

LPT

8 USB 2.0/1.1

4 USB 3.0(Note 2)/2.0

DDR3 1600(Note 1)/1333/1066 MHz

PCI Express Bus

PCIe CLK

(100 MHz)

2 PCI Express x1

5 SATA 3Gb/s

D-Sub

DVI-D 1 SATA 6Gb/s

DMI 2.0

FDI

x16

Dual Channel Memory

x1 x1 x1

PCI CLK

(33 MHz)

1 PCI

PCI Bus LAN

RJ45

Atheros

GbE LAN

LPC

Bus

Line Out (Front Speaker Out)

MIC (Center/Subwoofer

Speaker Out)

Line In (Rear Speaker Out)

CODEC

(Note 1) To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.

(Note 2) In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

- 7 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

Prior to installation, make sure the chassis is suitable for the motherboard.•

Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty•

sticker provided by your dealer. These stickers are required for warranty validation.

Always remove the AC power by unplugging the power cord from the power outlet before•

installing or removing the motherboard or other hardware components.

When connecting hardware components to the internal connectors on the motherboard, make•

sure they are connected tightly and securely.

When handling the motherboard, avoid touching any metal leads or connectors.•

It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-•

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep

your hands dry and rst touch a metal object to eliminate static electricity.

Prior to installing the motherboard, please have it on top of an antistatic pad or within an•

electrostatic shielding container.

Before unplugging the power supply cable from the motherboard, make sure the power supply•

has been turned off.

Before turning on the power, make sure the power supply voltage has been set according to•

the local voltage standard.

Before using the product, please verify that all cables and power connectors of your hardware•

components are connected.

To prevent damage to the motherboard, do not allow screws to come in contact with the•

motherboard circuit or its components.

Make sure there are no leftover screws or metal components placed on the motherboard or•

within the computer casing.

Do not place the computer system on an uneven surface.•

Do not place the computer system in a high-temperature environment.•

Turning on the computer power during the installation process can lead to damage to system•

components as well as physical harm to the user.

If you are uncertain about any installation steps or have a problem related to the use of the•

product, please consult a certied computer technician.

- 8 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors

in the LGA1155 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B75 Express Chipset

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than 4 GB.

Dual channel memory architecture

Support for DDR3 1600/1333/1066 MHz memory modules

* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.

Support for non-ECC memory modules

Support for Extreme Memory Prole (XMP) memory modules

* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

Audio Realtek ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

LAN Atheros GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

* The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel

32nm (Sandy Bridge) CPU is installed.

2 x PCI Express x1 slots

(All PCI Express x1 slots conform to PCI Express 2.0 standard.)

1 x PCI slot

Storage Interface Chipset:

- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device

- 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices

USB Chipset:

- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through

the internal USB headers)

* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

- 9 -

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x SATA 6Gb/s connector

5 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x parallel port

1 x D-Sub port

1 x DVI-D port

2 x USB 3.0/2.0 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller iTE I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the CPU/system fan speed control function is supported will depend on the

CPU/system cooler you install.

BIOS 2 x 64 Mbit ash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for Xpress Recovery2

Support for Auto Green

Support for ON/OFF Charge

Support for Q-Share

- 10 -

1-3 Installing the CPU

Installing the CPU

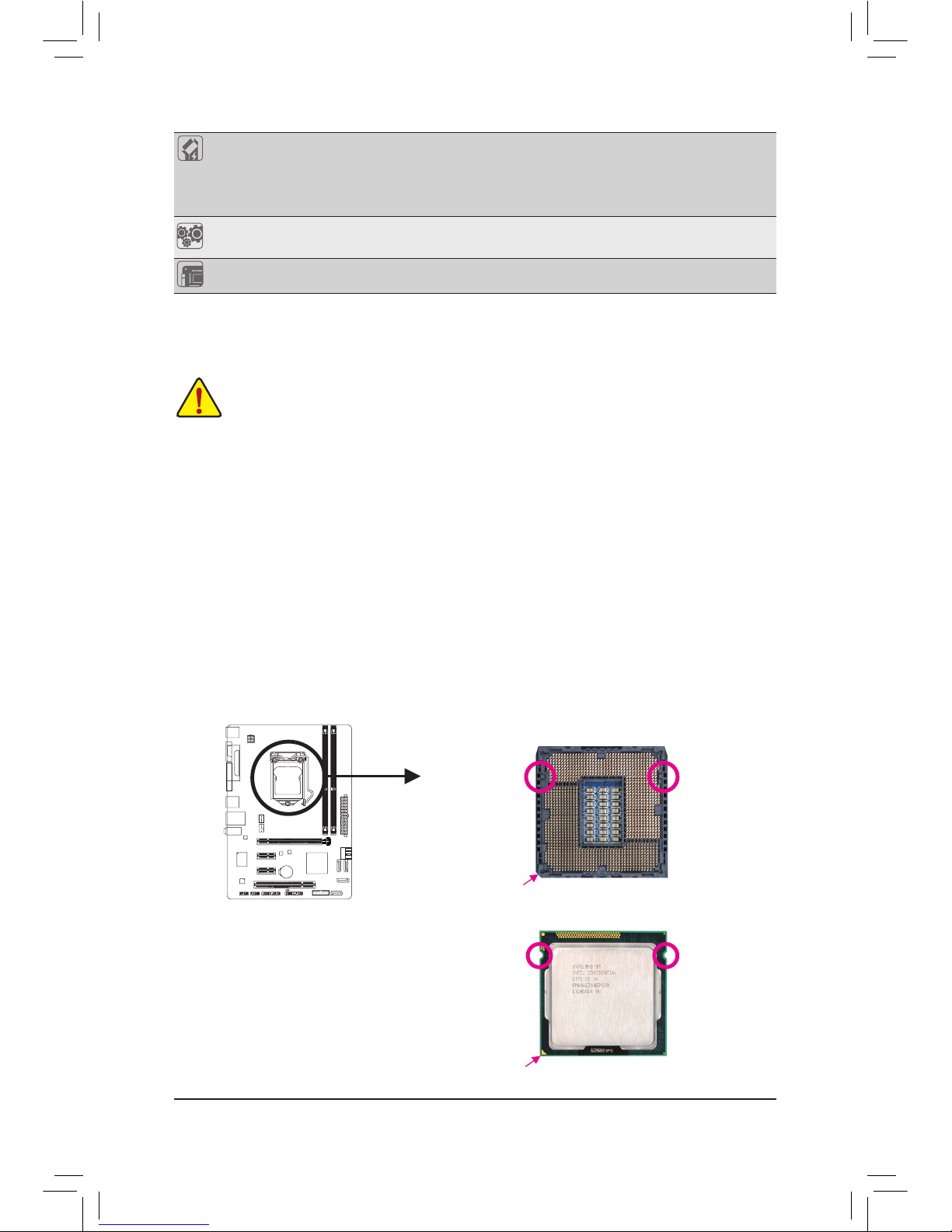

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Bundled

Software

Norton Internet Security (OEM version)

Intel®Rapid Start Technology

Intel®Smart Connect Technology

Intel®Small Business Advantage

Operating

System Support for Microsoft®Windows 7/XP

Form Factor Micro ATX Form Factor; 24.4cm x 17.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

Alignment KeyAlignment Key

LGA1155 CPU Socket

Pin One Corner of the CPU Socket

Notch

LGA1155 CPU

Triangle Pin One Marking on the CPU

Read the following guidelines before you begin to install the CPU:

Make sure that the motherboard supports the CPU.•

(Go to GIGABYTE's website for the latest CPU support list.)

Always turn off the computer and unplug the power cord from the power outlet before installing the•

CPU to prevent hardware damage.

Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate•

the notches on both sides of the CPU and alignment keys on the CPU socket.)

Apply an even and thin layer of thermal grease on the surface of the CPU.•

Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage•

of the CPU may occur.

Set the CPU host frequency in accordance with the CPU specications. It is not recommended •

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

Altri manuali per GA-B75M-D3V

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte GA-990FXA-UD5 Manuale utente

Gigabyte

Gigabyte GA-B85M-Gaming 3 Manuale utente

Gigabyte

Gigabyte R260-R3C Manuale utente

Gigabyte

Gigabyte GA-Z68A-D3-B3 Manuale utente

Gigabyte

Gigabyte B365M D3V Manuale utente

Gigabyte

Gigabyte GA-H87-HD3 Manuale utente

Gigabyte

Gigabyte GA-6OXM7 Manuale utente

Gigabyte

Gigabyte GA-7TEWH1 Manuale utente

Gigabyte

Gigabyte GA-A55M-DS2 Manuale utente

Gigabyte

Gigabyte GA-H97TN Manuale utente

Gigabyte

Gigabyte GA-8I945G Pro Manuale utente

Gigabyte

Gigabyte GA-8I925XC-G Manuale utente

Gigabyte

Gigabyte GA-M61SME-S2L Manuale utente

Gigabyte

Gigabyte 8S648-RZ Manuale utente

Gigabyte

Gigabyte GA-6VEM Manuale utente

Gigabyte

Gigabyte GA-Z270-Gaming 3 Manuale utente

Gigabyte

Gigabyte GA-6OXM7E Manuale utente

Gigabyte

Gigabyte X570S AERO G Manuale utente

Gigabyte

Gigabyte GA-N3050N-D3H Manuale utente

Gigabyte

Gigabyte B650E AORUS ELITE X AX ICE Manuale utente

Gigabyte

Gigabyte GA-6VA7+ Manuale utente

Gigabyte

Gigabyte GA-EP35-DS3P Manuale utente

Gigabyte

Gigabyte GA-965P-DS4 Manuale utente

Gigabyte

Gigabyte GA-770T-D3L Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
