Инструкция для
Gigabyte GA-E350N
Перейти в карточку товара
8 800 775 98 98
GA-E350N
User's Manual
Rev. 1001
12ME-E350N-1001R
Motherboard
GA-E350N
Jun. 15, 2012
Jun. 15, 2012
Motherboard
GA-E350N
Copyright
©2012 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
In order to assist in the use of this product, carefully read the User's Manual.
For product-related information, check on our website at: http://www.gigabyte.com

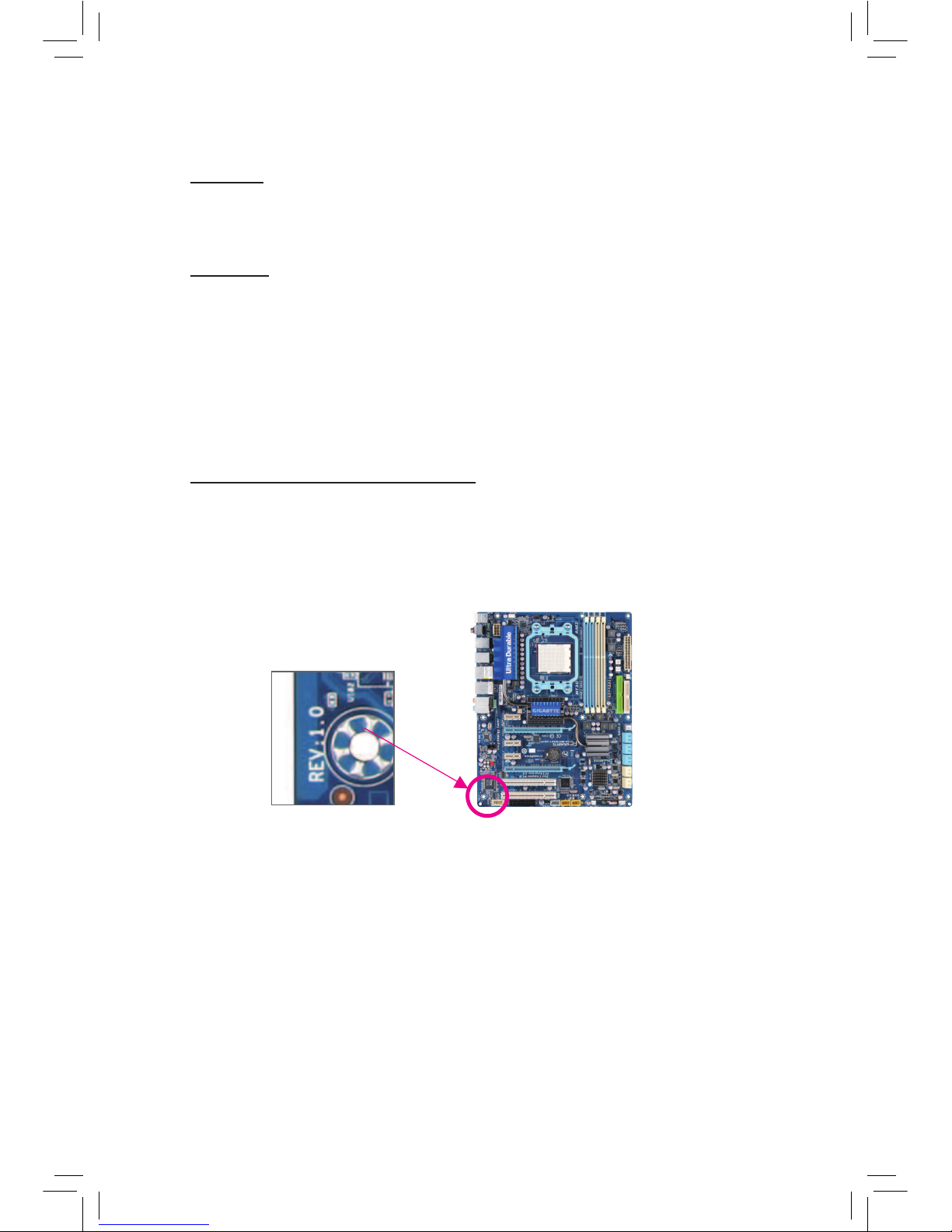

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:
1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before
updating motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
GA-E350N Motherboard Layout......................................................................................5
GA-E350N Motherboard Block Diagram .........................................................................6
Chapter 1 Hardware Installation .....................................................................................7
1-1 Installation Precautions.................................................................................... 7
...................................................................................... 8
1-3 Installing the Memory..................................................................................... 10
1-4 Installing an Expansion Card ......................................................................... 10
1-5 Back Panel Connectors.................................................................................. 11
1-6 Internal Connectors........................................................................................ 13
Chapter 2 BIOS Setup ..................................................................................................21
2-1 Startup Screen ............................................................................................... 21
2-2 The Main Menu .............................................................................................. 22
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 23
2-4 Standard CMOS Features.............................................................................. 26
2-5 Advanced BIOS Features .............................................................................. 27
2-6 Integrated Peripherals.................................................................................... 28
2-7 Power Management Setup............................................................................. 30
2-8 PC Health Status............................................................................................ 32
2-9 Load Fail-Safe Defaults.................................................................................. 33
2-10 Load Optimized Defaults................................................................................ 33
2-11 Set Supervisor/User Password ...................................................................... 34
2-12 Save & Exit Setup .......................................................................................... 34
2-13 Exit Without Saving........................................................................................ 35
Chapter 3 Drivers Installation........................................................................................35
3-1 Installing Chipset Drivers ............................................................................... 35
3-2 Regulatory Statements................................................................................... 36
- 5 -

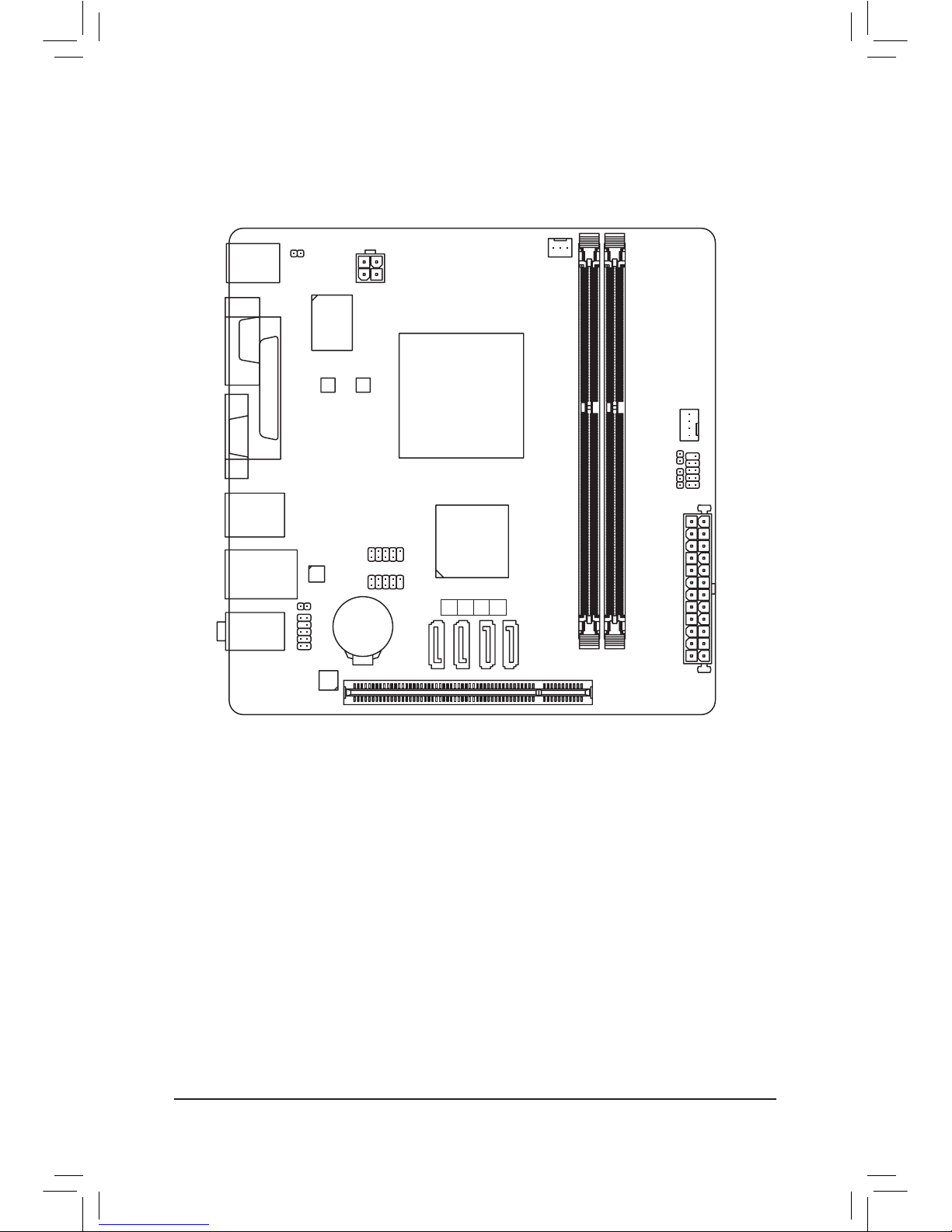

GA-E350N Motherboard Layout
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5GA-E350N motherboard
5Motherboard driver disk 5Two SATA cables
5User's Manual 5I/O Shield
KB_MS
CPU_FAN
AMD E-350D APU
AMD A45 FCH
ATX
GA-E350N
F_AUDIO
AUDIO
B_BIOS
DDR3_0
DDR3_1
BAT
F_PANEL
ATX_12V
CODEC
CLR_CMOS
M_BIOS
VGA
USB_LAN
PCI
SPDIF_O
F_USB1
CI
F_USB2
PWR_LED
COM
Realtek
GbE LAN
0
1
2
3
SATA2
USB_HDMI
iTE
Super I/O
SYS_FAN
LPT
- 6 -

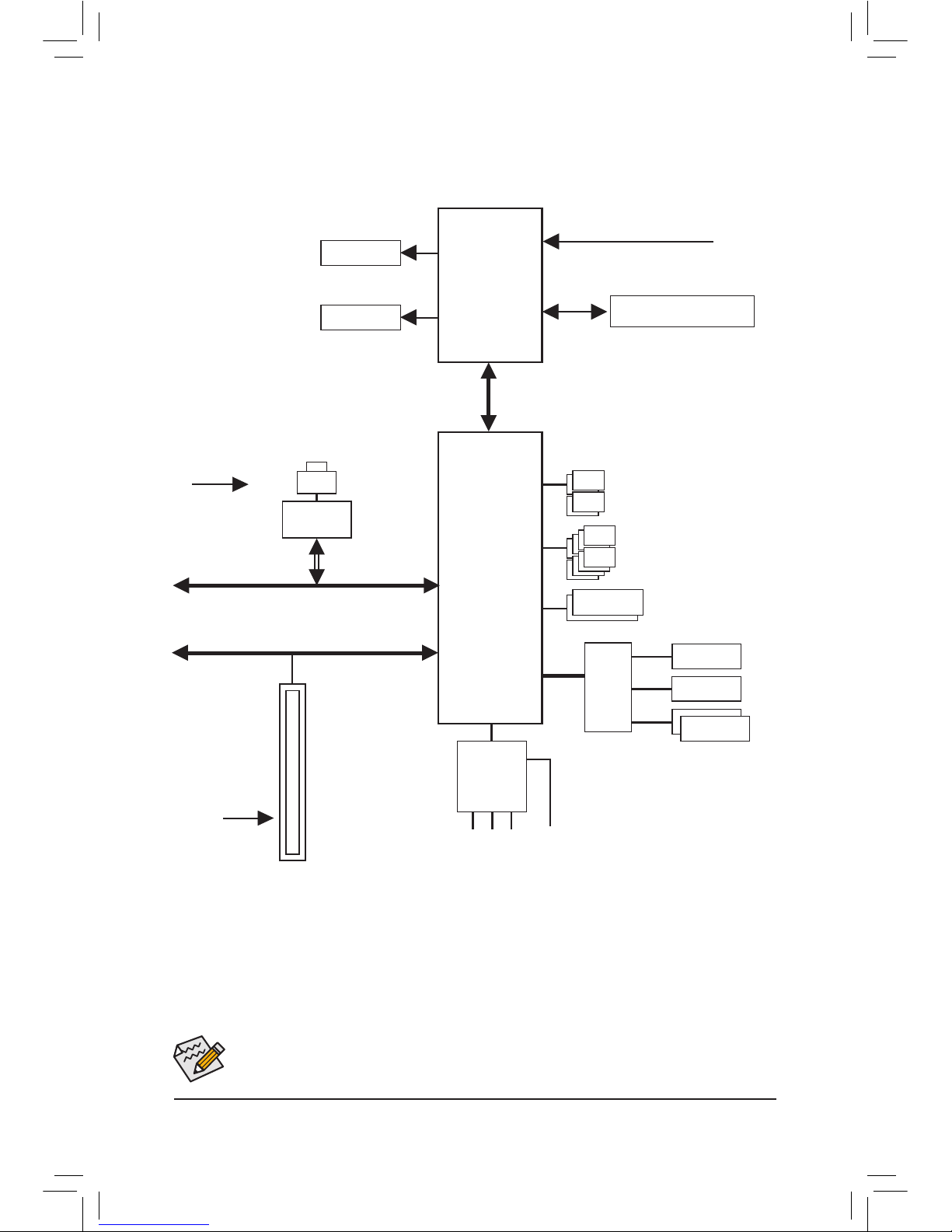

GA-E350N Motherboard Block Diagram
UMI
AMD A45 FCH
CPU CLK+/- (100 MHz)
S/PDIF Out
AMD
E-350D APU DDR3 1333 (O.C.)/1066 MHz
Dual BIOS
LPC
Bus COM
8 USB 2.0/1.1
4 SATA 3Gb/s
PCI Express Bus
PCIe CLK
(100 MHz)
x1
LAN
RJ45
Realtek
GbE LAN
D-Sub
HDMI
PCI Bus
1 PCI
PCI CLK
(33 MHz)
iTE
Super
I/O
PS/2 KB/Mouse
LPT
Single Channel
Line Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line In (Rear Speaker Out)
CODEC
- 7 -
Chapter 1 Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make
sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
- 7 -
APU Built in with an AMD E-350D Dual-Core processor
Built in with an AMD Radeon™HD 6310 (DirectX 11) graphics core
Chipset AMD A45 FCH
Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
Single channel memory architecture
Support for DDR3 1333 (O.C.)/1066 MHz memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
Integrated in the APU:
- 1 x D-Sub port
- 1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio Realtek HD audio codec
2/4/5.1/7.1-channel
and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI slot
Storage Interface Chipset:
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB Chipset:
- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
the internal USB headers)
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x chassis intrusion header
1 x power LED header
1 x Clear CMOS jumper
- 7 -
Back Panel
Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
1 x HDMI port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller iTE I/O Controller Chip
Hardware
Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the
CPU/system cooler you install.
BIOS
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Bundled
Software Norton Internet Security (OEM version)
Operating
System Support for Microsoft®Windows 7/Vista/XP
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
prior notice.
* Please visit GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features"
and "Bundled Software" columns.
