Gigabyte GA-SBCAP3350 Manuale utente

GA-SBCAP3350

User's Manual

Rev. 1001

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Jun. 30, 2017

Motherboard

GA-SBCAP3350

Jun. 30, 2017

Motherboard

GA-SBCAP3350

- 3 -

Table of Contents

GA-SBCAP3350 Motherboard Layout.............................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the Memory....................................................................................... 8

1-4 Installing an Expansion Card ........................................................................... 8

1-5 Back Panel Connectors.................................................................................... 8

1-7 Internal Connectors........................................................................................ 10

Chapter 2 BIOS Setup ..................................................................................................20

2-1 Startup Screen ............................................................................................... 20

2-2 Main ............................................................................................................... 21

2-3 Advanced ....................................................................................................... 22

2-4 Security .......................................................................................................... 26

2-5 Boot................................................................................................................ 28

2-6 Save & Exit..................................................................................................... 30

Chapter 3 Appendix ......................................................................................................31

Drivers Installation..................................................................................................... 31

Regulatory Statements.............................................................................................. 32

Contact Us ................................................................................................................ 34

- 4 -

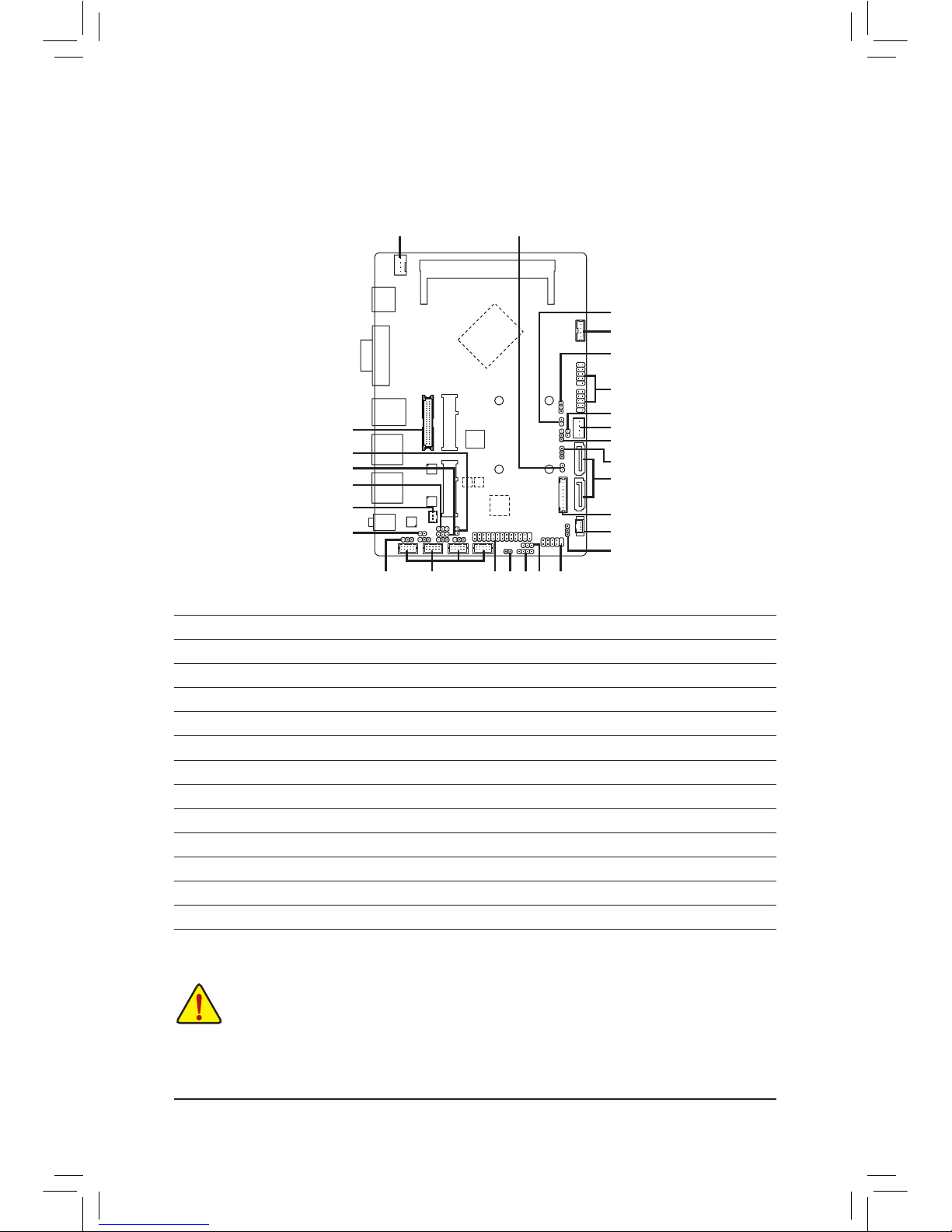

GA-SBCAP3350 Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-SBCAP3350 motherboard 5Two SATA cables

5Motherboard driver disk 5One SATA power cable

5One COM port cable 5One heat spreader

5One LPT port cable 5One DC power cable

(Note) This chip is on the back of the motherboard.

HDMI

LVDS

BAT

B_BIOS (Note)

SYS_FAN

COMA COMC

SATA3 01

FPD

F_PANEL

GPIO_PWRSEL

CODEC

SPEAKER

iTE®

Super I/O (Note)

F_USB1

F_USB2

2W_SPKR

CLR_CMOS

BL_SW

COMDCOMB

LAN1

SATA_PWR1

R_USB30

COMA_PW COMB_PW COMC_PW COMD_PW

SODIMM_1

VGA

Intel®Celeron®N3350 (註)

LAN2

HP_MIC

MPCIE1

MSATA_MPCIE2

HS_2BHS_2A

HS_1BHS_1A

Realtek®GbE LAN

M_BIOS (Note)

LPT_SEL

U_SIM

GPIO_SET

LCD_VCC

MON_SW

SPEAKER_CONTROL

SMBUS

I2C

DCIN_PWR

LPT_GPIO SATA_PWR2

BIOS_SET

GA-SBCAP3350

- 5 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

CPU Built in with an Intel®Dual-Core Celeron®N3350 SoC (1.6 GHz)

* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage

to these components.

2 MB Cache

Memory 1 x DDR3L SO-DIMM socket supporting up to 8 GB of system memory

Support for DDR3L 1866/1600/1333 MHz memory module

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated in the SoC:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz

Maximum shared memory of 512 MB

Audio Realtek®ALC255 codec

High Deﬁnition Audio

2-channel

LAN 2 x Realtek®GbE LAN chips (10/100/1000 Mbit)

Expansion Slots 1 x half size Mini PCIe slot (MPCIE1)

(The Mini PCIe slot conforms to PCI Express 2.0 standard.)

Storage Interface Integrated in the SoC:

- 2 x SATA 6Gb/s connectors

- 1 x MSATA connector (MSATA_MPCIE2)

USB Integrated in the SoC:

- 2 x USB 3.1 Gen 1 ports on the back panel

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x DC-In power connector

1 x system fan header

2 x SATA 6Gb/s connectors

2 x SATA power connectors

1 x front panel header

1 x battery cable header

2 x USB 2.0/1.1 headers

4 x serial port headers

4 x serial port power select jumpers

1 x speaker header

1 x GPIO power selection jumper

1xGPIOstatuscongurationjumper

1 x LVDS header

1 x LVDS drive voltage jumper

1xatpaneldisplayheader

1xatpaneldisplayswitchheader

1 x backlight switch header

1 x volume control header

1 x buzzer header

- 7 -

Internal

Connectors

1 x LPT/GPIO header

1xLPTcongurationjumper

1 x I2C

1 x SMBUS

1 x BIOS Select jumper

1 x Clear CMOS jumper

1 x chassis intrusion header

Back Panel

Connectors

1 x HDMI port

1 x D-Sub port

2 x USB 3.1 Gen 1 ports

2 x RJ-45 ports

1 x audio jack (headphone and microphone combo jack)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 2x64Mbitash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for Xpress Install

Support for @BIOS

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications

Bundled

Software Norton®Internet Security (OEM version)

Operating

System Support for Windows 10 64-bit

Form Factor SBC Form Factor; 14.6cm x 10.2cm

*GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, and SSDs.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

1-4 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-5 Back Panel Connectors

HDMI Port

The HDMI port is HDCP compliant and supports Dolby TrueHD and DTS HD

Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM

audio output. You can use this port to connect your HDMI-supported monitor. The maximum supported

resolution is 3840x2160@30 Hz, but the actual resolutions supported are dependent on the monitor being

used.

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The

item name may differ depending on your operating system.)

Dual-DisplayCongurationsfortheOnboardGraphics:

Dual-displaycongurationsaresupportedafteryouinstallmotherboarddriversinOS.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub

connection to this port.

USB 3.1 Gen 1 Port

The USB 3.1 Gen 1 port supports the USB 3.1 Gen 1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.

- 9 -

HP MIC (Headphone and Microphone Combo Jack)

This jack is for connecting a headphone or microphone. You can connect a microphone, headphone or

speaker to this jack.

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefrom

your device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

Please visit GIGABYTE's website for more software information.

Activity LED Connection/

Speed LED

LAN Port Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

Activity LED:

State Description

Blinking Data transmission or receiving is occurring

On No data transmission or receiving is occurring

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

- 10 -

Read the following guidelines before connecting external devices:

•First make sure your devices are compliant with the connectors you wish to connect.

•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

•After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

1-7 Internal Connectors

1) SYS_FAN

2) SATA3 0/1

3) SATA_PWR1/SATA_PWR2

4) BAT

5) F_PANEL

6) DCIN_PWR

7) F_USB1/F_USB2

8) SPEAKER_CONTROL

9) SPEAKER

10) 2W_SPKR

11) CI

12) MON_SW

13) LCD_VCC

14) GPIO_SET

15) BL_SW

16) FPD

17) GPIO_PWRSEL

18) LPT_GPIO

19)LPT_SEL

20) COMA/COMB/COMC/COMD

21) COMA/B/C/D_PW

22)SMBUS

23)I2C

24) LVDS

25) BIOS_SET

26) CLR_CMOS

1718 192021

Altri manuali per GA-SBCAP3350

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte GA-H77TN Manuale utente

Gigabyte

Gigabyte GA-VM800PMC Manuale utente

Gigabyte

Gigabyte B460 HD3 Manuale utente

Gigabyte

Gigabyte GA-8ITX Manuale utente

Gigabyte

Gigabyte GA-Z170X-Gaming 7 Manuale utente

Gigabyte

Gigabyte GA-B85-HD3 Manuale utente

Gigabyte

Gigabyte GA-8IPE1000MT Manuale utente

Gigabyte

Gigabyte GA-M55plus-S3G Manuale

Gigabyte

Gigabyte GA-7VM266 Manuale utente

Gigabyte

Gigabyte Q670M D3H DDR4 Manuale utente

Gigabyte

Gigabyte GA-F2A88XM-DS2 Manuale utente

Gigabyte

Gigabyte GA-970A-UD3P Manuale utente

Gigabyte

Gigabyte GA-H110M-D3H R2 Manuale utente

Gigabyte

Gigabyte GA-6IWMT Manuale utente

Gigabyte

Gigabyte B550 AORUS MASTER Manuale utente

Gigabyte

Gigabyte GA-E350N WIN8 Manuale utente

Gigabyte

Gigabyte MW51-HP0 Manuale utente

Gigabyte

Gigabyte GA-Z87X-UD3H Manuale utente

Gigabyte

Gigabyte GA-EG41MF-US2H Manuale utente

Gigabyte

Gigabyte G481-H80 Manuale utente

Gigabyte

Gigabyte X299-WU8 Manuale utente

Gigabyte

Gigabyte GA-F2A78M-DS2 Manuale utente

Gigabyte

Gigabyte GA-A75M-DS2 Manuale utente

Gigabyte

Gigabyte GS-R22PE Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
