Gigabyte GA-X170-WS ECC Manuale utente

GA-X170-WS ECC

User's Manual

Rev. 1001

12ME-X170WSE-1001R

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

Motherboard

GA-X170-WS ECC

Jun. 6, 2016

Motherboard

GA-X170-WS ECC

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of

documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

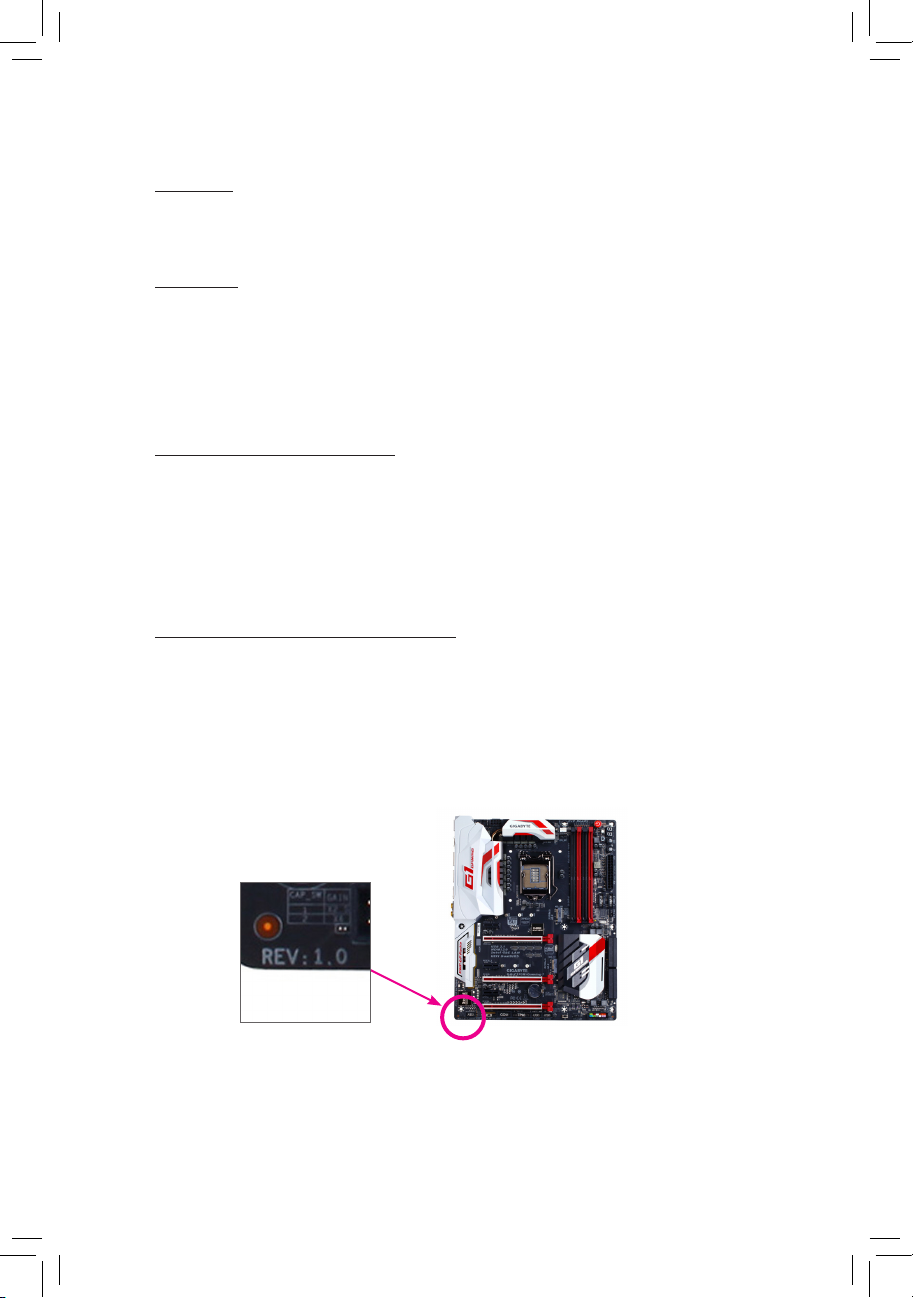

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-X170-WS ECC Motherboard Layout.........................................................................7

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions.................................................................................... 9

1-2 ProductSpecications.................................................................................... 10

1-3 Installing the CPU and CPU Cooler ............................................................... 13

1-3-1 Installing the CPU...................................................................................................13

1-3-2 Installing the CPU Cooler .......................................................................................15

1-4 Installing the Memory..................................................................................... 16

1-4-1 DualChannelMemoryConguration .....................................................................16

1-4-2 Installing a Memory ................................................................................................17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Setting up AMD CrossFire™/NVIDIA®SLI™Conguration .............................. 19

1-7 Back Panel Connectors.................................................................................. 20

1-8 Onboard Buttons, Switches, and LEDs.......................................................... 22

1-9 Internal Connectors........................................................................................ 23

Chapter 2 BIOS Setup ..................................................................................................39

2-1 Startup Screen ............................................................................................... 40

2-2 The Main Menu .............................................................................................. 41

2-3 M.I.T. .............................................................................................................. 42

2-4 System Information ........................................................................................ 50

2-5 BIOS Features ............................................................................................... 51

2-6 Peripherals..................................................................................................... 53

2-7 Chipset........................................................................................................... 56

2-8 Power Management....................................................................................... 58

2-9 Save & Exit..................................................................................................... 60

Chapter3 ConguringaRAIDSet................................................................................61

3-1 ConguringSATAControllers......................................................................... 61

3-2 InstallingtheSATARAID/AHCIDriverandOperatingSystem....................... 71

- 5 -

Chapter 4 Drivers Installation........................................................................................75

4-1 Drivers & Software ......................................................................................... 75

4-2 Application Software ...................................................................................... 76

4-3 Information ..................................................................................................... 76

Chapter 5 Unique Features...........................................................................................77

5-1 BIOS Update Utilities ..................................................................................... 77

5-1-1 Updating the BIOS with the Q-Flash Utility.............................................................77

5-1-2 Updating the BIOS with the @BIOS Utility .............................................................79

5-2 APP Center .................................................................................................... 80

5-2-1 Ambient LED ........................................................................................................81

5-2-2 System Information Viewer.....................................................................................82

Chapter 6 Appendix ......................................................................................................83

6-1 ConguringAudioInputandOutput............................................................... 83

6-1-1 Conguring2/4/5.1/7.1-ChannelAudio...................................................................83

6-1-2 ConguringS/PDIFOut..........................................................................................85

6-1-3 ConguringMicrophoneRecording........................................................................86

6-1-4 UsingtheSoundRecorder .....................................................................................88

6-2 Troubleshooting.............................................................................................. 89

6-2-1 Frequently Asked Questions ..................................................................................89

6-2-2 Troubleshooting Procedure ....................................................................................90

6-3 Debug LED Codes ......................................................................................... 92

RegulatoryStatements.............................................................................................. 96

Contact Us ................................................................................................................ 99

- 6 -

Optional Items

2-portUSB2.0bracket(PartNo.12CR1-1UB030-6*R)

eSATAbracket(PartNo.12CF1-3SATPW-4*R)

3.5"FrontPanelwith2USB3.0/2.0ports(PartNo.12CR1-FPX582-2*R)

HDMI-to-DVIadapter(PartNo.12CT2-HDMI01-1*R)

COMportcable(PartNo.12CF1-1CM001-3*R)

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-X170-WS ECC motherboard

5Motherboard driver disk

5User's Manual

5Quick Installation Guide

5Four SATA cables

5I/O Shield

5One 2-Way SLI bridge connector

5One G Connector

5Three thermistors cables

- 7 -

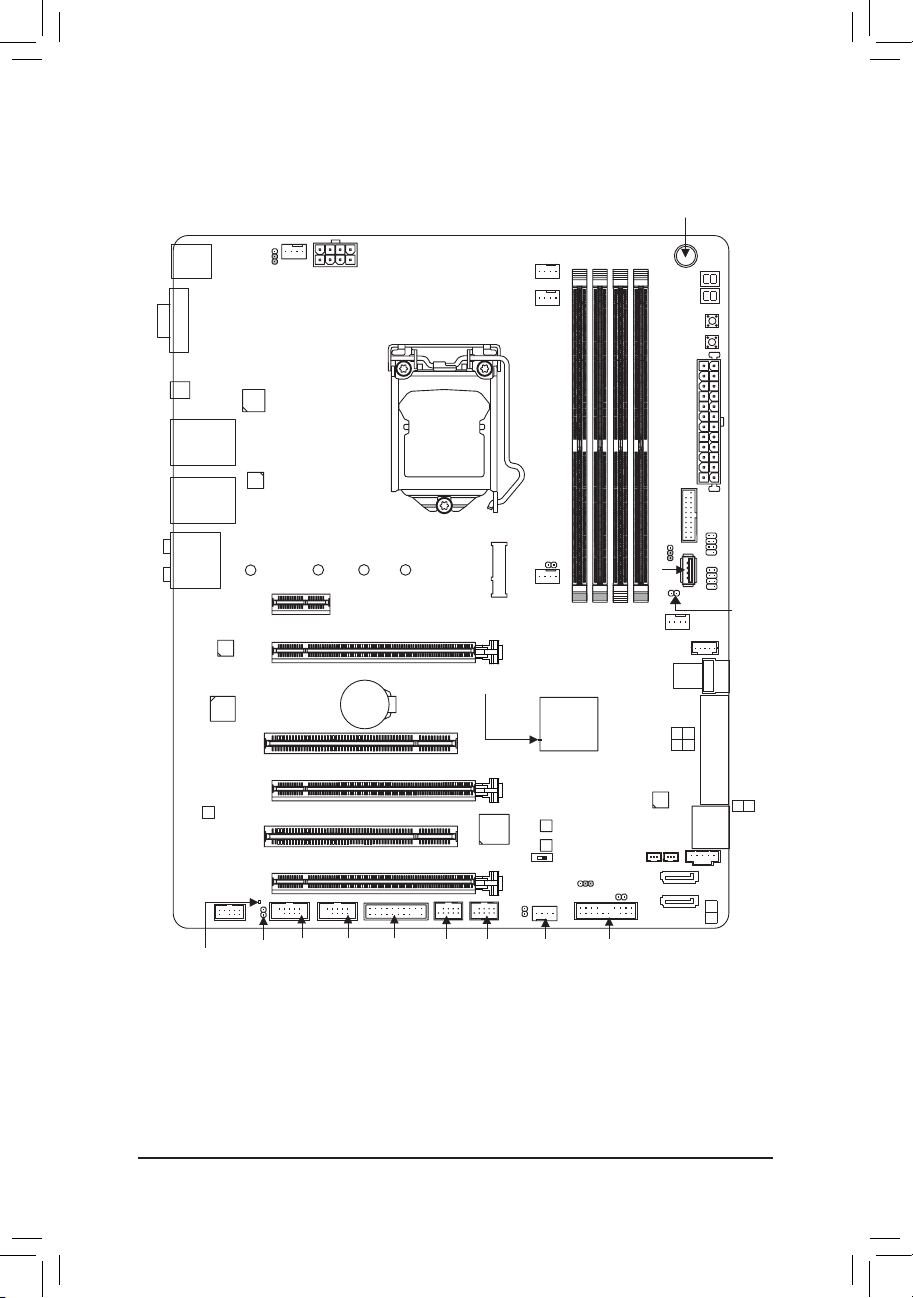

GA-X170-WS ECC Motherboard Layout

(Note) Fordebugcodeinformation,pleaserefertoChapter6.

KB_MS_USB

ATX

F_AUDIO

AUDIO

B_BIOS

PCIEX8

DDR4_2

DDR4_1

DDR4_4

DDR4_3

BAT

COMA

Intel®C236

M_BIOS

PCIEX16

LGA1151

GA-X170-WS ECC

USB30_LAN1

SATAEXPRESS

SYS_FAN4_PUMP

PCIEX1

iTE®

Super I/O

SYS_FAN3_

PUMP

F_USB1

TPM

M2M_32G

SATA3 5 4

3 2 F_USB30

DP_DVI

PCI2

PCIEX4

DB_PORT(Note)

PW_SW

CMOS_SW

RST_SW

ASMedia®

ASM1061

BIOS_SW

80M 60M 42M SATA_SGP2

SATA_SGP1

FAN_SEL4

USB30_OB

THB_C

U2_32G

GSATA3 7

SATA3 0

PMBUS

SATA_DOM1

SATA_DOM0

F_PANEL

CLR_CMOS

FAN_SEL3

E_SENSOR3

E_SENSOR2

F_USB2

COMB

SPDIF_O

CODEC

PCI1

110M

Intel®

USB 3.1

Controller

USB30_LAN2

TYPEC

PCIe to

PCI Bridge

Intel®GbE

LAN

Intel®

GbE LAN

FAN_SEL1

SYS_FAN1_

PUMP

ATX_12V_2X4

CPU_FAN

CPU_OPT

E_SENSOR1

SYS_FAN2

System Temperature

Sensor

PCH Temperature

Sensor

WORKSTATION

- 8 -

- 9 -

Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damagedasaresultofelectrostaticdischarge(ESD).Priortoinstallation,carefullyreadtheuser's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Priortoinstallation,donotremoveorbreakmotherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 1 Hardware Installation

- 10 -

Hardware Installation

1-2 ProductSpecications

CPU Support for Intel®Xeon®E3-1200 v5 processors/Intel®Core™i3 processors/

Intel®Pentium®processors/Intel®Celeron®processors in the LGA1151 package

(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)

L3 cache varies with CPU

Chipset Intel®C236 Chipset

Memory 4xDDR4DIMMsocketssupportingupto64GBofsystemmemory

 * DuetoaWindows32-bitoperatingsystemlimitation,whenmorethan4GBofphysical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dual channel memory architecture

SupportforDDR42133MHzmemorymodules

SupportforECCUn-bufferedDIMM1Rx8/2Rx8memorymodules

 * TosupportECC,youmustinstallanIntel®Xeon processor.

Supportfornon-ECCUn-bufferedDIMM1Rx8/2Rx8/1Rx16memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and

memorymodules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz

* SupportforDisplayPort1.2version.

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

 * TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.

Maximum shared memory of 512 MB

Audio Realtek®ALC1150 codec

HighDenitionAudio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN 2 x Intel®GbELANchips(10/100/1000Mbit)

Support for Teaming

Expansion Slots 1xPCIExpressx16slot,runningatx16(PCIEX16)

 * Foroptimumperformance,ifonlyonePCIExpressgraphicscardistobeinstalled,

be sure to install it in the PCIEX16 slot.

1xPCIExpressx16slot,runningatx8(PCIEX8)

1xPCIExpressx16slot,runningatx4(PCIEX4)

* The PCIEX4slotsharesbandwidthwiththeSATA3 0/1 connectors. When the

PCIEX4 slot is installed with a x4 or above card, the SATA 3 0/1 connectors becomes

unavailable.

1 x PCI Express x1 slot

* ThePCIEX1slotsharesbandwidthwith theSATA32/3and U2_32Gconnectors.

When the U2_32G connector is installed with an U.2 device, the PCIEX1 and SATA3

2/3 connectors become unavailable.

 (AllofthePCIExpressslotsconformtoPCIExpress3.0standard.)

2 x PCI slot

Multi-Graphics

Technology Support for 3-Way/2-Way AMD CrossFire™and 2-Way NVIDIA®SLI™Technology

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte GA-EX58-UD5 Manuale utente

Gigabyte

Gigabyte Z590 AORUS PRO AX Manuale utente

Gigabyte

Gigabyte 8VT800-RZ Manuale utente

Gigabyte

Gigabyte GA-8VM800PMD-775-RH Manuale utente

Gigabyte

Gigabyte GA-P41T-USB3L Manuale utente

Gigabyte

Gigabyte GA-8GEM800 Manuale utente

Gigabyte

Gigabyte Z390 UD Manuale utente

Gigabyte

Gigabyte GA-MA770T-UD3 Manuale utente

Gigabyte

Gigabyte AMD Socket AM2 Processor Motherboard... Manuale utente

Gigabyte

Gigabyte GA-P75-D3P Manuale utente

Gigabyte

Gigabyte GA-A55M-S2V Manuale utente

Gigabyte

Gigabyte GA-X99-Gaming G1 WIFI Manuale utente

Gigabyte

Gigabyte GA-686KDX Manuale utente

Gigabyte

Gigabyte H310M HD2 2.0 Manuale utente

Gigabyte

Gigabyte GA-J1800N-D2PH Manuale utente

Gigabyte

Gigabyte GA-78LMT-S2PT Manuale utente

Gigabyte

Gigabyte GA-B75-DS3V Manuale utente

Gigabyte

Gigabyte TRX40 AORUS XTREME Manuale utente

Gigabyte

Gigabyte R282-Z96 Manuale utente

Gigabyte

Gigabyte GA-K8NSNXP Manuale utente

Gigabyte

Gigabyte GA-EX58-UD4 Manuale utente

Gigabyte

Gigabyte GA-8I845GV-C Manuale utente

Gigabyte

Gigabyte Z490M Manuale utente

Gigabyte

Gigabyte B650M D3HP Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
