Gigabyte H310 D3 Manuale utente

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

H310 D3

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Motherboard

H310 D3

Mar. 23, 2018

Motherboard

H310 D3

- 3 -

Table of Contents

H310 D3 Motherboard Layout .........................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................18

2-1 Startup Screen ............................................................................................... 18

2-2 The Main Menu .............................................................................................. 19

2-3 M.I.T. .............................................................................................................. 20

2-4 System ........................................................................................................... 26

2-5 BIOS............................................................................................................... 27

2-6 Peripherals..................................................................................................... 30

2-7 Chipset........................................................................................................... 33

2-8 Power............................................................................................................. 34

2-9 Save & Exit..................................................................................................... 36

Chapter 3 Appendix ......................................................................................................37

Drivers Installation..................................................................................................... 37

Regulatory Statements.............................................................................................. 38

Contact Us ................................................................................................................ 40

- 4 -

H310 D3 Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5H310 D3 motherboard 5Two SATA cables

5Motherboard driver disk 5I/O Shield

5User's Manual

KB_MS_USB

COMA

LPT

HDMI VGA

R_USB31

USB_LAN

LGA1151

ATX

AUDIO

DDR4_2

DDR4_1

ATX_12V_2X4

Intel®H310

CLR_CMOS

M_BIOS

B_BIOS

PCIEX1_1

PCIEX16

PCIEX1_2

PCI1

PCI2

PCI3

F_USB30

M2P

CNVI

CODEC

H310 D3

F_PANEL

TPM F_USB1

SPDIF_O

F_AUDIO SYS_FAN2

SYS_FAN1

CPU_FAN

iTE®

Super I/O

6080

BAT

Realtek®

GbE LAN

SATA3 1 3

0 2

PCIe to PCI

Bridge

SYS_FAN3

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for 8th Generation Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors

in the LGA1151 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H310 Express Chipset

Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel®

Core™i7/i5 processor.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleand

enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

3 x PCI slots

1 x M.2 Socket 1 connector for an Intel®CNVi wireless module only (CNVI)

Storage Interface Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe

x2 SSD support)

- 4 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA

connectors.

- 6 -

USB Chipset:

- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

* The CNVi connector shares bandwidth with the F_USB1 header. When a Wi-Fi

module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to

the F_USB1 header becomes unavailable.

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

4 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

1 x HDMI ports

2 x USB 3.1 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

- 7 -

BIOS 2x128Mbitash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- 3D OSD

- @BIOS

- AutoGreen

- Cloud Station

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- Platform Power Management

- RGB Fusion

- Smart Backup

- Smart Keyboard

- Smart TimeLock

- Smart HUD

- System Information Viewer

- USB Blocker

- V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundled

Software Norton®Internet Security (OEM version)

Operating

System Support for Windows 10 64-bit

Form Factor ATX Form Factor; 30.5cm x 20cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

1-3 InstallingtheCPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

1-4 InstallingtheMemory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

InstallingtheCPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

DonotremovetheCPUsocketcoverbeforeinsertingtheCPU.Itmaypopofffromtheload

plateautomaticallyduringtheprocessofre-engagingtheleverafteryouinserttheCPU.

Triangle Pin One Marking on the CPU

NotchNotch

LGA1151 CPU

Alignment KeyAlignment Key

LGA1151 CPU Socket

Pin One Corner of the CPU Socket

- 9 -

The two memory sockets are divided into two channels and each channel has one memory socket as following:

Channel A: DDR4_1

Channel B: DDR4_2

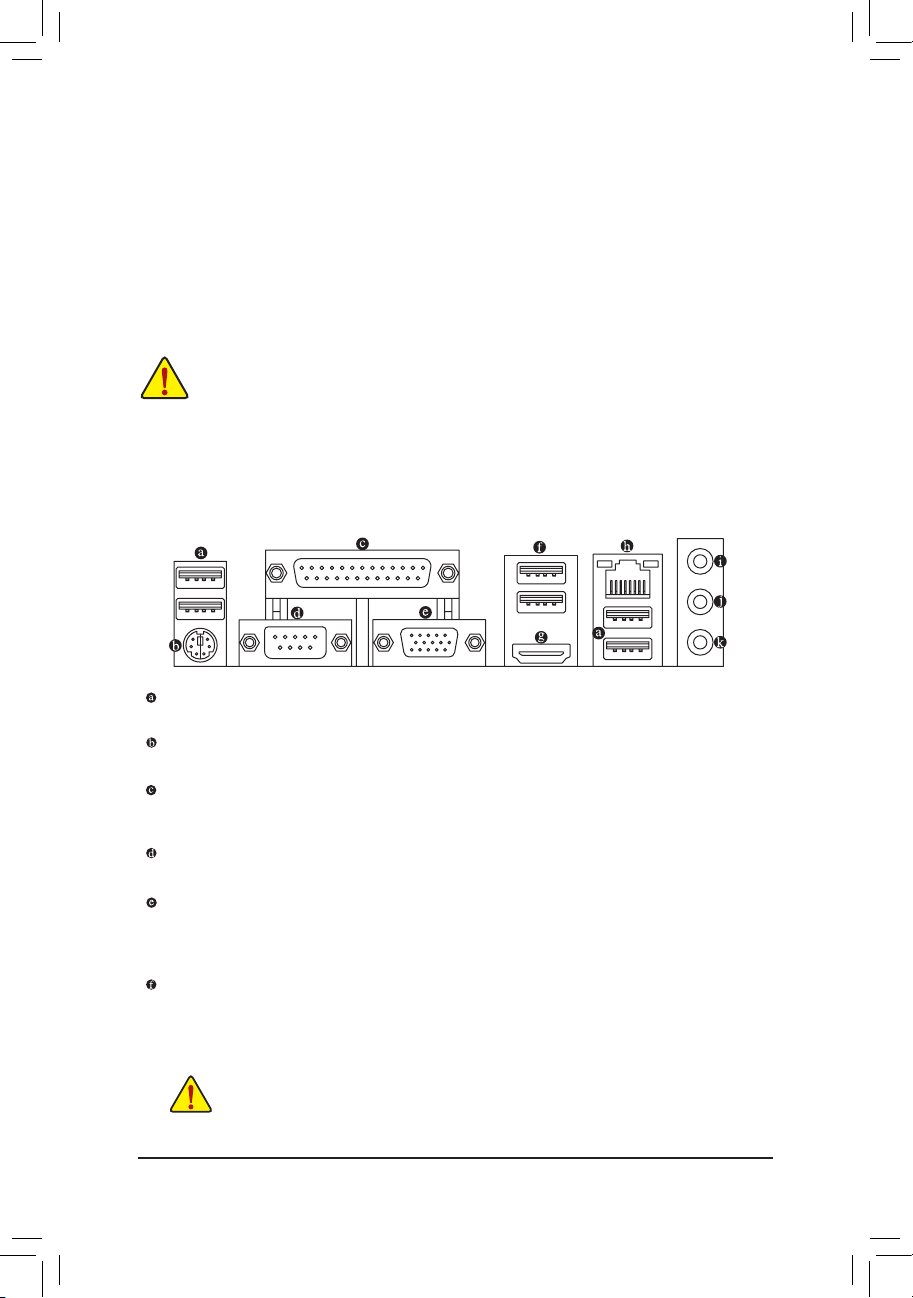

1-6 Back Panel Connectors

USB2.0/1.1Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

PS/2Keyboard/MousePort

Use this port to connect a PS/2 mouse or keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called

a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

USB3.1Gen1Port

TheUSB3.1Gen1portsupportstheUSB3.1Gen1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

1-5 InstallinganExpansionCard

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefrom

your device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

- 10 -

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte GA-MA790X-DS4 Manuale

Gigabyte

Gigabyte GA-AB350N-Gaming WIFI Manuale utente

Gigabyte

Gigabyte GA-8I865GME-775-RH Manuale utente

Gigabyte

Gigabyte GA-P75-D3 Manuale utente

Gigabyte

Gigabyte 6VM7-4I Manuale utente

Gigabyte

Gigabyte GA-H110M-S2V Manuale utente

Gigabyte

Gigabyte MCH31AM Manuale utente

Gigabyte

Gigabyte GA-8I955X Royal Manuale utente

Gigabyte

Gigabyte GA - 686LX3 Manuale utente

Gigabyte

Gigabyte GA-8IG1000 Pro-G Manuale utente

Gigabyte

Gigabyte GA-AB350M-D3H Manuale utente

Gigabyte

Gigabyte B360M HD3 Manuale utente

Gigabyte

Gigabyte GA-P55-USB3 Manuale utente

Gigabyte

Gigabyte GA-7ZXE Manuale utente

Gigabyte

Gigabyte 6GXU Manuale utente

Gigabyte

Gigabyte GA-8I865PE775-G-RH Manuale utente

Gigabyte

Gigabyte MJ11-EC0 Manuale utente

Gigabyte

Gigabyte GA-6VM7-4X Manuale utente

Gigabyte

Gigabyte B450M GAMING Manuale utente

Gigabyte

Gigabyte GA-B85M-HD3 Manuale utente

Gigabyte

Gigabyte GA-F2A85XM-HD3 Manuale utente

Gigabyte

Gigabyte GA-B85-HD3 Manuale utente

Gigabyte

Gigabyte GA-F2A55-DS3 Manuale utente

Gigabyte

Gigabyte GA-MA785GM-UD2H Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
