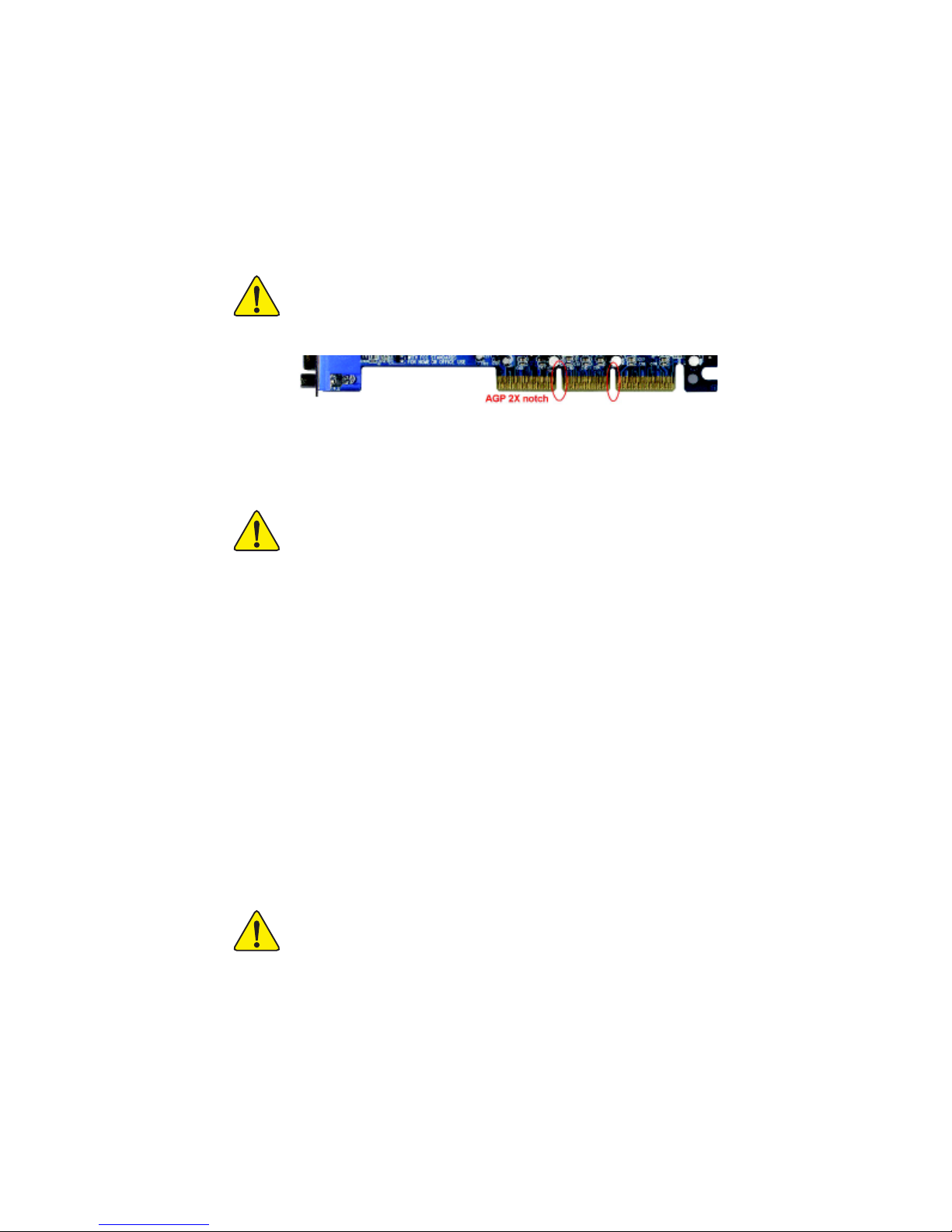

When you installing AGP card, please make sure the following notice

is fully understood and practiced. If your AGP card has "AGP 4X/8X

(1.5V) notch"(show below), please make sure your AGP card is AGP

4X/8X.

Caution:AGP 2X card is not supported by nVIDIA®nForce™2 Ultra 400.

You might experience system unable to boot up normally. Please

insert anAGP Pro 4X/8X card.

Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X

modeAGPslot.It can be switched betweenAGP2X(3.3V) or 4X(1.5V) mode

by adjusting the jumper. The factory default for this card is 2X(3.3V). The

GA-7N400 Pro2 / GA-7N400 / GA-7N400-L (or any AGP 4X/8X only)

motherboards might not function properly, if you install this card without

switching the jumper to 4X(1.5V) mode in it.

Example 2: SomeATi Rage 128 Pro graphics cards made by "Power Color",

the graphics card manufacturer & some SiS 305 cards, their golden finger is

compatible with 2X(3.3V) / 4X(1.5V) mode AGP slot, but they support

2X(3.3V) only. The GA-7N400 Pro2 / GA-7N400 / GA-7N400-L(or anyAGP

4X/8Xonly) motherboards mightnot function properly,If youinstall this card

in it.

Note :Although Gigabyte's AG32S(G) graphics card is based onATi Rage

128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)

specification.Therefore,AG32S(G)will work fine with nVIDIA®nForce2Ultra

400 based motherboards.

Before you install PCI cards, please remove the Dual BIOS label from PCI

slots if there is one.

AGP 4X/8X notch

7n400Pro2_1002_f.p65 2003/7/4, ¤U¤È 03:211

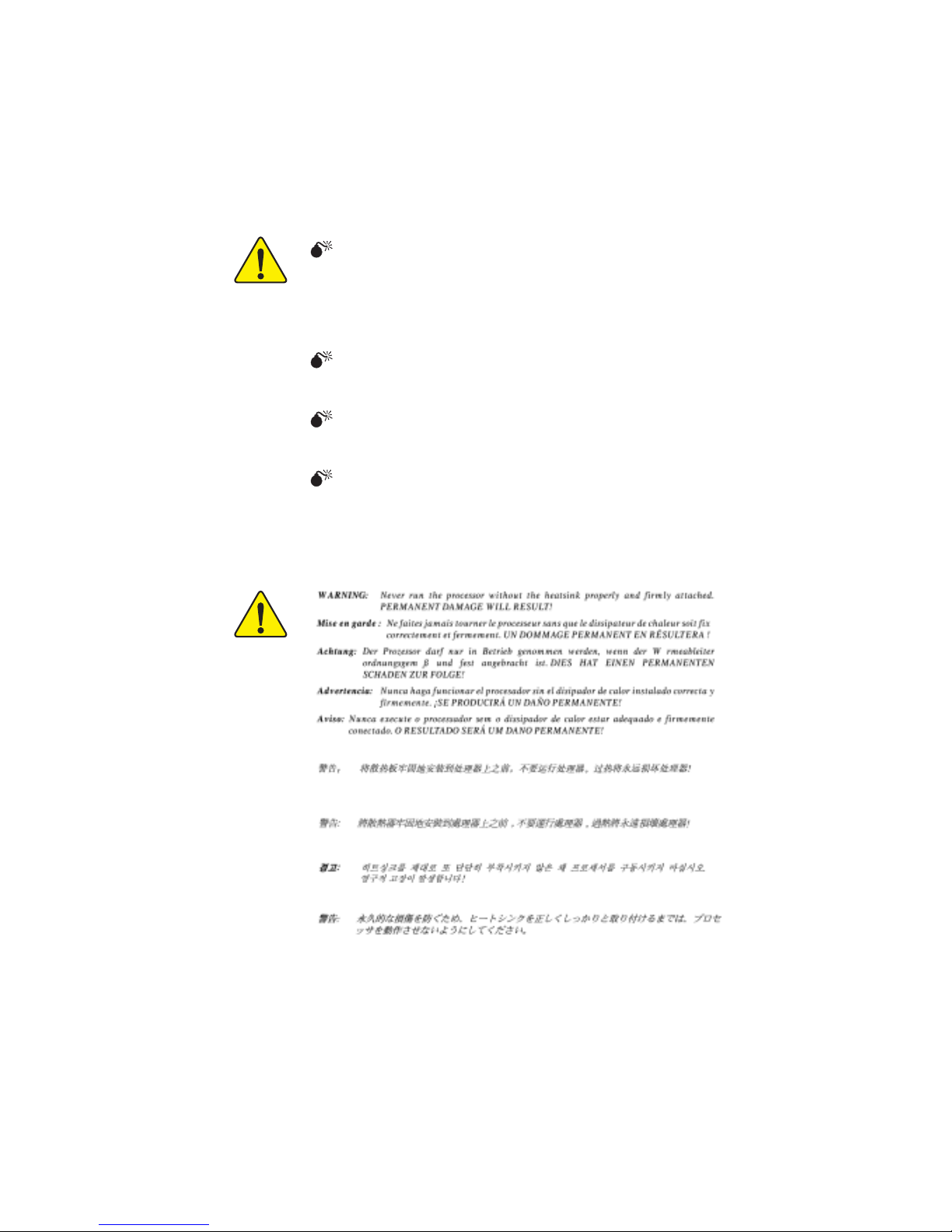

The author assumes no responsibility for any errors or

omissions that may appear in this document nor does the

author make a commitment to update the information

contained herein.

Third-party brands and names are the property of their

respective owners.

Pleasedonot remove anylabels onmotherboard, this may

void the warranty of this motherboard.

Due to rapid change in technology, some of the

specifications might be out of date before publication of

this booklet.

7n400Pro2_1002_f.p65 2003/7/4, ¤U¤È 03:212

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive

oEN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment

oEN 61000-3-2*

TEN 60555-2 Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”

oEN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment

oEN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”

oEN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

TEN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

TEN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry

oEN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment

oEN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment

oEN 55082-2

TEN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus

oENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)

oEN50091-2

oEN 55020

oDIN VDE 0855

opart 10

opart 12

(EC conformity marking)

TCE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use

oEN 60950

oEN 60065

Safety of household and similar

electrical appliances

oEN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : June 30, 2003

TEN 60555-3

Timmy Huang

oEN 50091-1

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirements for

uninterruptible power systems (UPS)

Mother Board

GA-7N400 Pro2 / GA-7N400 / GA-7N400-L

7n400Pro2_1002_f.p65 2003/7/4, ¤U¤È 03:213

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),

Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

ProductName: Motherboard

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

causeharmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

ModelNumber:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Date:

ERIC LU

June 30, 2003

GA-7N400 Pro2 /GA-7N400 /GA-7N400-L

7n400Pro2_1002_f.p65 2003/7/4, ¤U¤È 03:214

USER'S MANUAL

GA-7N400Pro2/ GA-7N400/GA-7N400-L

AMD SocketAProcessor Motherboard

AMDAthlon™/Athlon™XP/Duron™SocketAProcessorMotherboard

Rev.1002

12ME-7N400P2-1002

7n400pro2_1002_q.p65 2003/7/4, ¤U¤È 03:271

- 2 -N400 Pro2 / N400 Series Motherboard

English

Table of Content

Item Checklist .........................................................................................4

Chapter 1 Introduction............................................................................5

Features Summary...................................................................................... 5

GA-7N400 Pro2 Motherboard Layout ......................................................... 8

GA-7N400 Motherboard Layout .................................................................. 9

GA-7N400-L Motherboard Layout.............................................................10

Block Diagram - GA-7N400 Pro2 / GA-7N400 / GA-7N400-L ................. 11

Chapter 2 Hardware Installation Process.............................................13

Step 1: Set System Jumper (CLK_SW)&(CLK_RATIO)............................14

Step 2: Install the Central Processing Unit (CPU).....................................15

Step 2-1: CPU Installation..............................................................................................15

Step 2-2: CPU Cooling Fan Installation........................................................................16

Step 3: Install Memory Modules................................................................17

Step 4: Install expansion cards .................................................................20

Step 5: Connect ribbon cables, cabinet wires and power supply ............21

Step 5-1: I/O Back Panel Introduction...........................................................................21

Step 5-2: Connectors Introduction.................................................................................23

Chapter 3 BIOS Setup .........................................................................39

The Main Menu (For example: BIOS Ver. : E2)........................................40

Standard CMOS Features.........................................................................42

7n400pro2_1002_q.p65 2003/7/4, ¤U¤È 03:272

Table of Content

English

- 3 -

Advanced BIOS Features ..........................................................................44

Advanced Chipset Features ......................................................................47

Integrated Peripherals ..............................................................................49

Power Management Setup .......................................................................54

PnP/PCI Configurations.............................................................................57

PC Health Status........................................................................................58

Frequency/Voltage Control........................................................................60

Load Fail-Safe Defaults.............................................................................61

Load Optimized Defaults...........................................................................62

Set Supervisor/User Password..................................................................63

Save & Exit Setup.......................................................................................64

Exit Without Saving ...................................................................................65

Chapter 4 Technical Reference ...........................................................67

@BIOS™Introduction.................................................................................67

Flash BIOS Method Introduction...............................................................68

2- / 4- / 6-Channel Audio Function Introuction ..........................................78

Xpress Recovery Introduction ...................................................................84

Chapter 5 Appendix.............................................................................89

7n400pro2_1002_q.p65 2003/7/4, ¤U¤È 03:273

- 4 -N400 Pro2 / N400 Series Motherboard

English

Item Checklist

ComputermotherboardsandexpansioncardscontainverydelicateIntegratedCircuit

(IC)chips.Toprotectthemagainstdamage from staticelectricity,youshouldfollow

someprecautionswheneveryouworkonyourcomputer.

1. Unplugyourcomputer whenworkingontheinside.

2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonothaveone,touch

bothofyourhandstoasafelygroundedobjectortoametalobject,suchasthepowersupply

case.

3. Holdcomponentsbytheedges and try nottouchthe IC chips,leadsor connectors, or other

components.

4. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththecomponents

wheneverthecomponentsareseparatedfromthesystem.

5. EnsurethattheATXpowersupplyisswitchedoffbeforeyoupluginorremovetheATXpower

connectoronthemotherboard.

Installing the motherboard to the chassis...

Ifthemotherboardhasmountingholes,buttheydon'tlineupwiththeholesonthebaseandthereare

noslotstoattachthespacers,donotbecomealarmedyoucanstillattachthespacerstothemounting

holes.Justcutthebottomportionofthespacers(thespacermaybealittlehardtocutoff,sobecarefulof

yourhands).Inthiswayyoucanstillattachthemotherboard to the base withoutworryingaboutshort

circuits.Sometimesyoumayneedtousetheplasticspringstoisolatethescrewfromthemotherboard

PCBsurface,becausethecircuitwiremaybe near by thehole.Becareful,don'tletthescrewcontact

anyprintedcircuitwrite orpartsonthePCBthatarenearthefixinghole,otherwiseitmaydamagethe

boardorcauseboardmalfunctioning.

TheN400Pro2/N400Seriesmotherboard

CDformotherboarddriver&utility

TheN400Pro2/N400 Seriesuser'smanual

QuickPCInstallationGuide

GigaRAID manual (j)

SATARAID manual (j)

GC-SATACard (optional)

(Manual; SATA cable x 1; Power cable x 1)

IDE cable x 3 / Floppy cable x 1 (j)

IDE cable x 1 / Floppy cable x 1(kl)

SerialATA cable x 2 (j)

IEEE1394 cable x 1 (j)

2 Port USB Cable x 1

Audio Combo Kit x 1 (j)

(SURROUND-Kit + SPDIF Out Kit)

I/O Shield

MotherboardSettingsLabel

ATX 12V Cable (*)

(*) If this "ATX_12V connector" is not connected, system cannot boot.

jFor GA-7N400 Pro2 only. kFor GA-7N400 only. lFor GA-7N400-L only.

7n400pro2_1002_q.p65 2003/7/4, ¤U¤È 03:274

Introduction

English

- 5 -

FormFactor 30.5cm x 24.4cm ATX size form factor, 4 layers PCB

Motherboard N400Pro2/N400 Series:

GA-7N400 Pro2 / GA-7N400 / GA-7N400-L

CPU Socket Aprocessor forAMDAthlon™/Athlon™XP / Duron™ (K7)

128KL1 & 256K/64KL2 cache ondie

400/333/266/200MHz FSB

Supports1.4GHzandfaster

Chipset nVIDIA®nForce™2Ultra 400Memory/AGP/PCIController (PAC)

nVIDIA®nForce™2 MCP Integrated PeripheralController

(PSIPC)

Memory 4184-pin DDR DIMM sockets

SupportsDualChannelDDR400/DDR333/DDR266DIMM

Supports128MB/256MB/512MB/1GBunbufferedDRAM

Supports up to 3GB DRAM (Max)

Supports only 2.5V DDR DIMM

I/O Control IT8712F

Slots 1AGPslotsupports8X/4Xmode,AGP3.08Xinterfaceat533MHz

5 PCI slots support 33MHz & PCI 2.2 compliant

On-BoardIDE 2 IDE controllers provides IDE HDD/CD-ROM (IDE1, IDE2) with

PIO,BusMaster(UltraDMA33/ATA66/ATA100/ATA133)operation

modes

IDE3 (j)and IDE4 (j)compatible with RAID,

UltraATA133/100,IDE

SerialATA(j)2SerialATAconnectors in150MB/soperationmode (j)

Controlledby SiI3112 (j)

HardwareMonitor CPU/System/Power(j)fan revolution detect

CPU/Systemtemperaturedetect

CPUwarningtemperature

Systemvoltagedetect

CPU/System/Power(j)fan fail warning

CPU Smart Fan control(j)

Thermalshutdownfunction

tobecontinued......

Chapter 1 Introduction

Features Summary

jFor GA-7N400 Pro2 only. kFor GA-7N400 only. lFor GA-7N400-L only.

7n400pro2_1002_q.p65 2003/7/4, ¤U¤È 03:275

- 6 -N400 Pro2 / N400 Series Motherboard

English

On-BoardPeripherals 1 Floppy port supports 2 FDD with360K, 720K,1.2M, 1.44M

and2.88Mbytes

1Parallel portsupports Normal/EPP/ECPmode

2 Serial ports (COM1 & COM2)

6 USB 2.0/1.1 ports (4 x Rear, 2 x Front by cable)

3 IEEE1394 ports (by cable) (j)

1IrDAconnectorforIR

1FrontAudioconnector

On-Board LAN BuilitinRealtek8110SGigabit(j)

Builitin Realtek 8100C (l)

1RJ45port

On-BoardSound RealtekALC650 CODEC

LineOut/2frontspeaker

Line In / 2 rear speaker (by s/w switch)

Mic In / center & subwoofer (by s/w switch)

SPDIF In / Out

CD In /AUX In / Game port

On-Board IDE RAID(j)OnboardGigaRAIDIT8212Fchipset

Supportsdatastriping(RAID0)ormirroring(RAID1)or

striping+mirroring(RAID 0 +RAID 1)

SupportsJBODfunction

SupportsconcurrentdualATA133IDEcontrolleroperation

SupportATAPImodeforHDD

SupportsIDEbusmasteroperation

SupportATA133/RAID mode switch by BIOS

Displaysstatusanderrorcheckingmessagesduringboot-up

Mirroringsupportsautomaticbackgroundrebuilds

FeaturesLBAandExtendedInterrupt13drivetranslationin

controlleronboardBIOS

tobecontinued......

jFor GA-7N400 Pro 2 only. kFor GA-7N400 only. lFor GA-7N400-L only.

7n400pro2_1002_q.p65 2003/7/4, ¤U¤È 03:276

Altri manuali per Network Device GA-7N400

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte B560M DS3H V2 Manuale utente

Gigabyte

Gigabyte GA-8IPE1000 Series Manuale utente

Gigabyte

Gigabyte B360M HD3 Manuale utente

Gigabyte

Gigabyte GA-6PMM Manuale utente

Gigabyte

Gigabyte GA-870A-USB3L Manuale utente

Gigabyte

Gigabyte GA-H81M-DS2V Manuale utente

Gigabyte

Gigabyte Z790 AORUS PRO X Manuale utente

Gigabyte

Gigabyte GA-X58A-OC Manuale utente

Gigabyte

Gigabyte H410M DS2V V3 Manuale utente

Gigabyte

Gigabyte MX31-CE0 Manuale utente

Gigabyte

Gigabyte GA-Z97X-Game Plus Manuale utente

Gigabyte

Gigabyte GA-7VA Manuale utente

Gigabyte

Gigabyte GA-K8VT800 Manuale utente

Gigabyte

Gigabyte GS-R11U4S Manuale utente

Gigabyte

Gigabyte GA-6VMML Manuale utente

Gigabyte

Gigabyte Z590 AORUS XTREME Manuale utente

Gigabyte

Gigabyte GA-H81M-HD2 Manuale utente

Gigabyte

Gigabyte GA-MA770-DS3 Manuale utente

Gigabyte

Gigabyte GA-9ITDW Guida rapida

Gigabyte

Gigabyte GA-EX38-DS4 Manuale utente

Gigabyte

Gigabyte GA-7VTXH Manuale utente

Gigabyte

Gigabyte Z490M Manuale utente

Gigabyte

Gigabyte GA-945G-S3 Manuale utente

Gigabyte

Gigabyte GA-F2A88X-D3HP Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
