Girard Systems 98GCK-32B Manuale utente

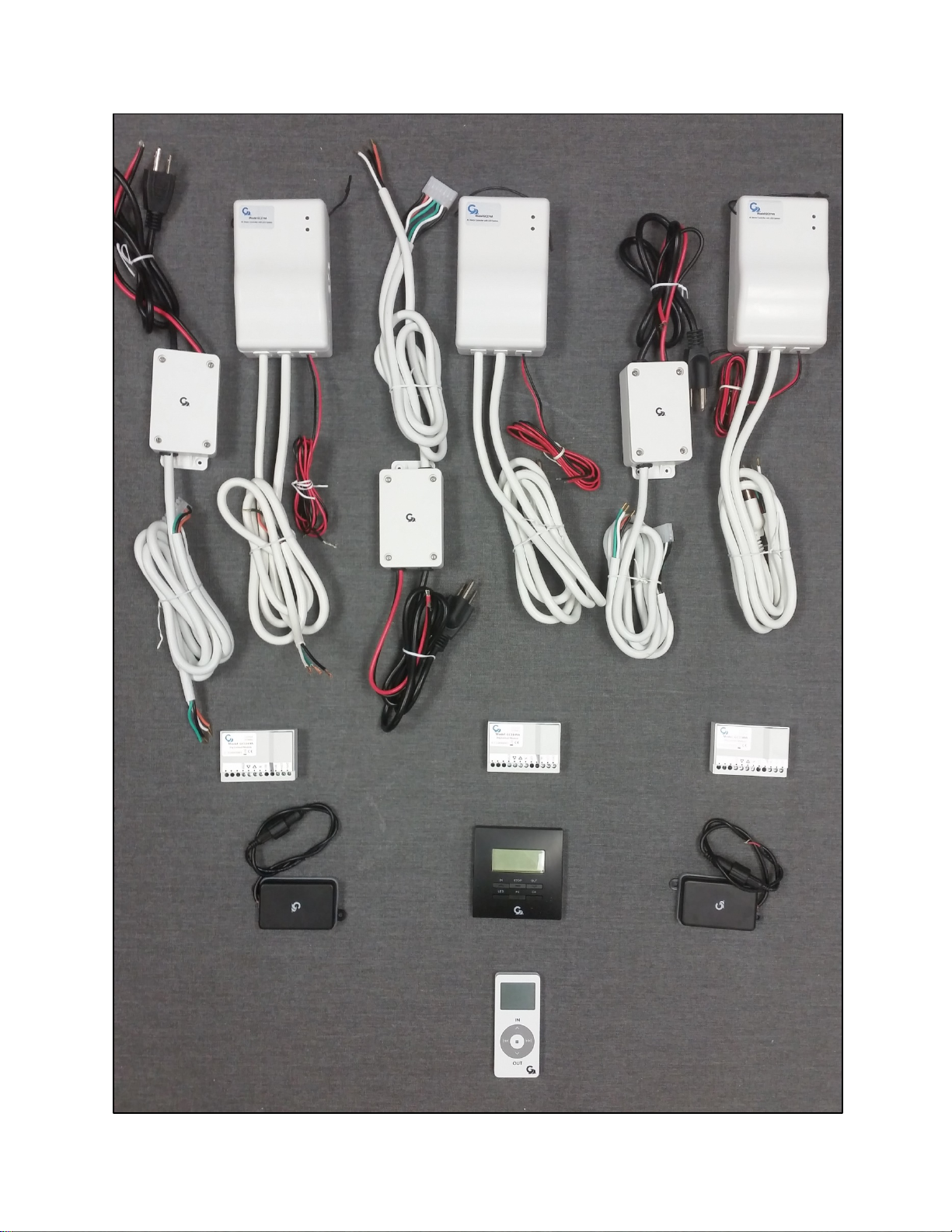

AWNING CONTROL KIT

98GCK-32B

REV.07282015

RV AWNING PRODUCTS

1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500

www.girardrv.com

AC MOTOR CONTROL MODULE

GC274A

INSTALLATION and PAIRING INSTRUCTIONS

REV.07242015

RV AWNING PRODUCTS

1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500

www.girardrv.com

Page 2of 10

Girard Systems awnings may be operated in light wind and rain

conditions. When periods of heavy rain and or high wind are expected

the awning must be closed. Never leave the awning open and

unattended.

Damage caused by wind and rain is not covered by warranty.

All awnings must be closed prior to moving the vehicle for any reason.

As an extra safety precaution a visual check that every awning is fully

closed is required.

Damage caused by failure to comply with these instructions is

not covered by warranty.

Before using your awning, ensure that the area into which the awning

will be deployed is free of obstructions (Trees, walls, pillars, posts,

other vehicles etc.)

Damage caused by collisions with any of the above or similar is

not covered by warranty.

Before using your awning make sure that all of your electrical circuits

are operating correctly. Recreational Vehicles can generate AC power

from three separate sources. The electrical system transfer switch in

your vehicle will select power for the awning as follows:

Shore Power – if connected;

Generator Power – if the generator is running;

Inverter Power – batteries must be charged for inverter operation.

Girard Systems awnings are supplied with an electric motor appropriate to the

product.

Page 3of 10

CONTENTS

Product description ….…………………………………………………………………………..…. 4

Specification …………………………………………………………………………………………… 5

Wiring Diagram ………………………………………………………………………………………. 5

Set up and Programming ..………………………………………………………………………. 6

Continuous and Step Mode of Operation …………………………………………………… 6

Change Motor Direction …………………………………………………………………………… 6

Programming to a remote controller …………………………………………………………. 7

Cancel a remote controller ………………………………………………………………………. 7

Cancel all remote controllers ……………………………………………………………………. 7

Programming to an Anemometer ……………………………………………………………... 7

Programming to a Motion Sensor ……………………………………………………..…. 8-10

THE G–LINK SYSTEM

The G-Link motors and control modules provided by Girard Systems communicate by

use of RF signals on a frequency of 433.92 MHZ. This eliminates the need for wiring

and the drilling of holes in the vehicle. These components must be electronically

matched, programmed or paired before use. This is usually done at the Girard Systems

factory. Should the need arise for the user to pair a device with the motor controller

they must refer to the appropriate manual for the devices applicable to their particular

installation.

Page 4of 10

PRODUCT DESCRIPTION

AC Motor Controller with Optional LED (12V DC) control.

Fig.1

This module is designed to control a single Standard 110v AC Motors UP to 8 Amps, it can also

provide 12v DC power for an optional LED strip and can be remotely operated with any paired

G-Link handset or wall switch. The controller will receive signals from a distance of more than

500ft in open air and more than 100ft in the presence of obstructions. The RF transmission

frequency is 433.92MHZ.

The awning may be operated from the GC274A using the FWD/STOP/REV buttons (see figure

1.). The direction of travel of the motor can be reversed without the need of changing the

wiring by pressing the Left and Right buttons of the module simultaneously for least 6 seconds.

The GC274A may be programmed with up to 20 compatible remote modules. If an additional

module is programmed it will replace the most recently programmed module. The previous 19

modules will remain unchanged.

The GC274A has a quick connector for an easy installation. The black and Red cables are used

to connect an Optional LED Strip.

The GC274A can operate in either Continuous or Step mode.

a. In Continuous mode a single press of the button on the module or the Remote handset

will cause the Awning to move in the chosen direction until the limit switch is actuated,

unless the Stop button is pressed.

b. In Step mode a single press will cause a small step in the chosen direction, but if the

button is not released within 2 seconds the movement will become continuous as

described above.

FWD

STOP

REV

Lid Release

Page 5of 10

Specifications

Power: 110VAC / 60Hz

AC Input: White = Neutral / Black = Live / Green = Earth

To the Motor: White = Neutral / Red = Direction 1 / Black = Direction 2 / Green = Earth

Ambient T: 0 - 130°F

Installation

A circuit breaker protected 15A/115v AC power outlet is required form the Vehicles power

distribution panel as shown in the diagram below.

1. Install a UL approved 110VAC junction box in which to make the electrical connections.

2. Route the Awning’s Motor cable to this location and make the connections to the

GC274a in accordance with NEC requirements.

Mount the GC274A on the wall using the screws and tape provided.

You will note from the diagram above that the GC274A works in conjunction with an Ignition

retract and lock module (GC1102). This device sends a retract signal to the awning when the

vehicle’s ignition is turned on. Once the awning is fully retracted the device removes power to

the motor control module, thus preventing not only moving the vehicle with a deployed awning

but also from the awning being deployed while the vehicle is in motion. Please see the GC1102

instruction manual for further information.

Page 6of 10

SETUP AND PROGRAMMING

1. Selection of “Continuous” or “Step” mode.

a. Supply power to the GC274A.

b. Simultaneously press the STOP and RIGHT button of the GC274Afor at least 6

seconds: The Green LED will first illuminate and then blink a few times. When the Green

LED extinguishes, the operation has been completed

To switch modes (continuous to step or step to continuous) repeat step 1 above.

2. Change motor direction

a. Supply power to GC274A

b. Simultaneously press the LEFT and RIGHT buttons of the GC274A for at least 6 seconds. The

Green LED will illuminate and then blink a few times. When the Green LED extinguishes, the

operation is complete.

To gain access to the Program button on the GC274A the lid of the module must be removed.

Simply press the Lid release tabs found on either side of the box indicated in Fig.1 above and

lift the lid off. The location of the Program button is indicated in Fig.2 below.

Fig.2

Note; when carrying out this part of the procedure each step must be executed

within 10 seconds of the previous one or the module will revert to factory settings.

It is highly recommended that you read and understand the following sequence

before attempting to execute it.

Program Button

Page 7of 10

3. Programming the GC274A to a Remote handset or Wall switch

a. Supply power to the GC274A

b. Press the program button on the GC274 (Fig 2) the Green LED will start blinking.

c. Press STOP (Fig. 1): The Green LED will stop blinking and remain illuminated.

d. Press the UP button on the REMOTE DEVICE being programmed. The Green LED on

the motor controller will extinguish.

4. Cancel one Remote from the GC274A

a. Supply power to the GC274A

b. Press the program button on the GC274A (Fig 2) the Green LED will start blinking.

c. Press STOP (Fig. 1): The Green LED will stop blinking and remain illuminated.

d. Press the DOWN button on the REMOTE DEVICE being cancelled. The Green LED

will extinguish.

5.Cancel all of the Remotes from the GC274A

a. Turn on power to GC274A

b. Simultaneously press the STOP and LEFT button of the GC274A for at least 6

seconds: The Green LED will first illuminate and then blink a few times. When the

Green LED extinguishes the operation has been completed.

6. Programming the GC274A to an Anemometer (98GC116I)

a. Set the wind speed adjustment dial of the anemometer to between 1-2.

b. Supply power to the GC274A and the GC116I(Leave them on if already on)

c. Press the PROGRAM button on the GC274A (the Green LED will start to blink)

d. Press the STOP button on the GC274A (The Green LED will remain illuminated)

e. Press the UP button on the GC116I.

f. Extend awing using a Manual Remote Control and press the UP button again on the

GC116I to verify that the unit is working properly (the awning should Retract)

Wind speed adjustment

Up Button

P2 Button

LED

Page 8of 10

7. Programming the GC274A to a Motion Sensor (98GC779G)

This procedure will require opening up the motion sensor module by following the directions

below;

a. Remove the 2 small cross head screws which secure the motion sensor to the mounting

bracket. See Fig.1.

Fig.1

b. Detach the motion sensor from the bracket, the base plate is magnetized so will need to

be gently lifted off. Then turn it over. See Fig.2.

Fig.2
