Global Sat BC-307 Manuale utente

User Manual

GPS Receiver with Compact Flash Interface

BC-307

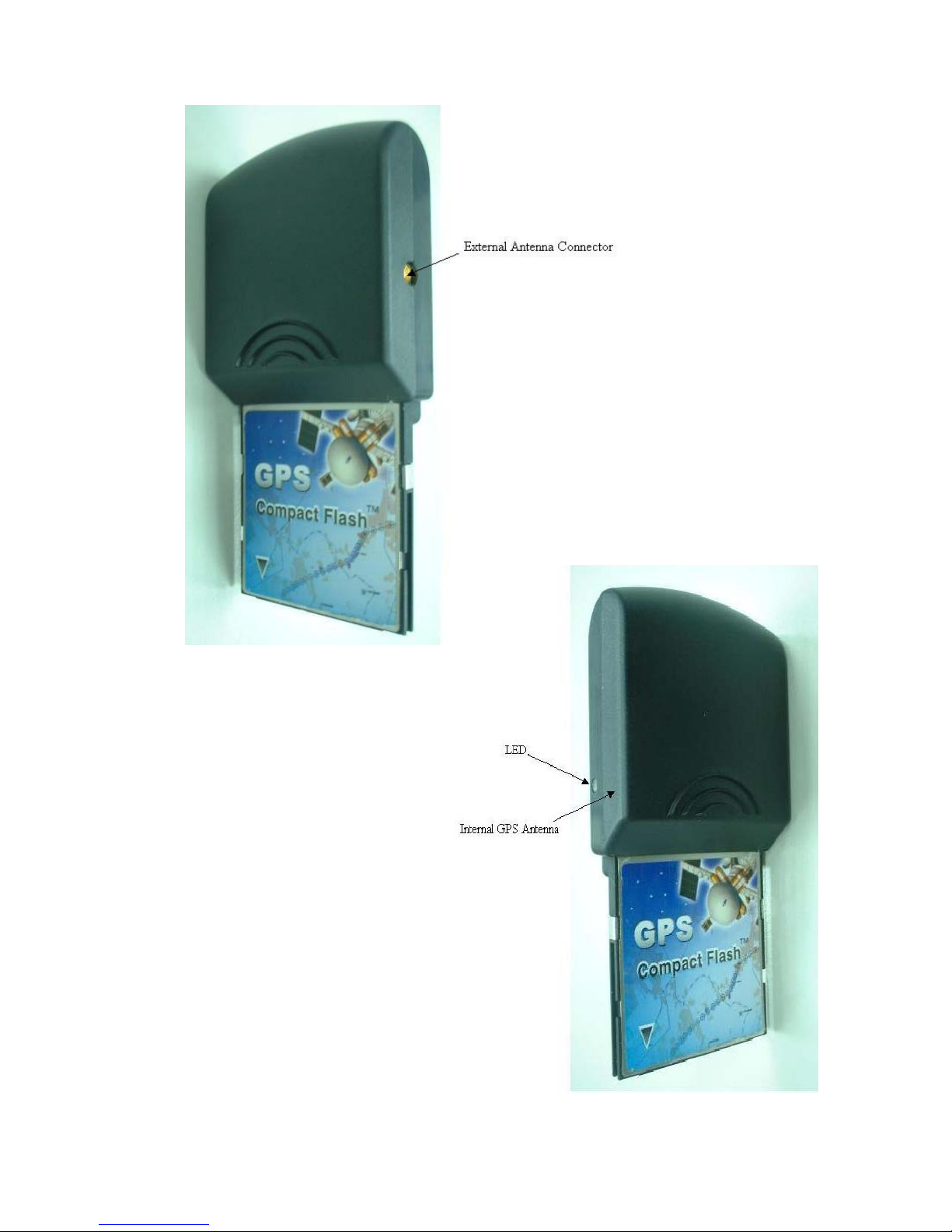

BC-307 at a Glance

1. Introduction

The BC-307 is a GPS receiver with Compact Flash typeⅠinterface and built-in active

antenna for high sensitivity to tracking signal. Based on the SiRF star Ⅱ/LP low power chip

set and supports all functions(SingleSat updates in reduced visibility, Superior urban canyon

performance, FoliageLock for weak signal tracking, etc.). The BC-307 is well suited to

system integration and users who use PDA, notebook PC. It satisfies a wide variety of

applications for car navigation, personal navigation or touring devices, tracking and marine

navigation purpose. Users can simply plug it into a PDAor other type of handheld PC

running with suitable mapping and routing software for navigation.

1.1 Package

Before you start up, make sure that your package includes the following

items. If any items are missing or damaged, contact your dealer immediately.

 GPS Receiver

 User Manual CD(including User Manual, Testing Program, Driver for PCMCIA card

slot of Notebook PC)

 External Antenna

* Optional Accessory：CF-to-PCMCIA adapter

1.2 LED Function

LED off Receiver switch off

LED on Signal searching

LED flashing Position Fixed

1.3 External Antenna

Basically, you don’t need external antenna to perform GPS positioning with BC-307

since it already build-in active antenna. The only condition that you need external antenna is

when BC-307 unit can not “see” the sky, For instance, when you are in a car, or any

environments that GPS signal is blocked, the external GPS antenna will help to receive better

GPS signal.

Plug the external antenna with MMCX connector to the plug on BC-307. Place the

magnetic external antenna on the roof of the car or an outdoor open-space, and make sure

place it in correct direction. That is, the side with magnetic is the bottom side, and the upper

side must face to sky in order to receive better signal.

Notice:

Hold the antenna connector while you plug the external antenna into the BC-307 or

unplug the external antenna from the BC-307. Do not pull the cable line.

2. Installation

The BC-307 GPS supports plug and play.

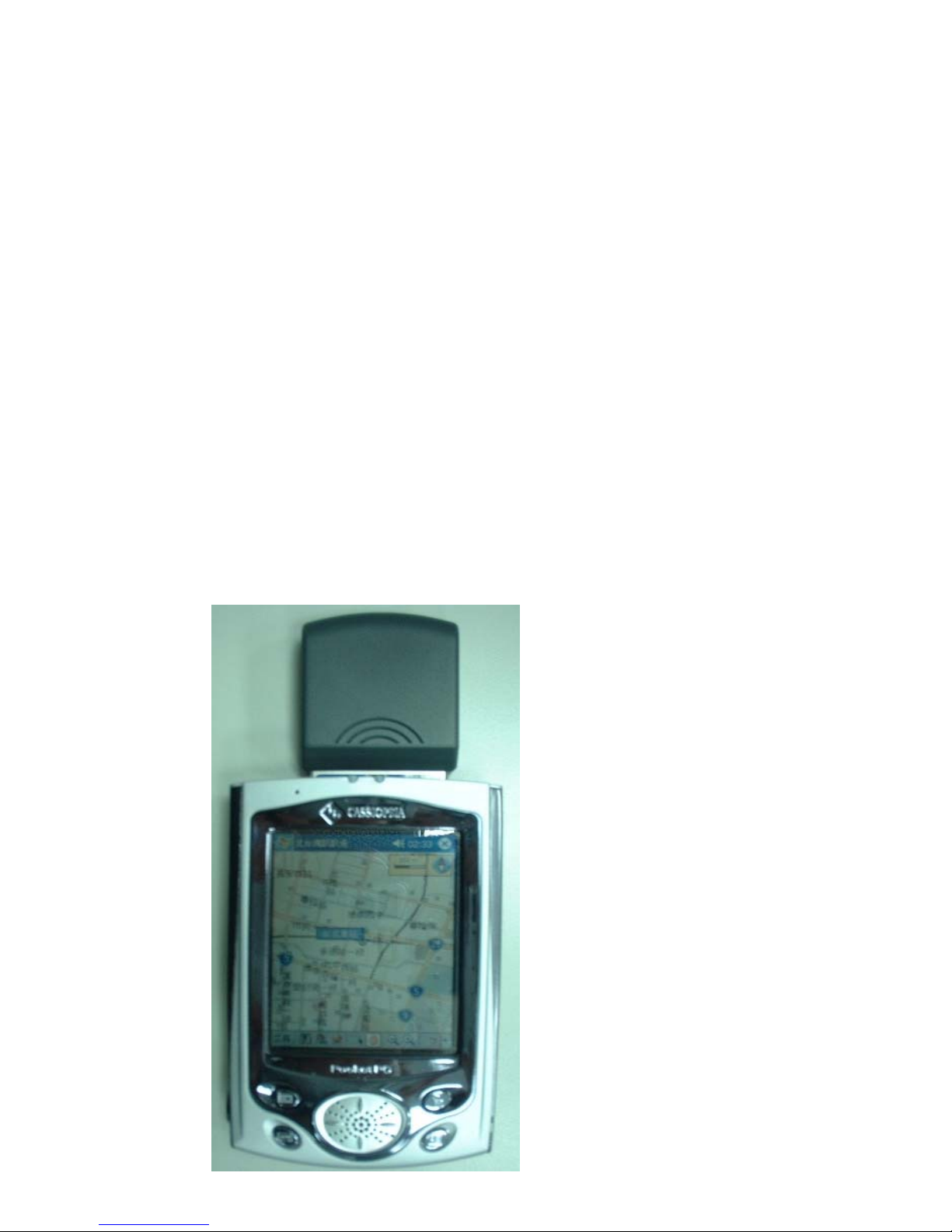

For PDA:

1. Plug in BC-307 GPS into your PDA equipped with Compact Flash interface.

2. Running the suitable mapping/navigation software and select the correct COM port &

baud rate: 4800,N,8,1.

Usually the COM port is COM2 which depends on the PDA type.

User can use the testing program provided with the package to detect the COM port that

the BC-307 is using.

For Notebook PC:

1. Plug in BC-307 into PCMCIA card slot of notebook PC through general

Compact Flash to PCMCIA adapter.

2. Install the “Compact Flash to PCMCIA” drivers for WIN98, 2000, XP

3. Running the suitable mapping/navigation software and select the correct COM port

& baud rate: 4800,N,8,1.

2.1 How to test your Compact Flash GPS for PDA?

The testing program only supports the Microsoft Windows CE & Pocket PC based PDA

platform.

1. Run the “GPSinfo.exe” to execute the installation procedure of testing program (via

PC and ActiveSync).

2. Plug BC-307 into PDA.

3. Run the “GPS Information” program from “Start →Program files” of PDA. User

can utilize such testing software to detect the COM port that the BC-307 is using and

to check the GPS output data from BC-307.

Here is the description of “GPS Information” testing program as follows:

User must select COM port (CF_CARD-GENERIC), Baud Rate (4800) and click the

[Star GPS] button to start receiving GPS data.

2.2 How to test your Compact Flash GPS (through CF to PCMCIAadapter) for

Notebook PC ?

Users can use the Hyper Terminal program of Windows to verify that the GPS is actually configured properly

and working.

The Hyper Terminal program of Window 98 can not select COM port above COM5. Users test with map

software directly.

1. Run the “Hypertrm.exe” from “Program →Accessories →Communications →Hyper Terminal”.

2. Select the proper COM port for your GPS device.

3. Set COM port to :

Baud rate: 4800

Data bit: 8

Parity: None

Stop bit: 1

Flow control: None

4. If no mistakes have been made in the configuration process there should be data being displayed in the

window, which is confirmation that the communication between the GPS device and the “Hyper Terminal”

software is working properly.

3. Specification

Interface: Compact Flash typeⅠ

Protocol: NMEA0183 GGA, GSA, GSV, RMC, VTG, GLL

Baud Rate: 4800,N,8,1

Max. Update Rate: 1 Hz

Datum: WGS84

Channel: 12 channel all-in-view tracking

Frequency: L1, 1575.42MHz

Hot Start: 8 sec. Average

Warm Start: 38 sec. Average

Cold Start: 48 sec. Average

Reacquisition Time: 100 ms

Position Accuracy: 15m 2D RMS, SA off

Maximum Altitude: 18,000m

Maximum Velocity: 515m/s

Voltage: DC 3.3V+- 10%

Power consumption: 90mA continuous mode

Antenna Type: Built in active antenna

External Antenna Interface: MMCX (Optional)

Dimension: 95 (L) x 47 (W) x 17 (H) mm

LED Indicator: GPS is fix or not fix

Operating Temperature: -10℃to + 70℃

Storage Temperature: - 40℃ to + 85℃

Operation Humidity: 95%, Non- Condensing
