GoMax Electronics SP-2003 Manuale utente

SP-2003

1x3 S/PDIF Toslink Splitter

User Manual

rev: 200609

Made in Taiwan

TABLE OF CONTENTS

INTRODUCTION.................................................................................................................1

FEATURES.........................................................................................................................1

PACKAGE CONTENTS ......................................................................................................1

SPECIFICATIONS ..............................................................................................................2

PANEL DESCRIPTIONS.....................................................................................................3

HARDWARE INSTALLATION.............................................................................................3

CONNECTION DIAGRAM...................................................................................................4

WARRANTY........................................................................................................................5

-1-

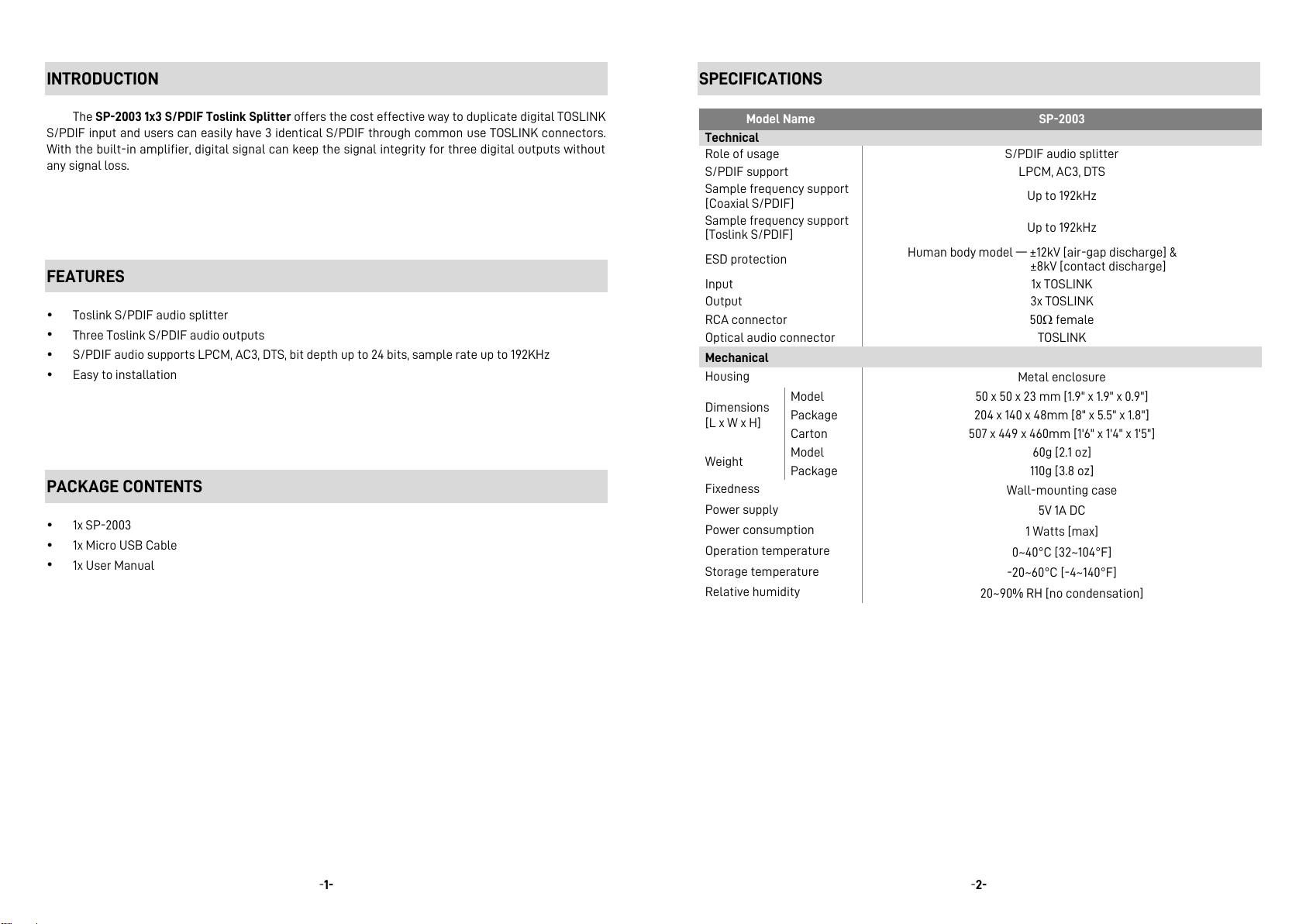

INTRODUCTION

The SP-2003 1x3 S/PDIF Toslink Splitter offers the cost effective way to duplicate digital TOSLINK

S/PDIF input and users can easily have 3 identical S/PDIF through common use TOSLINK connectors.

With the built-in amplifier, digital signal can keep the signal integrity for three digital outputs without

any signal loss.

FEATURES

Toslink S/PDIF audio splitter

Three Toslink S/PDIF audio outputs

S/PDIF audio supports LPCM, AC3, DTS, bit depth up to 24 bits, sample rate up to 192KHz

Easy to installation

PACKAGE CONTENTS

1x SP-2003

1x Micro USB Cable

1x User Manual

-2-

SPECIFICATIONS

Model Name

SP-2003

Technical

Role of usage

S/PDIF audio splitter

S/PDIF support

LPCM, AC3, DTS

Sample frequency support

[Coaxial S/PDIF]

Up to 192kHz

Sample frequency support

[Toslink S/PDIF]

Up to 192kHz

ESD protection

Human body model —±12kV [air-gap discharge] &

±8kV [contact discharge]

Input

1x TOSLINK

Output

3x TOSLINK

RCA connector

50female

Optical audio connector

TOSLINK

Mechanical

Housing

Metal enclosure

Dimensions

[L x W x H]

Model

50 x 50 x 23 mm [1.9" x 1.9" x 0.9"]

Package

204 x 140 x 48mm [8" x 5.5" x 1.8"]

Carton

507 x 449 x 460mm [1'6" x 1'4" x 1'5"]

Weight

Model

60g [2.1 oz]

Package

110g [3.8 oz]

Fixedness

Wall-mounting case

Power supply

5V 1A DC

Power consumption

1 Watts [max]

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

-3-

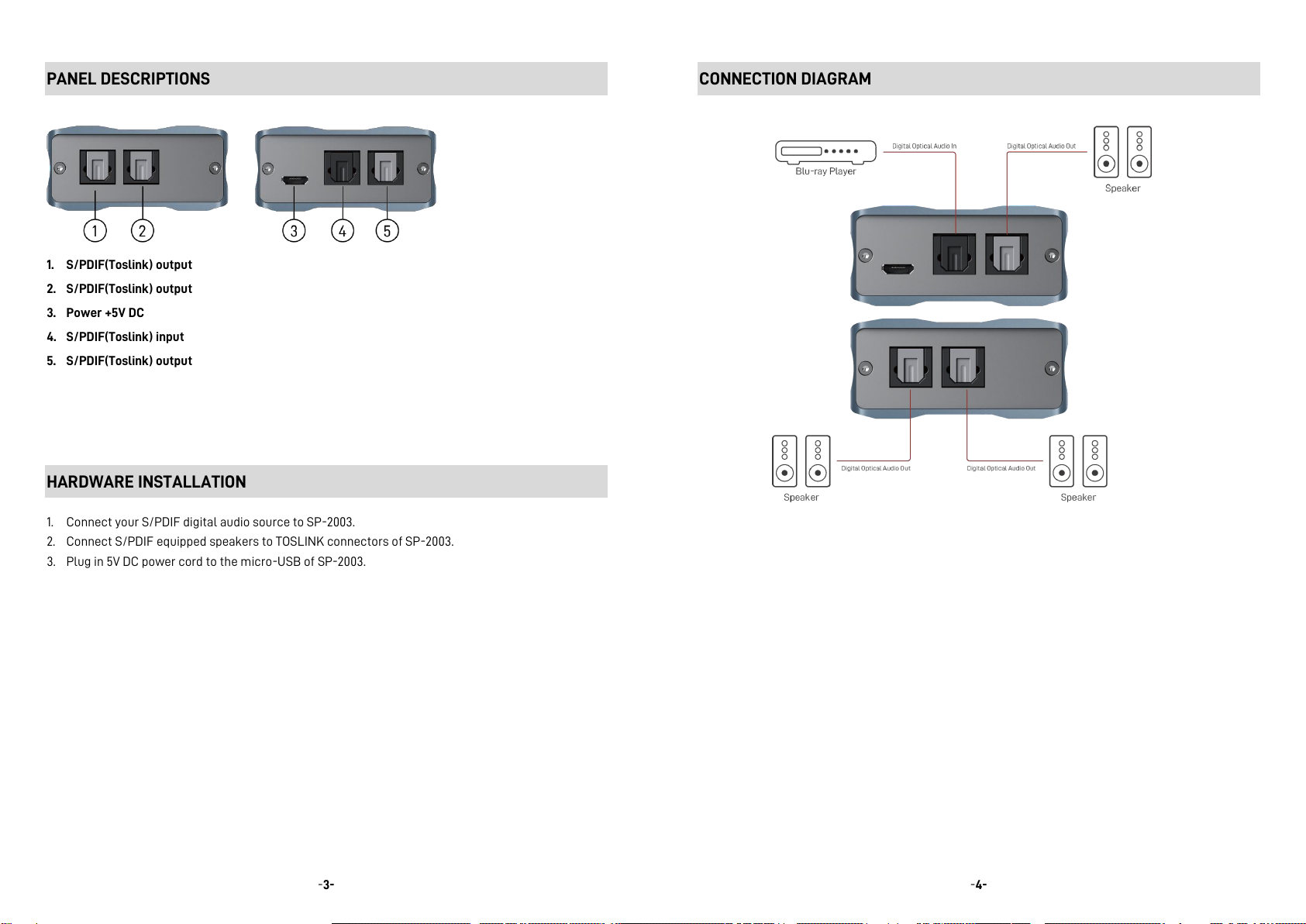

PANEL DESCRIPTIONS

1. S/PDIF(Toslink) output

2. S/PDIF(Toslink) output

3. Power +5V DC

4. S/PDIF(Toslink) input

5. S/PDIF(Toslink) output

HARDWARE INSTALLATION

1. Connect your S/PDIF digital audio source to SP-2003.

2. Connect S/PDIF equipped speakers to TOSLINK connectors of SP-2003.

3. Plug in 5V DC power cord to the micro-USB of SP-2003.

-4-

CONNECTION DIAGRAM

-5-

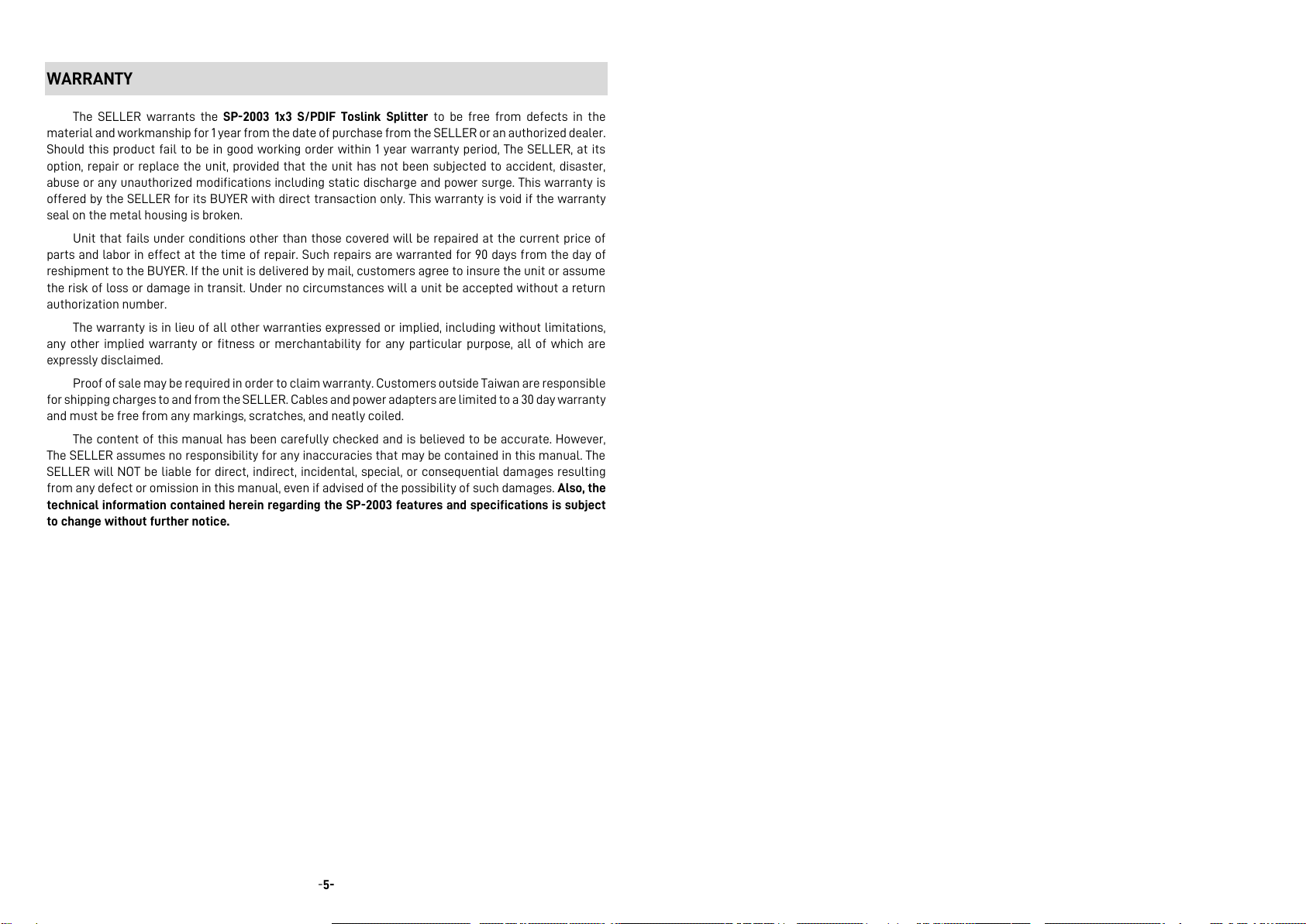

WARRANTY

The SELLER warrants the SP-2003 1x3 S/PDIF Toslink Splitter to be free from defects in the

material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.

Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its

option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster,

abuse or any unauthorized modifications including static discharge and power surge. This warranty is

offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty

seal on the metal housing is broken.

Unit that fails under conditions other than those covered will be repaired at the current price of

parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of

reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume

the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return

authorization number.

The warranty is in lieu of all other warranties expressed or implied, including without limitations,

any other implied warranty or fitness or merchantability for any particular purpose, all of which are

expressly disclaimed.

Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible

for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty

and must be free from any markings, scratches, and neatly coiled.

The content of this manual has been carefully checked and is believed to be accurate. However,

The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The

SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting

from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the

technical information contained herein regarding the SP-2003 features and specifications is subject

to change without further notice.
