Good Will Instrument GSB-01 Manuale utente

Multiplex Scanner Box

GSB-01/GSB-02

QUICK START GUIDE

GW INSTEK PART NO. 82SB-02000M01

ISO-9001 CERTIFIED MANUFACTURER

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

TestEquipmentDepot.com

This manual contains proprietary information, which is protected by

photocopied, reproduced or translated to another language without

prior written consent of Good Will company.

The information in this manual was correct at the time of printing.

However, Good Will continues to improve products and reserves the

right to change specification, equipment, and maintenance

procedures at any time without notice.

Good Will Instrument Co., Ltd.

No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

Table of Contents

SAFETY INSTRUCTIONS ................................................... 4

Safety Symbols............................................................................................. 4

Safety Guidelines ......................................................................................... 5

Power cord for the United Kingdom ........................................................... 8

INTRODUCTION............................................................... 9

Series lineup ................................................................................................ 9

Firmware Note............................................................................................. 9

Model Overview......................................................................................... 10

Main Features............................................................................................ 10

Accessories and Package Contents........................................................... 11

Panel Overview .......................................................................................... 12

Appearance ................................................................................................ 12

GSB-01 Front Panel ................................................................................... 12

GSB-02 Front Panel ................................................................................... 12

GSB-01 Rear Panel..................................................................................... 13

GSB-02 Rear Panel..................................................................................... 13

Test Lead Connection................................................................................ 14

Connecting GSB-01 Units ......................................................................... 14

Connecting GSB-02 Units ......................................................................... 17

OPERATION .................................................................... 20

Menu Tree.................................................................................................. 20

Common Utility Settings........................................................................... 21

Scan Configuration.................................................................................... 23

GSB-01/GSB-02 Quick Start Guide

SAFETY INSTRUCTIONS

This chapter contains important safety

instructions that you must follow during

operation and storage. Read the following before

any operation to ensure your safety and to keep

the instrument in the best possible condition.

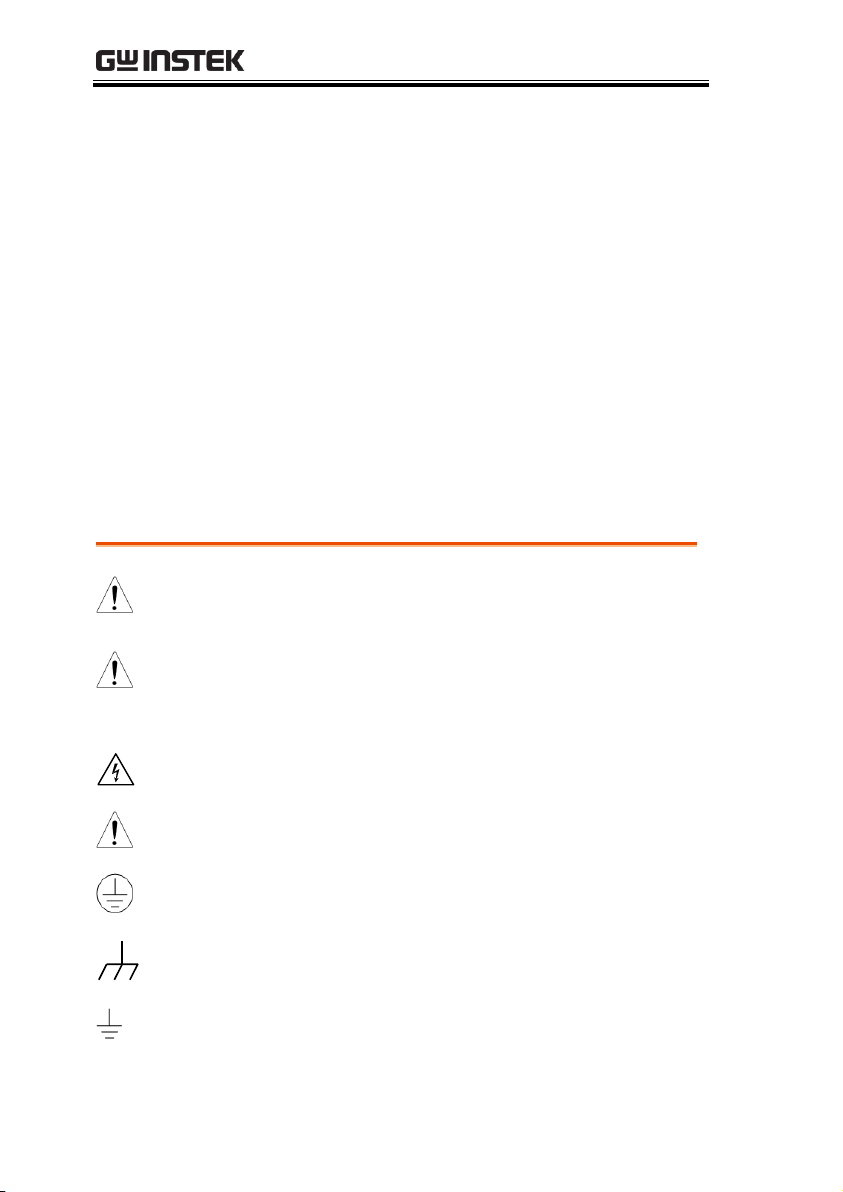

Safety Symbols

These safety symbols may appear in this manual or on the

instrument.

WARNING

Warning: Identifies conditions or practices that

could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that

could result in damage to the instrument or to

other properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Frame or Chassis Terminal

Earth (ground) Terminal

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

TestEquipmentDepot.com

SAFETY INSTRUCTIONS

Do not dispose electronic equipment as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased.

Safety Guidelines

General

Guideline

CAUTION

Do not place any heavy object on the

instrument.

Avoid severe impact or rough handling that

leads to damaging the instrument.

Do not discharge static electricity to the

instrument.

Use only mating connectors, not bare wires, for

the terminals.

Do not block the cooling fan opening.

Do not disassemble the GSB-01/GSB-02 unless

you are qualified.

(Measurement categories) EN 61010-1:2010 specifies the

measurement categories and their requirements as follows. The

GSB-01/GSB-02 falls under category II.

Measurement category IV is for measurement performed at the

source of low-voltage installation.

Measurement category III is for measurement performed in the

building installation.

Measurement category II is for measurement performed on the

circuits directly connected to the low voltage installation.

Power Supply

WARNING

AC Input voltage range: 100 - 240VAC ±10%

Frequency: 50Hz/60Hz

To avoid electrical shock connect the protective

grounding conductor of the AC power cord to

an earth ground.

GSB-01/GSB-02 Quick Start Guide

Fuse

WARNING

 Fuse Type: T 2A/250V

 To ensure fire protection, replace the fuse only

with them specified type and rating.

 Disconnect the power cord before replacing the

fuse.

 Make sure the cause of the fuse blowout is fixed

before replacing the fuse.

Cleaning the

GSB-01/GSB-02

 Disconnect the power cord before cleaning.

 Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

 Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

Operation

Environment

 Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

 Relative Humidity: ≤ 70% (no condensation)

 Altitude: < 2000m

 Temperature: 0˚C~40˚C

(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees

and their requirements as follows. The GSB-01/GSB-02 falls under

degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or

gaseous (ionized gases), that may produce a reduction of dielectric

strength or surface resistivity”.

 Pollution degree 1: No pollution or only dry, non-conductive

pollution occurs. The pollution has no influence.

 Pollution degree 2: Normally only non-conductive pollution

occurs. Occasionally, however, a temporary conductivity caused

by condensation must be expected.

 Pollution degree 3: Conductive pollution occurs, or dry, non-

conductive pollution occurs which becomes conductive due to

condensation which is expected. In such conditions, equipment

is normally protected against exposure to direct sunlight,

precipitation, and full wind pressure, but neither temperature

nor humidity is controlled.

SAFETY INSTRUCTIONS

Storage

environment

Location: Indoor

Temperature: -10°C to 70°C

Relative Humidity: ≤ 85% (no condensation)

Disposal

Do not dispose this instrument as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased. Please make sure

discarded electrical waste is properly recycled to

reduce environmental impact.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

TestEquipmentDepot.com

GSB-01/GSB-02 Quick Start Guide

Power cord for the United Kingdom

When using the scanner box in the United Kingdom, make sure the

power cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in this lead are coloured in accordance with the

following code:

Green/ Yellow:

Earth

Blue:

Neutral

Brown:

Live (Phase)

As the colours of the wires in main leads may not correspond with

the coloured marking identified in your plug/appliance, proceed

as follows:

The wire which is coloured Green & Yellow must be connected to

the Earth terminal marked with either the letter E, the earth symbol

or coloured Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal

which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the

terminal marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment

or contact the supplier.

This cable/appliance should be protected by a suitably rated and

approved HBC mains fuse: refer to the rating information on the

equipment and/or user instructions for details. As a guide, a cable

of 0.75mm2should be protected by a 3A or 5A fuse. Larger

conductors would normally require 13A types, depending on the

connection method used.

Any exposed wiring from a cable, plug or connection that is

engaged in a live socket is extremely hazardous. If a cable or plug is

deemed hazardous, turn off the mains power and remove the cable,

any fuses and fuse assemblies. All hazardous wiring must be

immediately destroyed and replaced in accordance to the above

standard.

INTRODUCTION

This Quick Start Guide is intended as a fast introduction to

operating the GSB-01/02 scanner boxes with the GPT-9000 safety

testers. This Quick Start Guide assumes that the user is familiar

with the GPT-9000 series safety testers.

For comprehensive instructions, please see the User Manual,

located on the accompanying CD.

Series lineup

The aim of these scanner boxes is to allow multiple DUTs to be

tested either concurrently or in sequence using the GPT-9800, GPT-

9900 or GPT-9900A safety testers. The scanner boxes are

particularly well suited for multi-point safety testing as well for

volume testing on factory floors.

The GSB-01 has connections for ACW, DCW and IR testing, while

the GSB-02 also includes support for GB testing.

Firmware Note

Please make sure the firmware is up to date before using the

scanner boxes. Please see the user manual to check the firmware

version.

GPT-9800: firmware version V3.0 or above

GPT-9900/9900A: firmware version V2.0 or above

Note: Throughout this guide, the terms scanner box or GSB will

refer to either model (GSB-01, GSB-02) unless specifically stated

otherwise. GPT-9000 will refer to any of the GPT-9800, GPT-9900 or

GPT-9900A safety testers, unless stated otherwise. HV and H will

refer to High Voltage terminals, while LO and L will refer to the

return terminal.

GSB-01/GSB-02 Quick Start Guide

Model Overview

Model name

ACW

DCW

Outputs

GSB-01



8 x HV

GSB-02



6 x HV, 2 x GB

Main Features

Performance

8 HV outputs (6 for GSB-02)

2 GB outputs (GSB-02 only)

ACW: 5kV AC

DCW: 6kV DC

IR: 1kV DC

GB: 40A (GSB-02 only)

Features

PASS/FAIL LEDs

HI LO LEDs

Up to 4 scanner boxes can be connected

Interface

RS-232 interface

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

TestEquipmentDepot.com

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Good Will Instrument Apparecchiature di prova

Good Will Instrument

Good Will Instrument instek GOS-6200 Manuale utente

Good Will Instrument

Good Will Instrument GOS-6051 Manuale utente

Good Will Instrument

Good Will Instrument instek GOS-6200 Manuale utente

Good Will Instrument

Good Will Instrument Instek GRS-6052 Manuale utente

Good Will Instrument

Good Will Instrument GDS-806 Manuale del proprietario

Good Will Instrument

Good Will Instrument GDS-3000A Series Manuale utente

Good Will Instrument

Good Will Instrument GOS-310 Manuale utente

Good Will Instrument

Good Will Instrument PEL-2000B Series Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
