GP3D Root Manuale utente

GP3D Root 3D Printer

User Manual

GP3D Root User Manual

Version 1.0

Statements

This manual includes important information for product installation, use, maintenance, and storage. Please read carefully before

use.

Our company has the right to revise the machine and its manual without notice

Our company will not be responsible for any loss caused by reference to this manual (including loss of follow-up), and including any

loss caused by printing or other publishing error.

Any unit or individual shall not modify copy or translate this manual without permission.

This manual is protected by copyright and our company reserves the right of final interpretation.

GP3D Root User Manual

Version 001

Catalog

USE NOTES AND IMPORTANT SAFETY ITEMS........................................................................................................................................1

1.PRODUCT OVERVIEW ......................................................................................................................................................................1

1.1 PRODUCT INTRODUCTION....................................................................................................................................................1

2. PREPRATION BEFORE USE...............................................................................................................................................................1

2.1 CHECK OUT THE BOX...........................................................................................................................................................1

3. SOFTWARE INSTALLATION AND INTRODUCTION...............................................................................................................................3

3.1 INTRODUCTION ...................................................................................................................................................................3

3.2 SOFTWARE INSTALLATION.....................................................................................................................................................4

3.3 COMPUTER SLEEPING MODE CHANGES..................................................................................................................................6

3.4 WIN8/8.1 DRIVER INSTALLATION .........................................................................................................................................7

3.5 WIN7DRIVER INSTALLATION.................................................................................................................................................8

4INTERFACE AND FUNCTION ..............................................................................................................................................................9

4.1.INTERFACE ...........................................................................................................................................................................9

4.2 PRINT FROM PC ................................................................................................................................................................20

4.3 ATTENTIONS FOR ONLINE PRINTING ....................................................................................................................................21

5. OFFLINE PRINTING.......................................................................................................................................................................21

5.1 TOUCH SCREEN INTRODUCTION..........................................................................................................................................21

5.2 ATTENTION FOR OFFLINE PRINTING.....................................................................................................................................22

6. AFTER SERVICE ATTENTION ...........................................................................................................................................................22

ATTACHMENT 1MAINTENANCE ........................................................................................................................................................22

GP3D Root User Manual

USE NOTES AND IMPORTANT SAFETY ITEMS

During printing do not touch the power line, USB data line, or pull out

the SD card. Otherwise the printing process will be interrupted.

To avoid nozzle clogging, do not heat long time when it is not in

extruding condition.

When debugging, the nozzle will extrude filament, so please ensure

there is at least 50mm between nozzle and print platform, otherwise

the nozzle might clog.

Do not handle into the machine during heating or using. Otherwise

collision or scalding due to mobile printing.

Do not place the printer in high humidity, dust, or sunlight.

Do not place the printer on an inclined surface. Printing will be

affected and the machine may be damaged or hurt other items.

To avoid burns or scratches, do not separate printed objects without

protective gloves.

1. PRODUCT OVERVIEW

1.1 PRODUCT INTRODUCTION

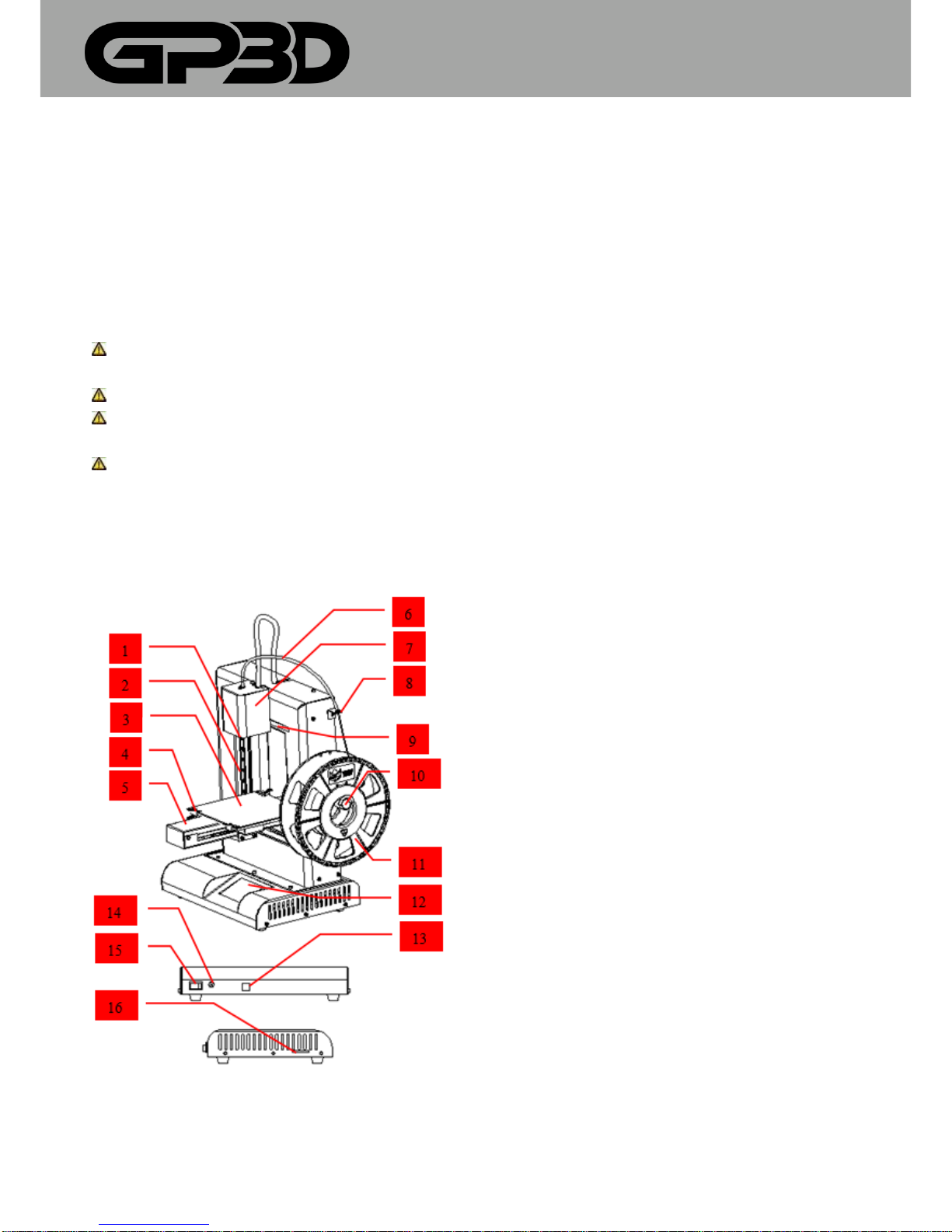

（Figure 1.1-01）

1. Nozzle 2. Z-axis 3. Building plate 4. Clips

5. Y-axis 6. Teflon tube filament guide 7. Extruder head

8. Filament tube guide 9. X-axis 10. Spool holder

11. Filament 12. Touch screen 13. USB slot

14. Power input 15. Power Switch 16. SD card slot

1.2 technical parameters

running environment

Use temperature：5℃～35℃

Relative humidity：30%～90%

Electrical Parameters

Power Input: 100 - 240V 47/63Hz 1.6A

Output: 12V/DC 5.3A

Maximum Power: 63.6W

Print parameter

Printing Size: 150×150×140mm

Layer Thickness: 0.2～0.3mm

Speed: 30－150 cm³/h

Material parameters

Material diameter：1.75mm

Material: PLA

Printing Temperature: PLA 220-230°C

Software parameters

Print software：Germinate_v1_0

File format：STL/GCODE/X3G

Adaptive system：Windows XP/Vista/Win7/8/8.1

Structural parameters

Printer Size: 298×221×403mm

Packing size：19.53”(L)×14.80”(W)×14.02”(H)

Net Weight: 16.5 Lbs

Gross Weight：26.45 Lbs

2. PREPARATION BEFORE USE

2.1 CHECK THE BOX AND PRINTER

Please check that the product is in good condition, such as no surface

scratches or damage. Please contact the local dealer or GP3D

customer service. If anything is missing from the box please contact GP3D

customer service.

2.2 parts installation

2.2.1 Open the tool kit, to find the following items, as shown below.

GP3D Root User Manual

（Figure 2.2-01）

2.2.2 Assembly of spool holder: Take out the two screws in the middle of

the right side of the GP3D Root and fix the spool holder with the screws.

Note that the rib is on the upper side.

（Figure 2.2-02）

2.2.3 Assembly of filament tube guide: take out the screw at the back of

the upper right of the GP3D Root and fix the filament tube guide with the

screw.

（Figure 2.2-03）

2.2.4 Fixation of hotbed panel: fix the hotbed panel on the build plate

with four clamps.

（Figure 2.2-04）

2.2.5 Preparation of filament rod: the filament free end must be cut to be

flat. Please keep it straight as well.

（Figure 2.2-05）

2.2.6 Hang the feed disk on the spool holder and put the filament

through the filament tube guide.

（Figure 2.2-06）

2.2.7 Pass the filament through Teflon tube. As shown below:

（Figure 2.2-07）

2.2.8 Power on: plug the output end of the power adapter into the power

interface on the GP3D Root.

（Figure 2.2-08）

GP3D Root User Manual

3. SOFTWARE INSTALLATION AND INTRODUCTION:

3.1 INTRODUCTION

Please read below carefully before installation:

* The driver for software is in the SD card. Please copy the driver to your

pc.

* Please shutdown all firewalls or antivirus software before installing

Germinate.

* Please obtain administrator’s permission before installation.

* The below steps should apply to Windows 7.

3.1 Disable Driver Signature Enforcement for Windows 8 or 8.1

3.1.1 Press [WIN] and [R] on your keyboard, enter command

[shutdown /r /o /f /t 00], and click the [OK] button. (Figure 3.1-01)

(Figure 3.1-01)

3.1.2 System will restart to a [Choose an option] screen, and then

select [Troubleshoot]. (Figure 3.1-02)

(Figure 3.1-02)

3.1.3 Select [Advanced options] from [Troubleshoot] screen. (Figure

3.1-03)

(Figure 3.1-03)

3.1.4 Select [Startup Settings] from [Advanced options] screen.

(Figure 3.1-04)

3.1.5 Click [Restart] button System will restart to [Advanced Boot

Options] screen. (Figure 3.1-05)

(Figure 3.1-05)

3.1.6 Select [Disable Driver Signature Enforcement] or press [F7] on

your keyboard, then restart. (Figure 3.1-06)

(Figure 3.1-06)

GP3D Root User Manual

3.2 SOFTWARE INSTALLATION

The following installation of drivers and software is for Windows XP,

Win 7, 8 and 8.1 systems.

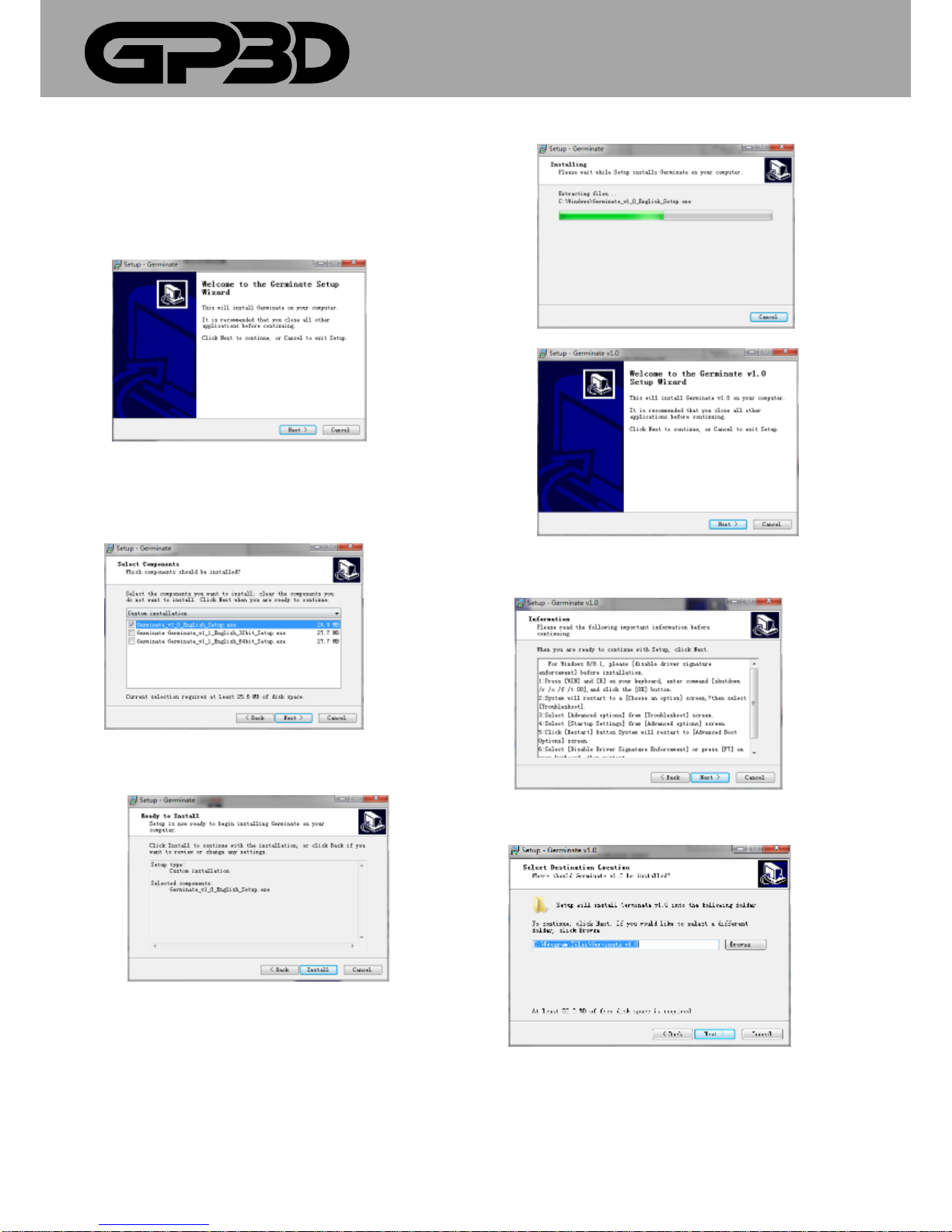

3.2.1 Select a folder, click “next”. (Figure 3.2-01)

（Figure 3.2-01）

3.2.2 Click “next”, and then select “Germinate_V1_0_English.setup.exe”.

Select a folder, click “next”. (Figure 3.2-02)

（Figure 3.2-02）

3.23 click “Install”. (Figure 3.2-03)

（Figure 3.2-03）

3.2.4 Click “next”. (Figure .3.2-04)

（Figure 3.2-04）

3.2.5 Select “next”. (Figure 3.2-05)

（Figure 3.2-05）

3.2.6 Select “next”. (Figure 3.2-06)

（Figure 3.2-06）

3.2.7 Select “next”. (Figure 3.2-07)

GP3D Root User Manual

（Figure 3.2-07）

3.2.8 Select “next”. (Figure 3.2-08)

（Figure 3.2-08）

3.2.9 Click “Install”. (Figure 3.2-09)

(Figure 3.2-09)

3.2.10 Then need to wait, while installation process appeared below

(Figure 3.2-10)

3.2.11 Select “Finish” to complete software installation. (Figure 3.2-08)

(Figure 3.2-11)

3.2.12 Run as an administrator for Windows 7, 8 or 8.1.

Right-click the desktop icon or Wstk.exe under installation directory.

（Figure 3.2-12）

3.2.13 Select “Run this program as an administrator and then click

“change settings for all users”like below:

（Figure 3.2-13）

3.2.14 Select “Run this program as an administrator”, then “Apply”,

and then select ”OK”.

GP3D Root User Manual

（Figure 3.2-14）

3.3 COMPUTER SLEEPING MODE CHANGES

Attention: To avoid interruption during printing, please turn off the

sleeping mode on your pc.

3.3.1 Win8or8.1

Right-click the desktop and select “Personalization”, then select “Screen

saver”. (Figure 3.3-01)

（Figure 3.3-01）

3.3.2 In the pop-up interface, click “Change advanced power settings”.

（Figure 3.3-02）

3.3.3 In the pop-up interface of “Advanced settings”, click “Change plan

settings” in “Balanced”.

（Figure 3.3-03）

3.3.4 Choose “Never” in the “Put the computer to sleep” drop-down. Then

click “save changes”.

（Figure 3.3-04）

3.3.5 In Windows 7, find “Control Panel”, click “Power Options”, and then

click “Change plan settings”.

GP3D Root User Manual

（Figure 3.3-05）

3.3.6 Choose “Never” in the “Put the computer to sleep” drop-down. Then

click “save changes”.

（Figure 3.3-06）

3.4WIN8/8.1 DRIVER INSTALLATION

3.4.1 After connecting the 3D printer, the system will install the driver

automatically, and check if the installation was successful. Right-click on

“Computers”, and click “Properties.” In the pop-up interface, click “Device

Manager”. Drop down “Other device”. Right-click on ”The Replicator”.

Choose “Update Driver Software.”

（Figure 3.4-01）

3.4.2 In the pop-up interface, select “Browse my computer for drive

software”

（Figure 3.4-02）

3.4.3 Pop-up as shown below. Select “Browse”.

（Figure 3.4-03）

3.4.4 Click “Close”. Installation is finished.

（Figure 3.4-04）

3.4.5 Check if installation succeeds. Click the “+” in front of “Port (COM

&LPT)”. If the port number is shown, the driver of USB serial port is

installed successfully.
