Grandstream Networks GWN7630LR Manuale utente
For Certication, Warranty and RMA information, please visit
www.grandstream.com
Grandstream Networks, Inc.
126 Brookline Ave, 3rd Floor
Boston, MA 02215. USA
Tel : +1 (617) 566 - 9300
Fax: +1 (617) 249 - 1987
www.grandstream.com
In all EU member states, operation of 5150
- 5350 MHz is restricted to indoor use only.
GWN7630LR
Outdoor Long-Range High-Performance
802.11ac Wi-Fi Access Point
Quick Installation Guide
~1~ ~2~
OVERVIEW
This long range Wi-Fi access point is designed to provide extended
coverage support and is ideal for outdoor Wi-Fi solutions thanks to its
waterproof casing and heat resistant technology. The GWN7630LR comes
equipped with dual-band 4x4:4 MU-MIMO technology and a sophisticated
antenna design for maximum network throughput and extended Wi-
Fi coverage range of up to 300 meters. To ensure easy installation
and management, the GWN7630LR uses a controller-less distributed
network management design in which the controller is embedded within
the product’s web user interface. The GWN7630LR is also supported by
GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. It is
the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and oers a seamless
connection with Grandstream’s Wi-Fi-capable IP phones. With support
for advanced QoS, low-latency real-time applications, mesh networks,
captive portals, 200+ concurrent clients per AP and dual Gigabit network
ports with PoE/PoE+, the GWN7630LR is an ideal Wi-Fi access point for
medium wireless network deployments with medium-to-high user density.

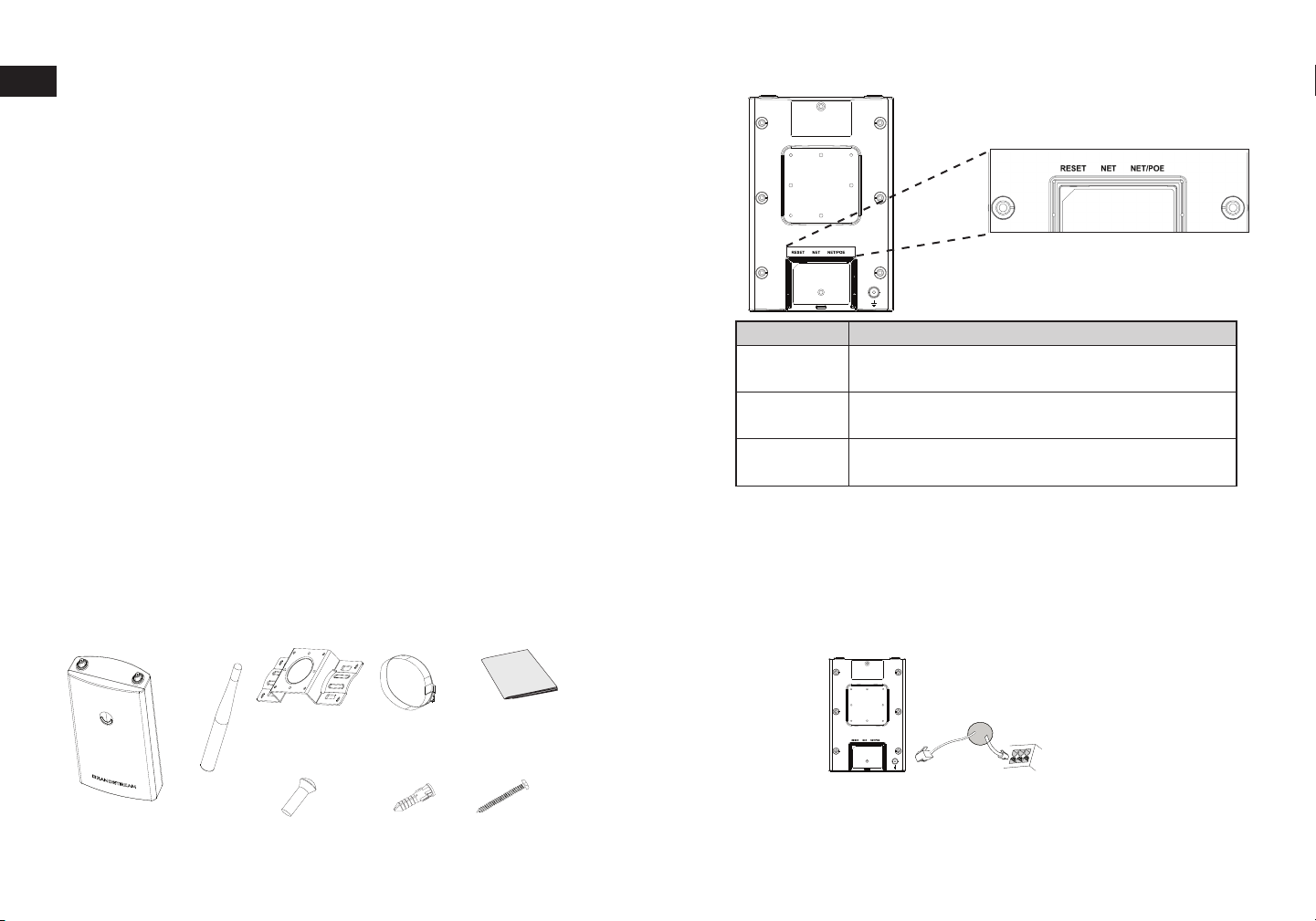

PACKAGE CONTENTS
GWN7630LR PORTS
POWERING AND CONNECTING THE GWN7630LR
PRECAUTIONS
• Do not attempt to open, disassemble, or modify the device.
• Do not expose this device to temperatures outside range of -30 °C to
60 °C for operating and -30 °C to 70 °C for storage.
• Do not expose the GWN7630LR to environments outside of the
following humidity range: 5-95% RH (non-condensing).
• Do not power cycle your GWN7630LR access point during system
boot up or firmware upgrade. You may corrupt firmware images and
cause the unit to malfunction.
GWN7630LR can be powered on using PoE/PoE+ switch using
following steps:
Step 1: Plug a RJ45 Ethernet cable into the network port of
GWN7630LR.
EN
1x Base
Bracket
6x Screws
(PA 3.5 x 33)
4x Screws
(PM 3.0 x 7)
Port Description
NET/POE Ethernet RJ45 port (10/100/1000Mbps) supporting
PoE/PoE+.
NET Ethernet RJ45 port (10/100/1000Mbps) to your router
or another GWN76xx.
RESET Factory reset button.
Press for 7 seconds to reset factory default settings.
Network Port RJ45 Ethernet Cable
to power over Ethernet
(PoE/PoE+) Switch
Step 2: Plug the other end into the uplink port of the power over Ethernet
(PoE/PoE+) switch.
GWN7630LR can be mounted on the wall or on a metal bar, Please
refer to the following steps for the appropriate installation.
6x Screw
Anchors
4x Antennas
GWN7630LR
Access point
2x Metal
Straps
1x Quick Installation
Guide
HARDWARE INSTALLATION
~3~ ~4~
Pole Mount
1. Connect the Ethernet cable (RJ45) to the correct ports of your
GWN7630LR and insert the cover bracket.
2. Connect each antenna to an antenna connector by rotating it
clockwise.
3. Attach the Base Bracket with screws (PM 3.0 x 7) on the back of
GWN7630LR access point.
123
4
5
123
Wall Mount
56
4. Insert screws (PA 3.5x33) through the Base Bracket and mark the
mounting screw holes on the wall using a pencil.
5. Drill the holes in the spots that you have marked and slide the anchors
into the wall. Secure the GWN7630LR access point to the wall by
inserting the screws into the anchors.
Wall
1. Connect the Ethernet cable (RJ45) to the correct ports of your
GWN7630LR and insert the cover bracket.
2. Connect each antenna to an antenna connector by rotating it
clockwise.
3. Attach the Base Bracket with screws (PM 3.0 x 7) on the back of
GWN7630LR access point.
4. Open the metal straps by turning the locking mechanism counter-
clockwise. You can loosen it by hand or use a athead screwdriver.
5. Straighten out the end of the metal straps and slide it through the back
of the base bracket.
6. Wrap the metal strap around the pole and use a athead screwdriver
to tighten the locking mechanism by turning it clockwise.
Pole
~5~ ~6~
CONNECT TO GWN7630LR DEFAULT Wi-Fi NETWORK
GWN7630LR can be used as standalone access point out of box, or after
factory reset with Wi-Fi enabled by default.
After powering the GWN7630LR and connecting it to the network,
GWN7630LR will broadcast a default SSID based on its MAC address
GWN[MAC’s last 6 digits] and a random password.
Note: GWN7630LR’s default SSID and password information are
printed on the sticker at the back of the unit.
A computer connected to the GWN7630LR’s SSID, or to the same
network as the GWN7630LR can discover and access its conguration
interface using one of the below methods:
Method 1: Discover GWN7630LR using its MAC Address
1. Locate the MAC address on the MAC tag of the unit, which is on the
underside of the device, or on the package.
2. From a computer connected to same network as the GWN7630LR,
type in following address using GWN7630LR’s MAC address on your
browser https://gwn_<mac>.local
Example: If a GWN7630LR has the MAC address 00:0B:82:8C:4D:F8,
this unit can be accessed by typing https://gwn_000b828c4df8.local on
the browser.
ACCESSING THE CONFIGURATION INTERFACE
Method 2: Discover GWN7630LR using GWN Discovery Tool
1. Download and install GWN Discovery Tool from the following link:
http://www.grandstream.com/tools/GWNDiscoveryTool.zip
2. Open the GWN DiscoveryTool, and click on Scan.
3. The tool will discover all GWN76xx Access Points connected on the
network showing their MAC and IP addresses.
4. Click on Manage Device to be redirected directly to the GWN7630LR’s
conguration interface, or type in manually the displayed IP address
on your browser.
5. Enter username and password to login. (The default administrator
username is “admin” and the default random password can be found
at the back sticker on the GWN7630LR).
● Make sure that the GWN7630LR is not already paired with another
GWN76xx Access Point as slave, GWN7000 Router Series or GWN.
Cloud, otherwise the conguration interface cannot be accessed
● If the GWN7630LR is already paired, make sure to unpair it rst, or
do a factory reset.
● It is customer’s responsibility to ensure compliance with local
regulations for frequency bands, transmit power and others.
● To manage GWN7630LR over cloud, please refer to https://www.
gwn.cloud.
Refer to online documents and FAQ for more detailed information:
http://www.grandstream.com/our-products
Notes:
The GNU GPL license terms are incorporated into the device rmware and can
be accessed via the Web user interface of the device at my_device_ip/gpl_
license. It can also be accessed here:
http://www.grandstream.com/legal/open-source-software
To obtain a CD with GPL source code information please submit a written request
