Grizzly G1026 Manuale utente

3 H.P. HEAVY-DUTY SHAPER

MODEL G1026

PARTS LIST

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

REVISED AUGUST, 2001. PRINTED IN TAIWAN

PARTS LIST DISCLAIMER

THIS PARTS LIST AND DRAWINGS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE MACHINE CON-

FIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS PARTS

LIST MAY NOT DEPICT YOUR MACHINE EXACTLY. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIFFERENCES.

PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

-B- G1026 3 H.P. Shaper

G1026 3 H.P. Shaper -C-

REF PART # DESCRIPTION

029 P1026029 MAIN FENCE HOUSING

030 PSB14 CAP SCREW

3⁄8"-16 x 1"

031A P1026031A FENCE MOUNT LEFT

032 P1026032 SWITCH MOUNT BRACKET

033 PSW01 3 H.P. MAGNETIC SWITCH

035 PSW03 FWD/REV SWITCH

036 P1035034 BRACKET

037 P1035031 SWITCH BOX

038 P1071075 STRAIN RELIEF

039 P1035033 SWITCH BOX COVER

040 PHTEK1 SELF-TAPPING SCREW

041 P1026041 SCALE

042 P1026042 GROMMET

043 P1026043 MOTOR CORD

044 P1026044 POWER CORD

045 PSW01-1 REPLACEMENT SCREW

046 P1026046 LOCK HANDLE

047 G8588 GRIZZLY NAMEPLATE

048 P1026048 ID/WARNING LABEL

049 PB16 HEX BOLT 3⁄8"-16 X 11⁄4"

050 P1026050 ELECTRICITY LABEL

051 P1026051 SAFETY GLASSES LABEL

052 P1026052 READ MANUAL LABEL

053 P1026053 HAND/CUTTER LABEL

054 P1026054 UNPLUG MACHINE LABEL

001 P1026001 STAND BODY

002 P1026002 EXTENSION WING

003 PB18 HEX BOLT 3⁄8"-16 x 11⁄4"

004 PLW04 LOCK WASHER 3⁄8"

005 PS07 PHLP HD SCR 1⁄4"-20 x 3⁄8"

006 P1026006 COVER

007 PB21 HEX BOLT 3⁄8"-16 x 3⁄4"

008 PW02 FLAT WASHER 3⁄8"

009 P1026009 TABLE INSERT

010 P1026010 TABLE INSERT

011 P1026011 TABLE INSERT

012 P1035012 STARTING PIN

013 PFH02 FLAT HD SCREW 10-24 x 1"

014 1035010 BARREL SCREW

015 P1026015 TABLE

016 PFH07 FLAT HD SCREW 5⁄16"-18 x 11⁄2"

018A P1026018A FENCE MOUNT RIGHT

021 PW07 FLAT WASHER 5⁄16"

022 PN02 HEX NUT 5⁄16"-18

023 PSS07 SETSCREW 1⁄4"-20 x 1⁄2"

024 PSB16 CAP SCREW 3⁄8"-16 x 3⁄4"

025 P1026025 HAND KNOB 3⁄8"

026 PSS17 SETSCREW 5⁄16"-18 x 5⁄16"

027A P1026027A FENCE ADJ SCREW

028 P1026028 ADJ SCREW BRACKET

REF PART # DESCRIPTION

We regret to inform you that the wood

facing for the G1026 Shaper fences are

no longer available as a replacement

part. For your convenience we have

included a measured drawing so you may

construct you own. We apologize for any

inconvenience this may cause you.

-D- G1026 3 H.P. Shaper

G1026 3 H.P. Shaper -E-

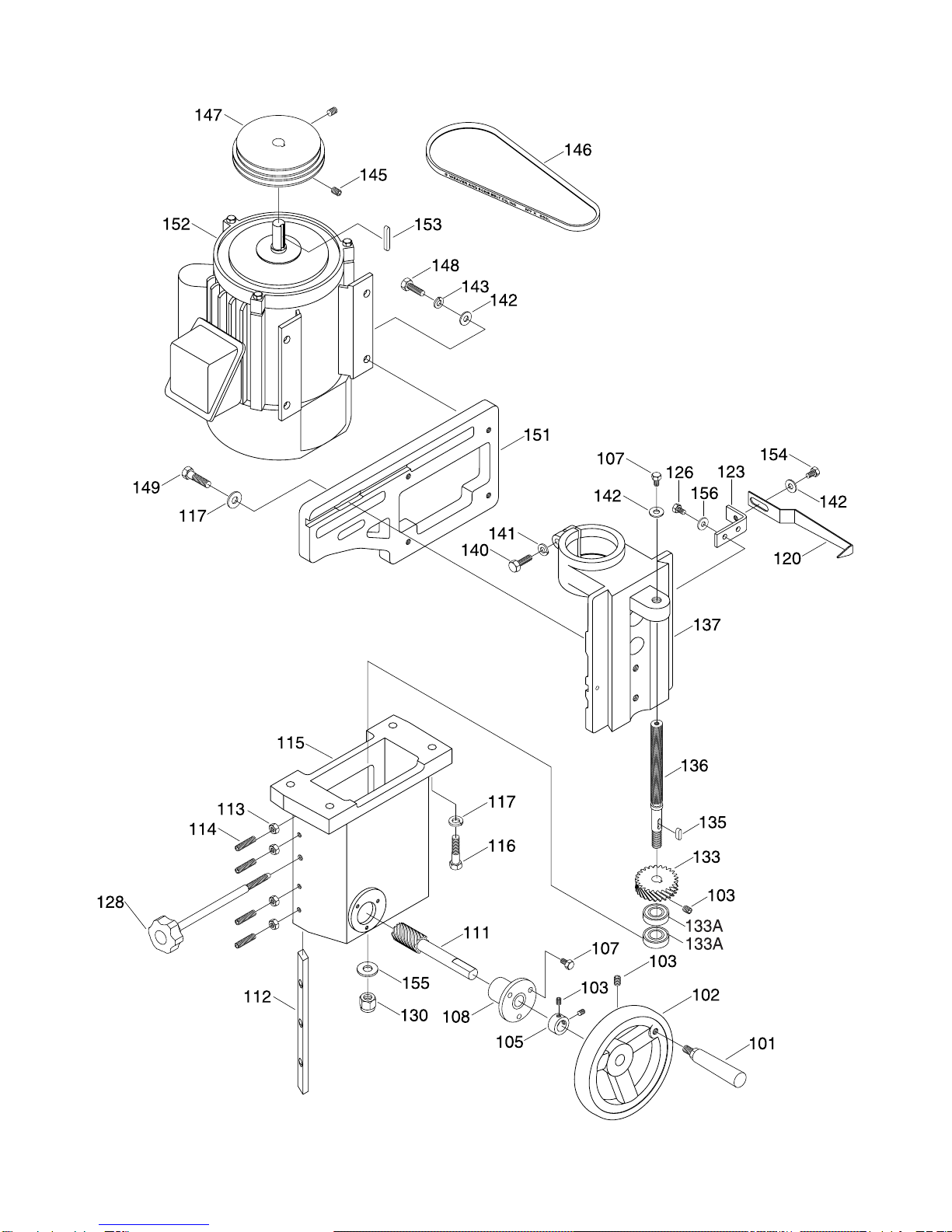

REF PART # DESCRIPTION

101 P1026101 HANDLE

102 P1026102 HANDWHEEL

103 PSS17 SETSCREW 5⁄16"-18 x 5⁄16"

105 P1026105 SLEEVE

107 PB07 HEX BOLT 5⁄16"-18 x 3⁄4"

108 P1026108 SHAFT MOUNT

111 P1026111 WORM SHAFT

112 P1026112 GIB

113 PN02 HEX NUT 5⁄16"-18

114 PSS14 SETSCREW 5⁄16"-18 x 13⁄8"

115 P1026115 ELEVATION HOUSING

116 PB56 HEX BOLT 1⁄2"-13 x 13⁄4"

117 PW01 FLAT WASHER 1⁄2"

120 P1026120 POINTER

123 P1026123 POINTER MOUNT

126 PB19 HEX BOLT 1⁄4"-20 x 1⁄2"

128 P1026128 LOCK KNOB

130 PLN07 LOCK NUT 5⁄8"-11

133 P1026133 GEAR

REF PART # DESCRIPTION

133A P1026133A THRUST BEARING 51103

135 PK14M KEY 5 x 5 x 18

136 P1026136 ELEVATION LEAD SCREW

139 PRP24M ROLL PIN 5 x 16

140 PB16 HEX BOLT 1⁄2"-13 x 13⁄8"

141 PLW04 LOCK WASHER 3⁄8"

142 PW07 FLAT WASHER 5⁄16"

143 PLW01 LOCK WASHER 5⁄16"

145 PSS23 SETSCREW 5⁄16"-24 x 5⁄8"

146 P1026146 V-BELT M7 x 690

147 P1026147 MOTOR PULLEY

148 PB03 HEX BOLT 5⁄16"-18 x 1"

149 PB56 HEX BOLT 1⁄2"-13 x 13⁄4"

151 P1026151 MOTOR MOUNT PLATE

152 P1026152 3H.P. MOTOR

153 PK15M KEY 5 x 5 x 35

154 PB09 HEX BOLT 5⁄16"-18 x 1⁄2"

155 PW14 FLAT WASHER 5⁄8"

156 PW06 FLAT WASHER 1⁄4"

-F- G1026 3 H.P. Shaper

G1026 3 H.P. Shaper -G-

Bore Diameter Height Replacement Part #

1⁄2'' 1'' 1⁄4'' G2454

1⁄2'' 1'' 3⁄8'' G2455

1⁄2'' 1'' 1⁄2'' G2456

1⁄2'' 1'' 3⁄4'' G2457

3⁄4'' 11⁄4'' 1⁄4'' G2460

3⁄4'' 11⁄4'' 3⁄8'' G2461

3⁄4'' 11⁄4'' 1⁄2'' G2462

3⁄4'' 11⁄4'' 3⁄4'' G2463

1'' 11⁄2'' 1⁄4'' G2466

1'' 11⁄2'' 3⁄8'' G2467

1'' 11⁄2'' 1⁄2'' G2468

1'' 11⁄2'' 3⁄4'' G2469

1'' 11⁄2'' 1'' G2470

11⁄4'' 13⁄4'' 1⁄4'' G2472

11⁄4'' 13⁄4'' 3⁄8'' G2473

11⁄4'' 13⁄4'' 1⁄2'' G2474

11⁄4'' 13⁄4'' 3⁄4'' G2475

11⁄4'' 13⁄4'' 1'' G2476

215 P1026215 3⁄4" SPINDLE

216 P1026216 1" SPINDLE

217 P1026217 DRAW BAR

218 P1026218 DRAW NUT

219 P1035201C 1⁄2" SPINDLE NUT

220 P1026220D 3⁄4" SPINDLE NUT

221 P1026221 1" SPINDLE NUT

222 P1026222 PIN

223 P1026223 1⁄2" SPINDLE WASHER

224A P1026224A 3⁄4" SPINDLE WASHER

225A P1026225A 1" SPINDLE WASHER

226 P1026219 SPINDLE WRENCH SET

201 PS01 PHILLIPS®HD SCR 10-24 x 1⁄2"

202 PR12M SNAP RING 35MM

203 P1026203 FLANGE

204 P1026204 SPINDLE CARTRIDGE

205 PK20M KEY 5 x 5 x 15

206 P6205 BEARING

207 PR11M SNAP RING 25MM

209 P1026209 HOUSING

210 PR14M SNAP RING 70MM

211 P1026211 PULLEY

212 P1035218 TOOTHED WASHER

213 P1025219 SPANNER NUT

214 P1026214 1⁄2" SPINDLE

REF PART # DESCRIPTIONREF PART # DESCRIPTION

SPACERS

-H- G1026 3 H.P. Shaper

309 P1026309 SHAFT

310 P1026310 LOCK HANDLE

313 PN02 HEX NUT 5⁄16"-18

314 P1026314 GUARD EXTENSION

315 P1026315 GUARD

316 PFH14 FLT HD SCREW 5⁄16"-18 x 3⁄4"

301 PSS02 SETSCREW 5⁄16"-18 x 3⁄8"

302 P1026302 SHAFT MOUNT

303 PW02 FLAT WASHER 3⁄8"

304 PB21 HEX BOLT 3⁄8"-16 x 3⁄4"

305 P1026305 EXTENSION BRACKET

306 P1026306 LOCK KNOB

REF PART # DESCRIPTION REF PART # DESCRIPTION

G1026 3 H.P. Shaper -I-

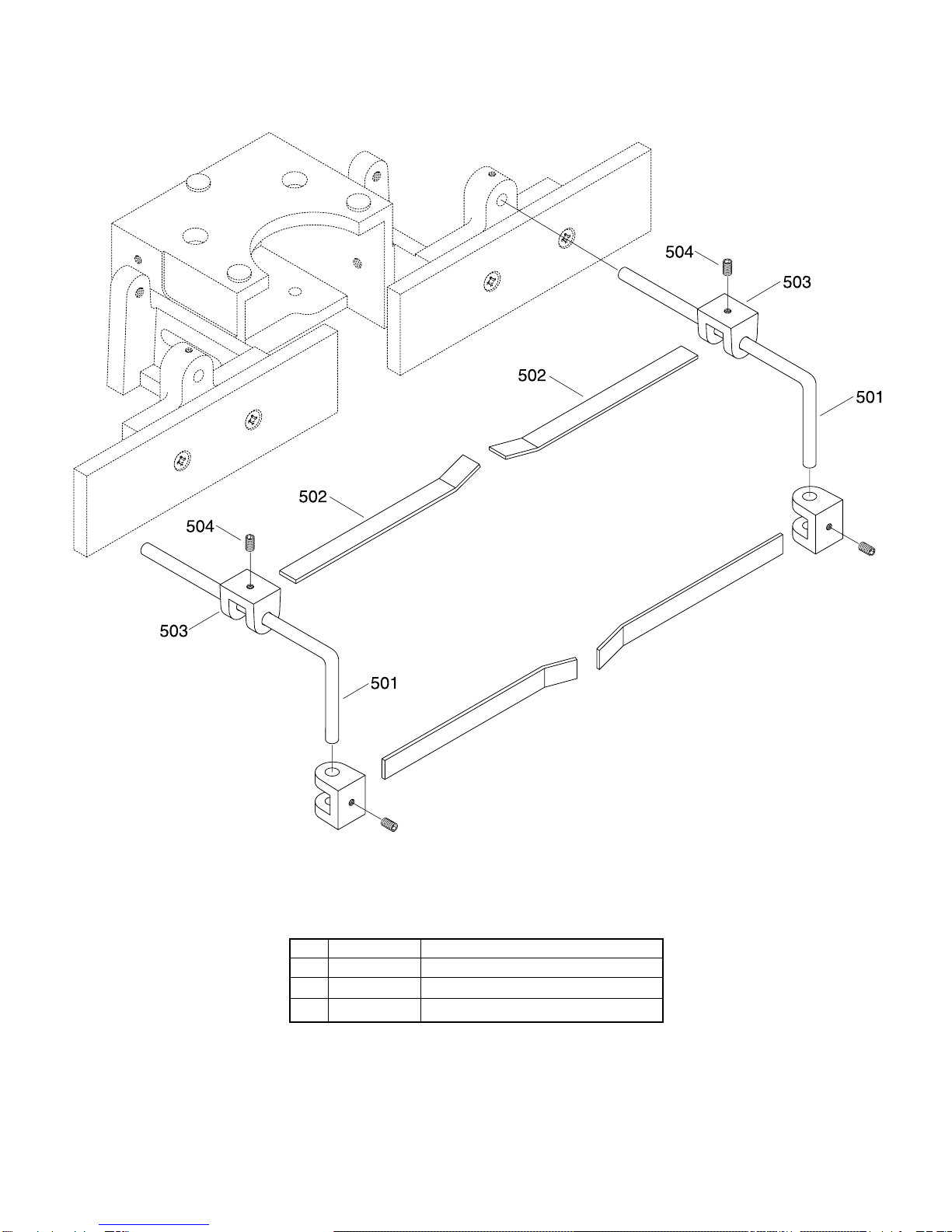

501 P1026501 HOLD-DOWN BAR

502 P1026502 HOLD-DOWN

503 P1026503 BRACKET HOLD-DOWN

504 PSS02 SETSCREW 5⁄16"-18 x 3⁄8"

REF PART # DESCRIPTION

-J- G1026 3 H.P. Shaper

601 P1023401 KNOB

602 P1023402 FLAT WASHER 5⁄16"

603 P1023403 MITER GAUGE BODY

604 P1023406 MITER BAR

607 P1023407 HEX NUT

608 P1023408 SETSCREW

609 P1023409 SETSCREW

610 P1023410 STOP

611 P1023411 POINTER

612 P1023212 SCALE

613 P1023413 STUD

REF# PART# DESCRIPTION
