T10002 & T10003 Shelf Units -1-

MODEL T10002 & T10003

SHELF UNITS

INSTRUCTION SHEET

T10003 Parts List

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TJ10001 PRINTED IN CHINA

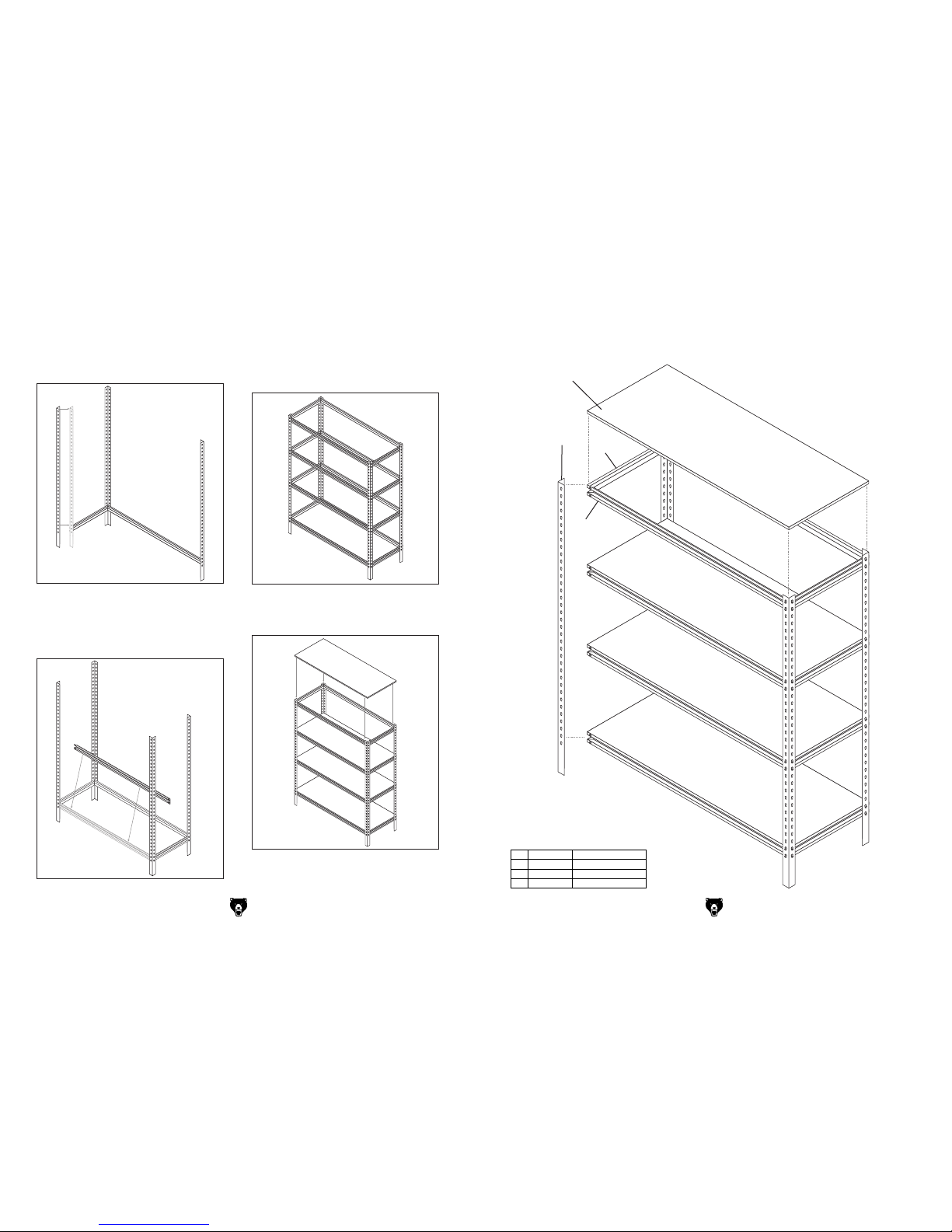

Figure 1. T10002 4 Shelf Unit & T10003 5 Shelf Unit.

T10002 Specifications

Overall Size ................... 481⁄2"W x 191⁄2"D x 60"T

Shelf Size .......................................48"W x 19"D

Number of Shelves ............................................ 4

T10003 Specifications

Overall Size ................... 481⁄2"W x 191⁄2"D x 70"T

Shelf Size .......................................48"W x 19"D

Number of Shelves ............................................ 4

Inventory Qty: T1002 T1003

A. 48" Shelf Support ................... 8 10

B. 19" Shelf Support .................... 8 10

C. Vertical Rail ............................. 4 4

D. Shelf ........................................ 4 5

Assembly

After unpacking your shelving unit, inventory the

parts. You will need a large bench or open floor

area to assemble the shelves.

1. Begin by attaching a 48" shelf support to

the bottom of two vertical rails as shown in

Figure 2. This is done by inserting the two T-

shaped circular pins, at both ends of all shelf

supports, into the keyhole shaped slots on

the rails and sliding them down into place.

Figure 2. Attaching long shelf support.

Figure 3. Attaching short shelf support.

Next, attach a 19" shelf support to the adjacent

slots on the rail as shown in Figure 3.

T10003 Parts List

REF PART # DESCRIPTION

1 PT10002001 SHELF 48" X 19"

2 PT10003002 VERTICAL RAIL 70"

3 PT10002003 SHELF SUPPORT 19"

4 PT10002004 SHELF SUPPORT 48"

-2- T10002 & T10003 Shelf Units

T10002 & T10003 Shelf Units -3-

3. Now attach a third vertical rail to the opposite

side of the 19" shelf support installed in Step

2, as shown in Figure 4.

4. Repeat Steps 2 and 3 for the opposite side.

5. Attach a fourth 48" shelf support as shown in

Figure 5.

Figure 4. Attaching a third rail.

Figure 5. Attaching fourth shelf support.

Figure 6. Repeating steps 1-5.

Repeat this process for the remaining shelf

supports, placing them at the desired height,

making sure that the shelf supports for a given

shelf are all at the same height (Figure 6).

Figure 7. Placing the shelves

T10002 Parts Breakdown

T10002 Parts List

If you need help with your new item, call our Tech

Support at: (570) 546-9663.

REF PART # DESCRIPTION

1 PT10002001 SHELF 48" X 19"

2 PT10002002 VERTICAL RAIL 60"

3 PT10002003 SHELF SUPPORT 19"

4 PT10002004 SHELF SUPPORT 48"

7. Finally, place the shelves on the shelf supports

from the bottom up as shown in Figure 7.
